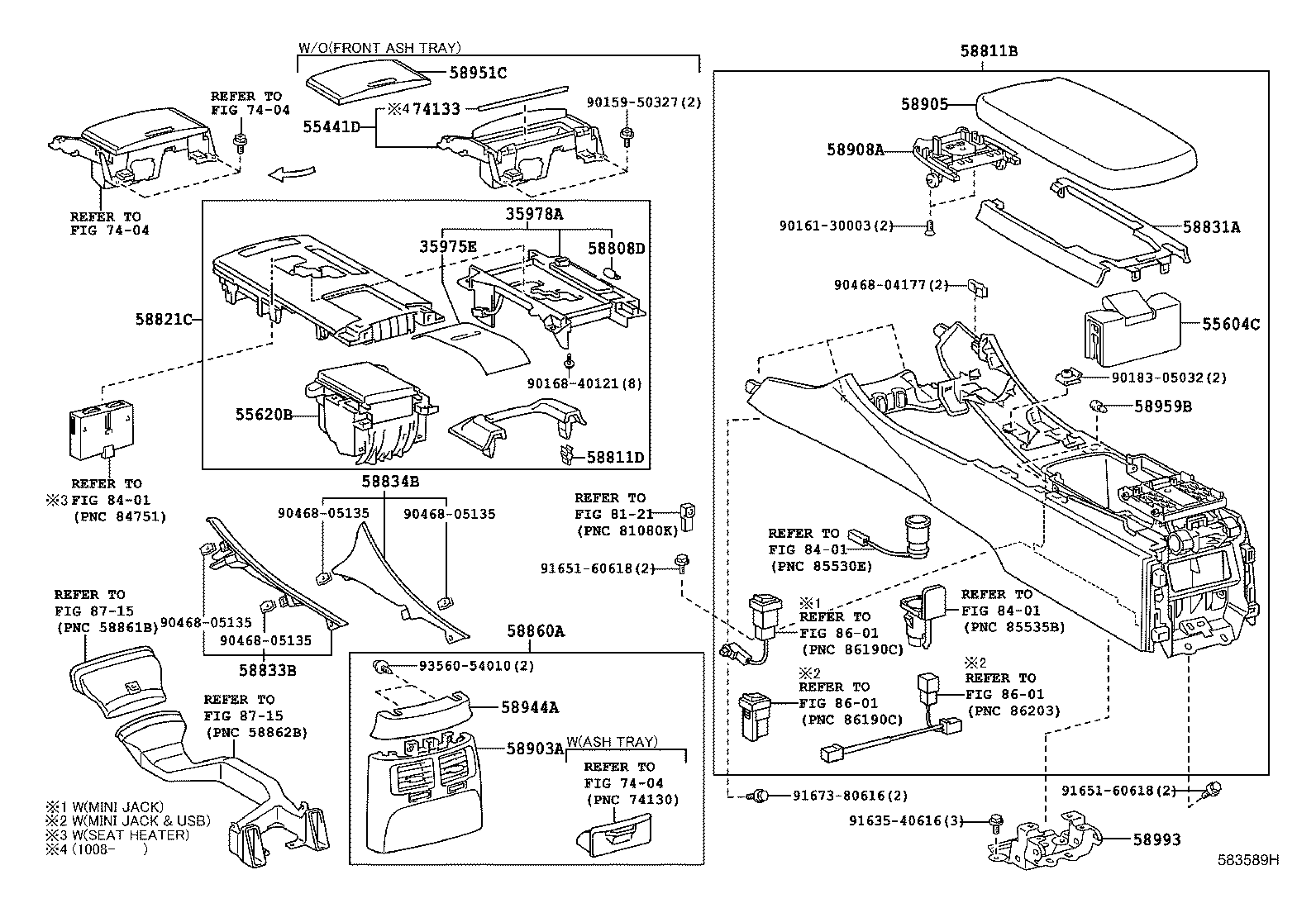

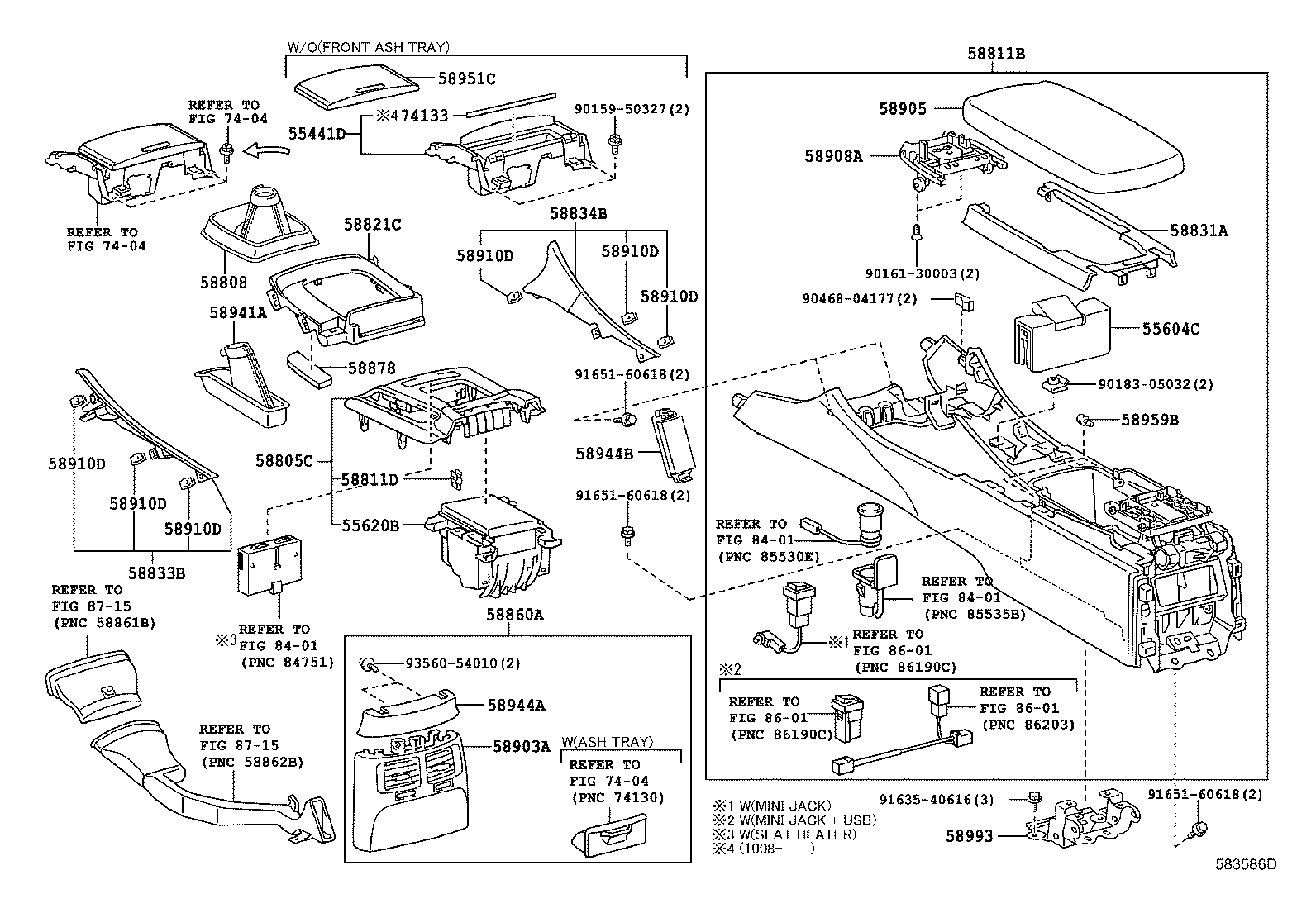

GSE20L-AKTLHW (2009)
Toyota Lexus Is250c
(0904- )6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55441D - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-53060 |
GSE20 LUXURY PACKAGE&ASH TRAY-FRONT/WITHOUT,REAR/WITH |
1 | ||
| 55441-53080 |
GSE20 |
1 | ||
| 55441-53060 |
GSE20 ASH TRAY-FRONT/WITHOUT,REAR/WITH |
1 | ||
| 55441-53070 |
GSE20 |
1 | ||
| 55604C - HOLDER SUB-ASSY, CONSOLE BOX CUP | ||||
| 55604-53070 |
GSE20 |
1 | ||
| 55620B - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-53020B0 |
GSE20..6FC LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,GRAY,TRIM01,03,05,11,21,34,37,41 |
1 | ||
| 55620-53011 |
GSE20..6FC |
1 | ||
| 55620-53020E0 |
GSE20..6FC LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BROWN,TRIM06,07,08,12,22,35,38,42 |
1 | ||
| 55620-53060E0 |
GSE20..LHD..6F LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,LT.BROWN,TRIM00,02,04,20 |
1 | ||
| 55620-53060E1 |
GSE20..LHD..6F LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,DK.BROWN,TRIM06,07,08,22 |
1 | ||
| 55620-53060E0 |
GSE20..LHD..6F LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,LT.BROWN,TRIM00,02,04,20 |
1 | ||
| 55620-53020E0 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BROWN,TRIM06,07,08,12,22,35,38,42 |
1 | ||
| 55620-53060E1 |
GSE20..LHD..6F LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,DK.BROWN,TRIM06,07,08,22 |
1 | ||
| 55620-53051 |
GSE20..LHD..6F |
1 | ||
| 55620-53160 |
GSE20 F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT) |
1 | ||
| 55620-53020E0 |
GSE20..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BROWN,TRIM06,07,08,12,22,35,38,42 |
1 | ||
| 55620-53020E2 |
GSE20..6FC LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,LT.BROWN,TRIM00,02,04,10,20,33,36,40 |
1 | ||
| 55620-53060B0 |
GSE20..LHD..6F LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,GRAY,TRIM01,03,05,21 |
1 | ||
| 55620-53020B0 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,GRAY,TRIM01,03,05,11,21,34,37,41 |
1 | ||
| 55620-53110 |
GSE20 F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT) |
1 | ||
| 55620-53060B0 |
GSE20..LHD..6F LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,GRAY,TRIM01,03,05,21 |
1 | ||
| 55620-53020E2 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,LT.BROWN,TRIM00,02,04,10,20,33,36,40 |
1 | ||
| 55620-53020B0 |
GSE20..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,GRAY,TRIM01,03,05,11,21,34,37,41 |
1 | ||
| 55620-53020E2 |
GSE20..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,LT.BROWN,TRIM00,02,04,10,20,33,36,40 |
1 | ||
| 55620-53012 |
GSE20 |
1 | ||
| 58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR | ||||
| 58805-53051C0 |
GSE20..LHD..6F BLACK,TRIM0#,2# |
1 | ||
| 58805-53060C3 |
GSE20..LHD..6F LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK,TRIM06,07,08,22 |
1 | ||
| 58805-53060C1 |
GSE20..LHD..6F LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/GRAY,TRIM01,03,05,21 |
1 | ||
| 58805-53060C2 |
GSE20..LHD..6F LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/LT.BROWN,TRIM00,02,04,20 |
1 | ||
| 58805-53060C2 |
GSE20..LHD..6F LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK/LT.BROWN,TRIM00,02,04,20 |
1 | ||
| 58805-53060C3 |
GSE20..LHD..6F LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM06,07,08,22 |
1 | ||
| 58805-53060C1 |
GSE20..LHD..6F LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK/GRAY,TRIM01,03,05,21 |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-53040C0 |
GSE20..6F BLACK,TRIM0#,2# |
1 | ||
| 58811B - BOX, CONSOLE | ||||
| 58810-53330C9 |
GSE20..6FC AUDIO JACK-MINI JACK,BLACK/LT.GRAY,TRIM2# |
1 | ||
| 58810-5325021 |
GSE20..6FC FRONT SEAT-SEMIANILINE LEATHER&AUDIO JACK-MINI JACK,BLACK,TRIM2# |
1 | ||
| 58810-5325023 |
GSE20..6FC FRONT SEAT-SEMIANILINE LEATHER&AUDIO JACK-MINI JACK,MELLOW WHITE,TRIM0# |
1 | ||
| 58810-53270C8 |
GSE20..6F FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK/LT.GRAY,TRIM2# |
1 | ||
| 58810-53330C8 |
GSE20..6FC AUDIO JACK-MINI JACK,BLACK/MELLOW WHITE,TRIM0# |
1 | ||
| 58810-53270C9 |
GSE20..6F FRONT SEAT-SEMIANILINE LEATHER,BLACK/MELLOW WHITE,TRIM0# |
1 | ||
| 58810-5325021 |
GSE20..6FC FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR&AUDIO JACK-MINI JACK,BLACK,TRIM2# |
1 | ||
| 58810-53290C8 |
GSE20..6FC FRONT SEAT-SEMIANILINE LEATHER,BLACK/LT.GRAY,TRIM2# |
1 | ||
| 58810-5329020 |
GSE20..6FC FRONT SEAT-SEMIANILINE LEATHER,BLACK/MELLOW WHITE,TRIM0# |
1 | ||
| 58810-53290C8 |
GSE20..6FC FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK/LT.GRAY,TRIM2# |
1 | ||
| 58810-53350C8 |
GSE20..6FC BLACK/LT.GRAY,TRIM2# |
1 | ||
| 58810-5325023 |
GSE20..6FC FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR&AUDIO JACK-MINI JACK,MELLOW WHITE,TRIM0# |
1 | ||
| 58810-5329020 |
GSE20..6FC FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK/MELLOW WHITE,TRIM0# |
1 | ||
| 58810-53350C9 |
GSE20..6FC BLACK/MELLOW WHITE,TRIM0# |
1 | ||
| 58810-53270C9 |
GSE20..6F FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK/MELLOW WHITE,TRIM0# |
1 | ||
| 58810-53410C3 |
GSE20 BLACK/MELLOW WHITE,TRIM0# |
1 | ||
| 58810-5341024 |
GSE20 BLACK/BLACK/DK.ROSE,TRIM39 |
1 | ||
| 58810-53410C8 |
GSE20 BLACK/SADDLE TAN,TRIM4# |
1 | ||
| 58810-53340C8 |
GSE20..6F BLACK/LT.GRAY,TRIM2# |
1 | ||
| 58810-53410C0 |
GSE20 BLACK/LT.GRAY/BLACK,TRIM1#,2# |
1 | ||
| 58810-53270C8 |
GSE20..6F FRONT SEAT-SEMIANILINE LEATHER,BLACK/LT.GRAY,TRIM2# |
1 | ||
| 58810-53410C7 |
GSE20 BLACK/RED NO.55,TRIM3# |
1 | ||
| 58810-53410C7 |
GSE20 BLACK/RED NO.55,TRIM33,34,35,36,37,38 |
1 | ||
| 58810-53340C9 |
GSE20..6F BLACK/MELLOW WHITE,TRIM0# |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-10203 |
GSE20..6FC |
8 | ||
| 90467-10203 |
GSE20..6F |
2 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58804-53140C4 |
GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM06,07,08,22 |
1 | ||
| 58804-53140C2 |
GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK/GRAY,TRIM01,03,05,21 |
1 | ||
| 58804-53140C4 |
GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK,TRIM06,07,08,22 |
1 | ||
| 58804-53140C2 |
GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/GRAY,TRIM01,03,05,21 |
1 | ||
| 58804-53131C0 |
GSE20..LHD..6FC BLACK,TRIM0#,2# |
1 | ||
| 58804-53140C3 |
GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK/LT.BROWN,TRIM00,02,04,20 |
1 | ||
| 58804-53140C3 |
GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/LT.BROWN,TRIM00,02,04,20 |
1 | ||
| 58821-53030 |
GSE20..LHD..6F |
1 | ||
| 58804-53140C4 |
GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK,TRIM06,07,08,12,22,35,38,42 |
1 | ||
| 58804-53140C2 |
GSE20..LHD LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK/GRAY,TRIM01,03,05,11,21,34,37,41 |
1 | ||
| 58804-53140C2 |
GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK/GRAY,TRIM01,03,05,11,21,34,37,41 |
1 | ||
| 58804-53290C0 |
GSE20..LHD F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),BLACK,TRIM2# |
1 | ||
| 58804-53140C3 |
GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK/LT.BROWN,TRIM00,02,04,10,20,33,36,40 |
1 | ||
| 58804-53140C3 |
GSE20..LHD LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK/LT.BROWN,TRIM00,02,04,10,20,33,36,40 |
1 | ||
| 58804-53140C3 |
GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/LT.BROWN,TRIM00,02,04,10,20,33,36,40 |
1 | ||
| 58804-53410C0 |
GSE20..LHD F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),BLACK,TRIM2#,3# |
1 | ||
| 58804-53140C4 |
GSE20..LHD LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK,TRIM06,07,08,12,22,35,38,42 |
1 | ||
| 58804-53140C2 |
GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/GRAY,TRIM01,03,05,11,21,34,37,41 |
1 | ||
| 58804-53140C4 |
GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM06,07,08,12,22,35,38,42 |
1 | ||
| 58804-53132C0 |
GSE20..LHD BLACK,TRIM0#,2# |
1 | ||
| 58831A - GARNISH, CONSOLE UPPER PANEL, FRONT | ||||
| 58831-53010C0 |
GSE20 BLACK,TRIM0#,2# |
1 | ||
| 58831-53010C0 |
GSE20 BLACK,TRIM0#,1#,2#,3#,4# |
1 | ||
| 58833B - GARNISH, CONSOLE UPPER PANEL, NO.1 | ||||
| 58833-53090 |
GSE20..6FC |
1 | ||
| 58833-53080 |
GSE20..LHD..6F |
1 | ||
| 58834B - GARNISH, CONSOLE UPPER PANEL, NO.2 | ||||
| 58834-53070 |
GSE20..LHD..6F |
1 | ||
| 58834-53080 |
GSE20..6FC |
1 | ||
| 58860A - REGISTER ASSY, CONSOLE BOX | ||||
| 58860-53010C0 |
GSE20..6FC BLACK,TRIM0#,1#,2#,3#,4# |
1 | ||
| 58860-53020C0 |
GSE20 BLACK,TRIM0#,1#,2#,3#,4# |
1 | ||
| 58860-53010C0 |
GSE20 ASH TRAY-FRONT/WITH,REAR/WITH,BLACK,TRIM0#,1#,2#,3#,4# |
1 | ||
| 58860-53010C0 |
GSE20..6F BLACK,TRIM0#,2# |
1 | ||
| 58878 - PAD, CONSOLE BOX SILENCER, NO.4 | ||||
| 58878-53020 |
GSE20..LHD..6F |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-53010C0 |
GSE20..6FC BLACK,TRIM0#,1#,2#,3#,4# |
1 | ||
| 58903-53020C0 |
GSE20 BLACK,TRIM0#,1#,2#,3#,4# |
1 | ||
| 58903-53010C0 |
GSE20 ASH TRAY-FRONT/WITH,REAR/WITH,BLACK,TRIM0#,1#,2#,3#,4# |
1 | ||
| 58903-53010C0 |
GSE20..6F BLACK,TRIM0#,2# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-53190C5 |
GSE20 BLACK/RED NO.55,TRIM3# |
1 | ||
| 58905-53090C3 |
GSE20 FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2# |
1 | ||
| 58905-53090A8 |
GSE20..RHD;GSE20..LHD..6FC FRONT SEAT-SEMIANILINE LEATHER&AUDIO JACK-MINI JACK,MELLOW WHITE,TRIM0# |
1 | ||
| 58905-53090C3 |
GSE20..RHD;GSE20..LHD..6FC FRONT SEAT-SEMIANILINE LEATHER&AUDIO JACK-MINI JACK,BLACK,TRIM2# |
1 | ||
| 58905-53090C3 |
GSE20 FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK,TRIM2# |
1 | ||
| 58905-53090A8 |
GSE20..RHD;GSE20..LHD..6FC FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR&AUDIO JACK-MINI JACK,MELLOW WHITE,TRIM0# |
1 | ||
| 58905-53090A8 |
GSE20 FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0# |
1 | ||
| 58905-53090A8 |
GSE20 FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM0# |
1 | ||
| 58905-53190C5 |
GSE20 BLACK/RED NO.55,TRIM33,34,35,36,37,38 |
1 | ||
| 58905-53190C0 |
GSE20 BLACK/LT.GRAY,TRIM1#,2# |
1 | ||
| 58905-53170C2 |
GSE20 BLACK,TRIM2# |
1 | ||
| 58905-53190A3 |
GSE20 MELLOW WHITE,TRIM0# |
1 | ||
| 58905-53190C6 |
GSE20 BLACK/SADDLE TAN,TRIM4# |
1 | ||
| 58905-53090C3 |
GSE20..RHD;GSE20..LHD..6FC FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR&AUDIO JACK-MINI JACK,BLACK,TRIM2# |
1 | ||
| 58905-53170A2 |
GSE20 MELLOW WHITE,TRIM0# |
1 | ||
| 58905-53190C8 |
GSE20 BLACK/DK.ROSE,TRIM39 |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-53041C3 |
GSE20 BLACK,TRIM2# |
1 | ||
| 58908-53041C3 |
GSE20 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58908-53041A5 |
GSE20 MELLOW WHITE,TRIM0# |
1 | ||
| 58910D - CLIP(FOR CONSOLE BOX) | ||||
| 90468-05135 |
GSE20..6F |
6 | ||
| 58910D - CLIP(FOR CONSOLE BOX) | ||||
| 90468-05135 |
GSE20..6F |
6 | ||
| 58910D - CLIP(FOR CONSOLE BOX) | ||||
| 90468-05135 |
GSE20..6F |
6 | ||
| 58910D - CLIP(FOR CONSOLE BOX) | ||||
| 90468-05135 |
GSE20..6F |
6 | ||
| 58910D - CLIP(FOR CONSOLE BOX) | ||||
| 90468-05135 |
GSE20..6F |
6 | ||
| 58910D - CLIP(FOR CONSOLE BOX) | ||||
| 90468-05135 |
GSE20..6F |
6 | ||
| 58941A - COVER, PARKING BRAKE HOLE | ||||
| 58809-53060C0 |
GSE20..LHD..6F BLACK,TRIM0#,2# |
1 | ||
| 58944A - COVER, CONSOLE, REAR | ||||
| 58944-53010C0 |
GSE20..6FC BLACK,TRIM0#,1#,2#,3#,4# |
1 | ||
| 58944-53010C0 |
GSE20..6F BLACK,TRIM0#,2# |
1 | ||
| 58944B - COVER, CONSOLE, REAR | ||||
| 58944-53020 |
GSE20..6F |
1 | ||
| 58951C - DOOR, BOX | ||||
| 74103-53030 |
GSE20 F SPORT |
1 | ||
| 74103-53011 |
GSE20 ASH TRAY-FRONT/WITHOUT,REAR/WITH |
1 | ||
| 74103-53080 |
GSE20 F SPORT |
1 | ||
| 74103-53012 |
GSE20 |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
GSE20 |
2 | ||
| 58993 - BRACKET, CONSOLE BOX MOUNTING, REAR | ||||
| 58993-53030 |
GSE20..6F |
1 | ||
| 58993-53050 |
GSE20..6FC |
1 | ||
| 74133 - SEAL, FRONT ASH RECEPTACLE | ||||
| 74133-30140 |
GSE20 |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90161-30003 | ||||
| 90183-05032 | ||||
| 90468-04177 | ||||
| 91635-40616 | ||||
| 91651-60618 | ||||
| 93560-54010 | ||||
| Linked diagrams | ||||
| 7404 | ||||
| 8401 | ||||
| 8601 | ||||
| 8715 | ||||
(0904- )6FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35975E - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-53020 |
GSE20..6FC |
1 | ||
| 35978A - INDICATOR, SHIFT POSITION | ||||
| 35978-53020 |
GSE20..LHD..6FC |
1 | ||
| 55441D - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-53060 |
GSE20 LUXURY PACKAGE&ASH TRAY-FRONT/WITHOUT,REAR/WITH |
1 | ||
| 55441-53080 |
GSE20 |
1 | ||
| 55441-53060 |
GSE20 ASH TRAY-FRONT/WITHOUT,REAR/WITH |
1 | ||
| 55441-53070 |
GSE20 |
1 | ||
| 55604C - HOLDER SUB-ASSY, CONSOLE BOX CUP | ||||
| 55604-53070 |
GSE20 |
1 | ||
| 55620B - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-53020B0 |
GSE20..6FC LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,GRAY,TRIM01,03,05,11,21,34,37,41 |
1 | ||
| 55620-53011 |
GSE20..6FC |
1 | ||
| 55620-53020E0 |
GSE20..6FC LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BROWN,TRIM06,07,08,12,22,35,38,42 |
1 | ||
| 55620-53060E0 |
GSE20..LHD..6F LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,LT.BROWN,TRIM00,02,04,20 |
1 | ||
| 55620-53060E1 |
GSE20..LHD..6F LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,DK.BROWN,TRIM06,07,08,22 |
1 | ||
| 55620-53060E0 |
GSE20..LHD..6F LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,LT.BROWN,TRIM00,02,04,20 |
1 | ||
| 55620-53020E0 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BROWN,TRIM06,07,08,12,22,35,38,42 |
1 | ||
| 55620-53060E1 |
GSE20..LHD..6F LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,DK.BROWN,TRIM06,07,08,22 |
1 | ||
| 55620-53051 |
GSE20..LHD..6F |
1 | ||
| 55620-53160 |
GSE20 F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT) |
1 | ||
| 55620-53020E0 |
GSE20..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BROWN,TRIM06,07,08,12,22,35,38,42 |
1 | ||
| 55620-53020E2 |
GSE20..6FC LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,LT.BROWN,TRIM00,02,04,10,20,33,36,40 |
1 | ||
| 55620-53060B0 |
GSE20..LHD..6F LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,GRAY,TRIM01,03,05,21 |
1 | ||
| 55620-53020B0 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,GRAY,TRIM01,03,05,11,21,34,37,41 |
1 | ||
| 55620-53110 |
GSE20 F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT) |
1 | ||
| 55620-53060B0 |
GSE20..LHD..6F LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,GRAY,TRIM01,03,05,21 |
1 | ||
| 55620-53020E2 |
GSE20 LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,LT.BROWN,TRIM00,02,04,10,20,33,36,40 |
1 | ||
| 55620-53020B0 |
GSE20..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,GRAY,TRIM01,03,05,11,21,34,37,41 |
1 | ||
| 55620-53020E2 |
GSE20..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,LT.BROWN,TRIM00,02,04,10,20,33,36,40 |
1 | ||
| 55620-53012 |
GSE20 |
1 | ||
| 58808D - SHIFT INDICATOR LAMP BULB | ||||
| 81936-53010 |
GSE20..6FC |
1 | ||
| 58811B - BOX, CONSOLE | ||||
| 58810-53330C9 |
GSE20..6FC AUDIO JACK-MINI JACK,BLACK/LT.GRAY,TRIM2# |
1 | ||
| 58810-5325021 |
GSE20..6FC FRONT SEAT-SEMIANILINE LEATHER&AUDIO JACK-MINI JACK,BLACK,TRIM2# |
1 | ||
| 58810-5325023 |
GSE20..6FC FRONT SEAT-SEMIANILINE LEATHER&AUDIO JACK-MINI JACK,MELLOW WHITE,TRIM0# |
1 | ||
| 58810-53270C8 |
GSE20..6F FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK/LT.GRAY,TRIM2# |
1 | ||
| 58810-53330C8 |
GSE20..6FC AUDIO JACK-MINI JACK,BLACK/MELLOW WHITE,TRIM0# |
1 | ||
| 58810-53270C9 |
GSE20..6F FRONT SEAT-SEMIANILINE LEATHER,BLACK/MELLOW WHITE,TRIM0# |
1 | ||
| 58810-5325021 |
GSE20..6FC FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR&AUDIO JACK-MINI JACK,BLACK,TRIM2# |
1 | ||
| 58810-53290C8 |
GSE20..6FC FRONT SEAT-SEMIANILINE LEATHER,BLACK/LT.GRAY,TRIM2# |
1 | ||
| 58810-5329020 |
GSE20..6FC FRONT SEAT-SEMIANILINE LEATHER,BLACK/MELLOW WHITE,TRIM0# |
1 | ||
| 58810-53290C8 |
GSE20..6FC FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK/LT.GRAY,TRIM2# |
1 | ||
| 58810-53350C8 |
GSE20..6FC BLACK/LT.GRAY,TRIM2# |
1 | ||
| 58810-5325023 |
GSE20..6FC FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR&AUDIO JACK-MINI JACK,MELLOW WHITE,TRIM0# |
1 | ||
| 58810-5329020 |
GSE20..6FC FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK/MELLOW WHITE,TRIM0# |
1 | ||
| 58810-53350C9 |
GSE20..6FC BLACK/MELLOW WHITE,TRIM0# |
1 | ||
| 58810-53270C9 |
GSE20..6F FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK/MELLOW WHITE,TRIM0# |
1 | ||
| 58810-53410C3 |
GSE20 BLACK/MELLOW WHITE,TRIM0# |
1 | ||
| 58810-5341024 |
GSE20 BLACK/BLACK/DK.ROSE,TRIM39 |
1 | ||
| 58810-53410C8 |
GSE20 BLACK/SADDLE TAN,TRIM4# |
1 | ||
| 58810-53340C8 |
GSE20..6F BLACK/LT.GRAY,TRIM2# |
1 | ||
| 58810-53410C0 |
GSE20 BLACK/LT.GRAY/BLACK,TRIM1#,2# |
1 | ||
| 58810-53270C8 |
GSE20..6F FRONT SEAT-SEMIANILINE LEATHER,BLACK/LT.GRAY,TRIM2# |
1 | ||
| 58810-53410C7 |
GSE20 BLACK/RED NO.55,TRIM3# |
1 | ||
| 58810-53410C7 |
GSE20 BLACK/RED NO.55,TRIM33,34,35,36,37,38 |
1 | ||
| 58810-53340C9 |
GSE20..6F BLACK/MELLOW WHITE,TRIM0# |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-10203 |
GSE20..6FC |
8 | ||
| 90467-10203 |
GSE20..6F |
2 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58804-53140C4 |
GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM06,07,08,22 |
1 | ||
| 58804-53140C2 |
GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK/GRAY,TRIM01,03,05,21 |
1 | ||
| 58804-53140C4 |
GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK,TRIM06,07,08,22 |
1 | ||
| 58804-53140C2 |
GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/GRAY,TRIM01,03,05,21 |
1 | ||
| 58804-53131C0 |
GSE20..LHD..6FC BLACK,TRIM0#,2# |
1 | ||
| 58804-53140C3 |
GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK/LT.BROWN,TRIM00,02,04,20 |
1 | ||
| 58804-53140C3 |
GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/LT.BROWN,TRIM00,02,04,20 |
1 | ||
| 58821-53030 |
GSE20..LHD..6F |
1 | ||
| 58804-53140C4 |
GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK,TRIM06,07,08,12,22,35,38,42 |
1 | ||
| 58804-53140C2 |
GSE20..LHD LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK/GRAY,TRIM01,03,05,11,21,34,37,41 |
1 | ||
| 58804-53140C2 |
GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK/GRAY,TRIM01,03,05,11,21,34,37,41 |
1 | ||
| 58804-53290C0 |
GSE20..LHD F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),BLACK,TRIM2# |
1 | ||
| 58804-53140C3 |
GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK/LT.BROWN,TRIM00,02,04,10,20,33,36,40 |
1 | ||
| 58804-53140C3 |
GSE20..LHD LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK/LT.BROWN,TRIM00,02,04,10,20,33,36,40 |
1 | ||
| 58804-53140C3 |
GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/LT.BROWN,TRIM00,02,04,10,20,33,36,40 |
1 | ||
| 58804-53410C0 |
GSE20..LHD F SPORT&FRONT SEAT-SMOOTH LEATHER(W(AUTOWALK-IN)),(F-SPORT),BLACK,TRIM2#,3# |
1 | ||
| 58804-53140C4 |
GSE20..LHD LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER & TWO-TONE COLOR,BLACK,TRIM06,07,08,12,22,35,38,42 |
1 | ||
| 58804-53140C2 |
GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK/GRAY,TRIM01,03,05,11,21,34,37,41 |
1 | ||
| 58804-53140C4 |
GSE20..LHD..6FC LUXURY PACKAGE&FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM06,07,08,12,22,35,38,42 |
1 | ||
| 58804-53132C0 |
GSE20..LHD BLACK,TRIM0#,2# |
1 | ||
| 58831A - GARNISH, CONSOLE UPPER PANEL, FRONT | ||||
| 58831-53010C0 |
GSE20 BLACK,TRIM0#,2# |
1 | ||
| 58831-53010C0 |
GSE20 BLACK,TRIM0#,1#,2#,3#,4# |
1 | ||
| 58833B - GARNISH, CONSOLE UPPER PANEL, NO.1 | ||||
| 58833-53090 |
GSE20..6FC |
1 | ||
| 58833-53080 |
GSE20..LHD..6F |
1 | ||
| 58834B - GARNISH, CONSOLE UPPER PANEL, NO.2 | ||||
| 58834-53070 |
GSE20..LHD..6F |
1 | ||
| 58834-53080 |
GSE20..6FC |
1 | ||
| 58860A - REGISTER ASSY, CONSOLE BOX | ||||
| 58860-53010C0 |
GSE20..6FC BLACK,TRIM0#,1#,2#,3#,4# |
1 | ||
| 58860-53020C0 |
GSE20 BLACK,TRIM0#,1#,2#,3#,4# |
1 | ||
| 58860-53010C0 |
GSE20 ASH TRAY-FRONT/WITH,REAR/WITH,BLACK,TRIM0#,1#,2#,3#,4# |
1 | ||
| 58860-53010C0 |
GSE20..6F BLACK,TRIM0#,2# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-53010C0 |
GSE20..6FC BLACK,TRIM0#,1#,2#,3#,4# |
1 | ||
| 58903-53020C0 |
GSE20 BLACK,TRIM0#,1#,2#,3#,4# |
1 | ||
| 58903-53010C0 |
GSE20 ASH TRAY-FRONT/WITH,REAR/WITH,BLACK,TRIM0#,1#,2#,3#,4# |
1 | ||
| 58903-53010C0 |
GSE20..6F BLACK,TRIM0#,2# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-53090C3 |
GSE20 FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,BLACK,TRIM2# |
1 | ||
| 58905-53190C5 |
GSE20 BLACK/RED NO.55,TRIM3# |
1 | ||
| 58905-53090C3 |
GSE20 FRONT SEAT-SEMIANILINE LEATHER,BLACK,TRIM2# |
1 | ||
| 58905-53090A8 |
GSE20..RHD;GSE20..LHD..6FC FRONT SEAT-SEMIANILINE LEATHER&AUDIO JACK-MINI JACK,MELLOW WHITE,TRIM0# |
1 | ||
| 58905-53090C3 |
GSE20..RHD;GSE20..LHD..6FC FRONT SEAT-SEMIANILINE LEATHER&AUDIO JACK-MINI JACK,BLACK,TRIM2# |
1 | ||
| 58905-53090A8 |
GSE20..RHD;GSE20..LHD..6FC FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR&AUDIO JACK-MINI JACK,MELLOW WHITE,TRIM0# |
1 | ||
| 58905-53090A8 |
GSE20 FRONT SEAT-SEMIANILINE LEATHER,MELLOW WHITE,TRIM0# |
1 | ||
| 58905-53090A8 |
GSE20 FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR,MELLOW WHITE,TRIM0# |
1 | ||
| 58905-53190C5 |
GSE20 BLACK/RED NO.55,TRIM33,34,35,36,37,38 |
1 | ||
| 58905-53190C0 |
GSE20 BLACK/LT.GRAY,TRIM1#,2# |
1 | ||
| 58905-53170C2 |
GSE20 BLACK,TRIM2# |
1 | ||
| 58905-53190A3 |
GSE20 MELLOW WHITE,TRIM0# |
1 | ||
| 58905-53190C6 |
GSE20 BLACK/SADDLE TAN,TRIM4# |
1 | ||
| 58905-53090C3 |
GSE20..RHD;GSE20..LHD..6FC FRONT SEAT-FULL LEATHER BLUE & WHITE TWO-TONE COLOR&AUDIO JACK-MINI JACK,BLACK,TRIM2# |
1 | ||
| 58905-53170A2 |
GSE20 MELLOW WHITE,TRIM0# |
1 | ||
| 58905-53190C8 |
GSE20 BLACK/DK.ROSE,TRIM39 |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-53041C3 |
GSE20 BLACK,TRIM2# |
1 | ||
| 58908-53041C3 |
GSE20 BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58908-53041A5 |
GSE20 MELLOW WHITE,TRIM0# |
1 | ||
| 58944A - COVER, CONSOLE, REAR | ||||
| 58944-53010C0 |
GSE20..6FC BLACK,TRIM0#,1#,2#,3#,4# |
1 | ||
| 58944-53010C0 |
GSE20..6F BLACK,TRIM0#,2# |
1 | ||
| 58951C - DOOR, BOX | ||||
| 74103-53030 |
GSE20 F SPORT |
1 | ||
| 74103-53011 |
GSE20 ASH TRAY-FRONT/WITHOUT,REAR/WITH |
1 | ||
| 74103-53080 |
GSE20 F SPORT |
1 | ||
| 74103-53012 |
GSE20 |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
GSE20 |
2 | ||
| 58993 - BRACKET, CONSOLE BOX MOUNTING, REAR | ||||
| 58993-53030 |
GSE20..6F |
1 | ||
| 58993-53050 |
GSE20..6FC |
1 | ||
| 74133 - SEAL, FRONT ASH RECEPTACLE | ||||
| 74133-30140 |
GSE20 |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90161-30003 | ||||
| 90168-40121 | ||||
| 90183-05032 | ||||
| 90468-04177 | ||||
| 90468-05135 | ||||
| 91635-40616 | ||||
| 91651-60618 | ||||
| 91673-80616 | ||||
| 93560-54010 | ||||
| Linked diagrams | ||||
| 7404 | ||||
| 8121 | ||||
| 8401 | ||||
| 8601 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
