GSE20L-AKTLHW (2009)
Toyota Lexus Is250c
Production
Apr 2009
-
Jul 2015
Engine
4GRFSE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0904- )LHD

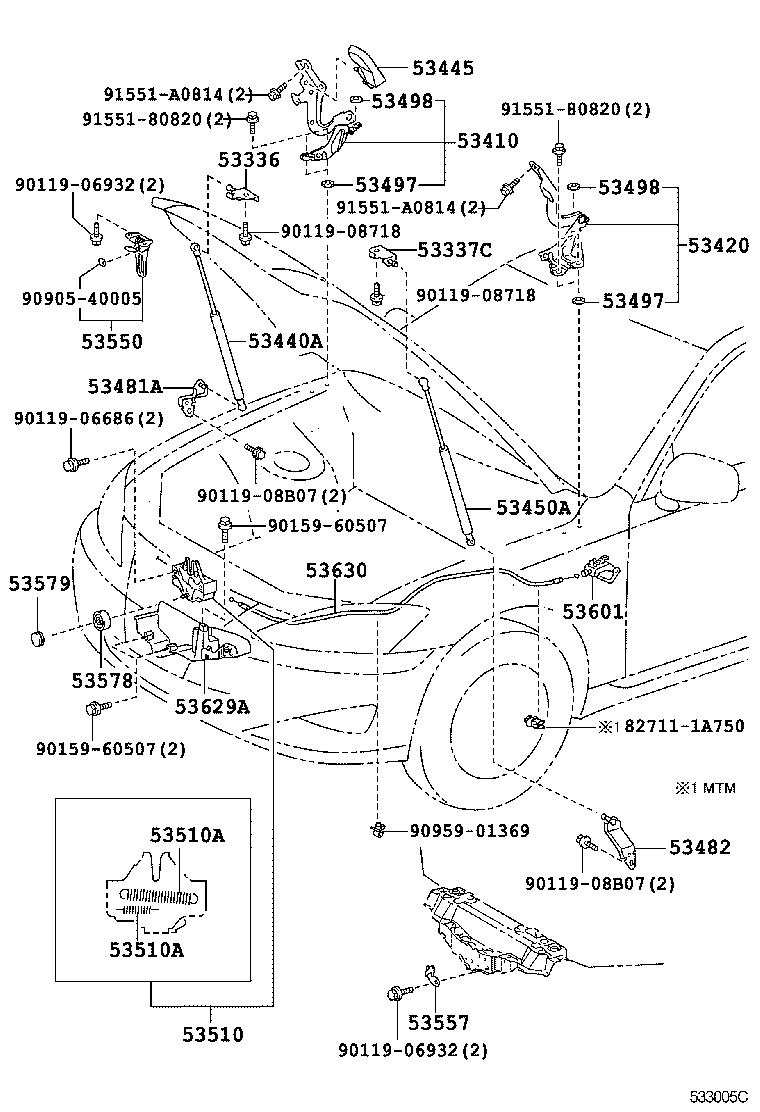

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53336 - BRACKET, HOOD STAY, RH | ||||
| 53336-53020 |
GSE20 |
1 | ||
| 53337C - BRACKET, HOOD STAY, LH | ||||
| 53337-53010 |
GSE20 |
1 | ||
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-53020 |
GSE20 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-53020 |
GSE20 |
1 | ||
| 53440A - SUPPORT ASSY, HOOD, RH | ||||
| 53440-0W102 |
GSE20 |
1 | ||
| 53440-0W101 |
GSE20 |
1 | ||
| 53445 - COVER, HOOD HINGE, RH | ||||
| 53445-53010 |
GSE20 |
1 | ||
| 53450A - SUPPORT ASSY, HOOD, LH | ||||
| 53450-0W082 |
GSE20 |
1 | ||
| 53450-0W081 |
GSE20 |
1 | ||
| 53481A - BRACKET, HOOD SUPPORT, RH | ||||
| 53481-53010 |
GSE20 |
1 | ||
| 53482 - BRACKET, HOOD SUPPORT, LH | ||||
| 53482-53010 |
GSE20 |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-50020 |
GSE20 T=1.0 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-50020 |
GSE20 T=1.0 |
4 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53497-53010 |
GSE20 T=1.0 |
2 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53497-53010 |
GSE20 T=1.0 |
2 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-53061 |
GSE20..LHD |
1 | ||
| 53510-53060 |
GSE20..LHD |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-14086 |
GSE20 WD=1.4,CW=15 |
1 | ||
| 90506-09050 |
GSE20 WD=0.9,CW=20.5 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-14086 |
GSE20 WD=1.4,CW=15 |
1 | ||
| 90506-09050 |
GSE20 WD=0.9,CW=20.5 |
1 | ||
| 53550 - HOOK ASSY, HOOD AUXILIARY CATCH | ||||
| 53550-53010 |
GSE20 |
1 | ||
| 53557 - CATCH, HOOD AUXILIARY HOOK | ||||
| 53557-53011 |
GSE20 |
1 | ||
| 53578 - NUT, HOOD LOCK | ||||
| 53578-50010 |
GSE20 |
1 | ||
| 53579 - CAP, HOOD LOCK NUT | ||||
| 53579-50010 |
GSE20 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-52010A2 |
GSE20 MELLOW WHITE,TRIM0# |
1 | ||
| 53601-52010C0 |
GSE20..6FC BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 53601-52010C0 |
GSE20..6F BLACK,TRIM2# |
1 | ||
| 53629A - COVER, HOOD LOCK CONTROL CABLE | ||||
| 53629-53040 |
GSE20..LHD |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-53030 |
GSE20..LHD |
1 | ||
| Common parts | ||||
| 82711-1A750 | ||||
| 90119-06686 | ||||
| 90119-06932 | ||||
| 90119-08718 | ||||
| 90119-08B07 | ||||
| 90159-60507 | ||||
| 90905-40005 | ||||
| 90959-01369 | ||||
| 91551-80820 | ||||
| 91551-A0814 | ||||
