GSE20L-AKTLHW (2009)

Toyota Lexus Is250c

Production Apr 2009 - Jul 2015
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904- )

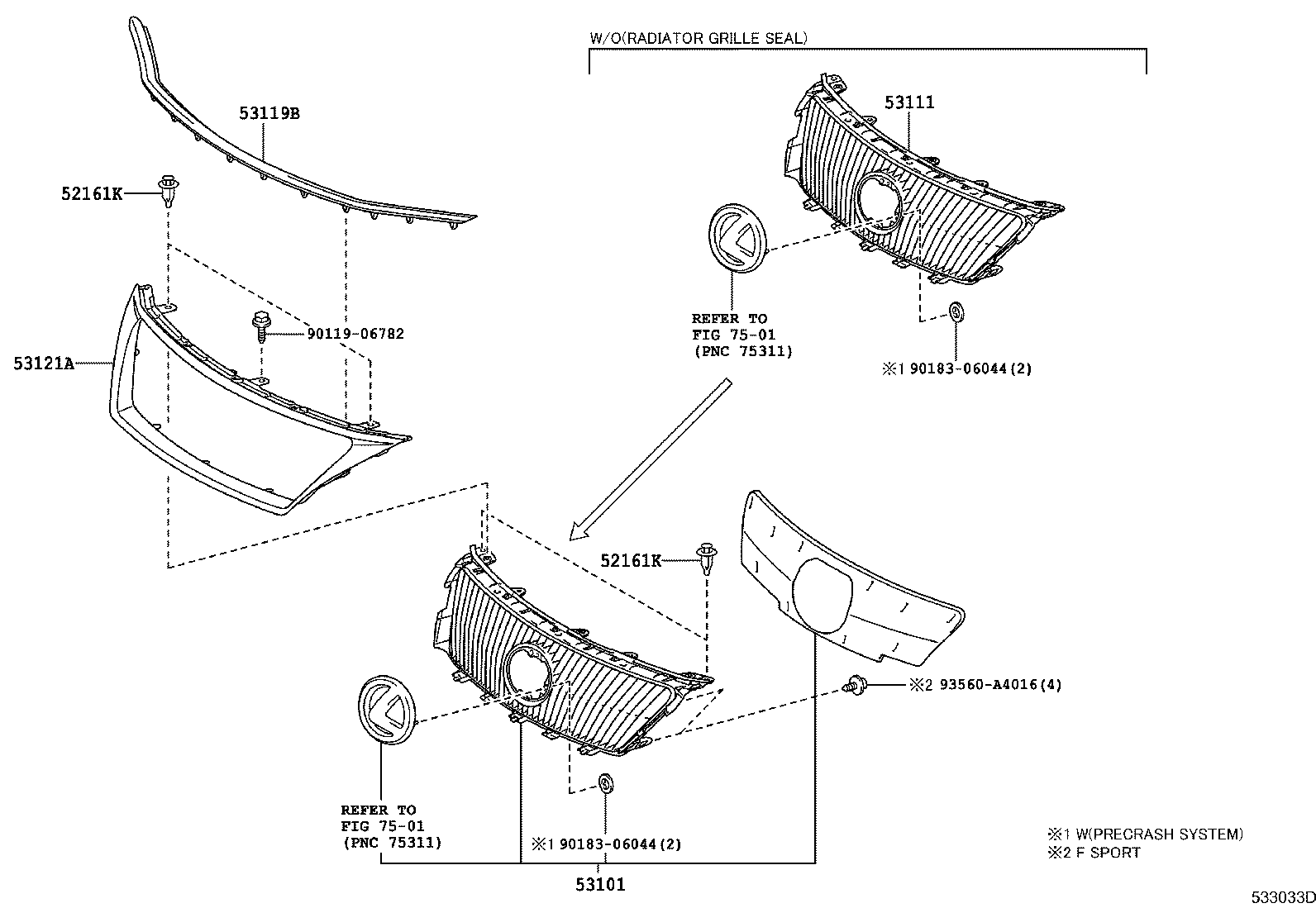

Click highlighted areas on diagram

diagram 52161K 52161K 53101 53111 53119B 53121A 7501 7501 9011906782 9018306044 9018306044 93560A4016
Part # Description Qty Price
52161K - PIECE, FRONT BUMPER
52161-16010

GSE20

 4
52161K - PIECE, FRONT BUMPER
52161-16010

GSE20

 4
53101 - GRILLE SUB-ASSY, RADIATOR
53101-53280

GSE20

NO PAINT REQ.

 1
53101-53330

GSE20..LHD

NO PAINT REQ.,BULGARIA SPEC

 1
53101-53330

GSE20..LHD..6FC

NO PAINT REQ.,CROATIA SPEC

 1
53101-53330

GSE20..LHD

NO PAINT REQ.,RUSSIA SPEC

 1
53101-53300

GSE20..6FC

NO PAINT REQ.,PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)

 1
53111 - GRILLE, RADIATOR
53112-53110

GSE20..LHD..6FC

NO PAINT REQ.,TAIWAN SPEC

 1
53112-53120

GSE20..LHD

NO PAINT REQ.,ISRAEL SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)

 1
53112-53110

GSE20..LHD

NO PAINT REQ.,UKRAINE OR KAZAKSTAN OR BELARUS SPEC

 1
53112-53120

GSE20..LHD

NO PAINT REQ.,UKRAINE OR KAZAKSTAN OR BELARUS SPEC&PRE-COLLISION SYSTEM-WITH(*PSB& *PBA & *PB)

 1
53112-53110

GSE20..LHD

NO PAINT REQ.,RUSSIA SPEC

 1
53112-53110

GSE20..LHD

NO PAINT REQ.,CHILE SPEC

 1
53112-53110

GSE20..LHD

NO PAINT REQ.,CROATIA SPEC

 1
53112-53110

GSE20..LHD

NO PAINT REQ.,ISRAEL SPEC

 1
53112-53110

GSE20

NO PAINT REQ.

 1
53112-53220

GSE20

NO PAINT REQ.,F SPORT

 1
53119B - PROTECTOR, RADIATOR GRILLE
53119-53050

GSE20

F SPORT&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)

 1
53119-53010

GSE20

 1
53119-53050

GSE20..LHD

TAIWAN SPEC&F SPORT&HEADLAMP-DISCHAGE & WITH(AUTO LEVELING)

 1
53121A - MOULDING, RADIATOR GRILLE
53111-53220

GSE20..LHD

RUSSIA SPEC

 1
53111-53200

GSE20

 1
53111-53250

GSE20

F SPORT

 1
53111-53220

GSE20..LHD

BULGARIA SPEC

 1
53111-53220

GSE20..LHD..6FC

CROATIA SPEC

 1
Common parts
90119-06782
90183-06044
93560-A4016
Linked diagrams
7501
