GSE20L-AKTLHW (2009)

Toyota Lexus Is250c

Production Apr 2009 - Jul 2015
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904- )

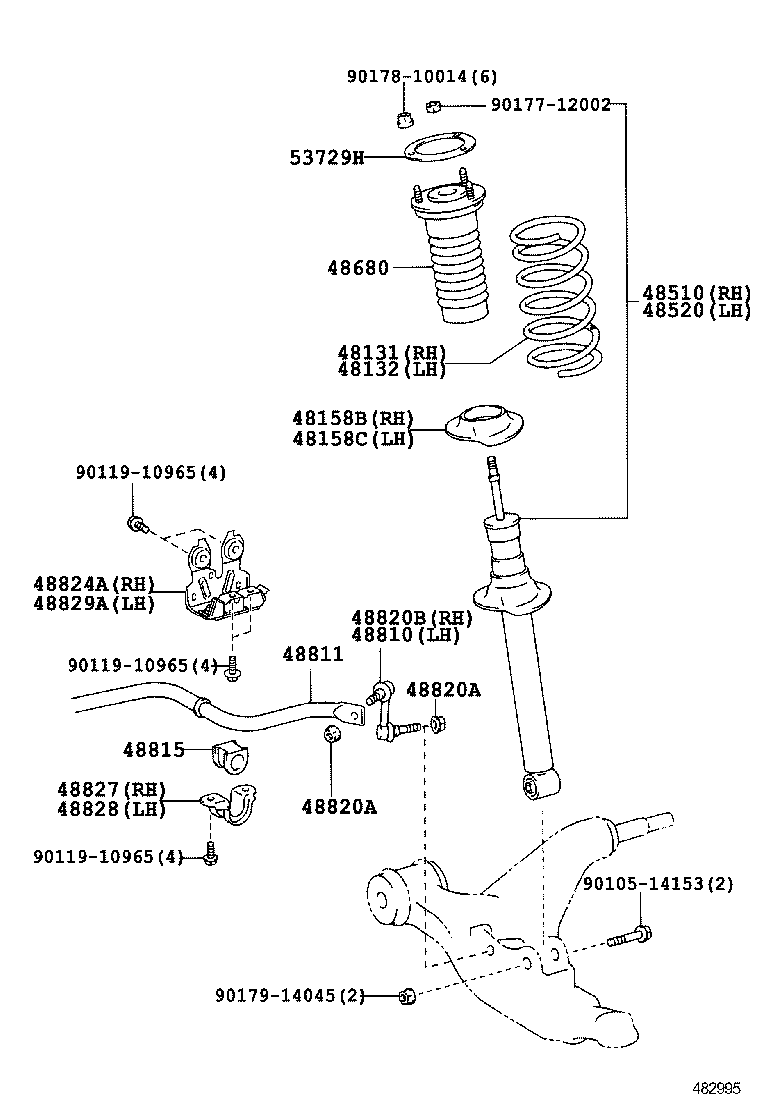

Click highlighted areas on diagram

diagram 48131 48132 48158B 48158C 48510 48520 48680 48810 48811 48815 48820A 48820A 48820B 48824A 48827 48828 48829A 53729H 9010514153 9011910965 9011910965 9011910965 9017712002 9017810014 9017914045
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-53310

GSE20

 1
48132 - SPRING, FRONT COIL, LH
48131-53310

GSE20

 1
48158B - INSULATOR, FRONT COIL SPRING, LOWER RH
48158-30020

GSE20

 1
48158C - INSULATOR, FRONT COIL SPRING, LOWER LH
48158-30020

GSE20

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-80597

GSE20

MARK 48510-53200,F SPORT

 1
48510-80492

GSE20

MARK 48510-53210

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-59695

GSE20

MARK 48520-53190,F SPORT

 1
48520-59585

GSE20

MARK 48520-53120

 1
48680 - SUPPORT ASSY, FRONT SUSPENSION
48680-53030

GSE20

 2
48680-53031

GSE20

 2
48810 - LINK ASSY, FRONT STABILIZER, LH
48810-30070

GSE20

 1
48811 - BAR, STABILIZER, FRONT
48811-30661

GSE20

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-30570

GSE20

 2
48815-30571

GSE20

 2
48820A - NUT(FOR FRONT STABILIZER LINK)
94151-21241

GSE20

 4
48820A - NUT(FOR FRONT STABILIZER LINK)
94151-21241

GSE20

 4
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-30090

GSE20

 1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48809-30090

GSE20

 1
48809-30130

GSE20

 1
48827 - BRACKET, FRONT STABILIZER, NO.2 RH
48824-30130

GSE20

 1
48828 - BRACKET, FRONT STABILIZER, NO.2 LH
48824-30130

GSE20

 1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48809-30090

GSE20

 1
48809-30130

GSE20

 1
53729H - REINFORCEMENT, FRONT SPRING SUPPORT, NO.3
53729-53020

GSE20

 2
Common parts
90105-14153
90119-10965
90177-12002
90178-10014
90179-14045
