GSE20L-AKTLHW (2009)
Toyota Lexus Is250c
Production
Apr 2009
-
Jul 2015
Engine
4GRFSE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

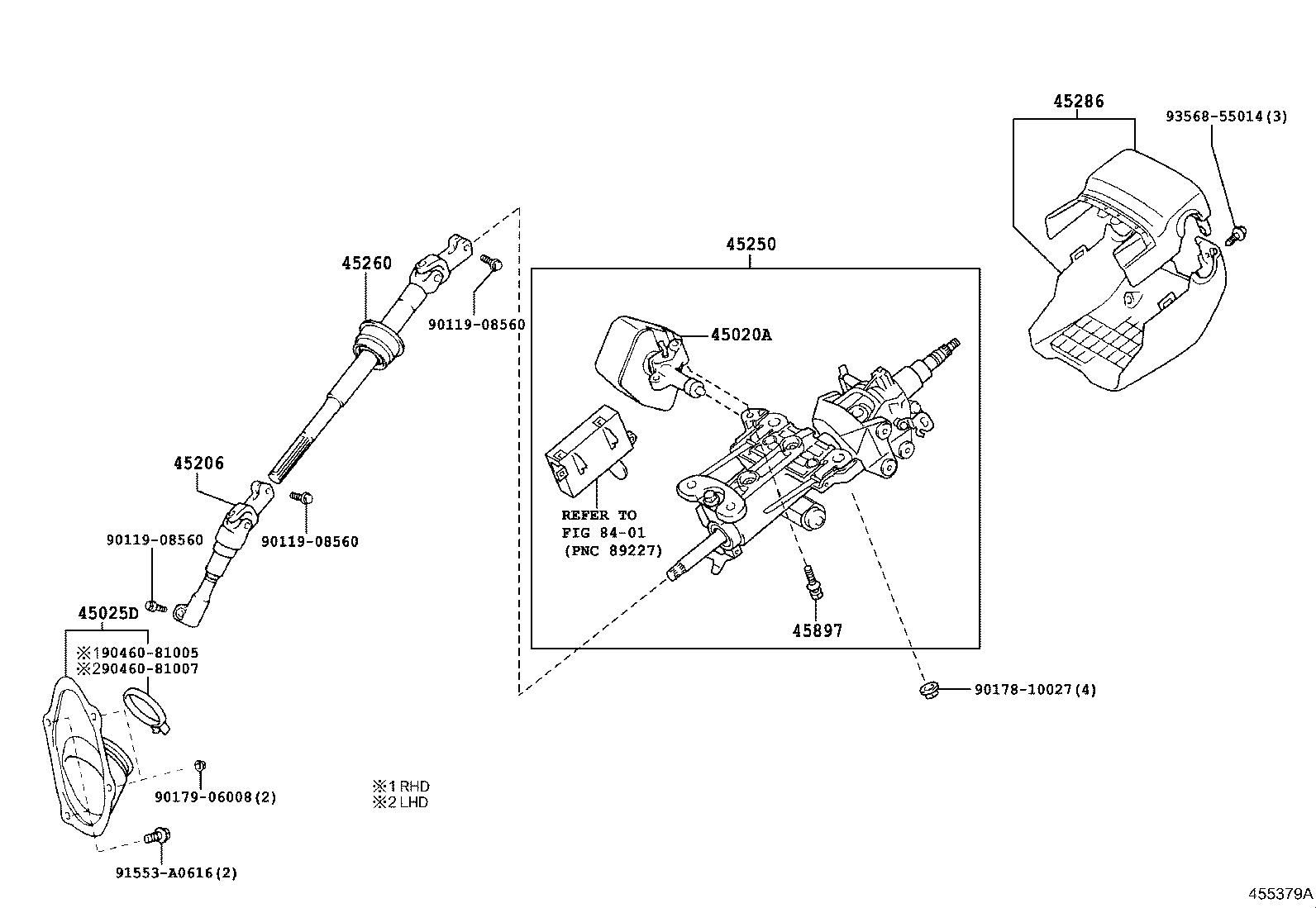

(0904-1011)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020A - ACTUATOR ASSY, STEERING LOCK | ||||
| 45020-30A60 |
GSE20 |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-30390 |
GSE20..LHD |
1 | ||
| 45206 - YOKE SUB-ASSY, STEERING SLIDING W/SHAFT | ||||
| 45206-30111 |
GSE20..LHD |
1 | ||
| 45206-30112 |
GSE20..LHD |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-53061 |
GSE20..LHD |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-30200 |
GSE20 |
1 | ||
| 45260-30201 |
GSE20 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-53912C0 |
GSE20..6FC BLACK,TRIM0#,1#,2#,3#,4# |
1 | ||
| 45286-53912C0 |
GSE20..6F BLACK,TRIM0#,2# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
GSE20 |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90178-10027 | ||||
| 90179-06008 | ||||
| 90460-81005 | ||||
| 90460-81007 | ||||
| 91553-A0616 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

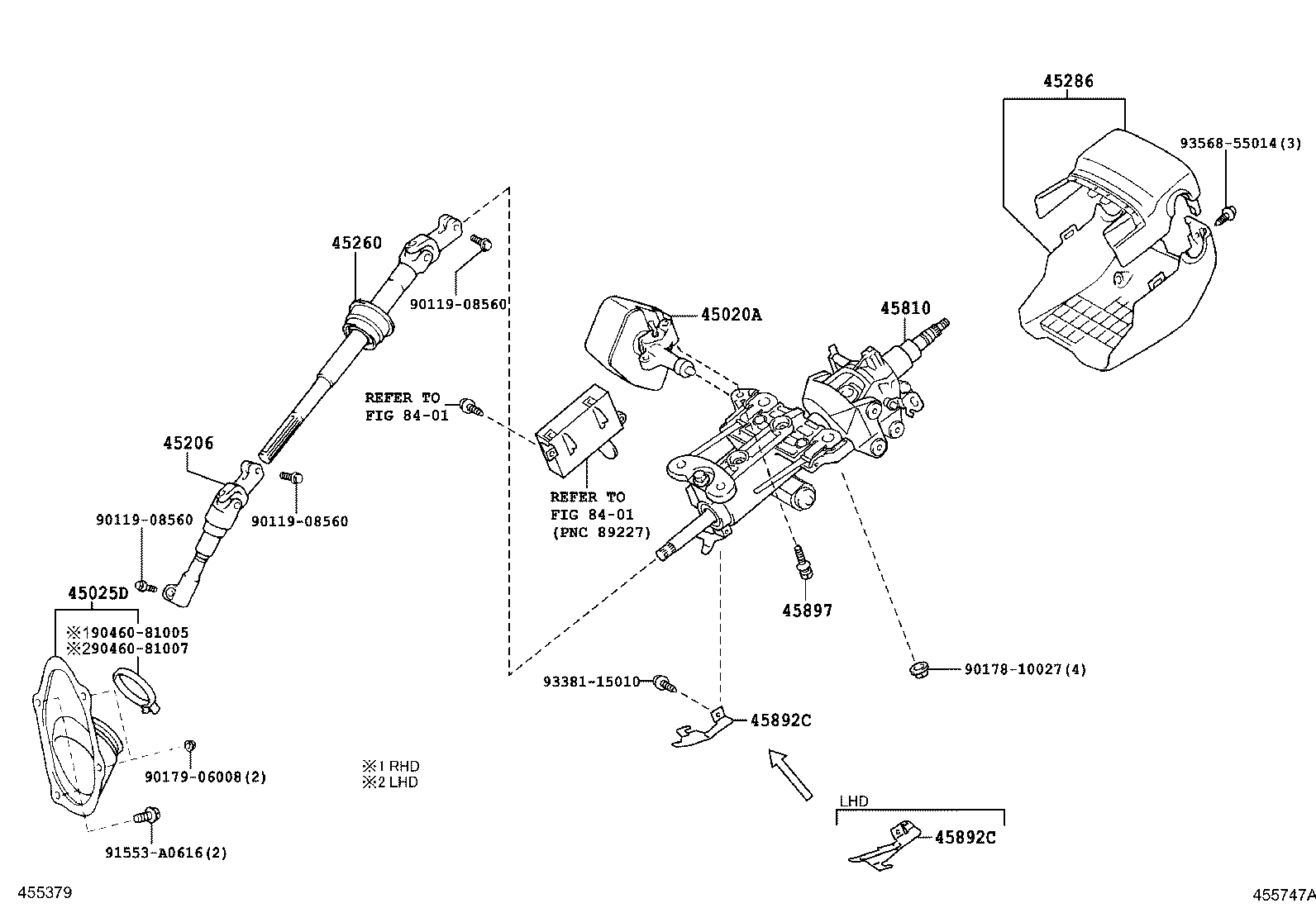

(1011- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020A - ACTUATOR ASSY, STEERING LOCK | ||||
| 45020-30A60 |
GSE20 |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-30390 |
GSE20..LHD |
1 | ||
| 45206 - YOKE SUB-ASSY, STEERING SLIDING W/SHAFT | ||||
| 45206-30111 |
GSE20..LHD |
1 | ||
| 45206-30112 |
GSE20..LHD |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-30200 |
GSE20 |
1 | ||
| 45260-30201 |
GSE20 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-53912C0 |
GSE20..6FC BLACK,TRIM0#,1#,2#,3#,4# |
1 | ||
| 45286-53912C0 |
GSE20..6F BLACK,TRIM0#,2# |
1 | ||
| 45810 - GEAR ASSY, TILT STEERING, W/MOTOR | ||||
| 45810-53020 |
GSE20 |
1 | ||
| 45892C - BRACKET, RETURN SPRING | ||||
| 45892-30020 |
GSE20..LHD |
1 | ||
| 45892C - BRACKET, RETURN SPRING | ||||
| 45892-30020 |
GSE20..LHD |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
GSE20 |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90178-10027 | ||||
| 90179-06008 | ||||
| 90460-81005 | ||||
| 90460-81007 | ||||
| 91553-A0616 | ||||
| 93381-15010 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
