GSE20L-AKTLHW (2009)

Toyota Lexus Is250c

Production Apr 2009 - Jul 2015
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904- )6FC

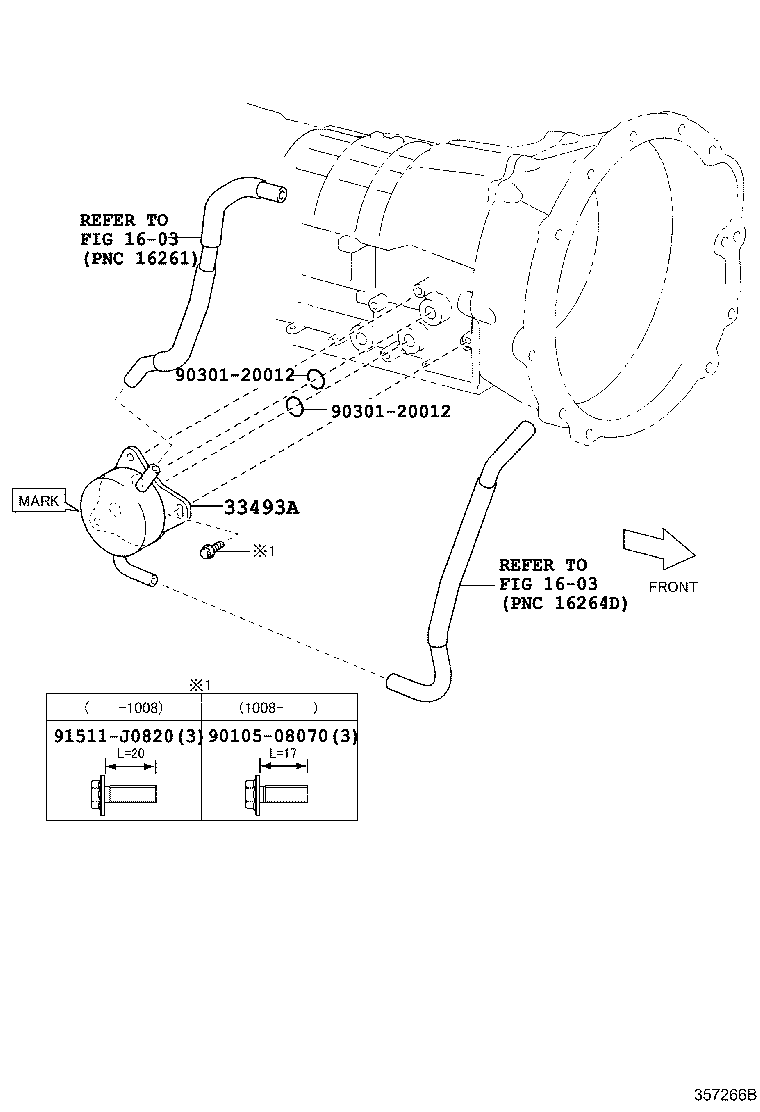

Click highlighted areas on diagram

A960E

diagram 1603 1603 33493A 9010508070 9030120012 9030120012 91511J0820
Part # Description Qty Price
33493A - COOLER, TRANSMISSION OIL
33493-22030

GSE20..6FC

MARK DENSO

 1
33493-30020

GSE20

MARK TOYOTA

 1
Common parts
90105-08070
90301-20012
91511-J0820
Linked diagrams
1603
