GSE20L-AKTLHW (2009)

Toyota Lexus Is250c

Production Apr 2009 - Jul 2015
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904- )6FC

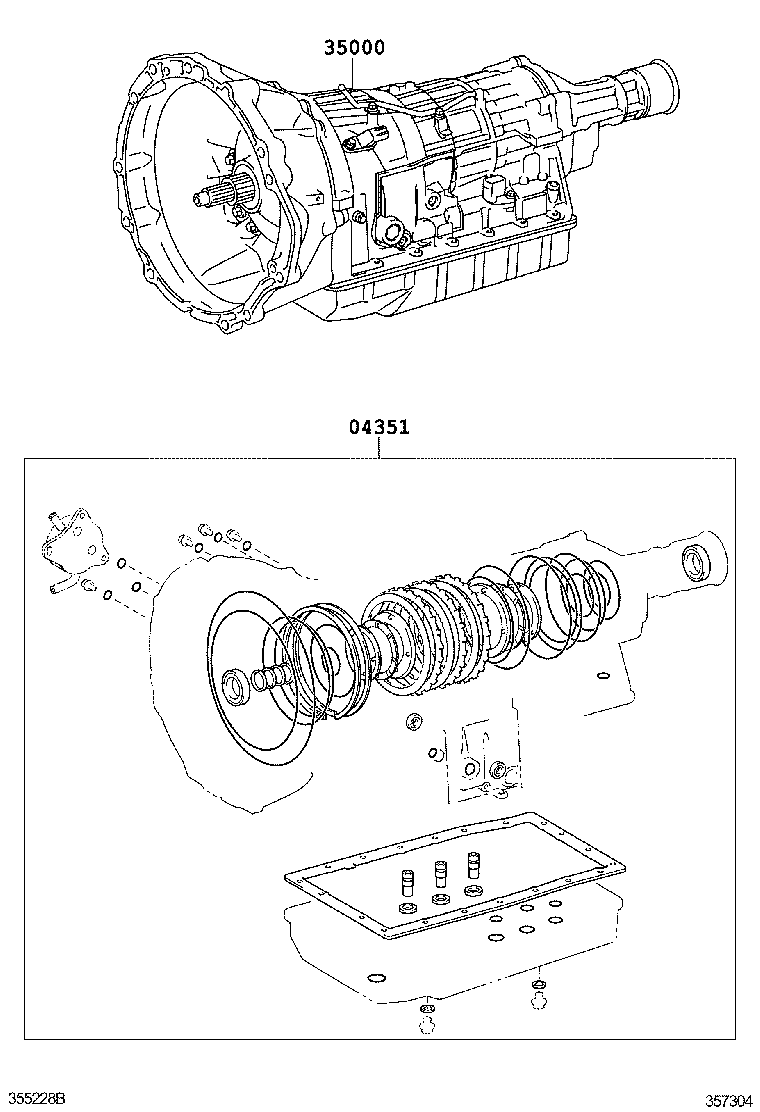

Click highlighted areas on diagram

A960E

diagram 04351 35000
Part # Description Qty Price
04351 - GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL
04351-30970

GSE20..6FC

 1
35000 - TRANSMISSION ASSY, AUTOMATIC
35000-53250

GSE20

A960E

 1
35000-53120

GSE20..6FC

A960E

 1
