GSE20L-AKTLHW (2009)
Toyota Lexus Is250c

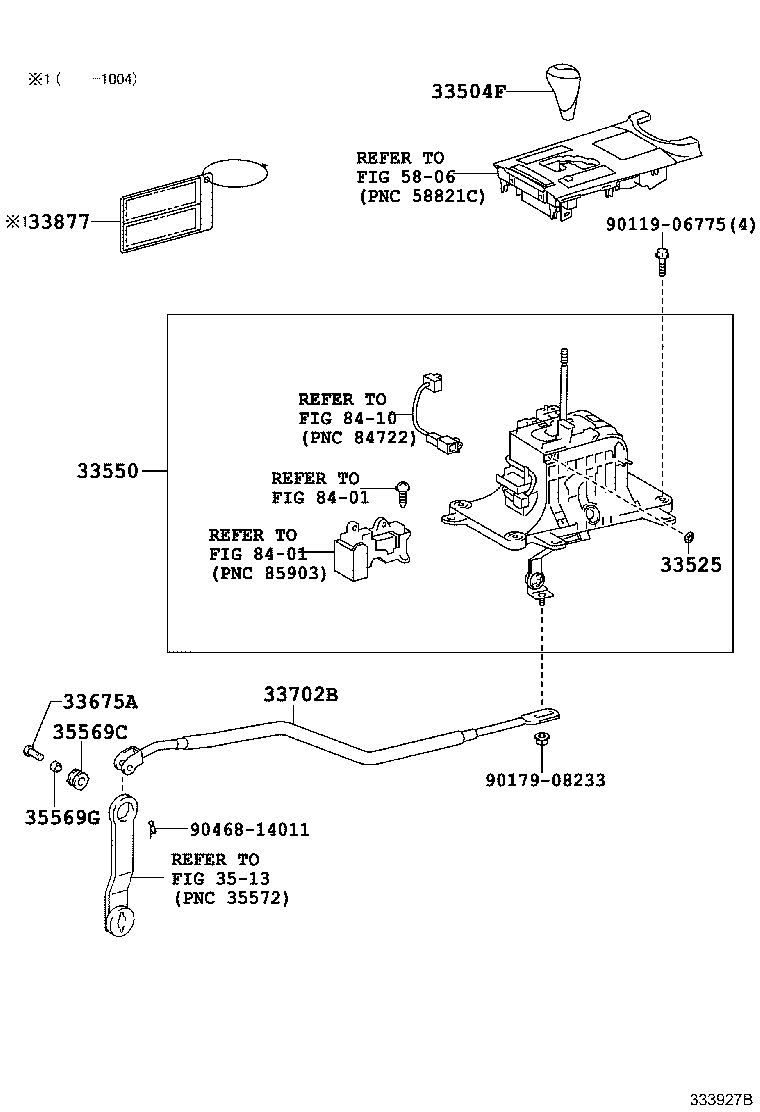

(0904- )6FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-53070C0 |
GSE20..6F BLACK,TRIM0#,2# |
1 | ||
| 33504-30341C2 |
GSE20..6FC BLACK,TRIM0#,1#,2#,3#,4# |
1 | ||
| 33504-53100C0 |
GSE20 F SPORT&STEERING WHEEL-F SPORTS,BLACK,TRIM2#,3# |
1 | ||
| 33525 - SUPPORT, SHIFT LEVER | ||||
| 33525-50020 |
GSE20..6FC |
1 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-53200 |
GSE20..LHD..6FC |
1 | ||
| 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) | ||||
| 33726-35010 |
GSE20..6FC |
1 | ||
| 33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33702-22140 |
GSE20..6FC |
1 | ||
| 33877 - LABEL, SHIFT LOCK INFORMATION, NO.1 | ||||
| 33877-50030 |
GSE20..6FC |
1 | ||
| 35569C - GROMMET (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17013 |
GSE20..6FC |
1 | ||
| 35569G - BUSH (FOR TRANSMISSION CONTROL ROD) | ||||
| 90560-08091 |
GSE20..6FC |
1 | ||
| Common parts | ||||
| 90119-06775 | ||||
| 90179-08233 | ||||
| 90468-14011 | ||||
| Linked diagrams | ||||
| 3513 | ||||
| 5806 | ||||
| 8401 | ||||
| 8410 | ||||
(0904- )6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-53070C0 |
GSE20..6F BLACK,TRIM0#,2# |
1 | ||
| 33504-30341C2 |
GSE20..6FC BLACK,TRIM0#,1#,2#,3#,4# |
1 | ||
| 33504-53100C0 |
GSE20 F SPORT&STEERING WHEEL-F SPORTS,BLACK,TRIM2#,3# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-53030 |
GSE20..6F |
1 | ||
| 33506H - BUSH (FOR SHIFT LEVER RETAINER) | ||||
| 33546-53060 |
GSE20..6F NO.2 |
2 | ||
| 33546-53050 |
GSE20..6F NO.1 |
2 | ||
| 33506H - BUSH (FOR SHIFT LEVER RETAINER) | ||||
| 33546-53060 |
GSE20..6F NO.2 |
2 | ||
| 33546-53050 |
GSE20..6F NO.1 |
2 | ||
| 33506H - BUSH (FOR SHIFT LEVER RETAINER) | ||||
| 33546-53060 |
GSE20..6F NO.2 |
2 | ||
| 33546-53050 |
GSE20..6F NO.1 |
2 | ||
| 33506H - BUSH (FOR SHIFT LEVER RETAINER) | ||||
| 33546-53060 |
GSE20..6F NO.2 |
2 | ||
| 33546-53050 |
GSE20..6F NO.1 |
2 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-53060 |
GSE20..6F |
1 | ||
| 33523B - PIN, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33523-53030 |
GSE20..6F NO.1 |
1 | ||
| 33523-53040 |
GSE20..6F NO.2 |
1 | ||
| 33523B - PIN, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33523-53030 |
GSE20..6F NO.1 |
1 | ||
| 33523-53040 |
GSE20..6F NO.2 |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-53050 |
GSE20..LHD..6F |
1 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-09025 |
GSE20..6F |
4 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-09025 |
GSE20..6F |
4 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-09025 |
GSE20..6F |
4 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-09025 |
GSE20..6F |
4 | ||
| 33534Q - RING, E (FOR SELECTING BELLCRANK NO.1) | ||||
| 96160-00800 |
GSE20..6F |
2 | ||
| 33534Q - RING, E (FOR SELECTING BELLCRANK NO.1) | ||||
| 96160-00800 |
GSE20..6F |
2 | ||
| 33537B - WASHER, WAVE (FOR TRANSMISSION SHIFT LEVER) | ||||
| 90206-29001 |
GSE20..6F |
1 | ||
| 33554 - CAP, SHIFT LEVER | ||||
| 33554-53050 |
GSE20..LHD..6F |
1 | ||
| 33555B - BOOT, SHIFT & SELECT LEVER | ||||
| 33555-53070 |
GSE20..6F |
1 | ||
| 33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33575-53050 |
GSE20..6F |
1 | ||
| 33621C - LABEL, CONTROL LEVER INFORMATION | ||||
| 33621-53030 |
GSE20..6F |
1 | ||
| Common parts | ||||
| 90105-06077 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 3307 | ||||
