GSE20L-AKTLHW (2009)

Toyota Lexus Is250c

Production Apr 2009 - Jul 2015
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904- )LHD..6F

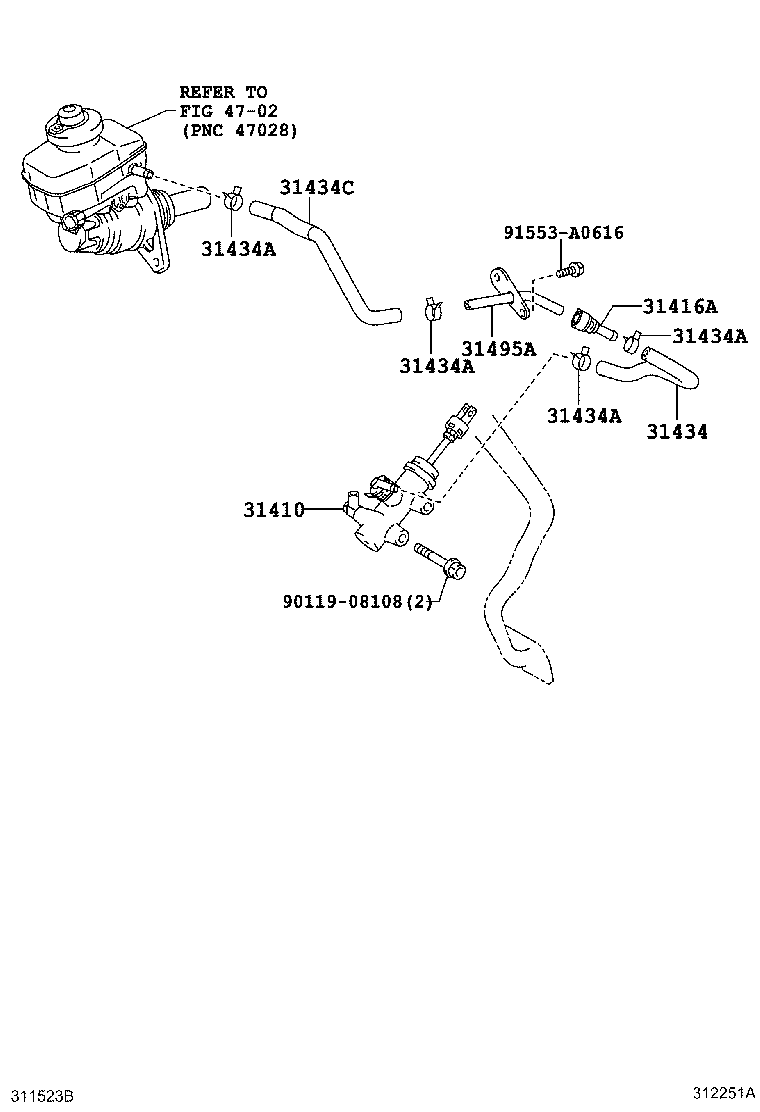

Click highlighted areas on diagram

diagram 31410 31416A 31434 31434A 31434A 31434A 31434A 31434C 31495A 4702 9011908108 91553A0616
Part # Description Qty Price
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-53040

GSE20..LHD..6F

 1
31416A - CONNECTOR, CLUTCH HOSE
31416-53010

GSE20..6F

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-53030

GSE20..LHD..6F

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96133-41500

GSE20..6F

 4
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96133-41500

GSE20..6F

 4
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96133-41500

GSE20..6F

 4
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96133-41500

GSE20..6F

 4
31434C - TUBE, CLUTCH RESERVOIR
31434-53040

GSE20..LHD..6F

 1
31495A - WAY, CLUTCH TUBE
3140A-53010

GSE20..LHD..6F

 1
Common parts
90119-08108
91553-A0616
Linked diagrams
4702
