GSE20L-AKTLHW (2009)

Toyota Lexus Is250c

Production Apr 2009 - Jul 2015
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904- )

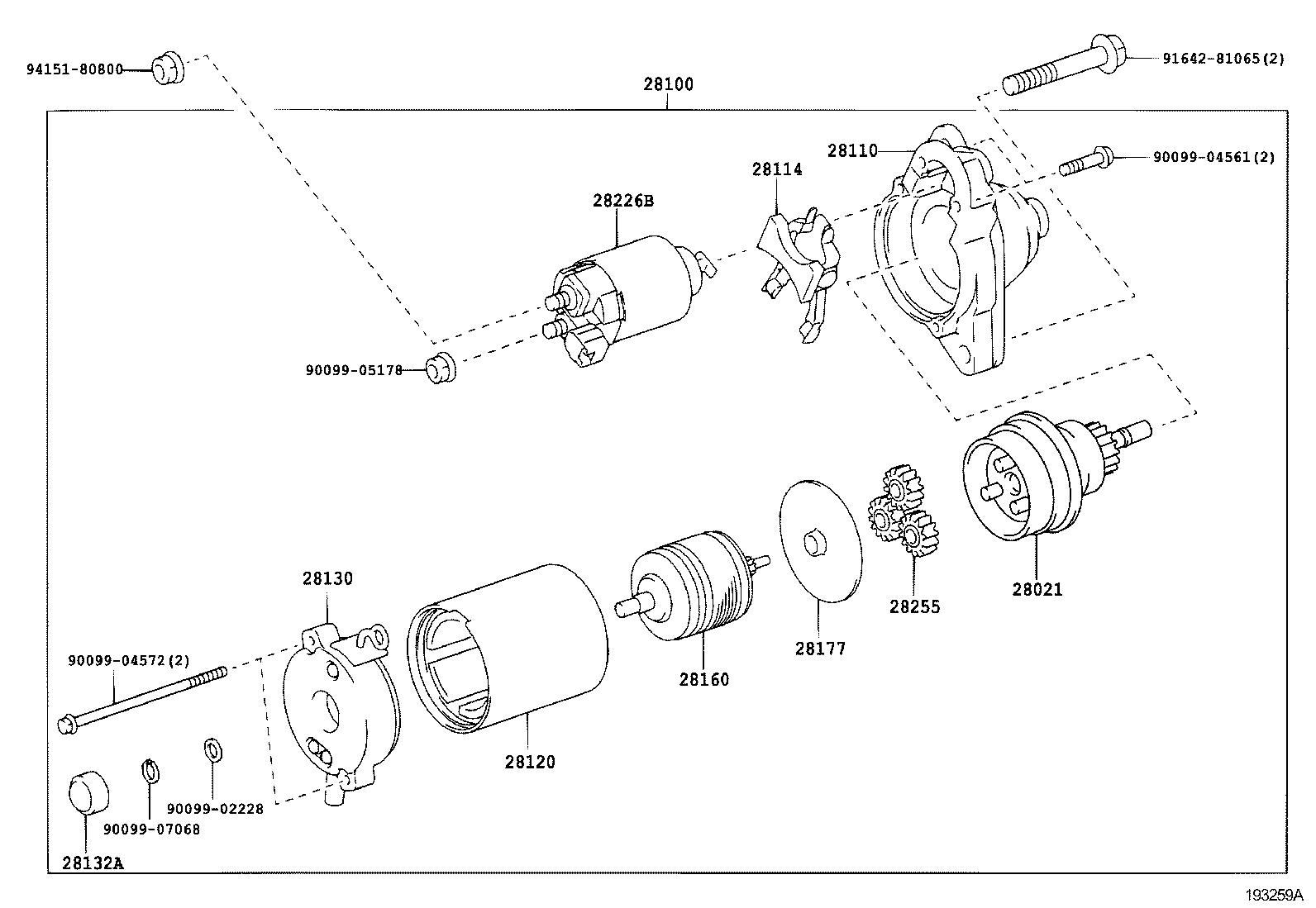

Click highlighted areas on diagram

12V 1.7KW

diagram 28021 28100 28110 28114 28120 28130 28132A 28160 28177 28226B 28255 9009902228 9009904561 9009904572 9009905178 9009907068 9164281065 9415180800
Part # Description Qty Price
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-21060

4GRFSE..GSE20

 1
28100 - STARTER ASSY
28100-31071

4GRFSE..GSE20

12V 1.7KW

 1
28100-31070

4GRFSE..GSE20

12V 1.7KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-31040

4GRFSE..GSE20

 1
28114 - PIN, STARTER DRIVE LEVER SET
28114-21060

4GRFSE..GSE20

 1
28120 - YOKE ASSY, STARTER
28120-28060

4GRFSE..GSE20

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-31070

4GRFSE..GSE20

 1
28132A - COVER, STARTER COMMUTATOR END FRAME
28132-28040

4GRFSE..GSE20

 1
28160 - ARMATURE ASSY, STARTER
28160-21060

4GRFSE..GSE20

 1
28177 - PLATE(FOR STARTER ARMATURE)
28177-28040

4GRFSE..GSE20

 1
28226B - STARTER KIT, REPAIR SERVICE
28226-22061

4GRFSE..GSE20

 1
28255 - GEAR, PLANET
28255-20020

4GRFSE..GSE20

 3
Common parts
90099-02228
90099-04561
90099-04572
90099-05178
90099-07068
91642-81065
94151-80800
