GSE20L-AKTLHW (2009)

Toyota Lexus Is250c

Production Apr 2009 - Jul 2015
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904- )

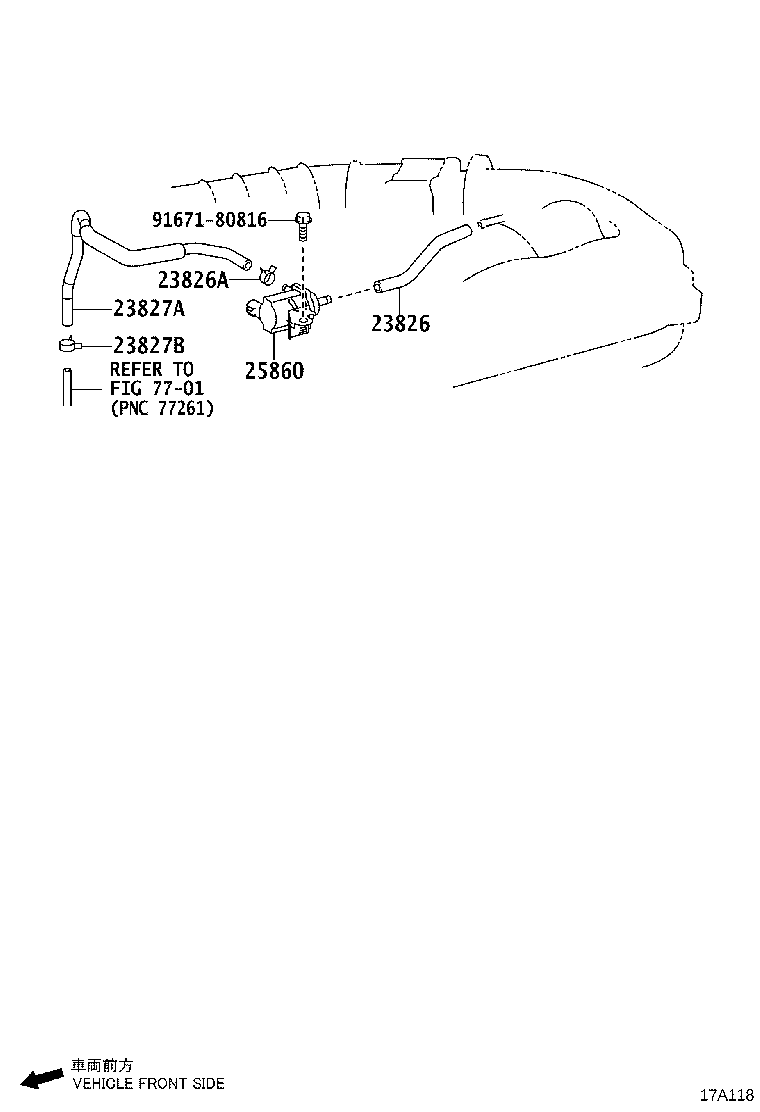

Click highlighted areas on diagram

diagram 23826 23826A 23827A 23827B 25860 7701 9167180816
Part # Description Qty Price
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-31030

4GRFSE..GSE20

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
96132-51300

4GRFSE..GSE20..LHD

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-31100

4GRFSE..GSE20

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
90467-15022

4GRFSE..GSE20..LHD

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-31060

4GRFSE..GSE20

 1
Common parts
91671-80816
Linked diagrams
7701
