Toyota Lexus is250c GSE20 EXHAUST PIPE

GSE20L-AKTLHW (2009)

Toyota Lexus Is250c

Production Apr 2009 - Jul 2015

Engine 4GRFSE

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0904-1206)

Click highlighted areas on diagram

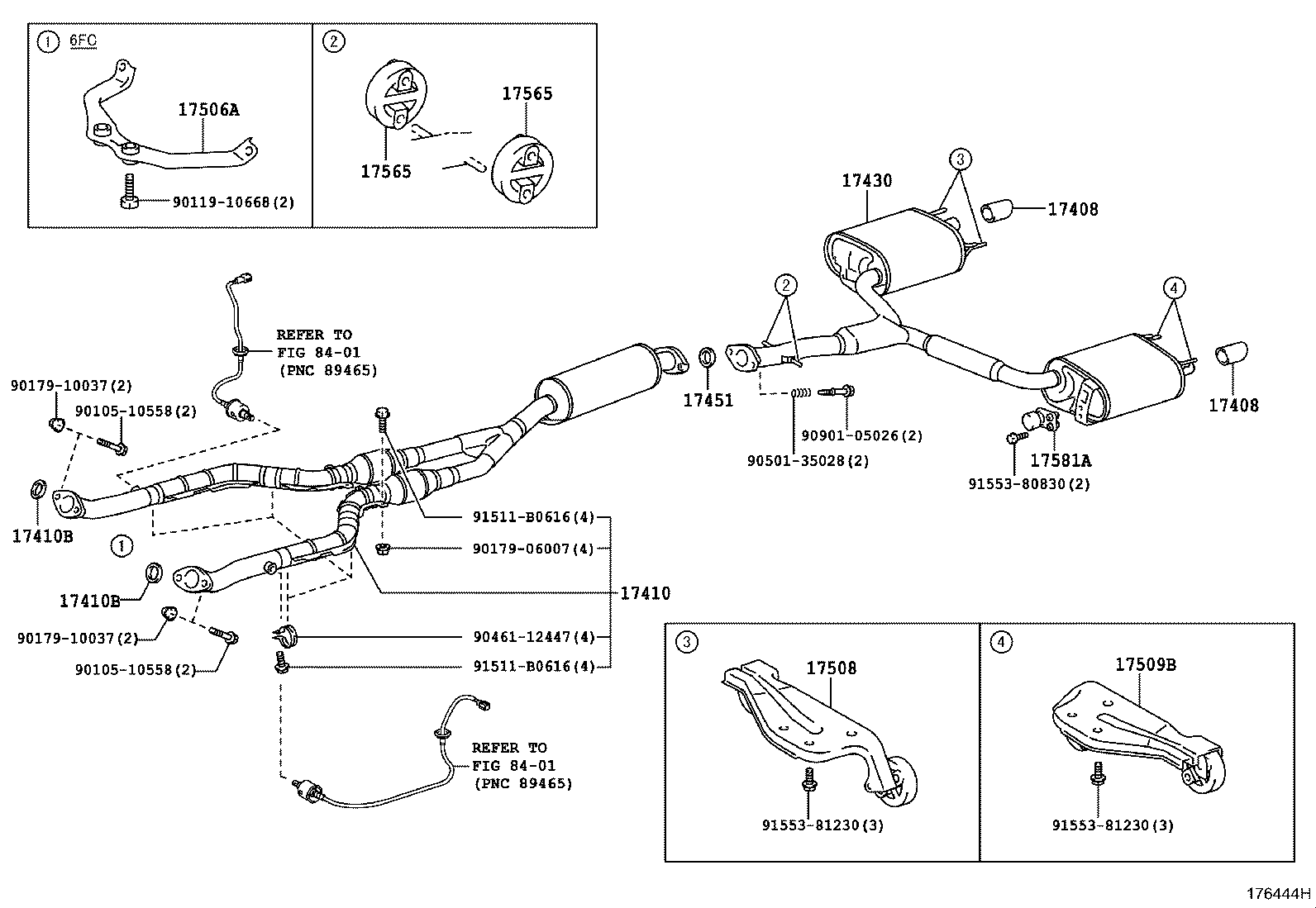

TYPE A

Part #	Description	Period	Qty
17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE
17408-31030	4GRFSE..GSE20	04/2009 - 12/2999	2
17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE
17408-31030	4GRFSE..GSE20	04/2009 - 12/2999	2
17410 - PIPE ASSY, EXHAUST, FRONT
17410-31C31	4GRFSE..GSE20..LHD *114=TOYOTA/GQ2/Y,UKRAINE OR KAZAKSTAN OR BELARUS SPEC,TYPE A:REFER ILLUST.	02/2011 - 05/2012	1
17410-31C30	4GRFSE..GSE20..LHD *114=TOYOTA/GQ2/Y,UKRAINE OR KAZAKSTAN OR BELARUS SPEC	08/2010 - 01/2011	1
17410-31A30	4GRFSE..GSE20 *114=TOYOTA/GQ2/Y	04/2009 - 01/2011	1
17410-31A31	4GRFSE..GSE20 *114=TOYOTA/GQ2/Y,TYPE A:REFER ILLUST.	02/2011 - 05/2012	1
17410-31G60	4GRFSE..GSE20 *114=TOYOTA/RC4/Y,TYPE B:REFER ILLUST.	06/2012 - 08/2013	1
17410-31G50	4GRFSE..GSE20	08/2013 - 07/2015	1
17410-31G50	4GRFSE..GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC,TYPE B:REFER ILLUST.	05/2012 - 08/2013	1
17410B - GASKET, EXHAUST PIPE
90917-06078	4GRFSE..GSE20	04/2009 - 12/2999	2
17410B - GASKET, EXHAUST PIPE
90917-06078	4GRFSE..GSE20	04/2009 - 12/2999	2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31841	4GRFSE..GSE20	02/2012 - 08/2013	1
17430-31840	4GRFSE..GSE20	04/2009 - 01/2012	1
17430-31861	4GRFSE..GSE20	08/2013 - 12/2999	1
17430-31861	4GRFSE..GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC	02/2012 - 08/2013	1
17430-31860	4GRFSE..GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC	08/2010 - 01/2012	1
17451 - GASKET, EXHAUST PIPE
17451-31011	4GRFSE..GSE20	04/2009 - 02/2011	1
17451-31012	4GRFSE..GSE20	03/2011 - 12/2999	1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-31030	4GRFSE..GSE20..6FC	04/2009 - 12/2999	1
17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17508-31061	4GRFSE..GSE20	02/2011 - 12/2999	1
17508-31060	4GRFSE..GSE20	04/2009 - 01/2011	1
17509B - SUPPORT, EXHAUST PIPE NO.4
17509-31030	4GRFSE..GSE20	04/2009 - 01/2011	1
17509-31031	4GRFSE..GSE20	02/2011 - 12/2999	1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-28010	4GRFSE..GSE20	04/2009 - 12/2999	2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-28010	4GRFSE..GSE20	04/2009 - 12/2999	2
17581A - DAMPER, EXHAUST PIPE
17581-46120	4GRFSE..GSE20	04/2009 - 12/2999	1
Common parts
90105-10558
90119-10668
90179-06007
90179-10037
90461-12447
90501-35028
90901-05026
91511-B0616
91553-80830
91553-81230
Linked diagrams
8401

(1205- )

Click highlighted areas on diagram

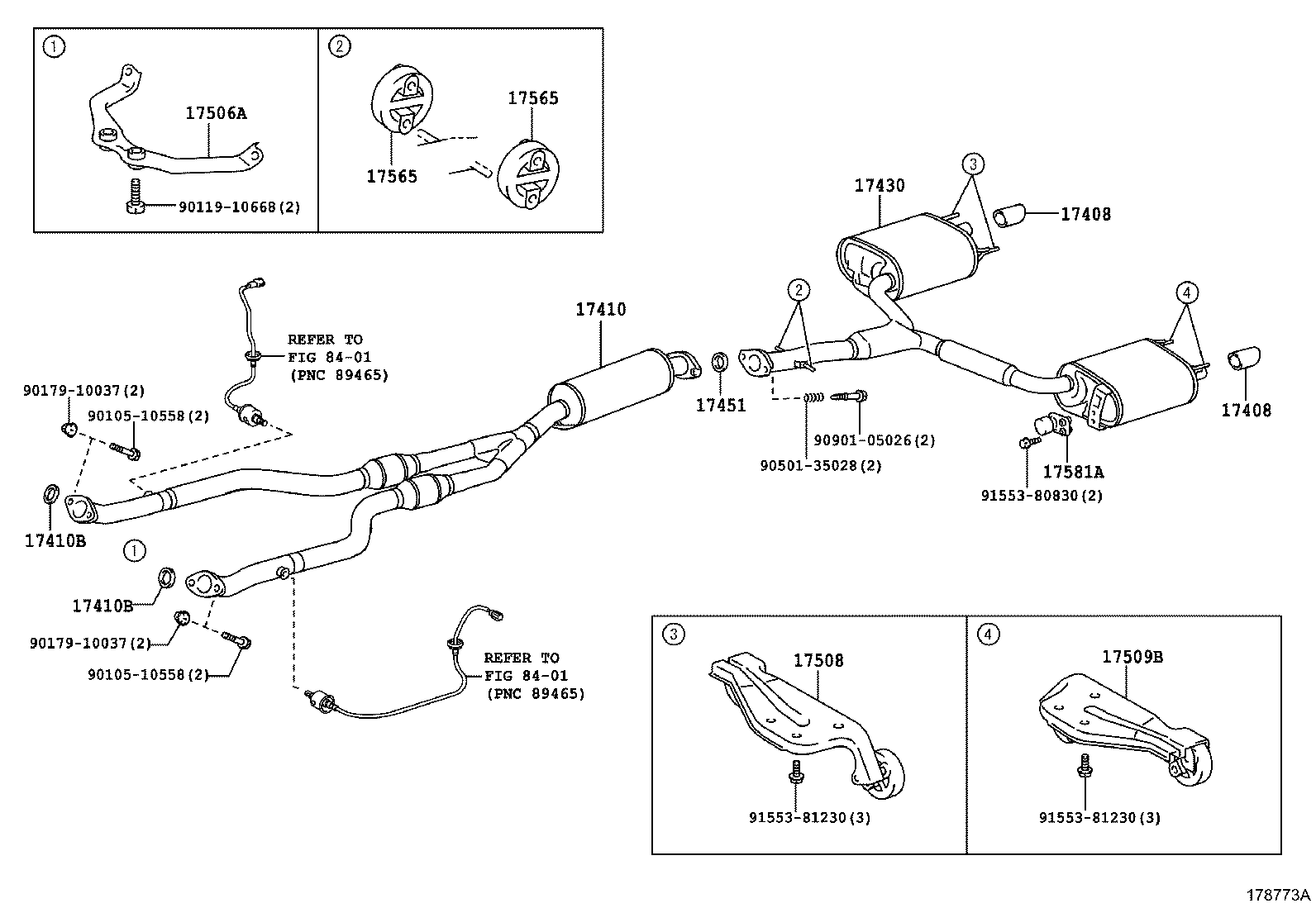

TYPE B

Part #	Description	Period	Qty
17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE
17408-31030	4GRFSE..GSE20	04/2009 - 12/2999	2
17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE
17408-31030	4GRFSE..GSE20	04/2009 - 12/2999	2
17410 - PIPE ASSY, EXHAUST, FRONT
17410-31C31	4GRFSE..GSE20..LHD *114=TOYOTA/GQ2/Y,UKRAINE OR KAZAKSTAN OR BELARUS SPEC,TYPE A:REFER ILLUST.	02/2011 - 05/2012	1
17410-31C30	4GRFSE..GSE20..LHD *114=TOYOTA/GQ2/Y,UKRAINE OR KAZAKSTAN OR BELARUS SPEC	08/2010 - 01/2011	1
17410-31A30	4GRFSE..GSE20 *114=TOYOTA/GQ2/Y	04/2009 - 01/2011	1
17410-31A31	4GRFSE..GSE20 *114=TOYOTA/GQ2/Y,TYPE A:REFER ILLUST.	02/2011 - 05/2012	1
17410-31G60	4GRFSE..GSE20 *114=TOYOTA/RC4/Y,TYPE B:REFER ILLUST.	06/2012 - 08/2013	1
17410-31G50	4GRFSE..GSE20	08/2013 - 07/2015	1
17410-31G50	4GRFSE..GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC,TYPE B:REFER ILLUST.	05/2012 - 08/2013	1
17410B - GASKET, EXHAUST PIPE
90917-06078	4GRFSE..GSE20	04/2009 - 12/2999	2
17410B - GASKET, EXHAUST PIPE
90917-06078	4GRFSE..GSE20	04/2009 - 12/2999	2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31841	4GRFSE..GSE20	02/2012 - 08/2013	1
17430-31840	4GRFSE..GSE20	04/2009 - 01/2012	1
17430-31861	4GRFSE..GSE20	08/2013 - 12/2999	1
17430-31861	4GRFSE..GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC	02/2012 - 08/2013	1
17430-31860	4GRFSE..GSE20..LHD UKRAINE OR KAZAKSTAN OR BELARUS SPEC	08/2010 - 01/2012	1
17451 - GASKET, EXHAUST PIPE
17451-31011	4GRFSE..GSE20	04/2009 - 02/2011	1
17451-31012	4GRFSE..GSE20	03/2011 - 12/2999	1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-31030	4GRFSE..GSE20..6FC	04/2009 - 12/2999	1
17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17508-31061	4GRFSE..GSE20	02/2011 - 12/2999	1
17508-31060	4GRFSE..GSE20	04/2009 - 01/2011	1
17509B - SUPPORT, EXHAUST PIPE NO.4
17509-31030	4GRFSE..GSE20	04/2009 - 01/2011	1
17509-31031	4GRFSE..GSE20	02/2011 - 12/2999	1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-28010	4GRFSE..GSE20	04/2009 - 12/2999	2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-28010	4GRFSE..GSE20	04/2009 - 12/2999	2
17581A - DAMPER, EXHAUST PIPE
17581-46120	4GRFSE..GSE20	04/2009 - 12/2999	1
Common parts
90105-10558
90119-10668
90179-10037
90501-35028
90901-05026
91553-80830
91553-81230
Linked diagrams
8401
