GSE20L-AKTLHW (2009)

Toyota Lexus Is250c

Production Apr 2009 - Jul 2015
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904- )

Click highlighted areas on diagram

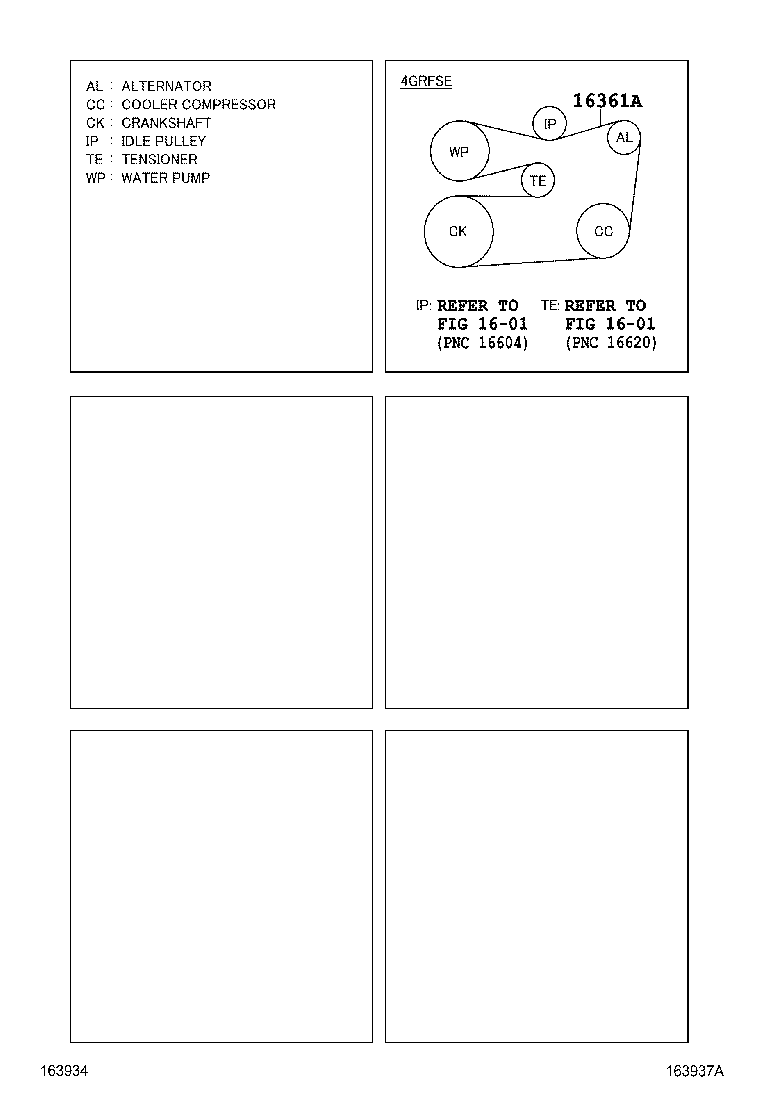

diagram 1601 1601 16361A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99367-C1550

4GRFSE..GSE20

 1
Linked diagrams
1601
