GSE20L-AKTLHW (2009)
Toyota Lexus Is250c
(0904- )

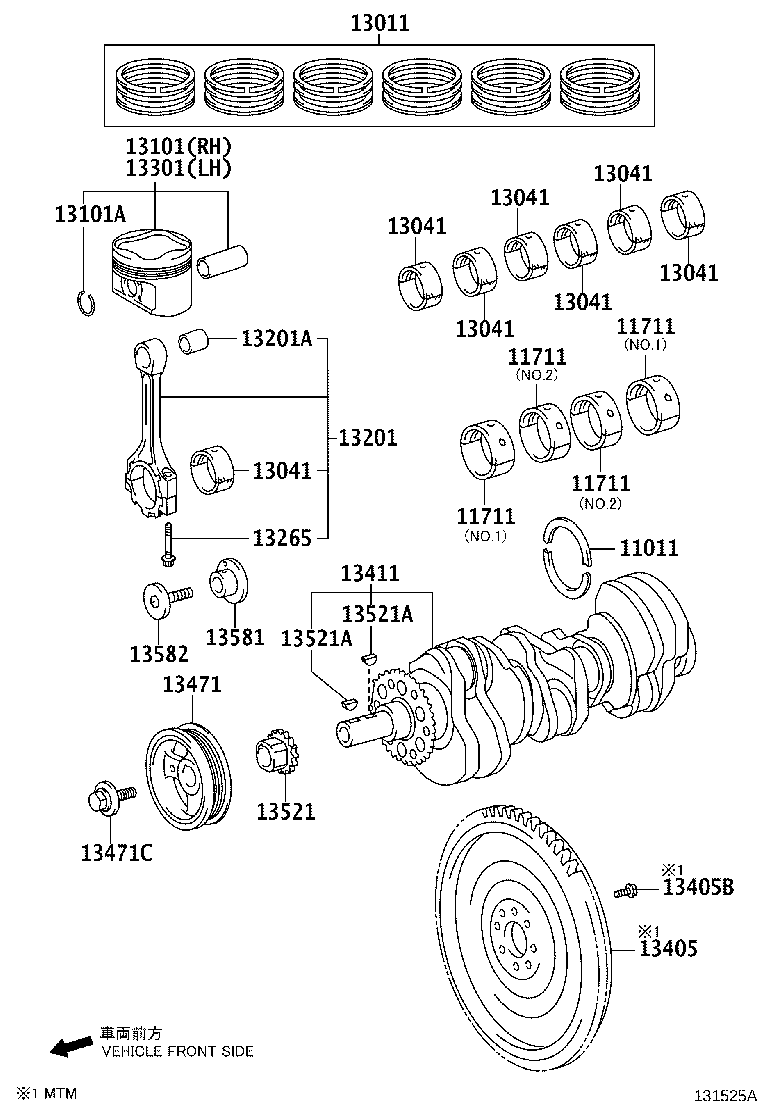

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-31060 |
4GRFSE..GSE20 STD |
1 | ||
| 11011-31080 |
4GRFSE..GSE20 STD |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-3106103 |
4GRFSE..GSE20 MARK3,NO.1,REFER R/M |
2 | ||
| 11071-3103102 |
4GRFSE..GSE20 MARK2,NO.2,REFER R/M |
2 | ||
| 11071-3103104 |
4GRFSE..GSE20 MARK4,NO.2,REFER R/M |
2 | ||
| 11071-3103103 |
4GRFSE..GSE20 MARK3,NO.2,REFER R/M |
2 | ||
| 11071-3106001 |
4GRFSE..GSE20 MARK 1,NO.2,REFER R/M |
2 | ||
| 11071-3106004 |
4GRFSE..GSE20 MARK 4,NO.2,REFER R/M |
2 | ||
| 11071-3103101 |
4GRFSE..GSE20 MARK1,NO.2,REFER R/M |
2 | ||
| 11071-3103105 |
4GRFSE..GSE20 MARK5,NO.2,REFER R/M |
2 | ||
| 11701-3106101 |
4GRFSE..GSE20 MARK1,NO.1,REFER R/M |
2 | ||
| 11701-3106102 |
4GRFSE..GSE20 MARK2,NO.1,REFER R/M |
2 | ||
| 11071-3106002 |
4GRFSE..GSE20 MARK 2,NO.2,REFER R/M |
2 | ||
| 11701-3106105 |
4GRFSE..GSE20 MARK5,NO.1,REFER R/M |
2 | ||
| 11071-3106005 |
4GRFSE..GSE20 MARK 5,NO.2,REFER R/M |
2 | ||
| 11701-3106104 |
4GRFSE..GSE20 MARK4,NO.1,REFER R/M |
2 | ||
| 11071-3106003 |
4GRFSE..GSE20 MARK 3,NO.2,REFER R/M |
2 | ||
| 11701-3110005 |
4GRFSE..GSE20 MARK 5,NO.1,REFER R/M |
2 | ||
| 11701-3110002 |
4GRFSE..GSE20 MARK 2,NO.1,REFER R/M |
2 | ||
| 11701-3110003 |
4GRFSE..GSE20 MARK 3,NO.1,REFER R/M |
2 | ||
| 11701-3110001 |
4GRFSE..GSE20 MARK 1,NO.1,REFER R/M |
2 | ||
| 11701-3110004 |
4GRFSE..GSE20 MARK 4,NO.1,REFER R/M |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-3106103 |
4GRFSE..GSE20 MARK3,NO.1,REFER R/M |
2 | ||
| 11071-3103102 |
4GRFSE..GSE20 MARK2,NO.2,REFER R/M |
2 | ||
| 11071-3103104 |
4GRFSE..GSE20 MARK4,NO.2,REFER R/M |
2 | ||
| 11071-3103103 |
4GRFSE..GSE20 MARK3,NO.2,REFER R/M |
2 | ||
| 11071-3106001 |
4GRFSE..GSE20 MARK 1,NO.2,REFER R/M |
2 | ||
| 11071-3106004 |
4GRFSE..GSE20 MARK 4,NO.2,REFER R/M |
2 | ||
| 11071-3103101 |
4GRFSE..GSE20 MARK1,NO.2,REFER R/M |
2 | ||
| 11071-3103105 |
4GRFSE..GSE20 MARK5,NO.2,REFER R/M |
2 | ||
| 11701-3106101 |
4GRFSE..GSE20 MARK1,NO.1,REFER R/M |
2 | ||
| 11701-3106102 |
4GRFSE..GSE20 MARK2,NO.1,REFER R/M |
2 | ||
| 11071-3106002 |
4GRFSE..GSE20 MARK 2,NO.2,REFER R/M |
2 | ||
| 11701-3106105 |
4GRFSE..GSE20 MARK5,NO.1,REFER R/M |
2 | ||
| 11071-3106005 |
4GRFSE..GSE20 MARK 5,NO.2,REFER R/M |
2 | ||
| 11701-3106104 |
4GRFSE..GSE20 MARK4,NO.1,REFER R/M |
2 | ||
| 11071-3106003 |
4GRFSE..GSE20 MARK 3,NO.2,REFER R/M |
2 | ||
| 11701-3110005 |
4GRFSE..GSE20 MARK 5,NO.1,REFER R/M |
2 | ||
| 11701-3110002 |
4GRFSE..GSE20 MARK 2,NO.1,REFER R/M |
2 | ||
| 11701-3110003 |
4GRFSE..GSE20 MARK 3,NO.1,REFER R/M |
2 | ||
| 11701-3110001 |
4GRFSE..GSE20 MARK 1,NO.1,REFER R/M |
2 | ||
| 11701-3110004 |
4GRFSE..GSE20 MARK 4,NO.1,REFER R/M |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-3106103 |
4GRFSE..GSE20 MARK3,NO.1,REFER R/M |
2 | ||
| 11071-3103102 |
4GRFSE..GSE20 MARK2,NO.2,REFER R/M |
2 | ||
| 11071-3103104 |
4GRFSE..GSE20 MARK4,NO.2,REFER R/M |
2 | ||
| 11071-3103103 |
4GRFSE..GSE20 MARK3,NO.2,REFER R/M |
2 | ||
| 11071-3106001 |
4GRFSE..GSE20 MARK 1,NO.2,REFER R/M |
2 | ||
| 11071-3106004 |
4GRFSE..GSE20 MARK 4,NO.2,REFER R/M |
2 | ||
| 11071-3103101 |
4GRFSE..GSE20 MARK1,NO.2,REFER R/M |
2 | ||
| 11071-3103105 |
4GRFSE..GSE20 MARK5,NO.2,REFER R/M |
2 | ||
| 11701-3106101 |
4GRFSE..GSE20 MARK1,NO.1,REFER R/M |
2 | ||
| 11701-3106102 |
4GRFSE..GSE20 MARK2,NO.1,REFER R/M |
2 | ||
| 11071-3106002 |
4GRFSE..GSE20 MARK 2,NO.2,REFER R/M |
2 | ||
| 11701-3106105 |
4GRFSE..GSE20 MARK5,NO.1,REFER R/M |
2 | ||
| 11071-3106005 |
4GRFSE..GSE20 MARK 5,NO.2,REFER R/M |
2 | ||
| 11701-3106104 |
4GRFSE..GSE20 MARK4,NO.1,REFER R/M |
2 | ||
| 11071-3106003 |
4GRFSE..GSE20 MARK 3,NO.2,REFER R/M |
2 | ||
| 11701-3110005 |
4GRFSE..GSE20 MARK 5,NO.1,REFER R/M |
2 | ||
| 11701-3110002 |
4GRFSE..GSE20 MARK 2,NO.1,REFER R/M |
2 | ||
| 11701-3110003 |
4GRFSE..GSE20 MARK 3,NO.1,REFER R/M |
2 | ||
| 11701-3110001 |
4GRFSE..GSE20 MARK 1,NO.1,REFER R/M |
2 | ||
| 11701-3110004 |
4GRFSE..GSE20 MARK 4,NO.1,REFER R/M |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-3106103 |
4GRFSE..GSE20 MARK3,NO.1,REFER R/M |
2 | ||
| 11071-3103102 |
4GRFSE..GSE20 MARK2,NO.2,REFER R/M |
2 | ||
| 11071-3103104 |
4GRFSE..GSE20 MARK4,NO.2,REFER R/M |
2 | ||
| 11071-3103103 |
4GRFSE..GSE20 MARK3,NO.2,REFER R/M |
2 | ||
| 11071-3106001 |
4GRFSE..GSE20 MARK 1,NO.2,REFER R/M |
2 | ||
| 11071-3106004 |
4GRFSE..GSE20 MARK 4,NO.2,REFER R/M |
2 | ||
| 11071-3103101 |
4GRFSE..GSE20 MARK1,NO.2,REFER R/M |
2 | ||
| 11071-3103105 |
4GRFSE..GSE20 MARK5,NO.2,REFER R/M |
2 | ||
| 11701-3106101 |
4GRFSE..GSE20 MARK1,NO.1,REFER R/M |
2 | ||
| 11701-3106102 |
4GRFSE..GSE20 MARK2,NO.1,REFER R/M |
2 | ||
| 11071-3106002 |
4GRFSE..GSE20 MARK 2,NO.2,REFER R/M |
2 | ||
| 11701-3106105 |
4GRFSE..GSE20 MARK5,NO.1,REFER R/M |
2 | ||
| 11071-3106005 |
4GRFSE..GSE20 MARK 5,NO.2,REFER R/M |
2 | ||
| 11701-3106104 |
4GRFSE..GSE20 MARK4,NO.1,REFER R/M |
2 | ||
| 11071-3106003 |
4GRFSE..GSE20 MARK 3,NO.2,REFER R/M |
2 | ||
| 11701-3110005 |
4GRFSE..GSE20 MARK 5,NO.1,REFER R/M |
2 | ||
| 11701-3110002 |
4GRFSE..GSE20 MARK 2,NO.1,REFER R/M |
2 | ||
| 11701-3110003 |
4GRFSE..GSE20 MARK 3,NO.1,REFER R/M |
2 | ||
| 11701-3110001 |
4GRFSE..GSE20 MARK 1,NO.1,REFER R/M |
2 | ||
| 11701-3110004 |
4GRFSE..GSE20 MARK 4,NO.1,REFER R/M |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-31121 |
4GRFSE..GSE20 STD |
1 | ||
| 13011-31122 |
4GRFSE..GSE20 STD |
1 | ||
| 13011-31120 |
4GRFSE..GSE20 STD |
1 | ||
| 13011-31220 |
4GRFSE..GSE20 STD |
1 | ||
| 13011-31260 |
4GRFSE..GSE20 STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3106002 |
4GRFSE..GSE20 MARK2 |
6 | ||
| 13041-3106004 |
4GRFSE..GSE20 MARK4 |
6 | ||
| 13041-3106003 |
4GRFSE..GSE20 MARK3 |
6 | ||
| 13041-3106001 |
4GRFSE..GSE20 MARK1 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3106002 |
4GRFSE..GSE20 MARK2 |
6 | ||
| 13041-3106004 |
4GRFSE..GSE20 MARK4 |
6 | ||
| 13041-3106003 |
4GRFSE..GSE20 MARK3 |
6 | ||
| 13041-3106001 |
4GRFSE..GSE20 MARK1 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3106002 |
4GRFSE..GSE20 MARK2 |
6 | ||
| 13041-3106004 |
4GRFSE..GSE20 MARK4 |
6 | ||
| 13041-3106003 |
4GRFSE..GSE20 MARK3 |
6 | ||
| 13041-3106001 |
4GRFSE..GSE20 MARK1 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3106002 |
4GRFSE..GSE20 MARK2 |
6 | ||
| 13041-3106004 |
4GRFSE..GSE20 MARK4 |
6 | ||
| 13041-3106003 |
4GRFSE..GSE20 MARK3 |
6 | ||
| 13041-3106001 |
4GRFSE..GSE20 MARK1 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3106002 |
4GRFSE..GSE20 MARK2 |
6 | ||
| 13041-3106004 |
4GRFSE..GSE20 MARK4 |
6 | ||
| 13041-3106003 |
4GRFSE..GSE20 MARK3 |
6 | ||
| 13041-3106001 |
4GRFSE..GSE20 MARK1 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3106002 |
4GRFSE..GSE20 MARK2 |
6 | ||
| 13041-3106004 |
4GRFSE..GSE20 MARK4 |
6 | ||
| 13041-3106003 |
4GRFSE..GSE20 MARK3 |
6 | ||
| 13041-3106001 |
4GRFSE..GSE20 MARK1 |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3106002 |
4GRFSE..GSE20 MARK2 |
6 | ||
| 13041-3106004 |
4GRFSE..GSE20 MARK4 |
6 | ||
| 13041-3106003 |
4GRFSE..GSE20 MARK3 |
6 | ||
| 13041-3106001 |
4GRFSE..GSE20 MARK1 |
6 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-31050A0 |
4GRFSE..GSE20 STD,MARK A,REFER REPAIR MANUAL |
3 | ||
| 13101-31050C0 |
4GRFSE..GSE20 STD,MARK C,REFER REPAIR MANUAL |
3 | ||
| 13101-31050B0 |
4GRFSE..GSE20 STD,MARK B,REFER REPAIR MANUAL |
3 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-22025 |
4GRFSE..GSE20 |
12 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-39095C0 |
4GRFSE..GSE20 MARK C,REFER REPAIR MANUAL |
6 | ||
| 13201-39095B0 |
4GRFSE..GSE20 MARK B,REFER REPAIR MANUAL |
6 | ||
| 13201-39095 |
4GRFSE..GSE20 REFER REPAIR MANUAL |
6 | ||
| 13201-39095A0 |
4GRFSE..GSE20 MARK A,REFER REPAIR MANUAL |
6 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73144 |
4GRFSE..GSE20 |
6 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-28010 |
4GRFSE..GSE20 |
12 | ||
| 13301 - PISTON SUB-ASSY, W/PIN, LH | ||||
| 13301-31020C0 |
4GRFSE..GSE20 STD,MARK C,REFER REPAIR MANUAL |
3 | ||
| 13301-31020B0 |
4GRFSE..GSE20 STD,MARK B,REFER REPAIR MANUAL |
3 | ||
| 13301-31020A0 |
4GRFSE..GSE20 STD,MARK A,REFER REPAIR MANUAL |
3 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13450-0W051 |
4GRFSE..GSE20..6F |
1 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10549 |
4GRFSE..GSE20..6F |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-31030 |
4GRFSE..GSE20 |
1 | ||
| 13401-31031 |
4GRFSE..GSE20 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-31022 |
4GRFSE..GSE20 |
1 | ||
| 13470-31021 |
4GRFSE..GSE20 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-16004 |
4GRFSE..GSE20 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-31041 |
4GRFSE..GSE20 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-30516 |
4GRFSE..GSE20 |
2 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-30516 |
4GRFSE..GSE20 |
2 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-31030 |
4GRFSE..GSE20 |
1 | ||
| 13582 - SHAFT, IDLE GEAR, NO.2 | ||||
| 13582-31031 |
4GRFSE..GSE20 |
1 | ||
