GSE20L-AKTLHW (2009)

Toyota Lexus Is250c

Production Apr 2009 - Jul 2015
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0904- )

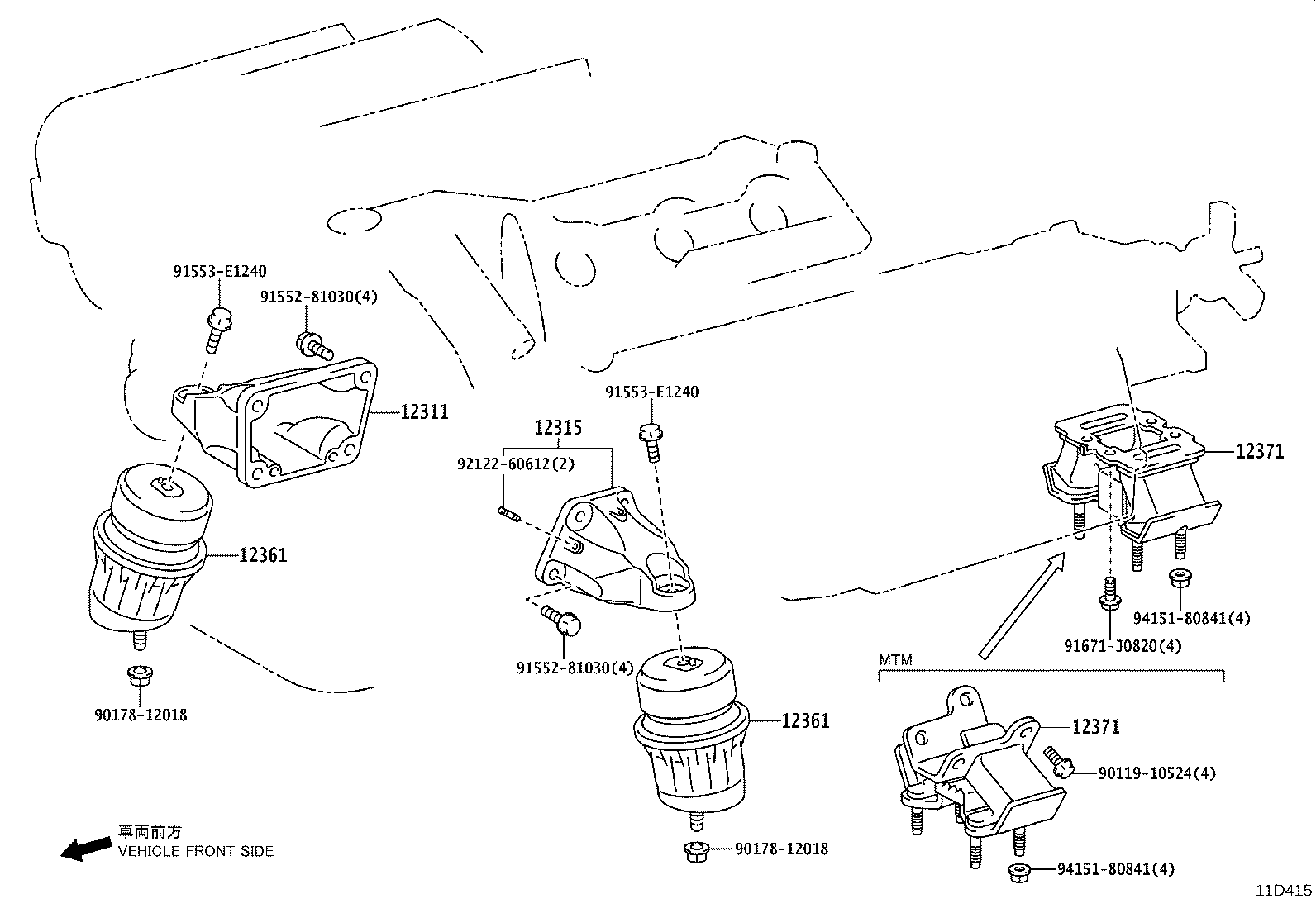

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12371 9011910524 9017812018 9017812018 9155281030 9155281030 91553E1240 91553E1240 91671J0820 9212260612 9415180841 9415180841
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-31040

4GRFSE..GSE20

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-31010

4GRFSE..GSE20

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31100

4GRFSE..GSE20..6FC

 2
12361-31101

4GRFSE..GSE20

 2
12361-31200

4GRFSE..GSE20..6F

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31100

4GRFSE..GSE20..6FC

 2
12361-31101

4GRFSE..GSE20

 2
12361-31200

4GRFSE..GSE20..6F

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-31090

4GRFSE..GSE20..6F

 1
12371-31070

4GRFSE..GSE20..6FC

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-31090

4GRFSE..GSE20..6F

 1
12371-31070

4GRFSE..GSE20..6FC

 1
Common parts
90119-10524
90178-12018
91552-81030
91553-E1240
91671-J0820
92122-60612
94151-80841
