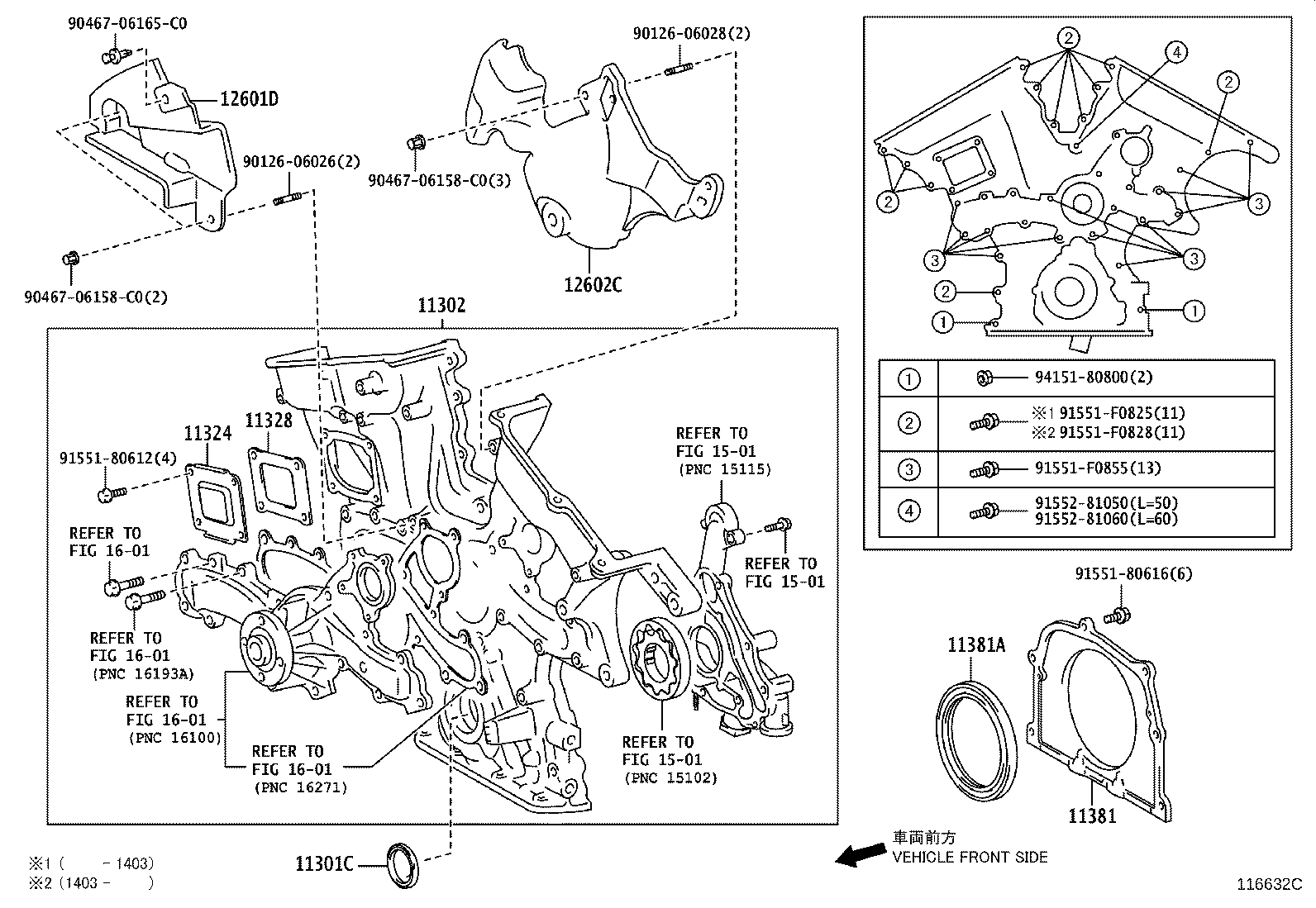

Toyota Lexus is250c GSE20 TIMING GEAR COVER & REAR END PLATE

Part #	Description	Period	Qty
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-42037	4GRFSE..GSE20	04/2009 - 05/2009	1
90311-42045	4GRFSE..GSE20	05/2009 - 12/2999	1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-31042	4GRFSE..GSE20	04/2009 - 04/2015	1
11310-31044	4GRFSE..GSE20	04/2015 - 07/2015	1
11324 - PLATE, TIMING CHAIN COVER
11324-31020	4GRFSE..GSE20	04/2009 - 07/2015	1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-31030	4GRFSE..GSE20	04/2009 - 07/2015	1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-31021	4GRFSE..GSE20	04/2009 - 12/2999	1
11381A - SEAL, ENGINE REAR OIL
90311-92009	4GRFSE..GSE20	04/2009 - 09/2010	1
90311-92010	4GRFSE..GSE20	03/2015 - 12/2999	1
90311-92010	4GRFSE..GSE20..LHD	09/2010 - 02/2015	1
12601D - COVER, ENGINE, NO.1
12601-31010	4GRFSE..GSE20	04/2009 - 12/2999	1
12602C - COVER, ENGINE, NO.2
12602-31012	4GRFSE..GSE20	04/2009 - 01/2012	1
12602-31013	4GRFSE..GSE20	01/2012 - 12/2999	1
Common parts
90126-06026
90126-06028
90467-06158C0
90467-06165C0
91551-80612
91551-80616
91551-F0825
91551-F0828
91551-F0855
91552-81050
91552-81060
94151-80800
Linked diagrams
1501
1601

GSE20L-AKTLHW (2009)
