JCE10R-AWAVFW (2001)
Toyota Lexus Is200/300
Production
Jul 2001
-
Jul 2005
Engine
2JZGE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0107- )JCE10

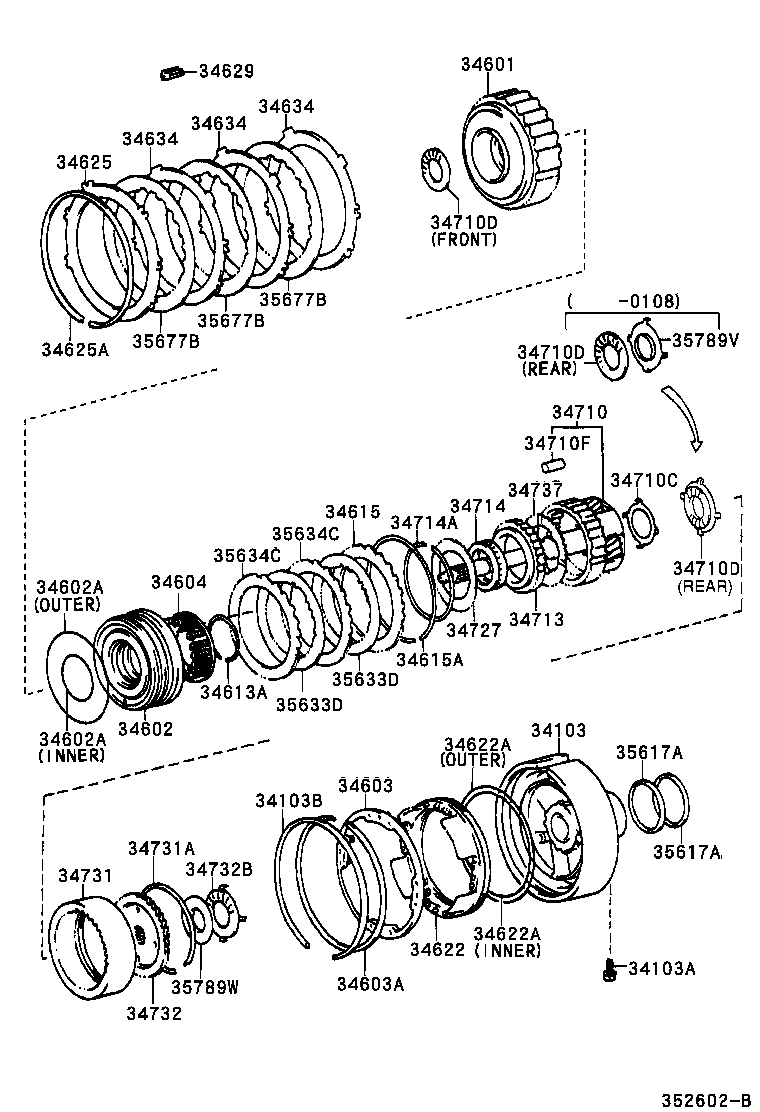

Click highlighted areas on diagram
A650E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34103 - SUPPORT SUB-ASSY, OVERDRIVE | ||||
| 34103-50020 |
JCE10 |
1 | ||
| 34103A - BOLT (FOR OVERDRIVE SUPPORT) | ||||
| 90105-08281 |
JCE10 |
2 | ||
| 34103B - RING, HOLE SNAP (FOR OVERDRIVE SUPPORT) | ||||
| 90521-99033 |
JCE10 |
1 | ||
| 34601 - DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34601-50040 |
JCE10 |
1 | ||
| 34602 - PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34602-30040 |
JCE10 |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-65006 |
JCE10 INNER |
1 | ||
| 90301-99086 |
JCE10 OUTER |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-65006 |
JCE10 INNER |
1 | ||
| 90301-99086 |
JCE10 OUTER |
1 | ||
| 34603 - SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN | ||||
| 34603-30020 |
JCE10 |
1 | ||
| 34603A - RING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING) | ||||
| 90520-99039 |
JCE10 |
1 | ||
| 34604 - SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN | ||||
| 34604-30010 |
JCE10 |
1 | ||
| 34613A - RING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH RETURN SP | ||||
| 90520-58001 |
JCE10 |
1 | ||
| 34615 - FLANGE, OVERDRIVE CLUTCH | ||||
| 34615-22010 |
JCE10 T=3.1 |
1 | ||
| 34615-22050 |
JCE10 T=3.8 |
1 | ||
| 34615-50040 |
JCE10 T=3.5 |
1 | ||
| 34615-22030 |
JCE10 T=3.3 |
1 | ||
| 34615-22020 |
JCE10 T=3.2 |
1 | ||
| 34615-50050 |
JCE10 T=3.6 |
1 | ||
| 34615-22040 |
JCE10 T=3.7 |
1 | ||
| 34615-50030 |
JCE10 T=3.4 |
1 | ||
| 34615A - RING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE) | ||||
| 90521-99001 |
GXE10,JCE10..ATM |
1 | ||
| 34622 - PISTON, OVERDRIVE BRAKE | ||||
| 34622-30140 |
JCE10 |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99090 |
JCE10 OUTER |
1 | ||
| 90301-99088 |
JCE10 INNER |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99090 |
JCE10 OUTER |
1 | ||
| 90301-99088 |
JCE10 INNER |
1 | ||
| 34625 - FLANGE, OVERDRIVE BRAKE, NO.1 | ||||
| 34625-22060 |
JCE10 T=4.0,MARK 40 |
1 | ||
| 34625-22040 |
JCE10 T=3.8,MARK 38 |
1 | ||
| 34625-22050 |
JCE10 T=3.9,MARK 39 |
1 | ||
| 34625-50020 |
JCE10 T=3.5,MARK 35 |
1 | ||
| 34625-50030 |
JCE10 T=3.6,MARK 36 |
1 | ||
| 34625-22030 |
JCE10 T=3.3,MARK 33 |
1 | ||
| 34625-50040 |
JCE10 T=3.7,MARK 37 |
1 | ||
| 34625A - RING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE) | ||||
| 90521-99027 |
JCE10 |
1 | ||
| 34629 - SPRING, OVERDRIVE BRAKE PLATE STOPPER | ||||
| 34629-50010 |
JCE10 |
1 | ||
| 34634 - PLATE, OVERDRIVE BRAKE | ||||
| 34634-50010 |
JCE10 |
3 | ||
| 34634 - PLATE, OVERDRIVE BRAKE | ||||
| 34634-50010 |
JCE10 |
3 | ||
| 34634 - PLATE, OVERDRIVE BRAKE | ||||
| 34634-50010 |
JCE10 |
3 | ||
| 34710 - GEAR ASSY, OVERDRIVE PLANETARY | ||||
| 34710-60021 |
JCE10 |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 35789-30050 |
JCE10 AISHIN |
1 | ||
| 35789-30052 |
JCE10 NSK |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-31005 |
JCE10 FRONT |
1 | ||
| 90374-25005 |
JCE10 REAR |
1 | ||
| 90374-31008 |
JCE10 REAR |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-31005 |
JCE10 FRONT |
1 | ||
| 90374-25005 |
JCE10 REAR |
1 | ||
| 90374-31008 |
JCE10 REAR |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-31005 |
JCE10 FRONT |
1 | ||
| 90374-25005 |
JCE10 REAR |
1 | ||
| 90374-31008 |
JCE10 REAR |
1 | ||
| 34710F - PIN, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 90250-03024 |
GXE10,JCE10..ATM |
4 | ||
| 34713 - RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE) | ||||
| 34713-32010 |
JCE10 |
1 | ||
| 34714 - CLUTCH, 1 WAY(FOR OVERDRIVE) | ||||
| 35791-30060 |
JCE10 |
1 | ||
| 34714A - RING, HOLE SNAP(FOR 1 WAY CLUTCH) | ||||
| 90521-99028 |
JCE10 |
1 | ||
| 34727 - PLATE, RETAINING (FOR OVERDRIVE) | ||||
| 34727-32010 |
JCE10 |
1 | ||
| 34731 - GEAR, OVERDRIVE PLANETARY RING | ||||
| 34731-50010 |
JCE10 |
1 | ||
| 34731A - RING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR) | ||||
| 90521-99118 |
JCE10 |
1 | ||
| 34732 - FLANGE, OVERDRIVE PLANETARY RING GEAR | ||||
| 34732-40011 |
JCE10 |
1 | ||
| 34732B - BEARING, THRUST(FOR OVERDRIVE PLANETARY RING GEAR FLANG | ||||
| 90374-33002 |
JCE10 |
1 | ||
| 34737 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3 | ||||
| 34737-50010 |
JCE10 |
1 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-50010 |
JCE10 |
2 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-50010 |
JCE10 |
2 | ||
| 35633D - DISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35633-14010 |
JCE10 |
2 | ||
| 35633D - DISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 35633-14010 |
JCE10 |
2 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 34616-30010 |
JCE10 T=2.0 |
2 | ||
| 35634C - PLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 34616-30010 |
JCE10 T=2.0 |
2 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 34633-30030 |
JCE10 |
3 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 34633-30030 |
JCE10 |
3 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 34633-30030 |
JCE10 |
3 | ||
| 35789V - RACE, THRUST BEARING | ||||
| 35789-30060 |
JCE10 |
1 | ||
| 35789W - RACE, THRUST BEARING | ||||
| 35789-22060 |
JCE10 |
1 | ||
