JCE10R-AWAVFW (2001)
Toyota Lexus Is200/300
Production
Jul 2001
-
Jul 2005
Engine
2JZGE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0107- )2JZGE..RHD

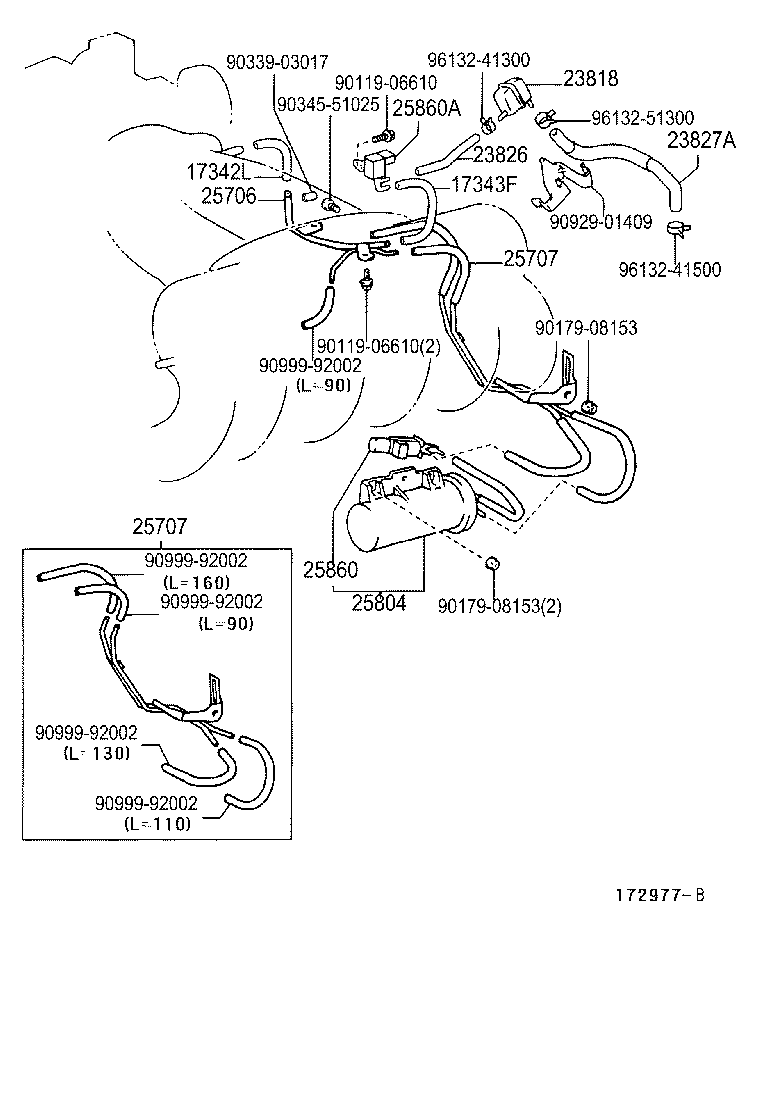

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17342L - HOSE, AIR, NO.2 | ||||
| 17342-46170 |
2JZGE..JCE10 |
1 | ||
| 17343F - HOSE, AIR, NO.3 | ||||
| 17343-46100 |
2JZGE..JCE10 |
1 | ||
| 23818 - PIPE, FUEL VAPOR FEED | ||||
| 23818-46110 |
2JZGE..JCE10 |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-46030 |
2JZGE..JCE10..RHD |
1 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-46080 |
2JZGE..JCE10..RHD |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-46090 |
2JZGE..JCE10 |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-46090 |
2JZGE..JCE10 |
1 | ||
| 25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 | ||||
| 25707-46090 |
2JZGE..JCE10 |
1 | ||
| 25804 - VALVE SET, VACUUM CONTROL | ||||
| 25804-46060 |
2JZGE..JCE10 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 90910-12124 |
2JZGE..JCE10 MARK 90910-12124 |
1 | ||
| 25860-46010 |
2JZGE..JCE10 MARK 25860-46010 |
1 | ||
| 25860A - VALVE, VACUUM SWITCHING, NO.1 | ||||
| 90910-12243 |
2JZGE..JCE10 |
1 | ||
| Common parts | ||||
| 90119-06610 | ||||
| 90179-08153 | ||||
| 90339-03017 | ||||
| 90345-51025 | ||||
| 90929-01409 | ||||
| 90999-92002 | ||||
| 96132-41300 | ||||
| 96132-41500 | ||||
| 96132-51300 | ||||
