JCE10R-AEAVFQ (2001)

Toyota Lexus Is200/300

Production Jul 2001 - Jul 2005
Engine 2JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )2JZGE

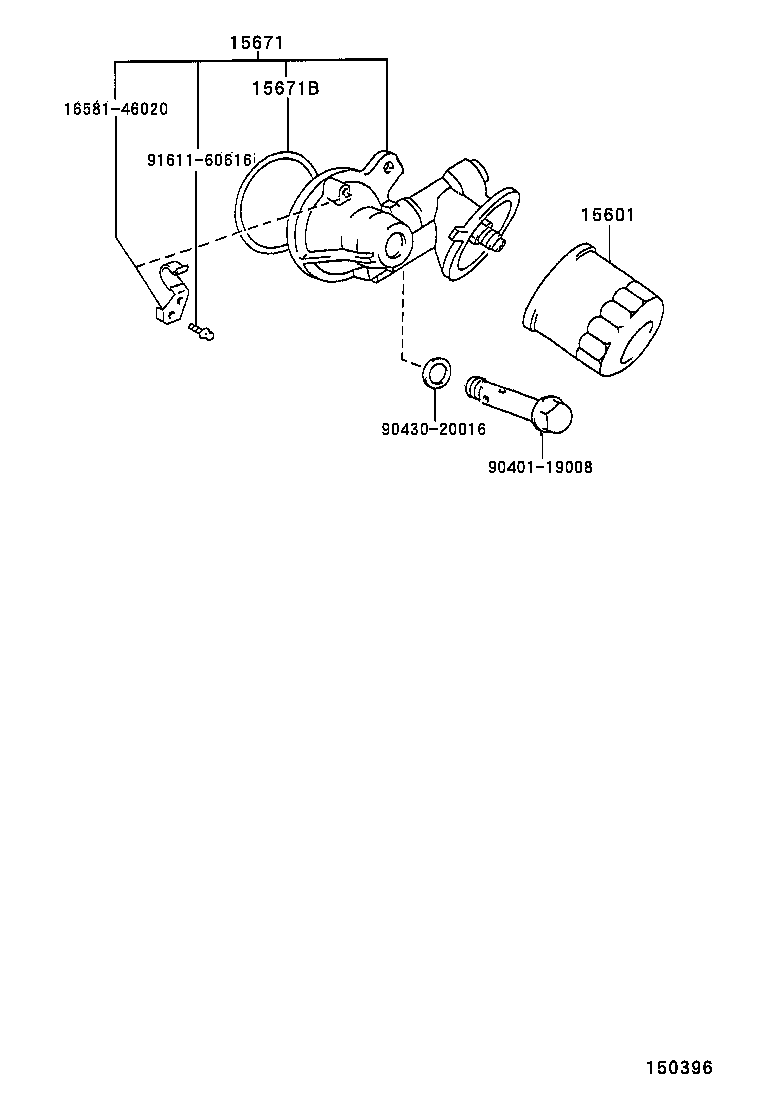

Click highlighted areas on diagram

diagram 15601 15671 15671B 1658146020 9040119008 9043020016 9161160616
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
90915-20003

2JZGE..JCE10

 1
15671 - BRACKET, OIL FILTER
15670-46110

2JZGE..JCE10

 1
15670-46070

2JZGE..JCE10

 1
15671B - GASKET, OIL FILTER BRACKET
90301-68005

2JZGE..JCE10

 1
Common parts
16581-46020
90401-19008
90430-20016
91611-60616
