JCE10L-AWAVFW (2001)

Toyota Lexus Is200/300

Production Jul 2001 - Jul 2005
Engine 2JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )JCE10..LHD

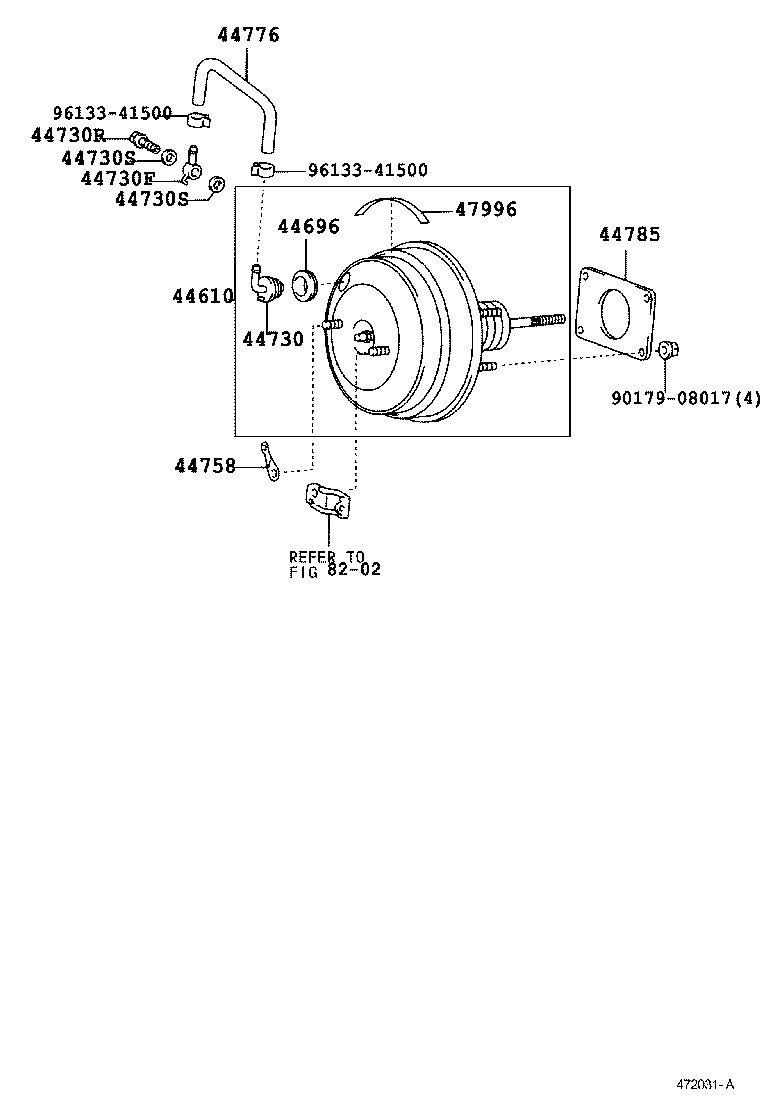

Click highlighted areas on diagram

diagram 44610 44696 44730 44730F 44730R 44730S 44730S 44758 44776 44785 47996 8202 9017908017 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-53200

JCE10..LHD

 1
44696 - GROMMET, CHECK VALVE
90480-24439

GXE10,JCE10

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-14050

JCE10..LHD

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09189

JCE10

 1
44730R - BOLT, UNION(FOR VACUUM HOSE UNION)
90401-12012

JCE10

 1
44730S - GASKET(FOR VACUUM HOSE UNION)
90430-12026

JCE10

 2
44730S - GASKET(FOR VACUUM HOSE UNION)
90430-12026

JCE10

 2
44758 - BRACKET, VACUUM CHECK VALVE
44758-14150

GXE10,JCE10..LHD

 1
44776 - HOSE, BRAKE BOOSTER
44776-53030

JCE10..LHD

 1
44785 - GASKET, BRAKE BOOSTER
44785-30030

GXE10,JCE10

 1
47996 - LABEL, BRAKE BLEED NOTICE
47996-50050

GXE10,JCE10

 1
Common parts
90179-08017
96133-41500
Linked diagrams
8202
