JCE10L-AWAVFW (2001)

Toyota Lexus Is200/300

Production Jul 2001 - Jul 2005

Engine 2JZGE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0107- )2JZGE

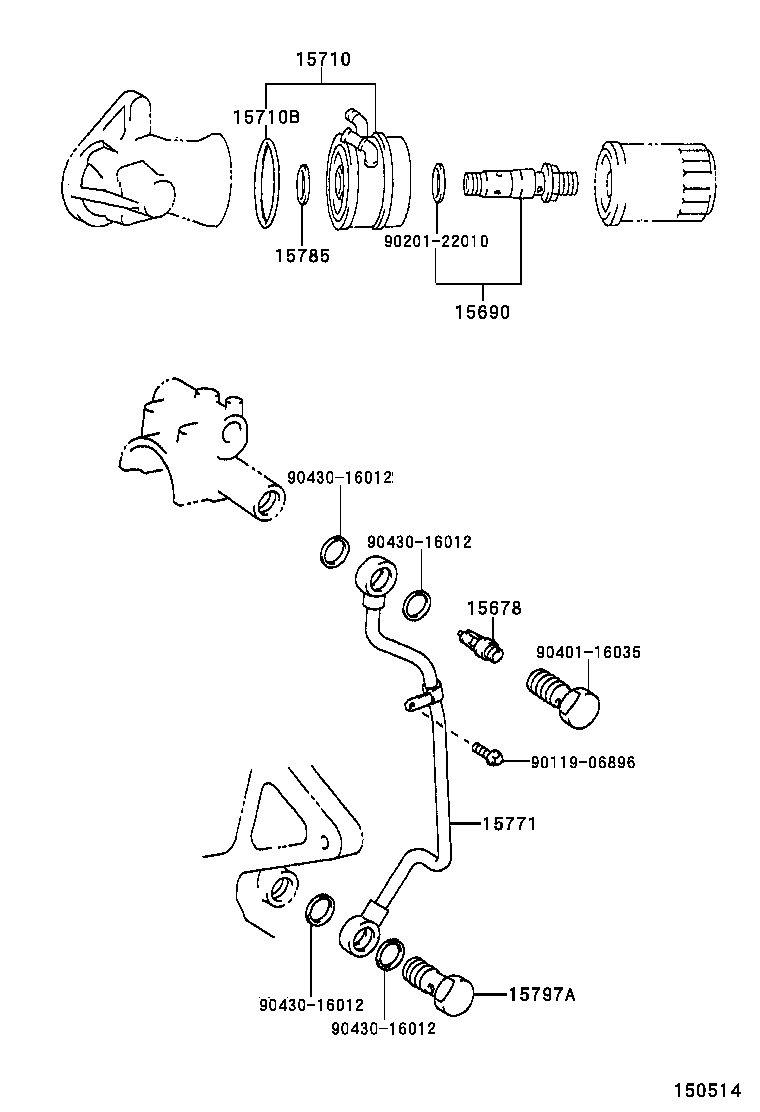

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
15678 - FILTER, OIL CONTROL VALVE
15678-46020	2JZGE..JCE10	07/2001 - 12/2999	1
15690 - VALVE ASSY, OIL COOLER RELIEF
15690-46010	2JZGE..JCE10	07/2001 - 12/2999	1
15710 - COOLER ASSY, OIL
15710-46030	2JZGE..JCE10	07/2001 - 12/2999	1
15710B - RING, O(FOR OIL COOLER)
90301-61004	2JZGE..JCE10	07/2001 - 12/2999	1
15771 - PIPE, OIL, NO.1
15771-46010	2JZGE..JCE10	07/2001 - 12/2999	1
15785 - GASKET, OIL COOLER
15785-35010	2JZGE..JCE10	07/2001 - 12/2999	1
15797A - BOLT, OIL CHECK VALVE
15797-46010	2JZGE..JCE10	07/2001 - 12/2999	1
Common parts
90119-06896
90201-22010
90401-16035
90430-16012
