GXE10R-AEFVKQ (1999)
Toyota Lexus Is200/300
Production
Jan 1999
-
Jul 2005
Engine
1GFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

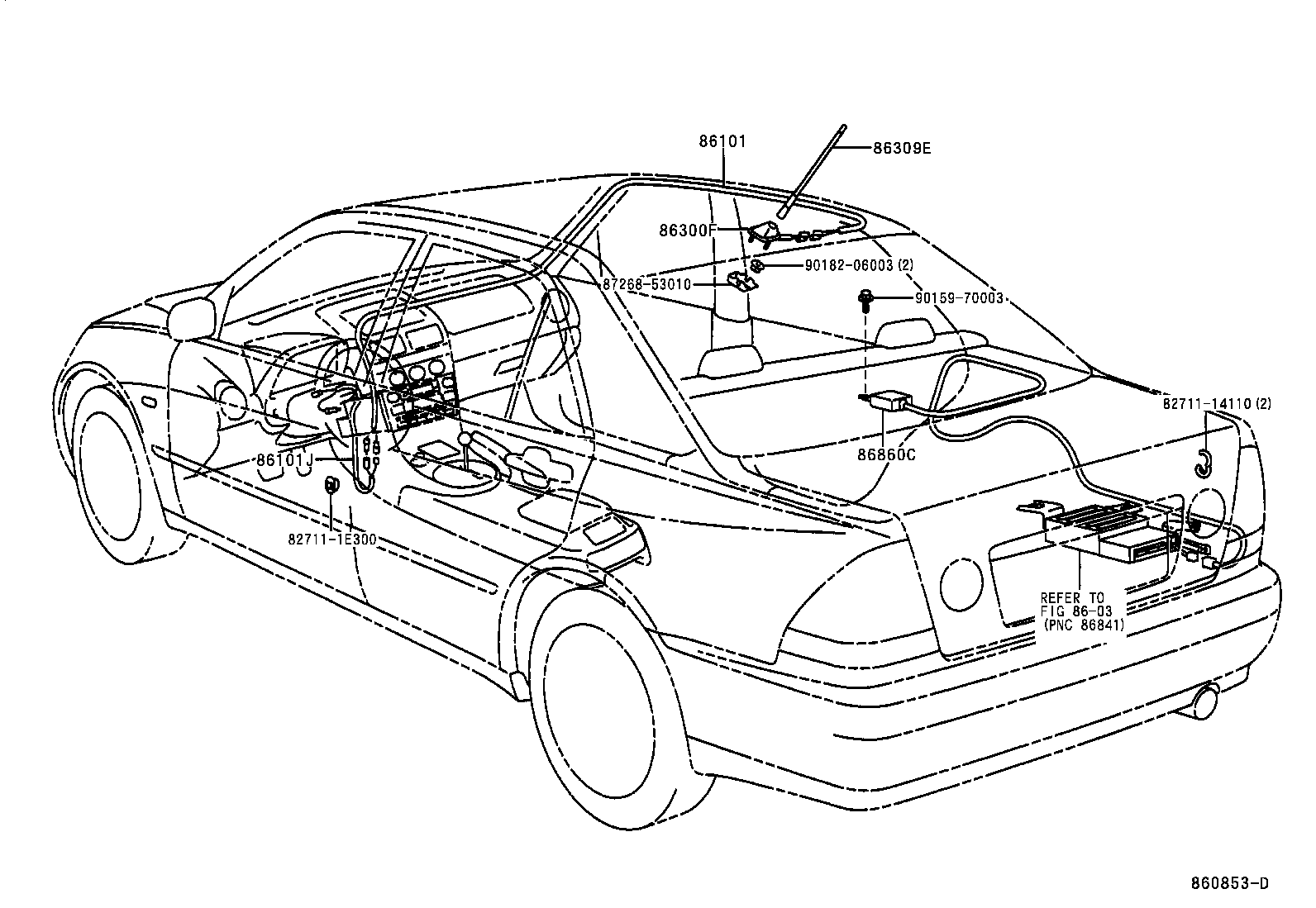

(9901-0107)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-53010 |
GXE10..RHD |
1 | ||
| 86101-53130 |
GXE10,JCE10..RHD..SED |
1 | ||
| 86101-53140 |
GXE10,JCE10..RHD..SED W(MOON ROOF) |
1 | ||
| 86101-53020 |
GXE10..RHD W(MOON ROOF) |
1 | ||
| 86101J - CORD SUB-ASSY, ANTENNA, NO.2 | ||||
| 86101-53050 |
GXE10 |
1 | ||
| 86101-53330 |
GXE10,JCE10..RHD |
1 | ||
| 86101-53051 |
GXE10..RHD |
1 | ||
| 86300F - HOLDER ASSY, ANTENNA (CORD/POLE SEPARATE TYPE) | ||||
| 86300-53030 |
GXE10..ARL |
1 | ||
| 86300-53070 |
GXE10,JCE10..ARL |
1 | ||
| 86309E - POLE SUB-ASSY, ROOF ANTENNA | ||||
| 86309-53020 |
GXE10 |
1 | ||
| 86309-53020 |
GXE10,JCE10 |
1 | ||
| 86860C - ANTENNA ASSY, NAVIGATION | ||||
| 86860-53020 |
GXE10,JCE10..SED |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 82711-1E300 | ||||
| 87268-53010 | ||||
| 90159-70003 | ||||
| 90182-06003 | ||||
| Linked diagrams | ||||
| 8603 | ||||

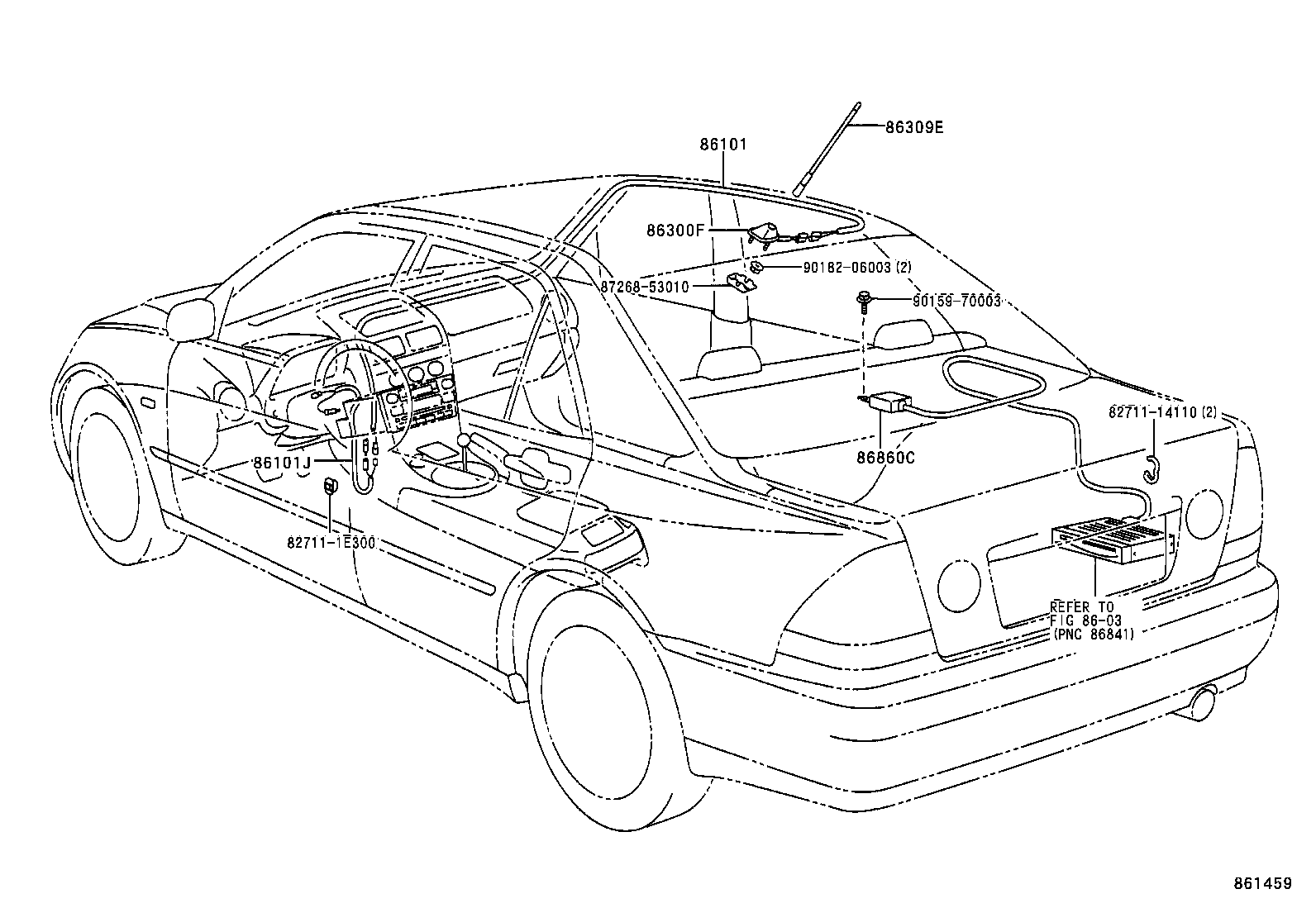

(0107- )SED
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101 - CORD SUB-ASSY, ANTENNA | ||||
| 86101-53010 |
GXE10..RHD |
1 | ||
| 86101-53130 |
GXE10,JCE10..RHD..SED |
1 | ||
| 86101-53140 |
GXE10,JCE10..RHD..SED W(MOON ROOF) |
1 | ||
| 86101-53020 |
GXE10..RHD W(MOON ROOF) |
1 | ||
| 86101J - CORD SUB-ASSY, ANTENNA, NO.2 | ||||
| 86101-53050 |
GXE10 |
1 | ||
| 86101-53330 |
GXE10,JCE10..RHD |
1 | ||
| 86101-53051 |
GXE10..RHD |
1 | ||
| 86300F - HOLDER ASSY, ANTENNA (CORD/POLE SEPARATE TYPE) | ||||
| 86300-53030 |
GXE10..ARL |
1 | ||
| 86300-53070 |
GXE10,JCE10..ARL |
1 | ||
| 86309E - POLE SUB-ASSY, ROOF ANTENNA | ||||
| 86309-53020 |
GXE10 |
1 | ||
| 86309-53020 |
GXE10,JCE10 |
1 | ||
| 86860C - ANTENNA ASSY, NAVIGATION | ||||
| 86860-53020 |
GXE10,JCE10..SED |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 82711-1E300 | ||||
| 87268-53010 | ||||
| 90159-70003 | ||||
| 90182-06003 | ||||
| Linked diagrams | ||||
| 8603 | ||||
