GXE10R-AEFVKQ (1999)

Toyota Lexus Is200/300

Production Jan 1999 - Jul 2005
Engine 1GFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

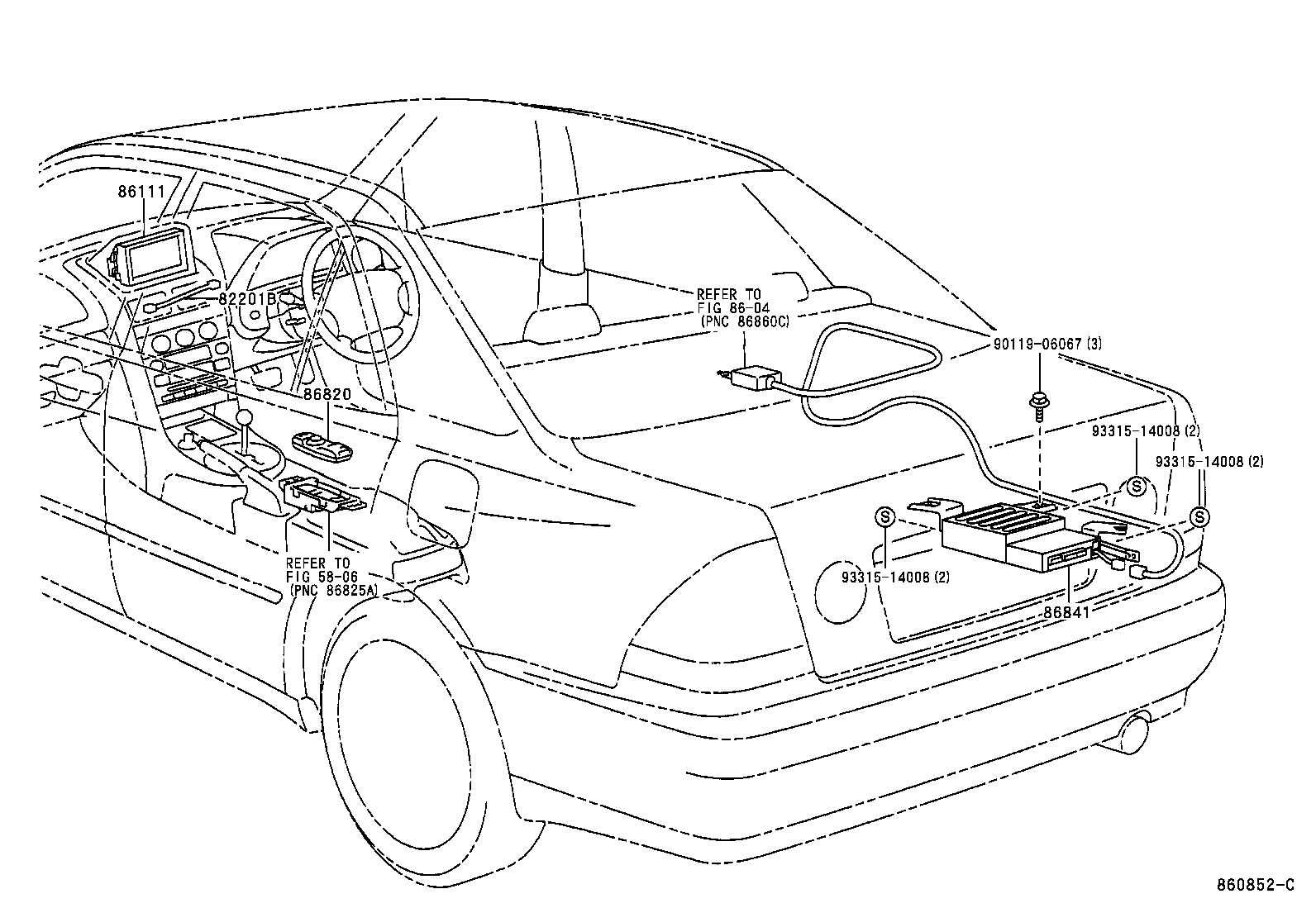

ILLUST NO. 1 OF 2(9901-0107)

Click highlighted areas on diagram

diagram 5806 82201B 8604 86111 86820 86841 9011906067 9331514008 9331514008 9331514008
Part # Description Qty Price
82201B - WIRE, INSTRUMENT PANEL
82201-53010

GXE10,JCE10

 1
86111 - MULTI-DISPLAY
86111-53030

GXE10,JCE10

PANASONIC

 1
86820 - CONTROLLER ASSY, NAVIGATION
86820-53040

GXE10,JCE10

 1
86841 - COMPUTER, NAVIGATION
86841-53050

GXE10,JCE10..ARL

 1
Common parts
90119-06067
93315-14008
Linked diagrams
5806
8604

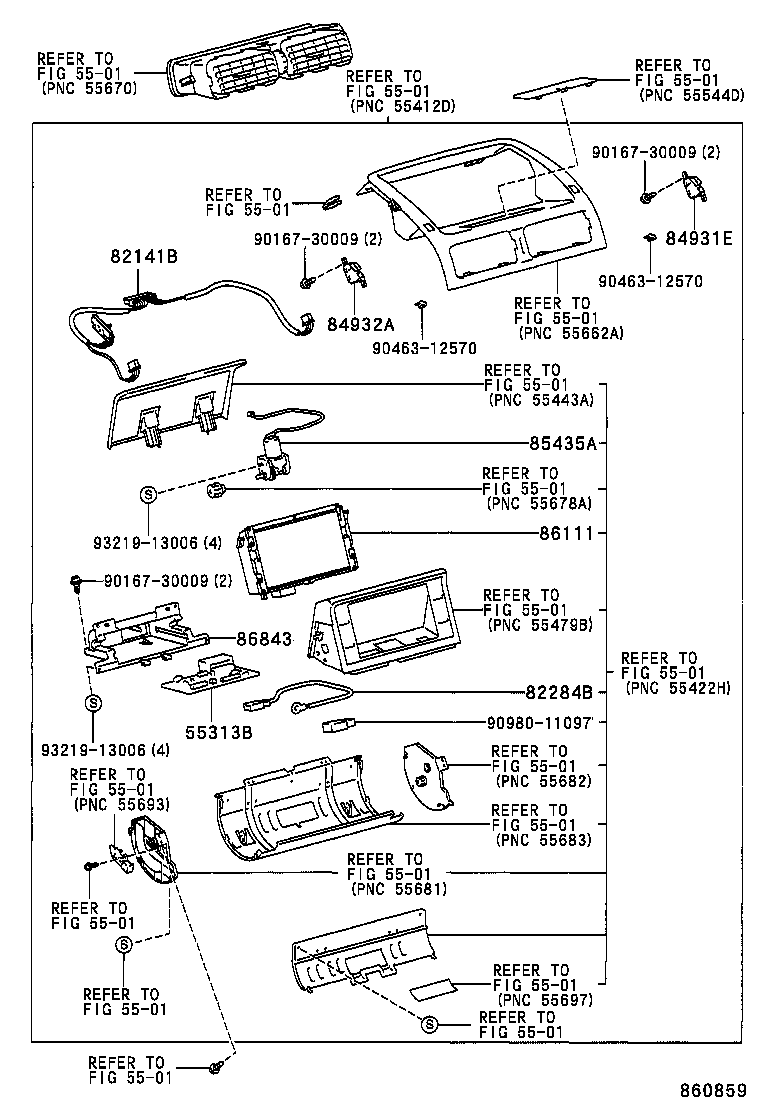

ILLUST NO. 2 OF 2(9901- )

Click highlighted areas on diagram

diagram 5501 5501 5501 5501 5501 5501 5501 5501 5501 5501 5501 5501 5501 5501 5501 5501 5501 5501 55313B 82141B 82284B 84931E 84932A 85435A 86111 86843 9016730009 9016730009 9016730009 9046312570 9046312570 9098011097 9321913006 9321913006
Part # Description Qty Price
55313B - CIRCUIT, DOOR CONTROL UNIT
55313-53020

GXE10,JCE10

 1
82141B - WIRE, INSTRUMENT PANEL
82145-53570

GXE10,JCE10

 1
82284B - WIRE, EARTH
82284-53020

GXE10,JCE10

 1
84931E - SWITCH, DOOR CONTROL
84931-53020

GXE10,JCE10

 1
84932A - SWITCH, DOOR CONTROL, NO.2
84932-53020

GXE10,JCE10

 1
85435A - SOLENOID, DOOR CONTROL
85435-53010

GXE10,JCE10

 1
86111 - MULTI-DISPLAY
86111-53030

GXE10,JCE10

PANASONIC

 1
86843 - COVER, NAVIGATION COMPUTER
86843-53020

GXE10,JCE10

 1
Common parts
90167-30009
90463-12570
90980-11097
93219-13006
Linked diagrams
5501

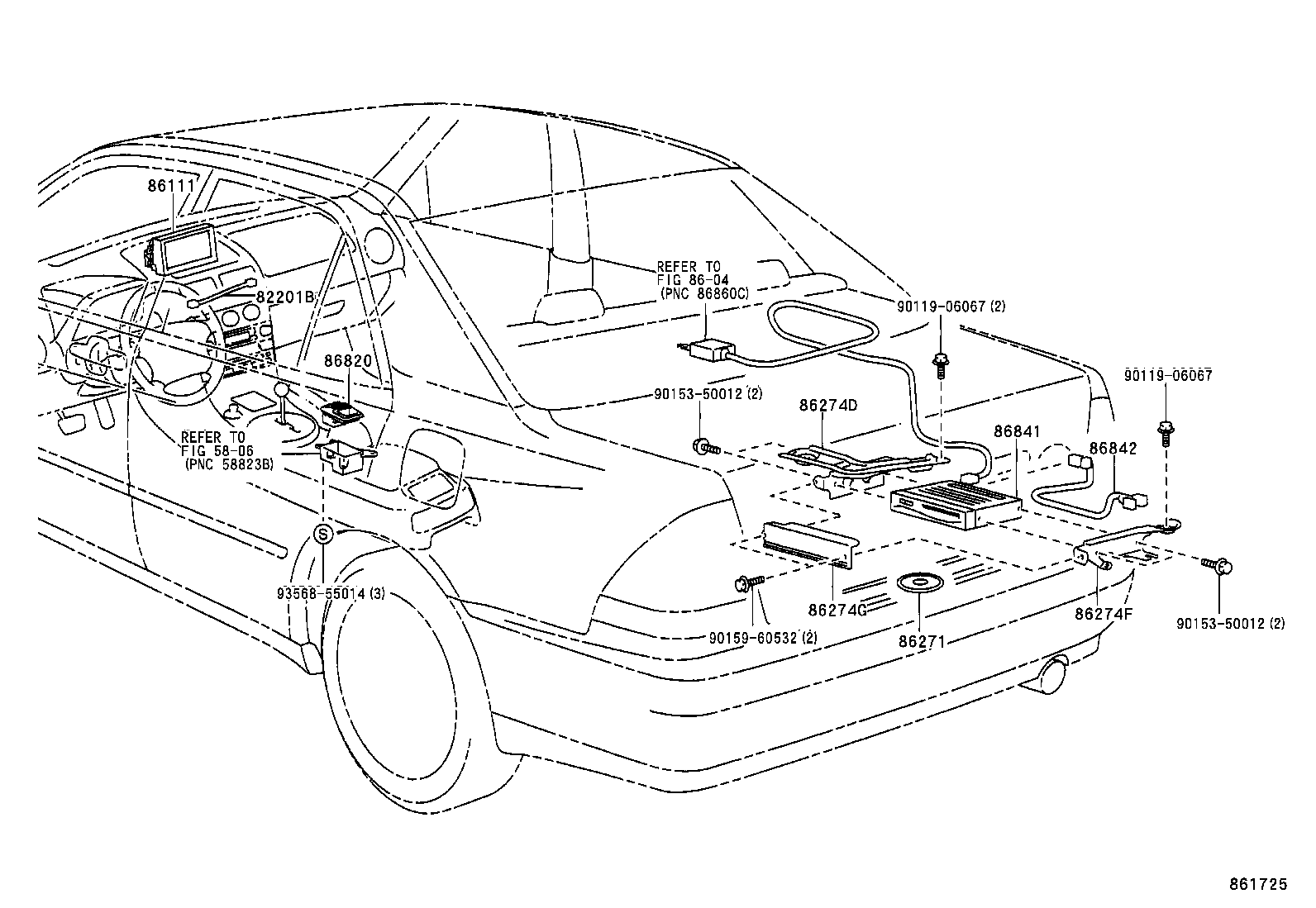

ILLUST NO. 1 OF 2(0107- )SED

Click highlighted areas on diagram

diagram 5806 82201B 8604 86111 86271 86274D 86274F 86274G 86820 86841 86842 9011906067 9011906067 9015350012 9015350012 9015960532 9356855014
Part # Description Qty Price
82201B - WIRE, INSTRUMENT PANEL
82201-53010

GXE10,JCE10

 1
86111 - MULTI-DISPLAY
86111-53030

GXE10,JCE10

PANASONIC

 1
86271 - DISC, DISC PLAYER
86271-24110

GXE10,JCE10..ARL

 1
86271-33070

GXE10,JCE10..ARL

 1
86271-24111

GXE10,JCE10..ARL

 1
86271-33071

GXE10,JCE10..ARL

 1
86274D - BRACKET, DISC PLAYER
86274-53010

GXE10,JCE10

 1
86274F - BRACKET, DISC PLAYER, NO.2
86274-53020

GXE10,JCE10

 1
86274G - BRACKET, DISC PLAYER, NO.3
86274-53060

GXE10,JCE10

 1
86820 - CONTROLLER ASSY, NAVIGATION
86820-53040

GXE10,JCE10

 1
86841 - COMPUTER, NAVIGATION
86841-53050

GXE10,JCE10..ARL

 1
86842 - WIRE, NAVIGATION, NO.1
86842-53010

GXE10,JCE10

 1
Common parts
90119-06067
90153-50012
90159-60532
93568-55014
Linked diagrams
5806
8604
