GXE10R-AEFVKQ (1999)
Toyota Lexus Is200/300

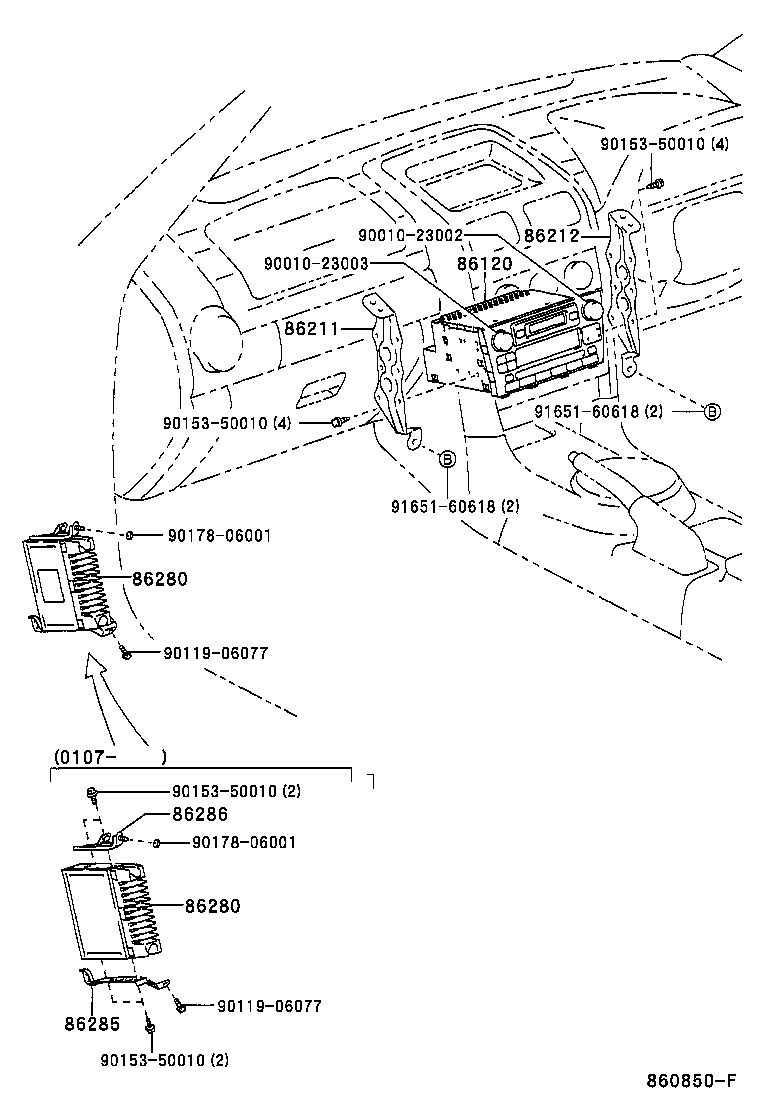

ILLUST NO. 1 OF 3(9901- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-53050 |

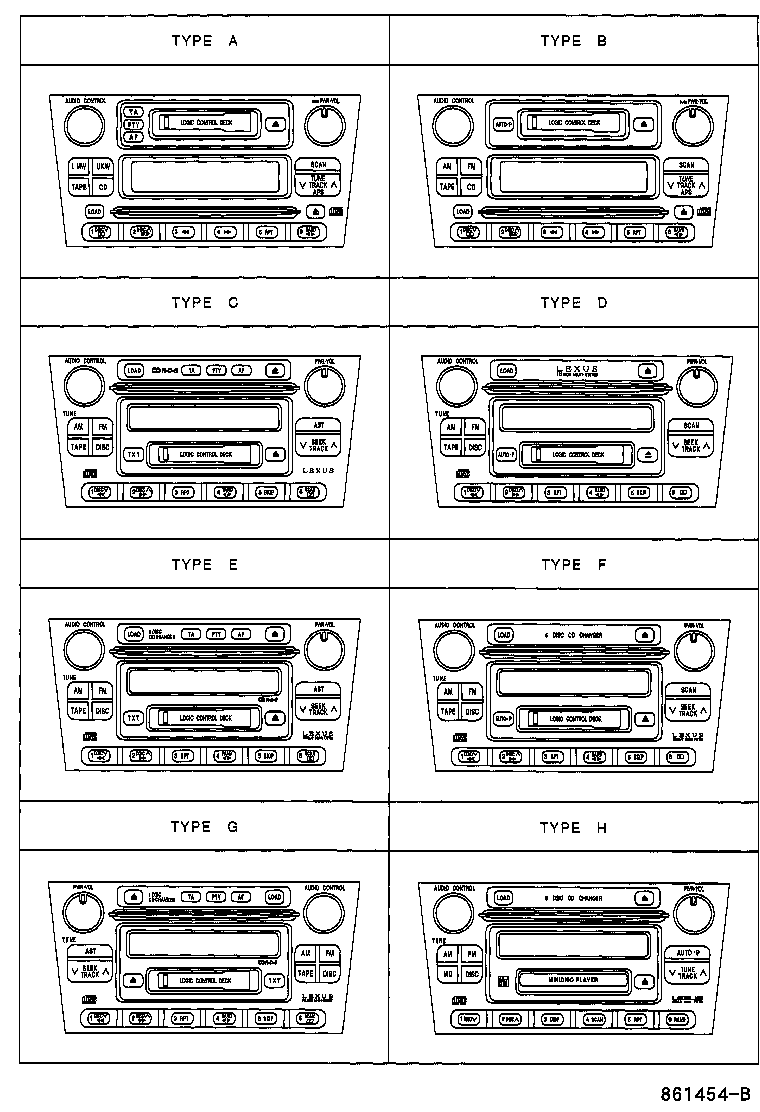

GXE10..ARL FUJITSU TEN,ID=17804,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120-53110 |
GXE10,JCE10..ARL;GXE10,JCE10..LHD..SED..ATM FUJITSU TEN,ID=17807,TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 86120-53051 |
GXE10..ARL FUJITSU TEN,ID=17806,TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 86120-53240 |
GXE10,JCE10..ARL FUJITSU TEN,ID=17902,TYPE H:REFER TO ILLUSTRATION |
1 | ||
| 86120-53220 |
GXE10,JCE10..ARL;GXE10,JCE10..LHD..SED..ATM FUJITSU TEN,ID=17823,TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 86120-53160 |
GXE10,JCE10..ARL FUJITSU TEN,ID=17901,TYPE H:REFER TO ILLUSTRATION |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-53011 |
GXE10 |
1 | ||
| 86211-53011 |
GXE10,JCE10 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-53011 |
GXE10,JCE10 |
1 | ||
| 86212-53011 |
GXE10 |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-53040 |
GXE10,JCE10..RHD..SED |
1 | ||
| 86280-53031 |
GXE10..RHD |
1 | ||
| 86280-53030 |
GXE10..RHD |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-53040 |
GXE10,JCE10..RHD..SED |
1 | ||
| 86280-53031 |
GXE10..RHD |
1 | ||
| 86280-53030 |
GXE10..RHD |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-53030 |
GXE10,JCE10..RHD |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-53010 |
GXE10,JCE10..RHD |
1 | ||
| Common parts | ||||
| 90010-23002 | ||||
| 90010-23003 | ||||
| 90119-06077 | ||||
| 90153-50010 | ||||
| 90178-06001 | ||||
| 91651-60618 | ||||

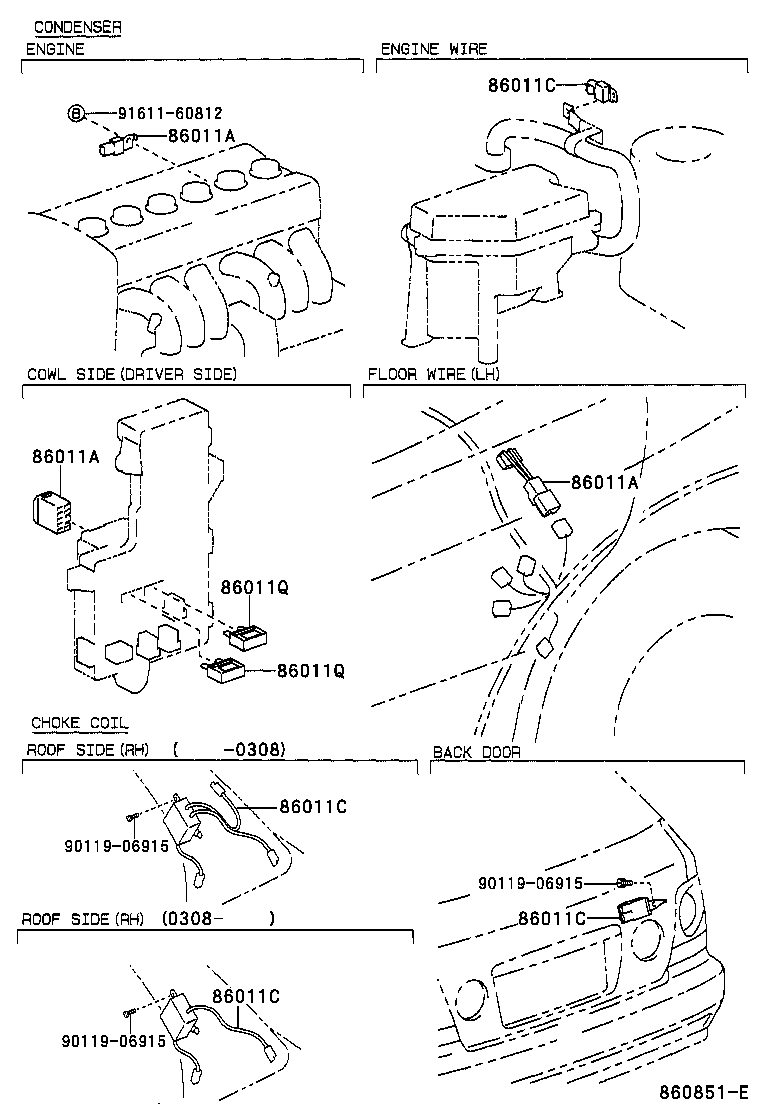

ILLUST NO. 3 OF 3(9901- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04132 |
GXE10 ENGINE |
1 | ||
| 90980-10799 |
GXE10,JCE10 COWL SIDE |
1 | ||
| 90980-04132 |
GXE10 ENGINE |
1 | ||
| 90980-04116 |
GXE10,JCE10 FLOOR WIRE (LH) |
1 | ||
| 90980-04116 |
GXE10 FLOOR WIRE (LH) |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04132 |
GXE10 ENGINE |
1 | ||
| 90980-10799 |
GXE10,JCE10 COWL SIDE |
1 | ||
| 90980-04132 |
GXE10 ENGINE |
1 | ||
| 90980-04116 |
GXE10,JCE10 FLOOR WIRE (LH) |
1 | ||
| 90980-04116 |
GXE10 FLOOR WIRE (LH) |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04132 |
GXE10 ENGINE |
1 | ||
| 90980-10799 |
GXE10,JCE10 COWL SIDE |
1 | ||
| 90980-04132 |
GXE10 ENGINE |
1 | ||
| 90980-04116 |
GXE10,JCE10 FLOOR WIRE (LH) |
1 | ||
| 90980-04116 |
GXE10 FLOOR WIRE (LH) |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05331 |
GXE10 ROOF SIDE (RH) |
1 | ||
| 90980-05364 |
GXE10,JCE10..SED ROOF SIDE (RH) |
1 | ||
| 90980-05331 |
GXE10,JCE10..SED ROOF SIDE (RH) |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05331 |
GXE10 ROOF SIDE (RH) |
1 | ||
| 90980-05364 |
GXE10,JCE10..SED ROOF SIDE (RH) |
1 | ||
| 90980-05331 |
GXE10,JCE10..SED ROOF SIDE (RH) |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05331 |
GXE10 ROOF SIDE (RH) |
1 | ||
| 90980-05364 |
GXE10,JCE10..SED ROOF SIDE (RH) |
1 | ||
| 90980-05331 |
GXE10,JCE10..SED ROOF SIDE (RH) |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05331 |
GXE10 ROOF SIDE (RH) |
1 | ||
| 90980-05364 |
GXE10,JCE10..SED ROOF SIDE (RH) |
1 | ||
| 90980-05331 |
GXE10,JCE10..SED ROOF SIDE (RH) |
1 | ||
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04066 |
GXE10,JCE10 COWL SIDE |
2 | ||
| 90980-04066 |
GXE10 COWL SIDE |
2 | ||
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04066 |
GXE10,JCE10 COWL SIDE |
2 | ||
| 90980-04066 |
GXE10 COWL SIDE |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91611-60812 | ||||
ILLUST NO. 2 OF 3(9901- )
| Part # | Description | Qty | Price |
|---|
