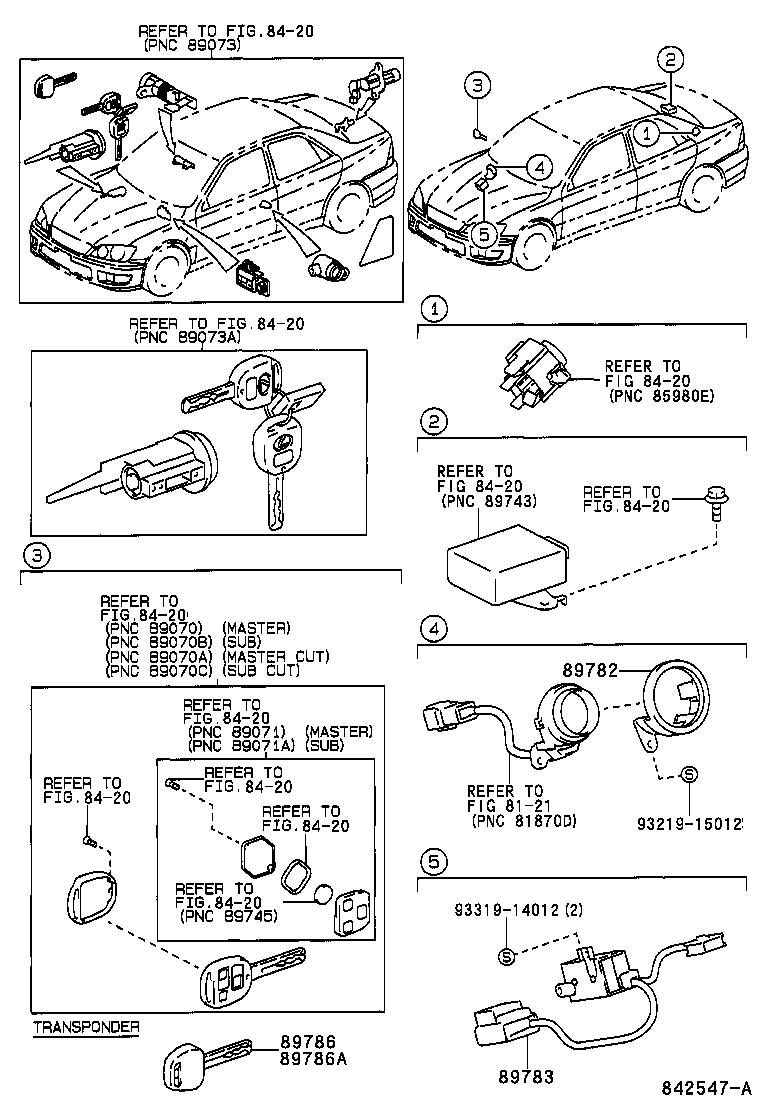

Toyota Lexus is200/300 GXE10 ANTI-THEFT DEVICE

Part #	Description	Period	Qty
89782 - COIL, TRANSPONDER KEY
89782-41010	GXE10	01/1999 - 07/2001	1
89782-41010	GXE10,JCE10	07/2001 - 12/2999	1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-53020	GXE10,JCE10..RHD	07/2001 - 05/2002	1
89783-53021	GXE10,JCE10..RHD	05/2002 - 12/2999	1
89783-53020	GXE10..RHD	01/1999 - 07/2001	1
89786 - TRANSMITTER, TRANSPONDER KEY SUB
89786-50030	GXE10..ARL;GXE10..LHD	05/2000 - 07/2001	1
89786-50030	GXE10	01/1999 - 05/2000	1
89786-50030	GXE10,JCE10..ARL;GXE10,JCE10..LHD	07/2001 - 12/2999	1
89786A - TRANSMITTER, TRANSPONDER CUT KEY SUB
89786-50040	GXE10	01/1999 - 05/2000	1
89786-50040	GXE10,JCE10..ARL;GXE10,JCE10..LHD	07/2001 - 12/2999	1
89786-50040	GXE10..ARL;GXE10..LHD	05/2000 - 07/2001	1
Common parts
93219-15012
93319-14012
Linked diagrams
8121
8420

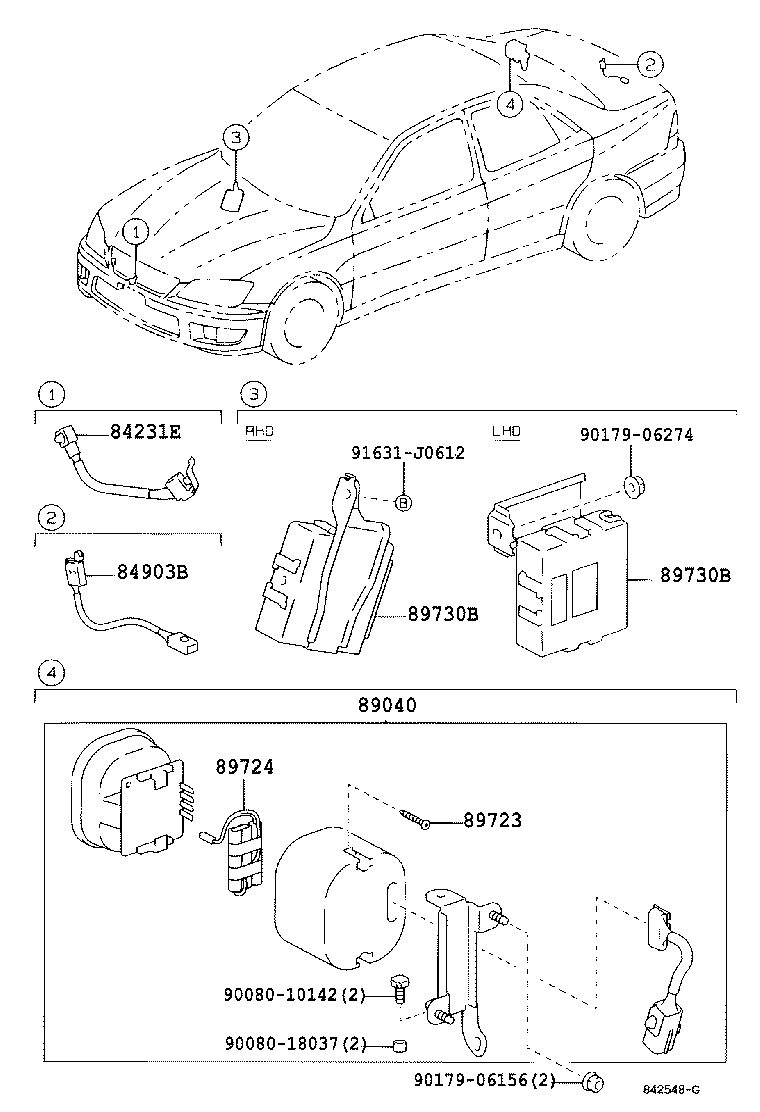

Part #	Description	Period	Qty
84231E - SWITCH, COURTESY(FOR SECURITY)
84231-24030	GXE10,JCE10	07/2001 - 12/2999	1
84231-24030	GXE10..RHD	01/1999 - 07/2001	1
84903B - SWITCH SUB-ASSY, DOOR UNLOCK
84903-53010	GXE10..ARL	01/1999 - 07/2001	1
84903-53010	GXE10,JCE10..ARL	07/2001 - 12/2999	1
89040 - SIREN ASSY, THEFT WARNING
89040-53011	GXE10..RHD	10/2000 - 07/2001	1
89040-53011	GXE10,JCE10..SED	07/2001 - 04/2003	1
89040-53012	GXE10,JCE10..SED	04/2003 - 12/2999	1
89040-53010	GXE10..RHD	01/1999 - 10/2000	1
89723 - SCREW, THEFT WARNING SIREN
89723-53010	GXE10..RHD	01/1999 - 07/2001	2
89723-53010	GXE10,JCE10	07/2001 - 12/2999	2
89724 - BATTERY, THEFT WARNING SIREN
89724-48010	GXE10,JCE10	07/2001 - 12/2999	1
89724-48010	GXE10..RHD	10/2000 - 07/2001	1
89724-53010	GXE10..RHD	01/1999 - 10/2000	1
89730B - COMPUTER ASSY, THEFT WARNING
89730-53010	GXE10..RHD	01/1999 - 07/2001	1
89730-53070	GXE10,JCE10..RHD	07/2001 - 12/2999	1
89730B - COMPUTER ASSY, THEFT WARNING
89730-53010	GXE10..RHD	01/1999 - 07/2001	1
89730-53070	GXE10,JCE10..RHD	07/2001 - 12/2999	1
Common parts
90080-10142
90080-18037
90179-06156
90179-06274
91631-J0612

GXE10R-AEFVKQ (1999)
