GXE10R-AEFVKQ (1999)
Toyota Lexus Is200/300
Production
Jan 1999
-
Jul 2005
Engine
1GFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

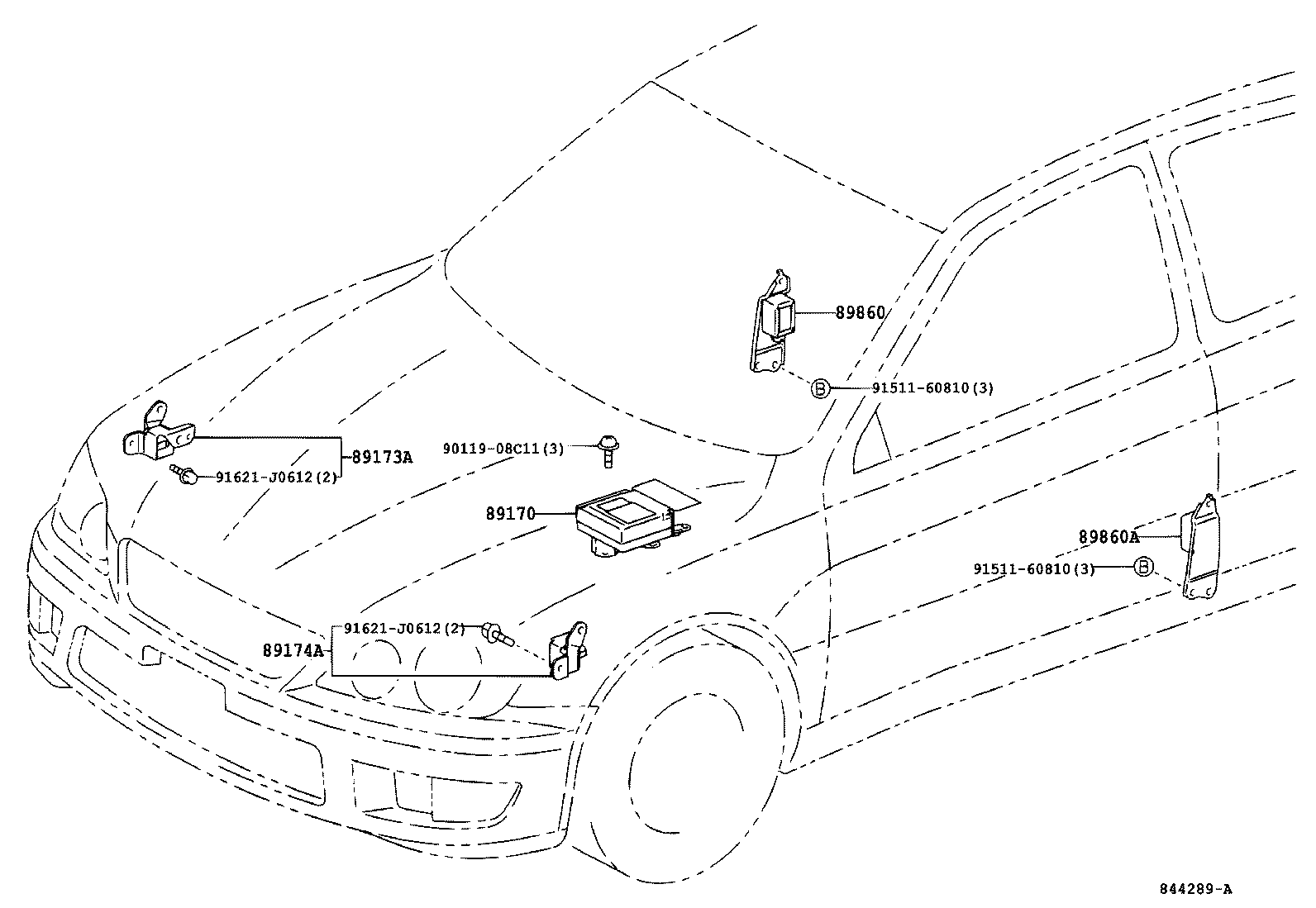

(0107- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89170 - SENSOR ASSY, AIR BAG | ||||
| 89170-53020 |
GXE10 |
1 | ||
| 89170-53040 |
GXE10,JCE10 |
1 | ||
| 89173A - SENSOR, AIR BAG, FRONT RH | ||||
| 89173-49185 |
GXE10 |
1 | ||
| 89173-59105 |
GXE10 |
1 | ||
| 89173-59185 |
GXE10,JCE10 |
1 | ||
| 89174A - SENSOR, AIR BAG, FRONT LH | ||||
| 89174-49085 |
GXE10 |
1 | ||
| 89174-59125 |
GXE10,JCE10 |
1 | ||
| 89860 - SENSOR ASSY, SIDE AIR BAG, RH | ||||
| 89860-53030 |
GXE10,JCE10 |
1 | ||
| 89860-53010 |
GXE10 |
1 | ||
| 89860A - SENSOR ASSY, SIDE AIR BAG, LH | ||||
| 89830-53030 |
GXE10,JCE10 |
1 | ||
| 89830-53010 |
GXE10 |
1 | ||
| Common parts | ||||
| 90119-08C11 | ||||
| 91511-60810 | ||||
| 91621-J0612 | ||||

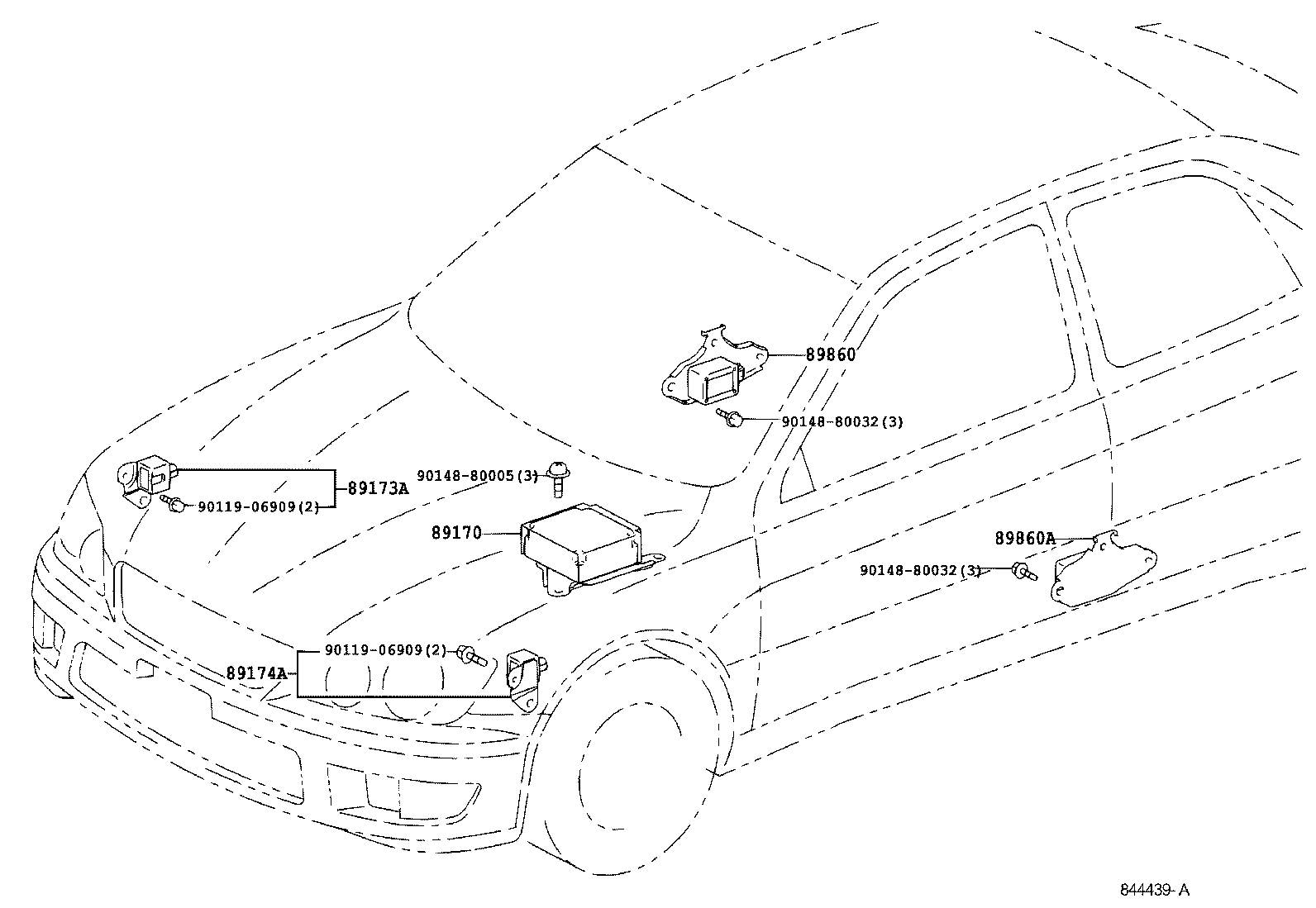

(9901-0107)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89170 - SENSOR ASSY, AIR BAG | ||||
| 89170-53020 |
GXE10 |
1 | ||
| 89170-53040 |
GXE10,JCE10 |
1 | ||
| 89173A - SENSOR, AIR BAG, FRONT RH | ||||
| 89173-49185 |
GXE10 |
1 | ||
| 89173-59105 |
GXE10 |
1 | ||
| 89173-59185 |
GXE10,JCE10 |
1 | ||
| 89174A - SENSOR, AIR BAG, FRONT LH | ||||
| 89174-49085 |
GXE10 |
1 | ||
| 89174-59125 |
GXE10,JCE10 |
1 | ||
| 89860 - SENSOR ASSY, SIDE AIR BAG, RH | ||||
| 89860-53030 |
GXE10,JCE10 |
1 | ||
| 89860-53010 |
GXE10 |
1 | ||
| 89860A - SENSOR ASSY, SIDE AIR BAG, LH | ||||
| 89830-53030 |
GXE10,JCE10 |
1 | ||
| 89830-53010 |
GXE10 |
1 | ||
| Common parts | ||||
| 90119-06909 | ||||
| 90148-80005 | ||||
| 90148-80032 | ||||
