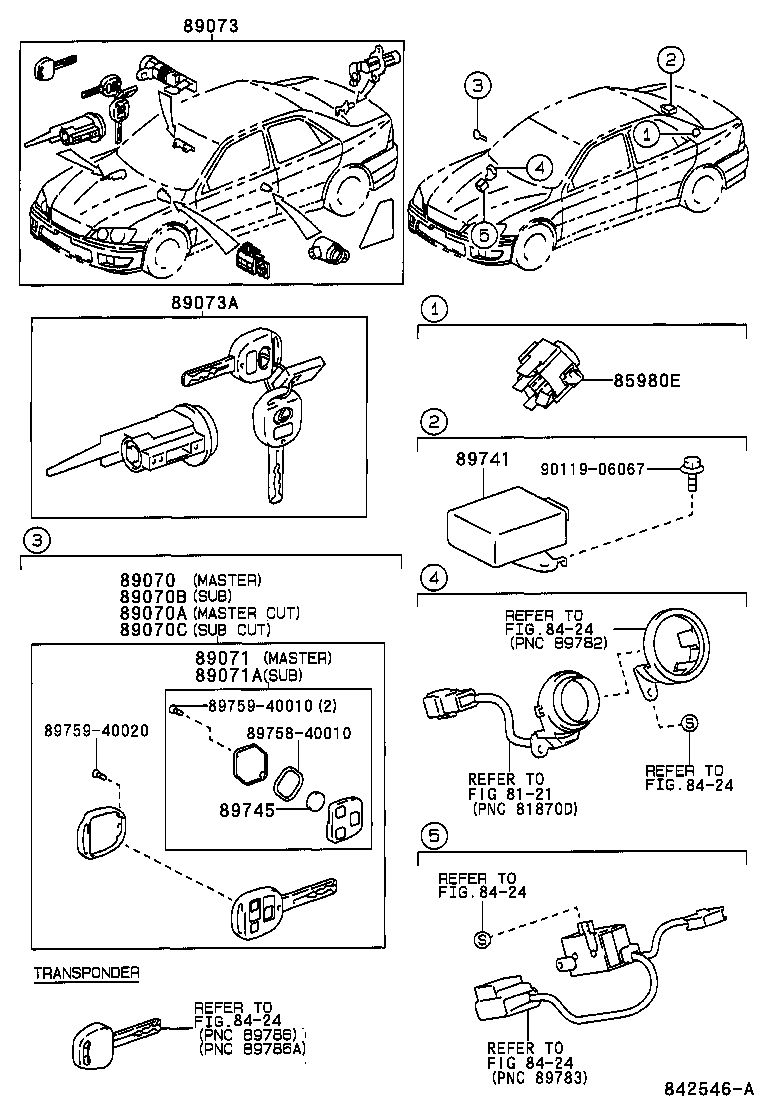

GXE10R-AEFVKQ (1999)
Toyota Lexus Is200/300
(9901-0107)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85980E - RELAY ASSY, DOOR CONTROL | ||||
| 85980-22210 |
GXE10 |
1 | ||
| 85980-22210 |
GXE10,JCE10..SED |
1 | ||
| 89070 - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-53130 |
GXE10..ARL |
1 | ||
| 89070-53250 |
GXE10..ARL SINGAPORE OR THAILAND SPEC |
1 | ||
| 89070-53580 |
GXE10..MTM..ARL HONG KONG OR THAILAND SPEC |
1 | ||
| 89070-53270 |
GXE10..ARL HONG KONG SPEC |
1 | ||
| 89070-53570 |
GXE10,JCE10..ARL |
1 | ||
| 89070A - TRANSMITTER, DOOR CONTROL (CUT KEY) | ||||
| 89070-53300 |
GXE10..ARL HONG KONG SPEC |
1 | ||
| 89070-53280 |
GXE10..ARL SINGAPORE OR THAILAND SPEC |
1 | ||
| 89070-53700 |
GXE10,JCE10..ARL |
1 | ||
| 89070-53190 |
GXE10..ARL |
1 | ||
| 89070-53710 |
GXE10..MTM..ARL HONG KONG OR THAILAND SPEC |
1 | ||
| 89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-53050 |
GXE10..ARL HONG KONG SPEC |
2 | ||
| 89071-53021 |
GXE10..ARL |
2 | ||
| 89071-53020 |
GXE10..ARL |
2 | ||
| 89071-53051 |
GXE10..ARL HONG KONG SPEC |
2 | ||
| 89071-53031 |
GXE10..ARL SINGAPORE OR THAILAND SPEC |
2 | ||
| 89071-53030 |
GXE10..ARL SINGAPORE OR THAILAND SPEC |
2 | ||
| 89071-53021 |
GXE10,JCE10..ARL |
2 | ||
| 89071-53051 |
GXE10..ARL HONG KONG SPEC |
2 | ||
| 89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE) | ||||
| 89073-53130 |
GXE10..ARL |
1 | ||
| 89073-53190 |
GXE10..ARL HONG KONG SPEC |
1 | ||
| 69005-53150 |
GXE10,JCE10..ARL |
1 | ||
| 89073-53170 |
GXE10..ARL SINGAPORE OR THAILAND SPEC |
1 | ||
| 89073A - IGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY) | ||||
| 89073-53070 |
GXE10..ARL |
1 | ||
| 89073-53140 |
GXE10..ARL SINGAPORE OR THAILAND SPEC |
1 | ||
| 89073-53160 |
GXE10..ARL HONG KONG SPEC |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-53040 |
GXE10..ARL SINGAPORE OR THAILAND SPEC |
1 | ||
| 89741-53060 |
GXE10..ARL HONG KONG SPEC |
1 | ||
| 89741-53030 |
GXE10,JCE10..ARL |
1 | ||
| 89741-53030 |
GXE10..ARL |
1 | ||
| 89741-53060 |
GXE10..ARL HONG KONG SPEC |
1 | ||
| 89745 - BATTERY, TRANSMITTER | ||||
| 89745-40010 |
GXE10..ARL;GXE10..LHD |
2 | ||
| 89745-40010 |
GXE10 |
2 | ||
| 89745-40010 |
GXE10,JCE10..ARL;GXE10,JCE10..LHD |
2 | ||
| Common parts | ||||
| 89758-40010 | ||||
| 89759-40010 | ||||
| 89759-40020 | ||||
| 90119-06067 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8424 | ||||

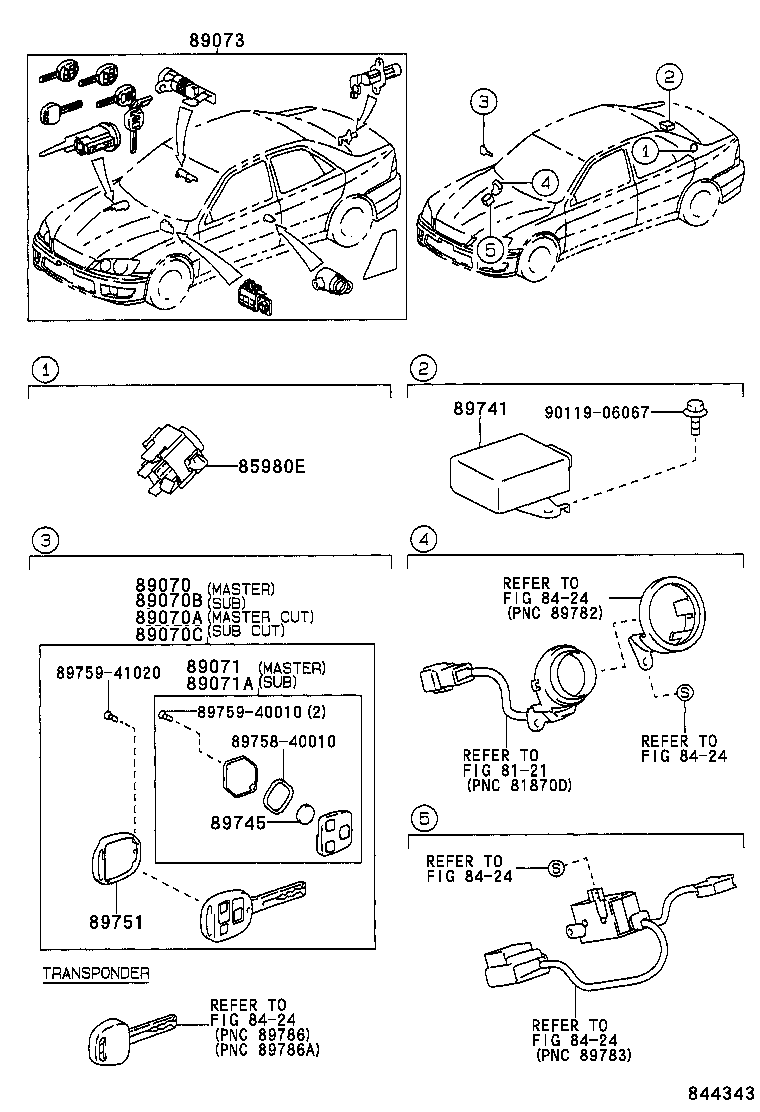

(0107- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85980E - RELAY ASSY, DOOR CONTROL | ||||
| 85980-22210 |
GXE10 |
1 | ||
| 85980-22210 |
GXE10,JCE10..SED |
1 | ||
| 89070 - TRANSMITTER ASSY, DOOR CONTROL | ||||
| 89070-53130 |
GXE10..ARL |
1 | ||
| 89070-53250 |
GXE10..ARL SINGAPORE OR THAILAND SPEC |
1 | ||
| 89070-53580 |
GXE10..MTM..ARL HONG KONG OR THAILAND SPEC |
1 | ||
| 89070-53270 |
GXE10..ARL HONG KONG SPEC |
1 | ||
| 89070-53570 |
GXE10,JCE10..ARL |
1 | ||
| 89070A - TRANSMITTER, DOOR CONTROL (CUT KEY) | ||||
| 89070-53300 |
GXE10..ARL HONG KONG SPEC |
1 | ||
| 89070-53280 |
GXE10..ARL SINGAPORE OR THAILAND SPEC |
1 | ||
| 89070-53700 |
GXE10,JCE10..ARL |
1 | ||
| 89070-53190 |
GXE10..ARL |
1 | ||
| 89070-53710 |
GXE10..MTM..ARL HONG KONG OR THAILAND SPEC |
1 | ||
| 89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-53050 |
GXE10..ARL HONG KONG SPEC |
2 | ||
| 89071-53021 |
GXE10..ARL |
2 | ||
| 89071-53020 |
GXE10..ARL |
2 | ||
| 89071-53051 |
GXE10..ARL HONG KONG SPEC |
2 | ||
| 89071-53031 |
GXE10..ARL SINGAPORE OR THAILAND SPEC |
2 | ||
| 89071-53030 |
GXE10..ARL SINGAPORE OR THAILAND SPEC |
2 | ||
| 89071-53021 |
GXE10,JCE10..ARL |
2 | ||
| 89071-53051 |
GXE10..ARL HONG KONG SPEC |
2 | ||
| 89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE) | ||||
| 89073-53130 |
GXE10..ARL |
1 | ||
| 89073-53190 |
GXE10..ARL HONG KONG SPEC |
1 | ||
| 69005-53150 |
GXE10,JCE10..ARL |
1 | ||
| 89073-53170 |
GXE10..ARL SINGAPORE OR THAILAND SPEC |
1 | ||
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-53040 |
GXE10..ARL SINGAPORE OR THAILAND SPEC |
1 | ||
| 89741-53060 |
GXE10..ARL HONG KONG SPEC |
1 | ||
| 89741-53030 |
GXE10,JCE10..ARL |
1 | ||
| 89741-53030 |
GXE10..ARL |
1 | ||
| 89741-53060 |
GXE10..ARL HONG KONG SPEC |
1 | ||
| 89745 - BATTERY, TRANSMITTER | ||||
| 89745-40010 |
GXE10..ARL;GXE10..LHD |
2 | ||
| 89745-40010 |
GXE10 |
2 | ||
| 89745-40010 |
GXE10,JCE10..ARL;GXE10,JCE10..LHD |
2 | ||
| 89751 - COVER, TRANSMITTER HOUSING | ||||
| 89751-50100 |
GXE10,JCE10..ARL |
2 | ||
| Common parts | ||||
| 89758-40010 | ||||
| 89759-40010 | ||||
| 89759-41020 | ||||
| 90119-06067 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8424 | ||||
