Toyota Lexus is200/300 GXE10 WIRING & CLAMP

GXE10R-AEFVKQ (1999)

Toyota Lexus Is200/300

Production Jan 1999 - Jul 2005

Engine 1GFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

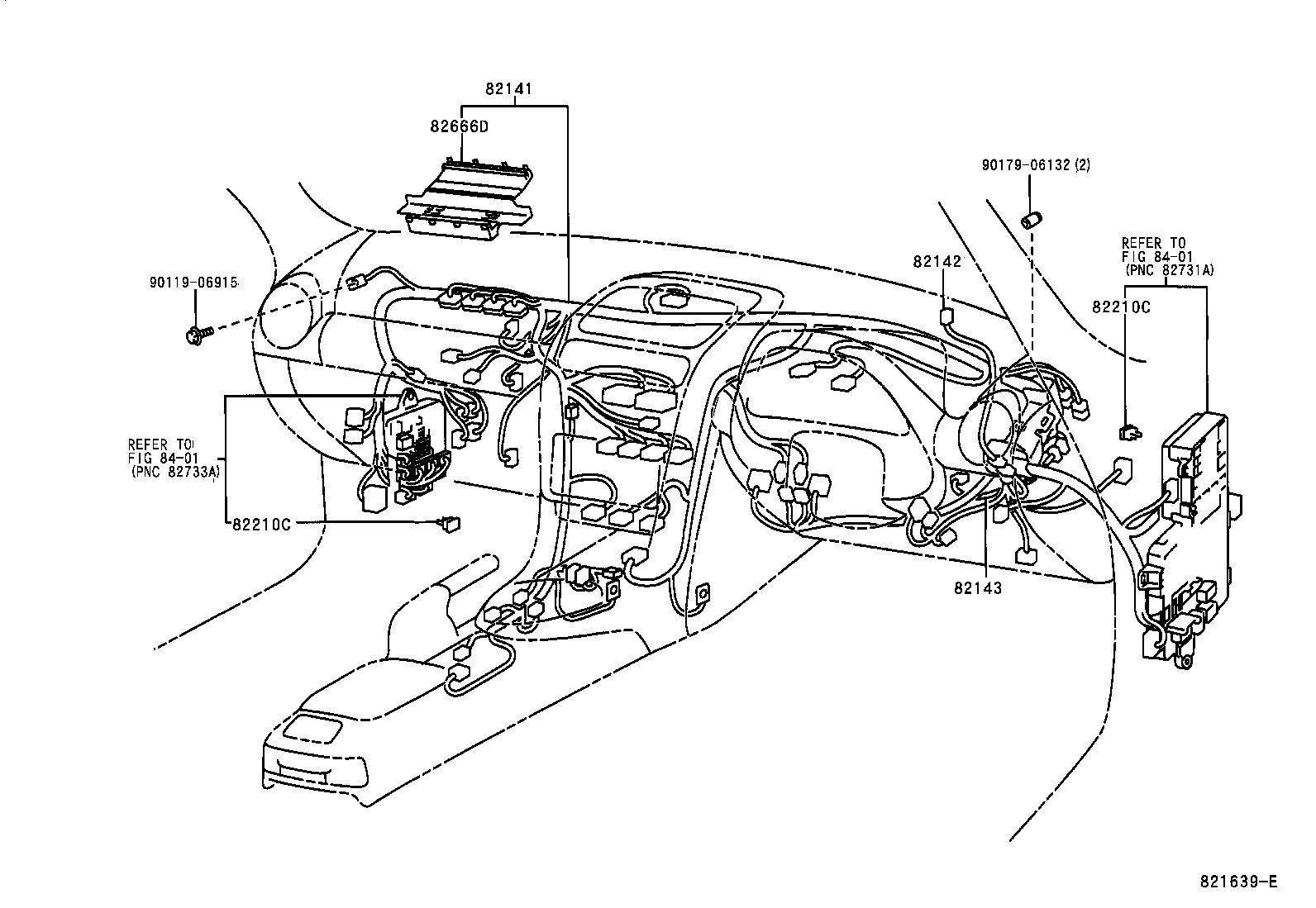

ILLUST NO. 3 OF 9(9901- )RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-53410	GXE10..MTM..ARL	01/1999 - 05/2000	1
82141-53412	GXE10..MTM..ARL	09/2000 - 07/2001	1
82141-53411	GXE10..MTM..ARL	05/2000 - 09/2000	1
82141-53413	GXE10..MTM..ARL	07/2001 - 08/2003	1
82145-53450	GXE10..MTM..ARL W(GPS NAVIGATION SYSTEM)	07/2001 - 08/2003	1
82141-53414	GXE10..MTM..ARL	08/2003 - 12/2999	1
82145-53451	GXE10..MTM..ARL W(GPS NAVIGATION SYSTEM)	08/2003 - 12/2999	1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-53020	GXE10..RHD	01/1999 - 07/2001	1
82142-53020	GXE10,JCE10..RHD	07/2001 - 12/2999	1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-53010	GXE10..RHD..MTM	01/1999 - 07/2001	1
82143-53010	GXE10..RHD..MTM	07/2001 - 12/2999	1
82210C - FUSIBLE LINK
90982-08202	GXE10,JCE10 60A,TERM.:MALE,YEL	07/2001 - 12/2999	1
90982-08274	GXE10 120A,TERM.:MALE,WHT	01/1999 - 07/2001	1
90982-08274	GXE10,JCE10 120A,TERM.:MALE,WHT	07/2001 - 12/2999	1
90982-08284	GXE10 40A,TERM.:FEMALE,GRN	01/1999 - 07/2001	1
90982-08202	GXE10 60A,TERM.:MALE,YEL	01/1999 - 07/2001	1
90982-08284	GXE10..LHD..WG;GXE10,JCE10..RHD 40A,TERM.:FEMALE,GRN	07/2001 - 12/2999	1
90982-08283	GXE10 30A,TERM.:FEMALE,PNK	01/1999 - 07/2001	1
90982-08283	GXE10,JCE10 30A,TERM.:FEMALE,PNK	07/2001 - 12/2999	1
82210C - FUSIBLE LINK
90982-08202	GXE10,JCE10 60A,TERM.:MALE,YEL	07/2001 - 12/2999	1
90982-08274	GXE10 120A,TERM.:MALE,WHT	01/1999 - 07/2001	1
90982-08274	GXE10,JCE10 120A,TERM.:MALE,WHT	07/2001 - 12/2999	1
90982-08284	GXE10 40A,TERM.:FEMALE,GRN	01/1999 - 07/2001	1
90982-08202	GXE10 60A,TERM.:MALE,YEL	01/1999 - 07/2001	1
90982-08284	GXE10..LHD..WG;GXE10,JCE10..RHD 40A,TERM.:FEMALE,GRN	07/2001 - 12/2999	1
90982-08283	GXE10 30A,TERM.:FEMALE,PNK	01/1999 - 07/2001	1
90982-08283	GXE10,JCE10 30A,TERM.:FEMALE,PNK	07/2001 - 12/2999	1
82666D - HOLDER, CONNECTOR NO.5
82666-53051	GXE10	10/1999 - 07/2001	1
82666-53051	GXE10,JCE10	07/2001 - 12/2999	1
82666-53050	GXE10	01/1999 - 10/1999	1
Common parts
90119-06915
90179-06132
Linked diagrams
8401

ILLUST NO. 4 OF 9(9901- )

Click highlighted areas on diagram

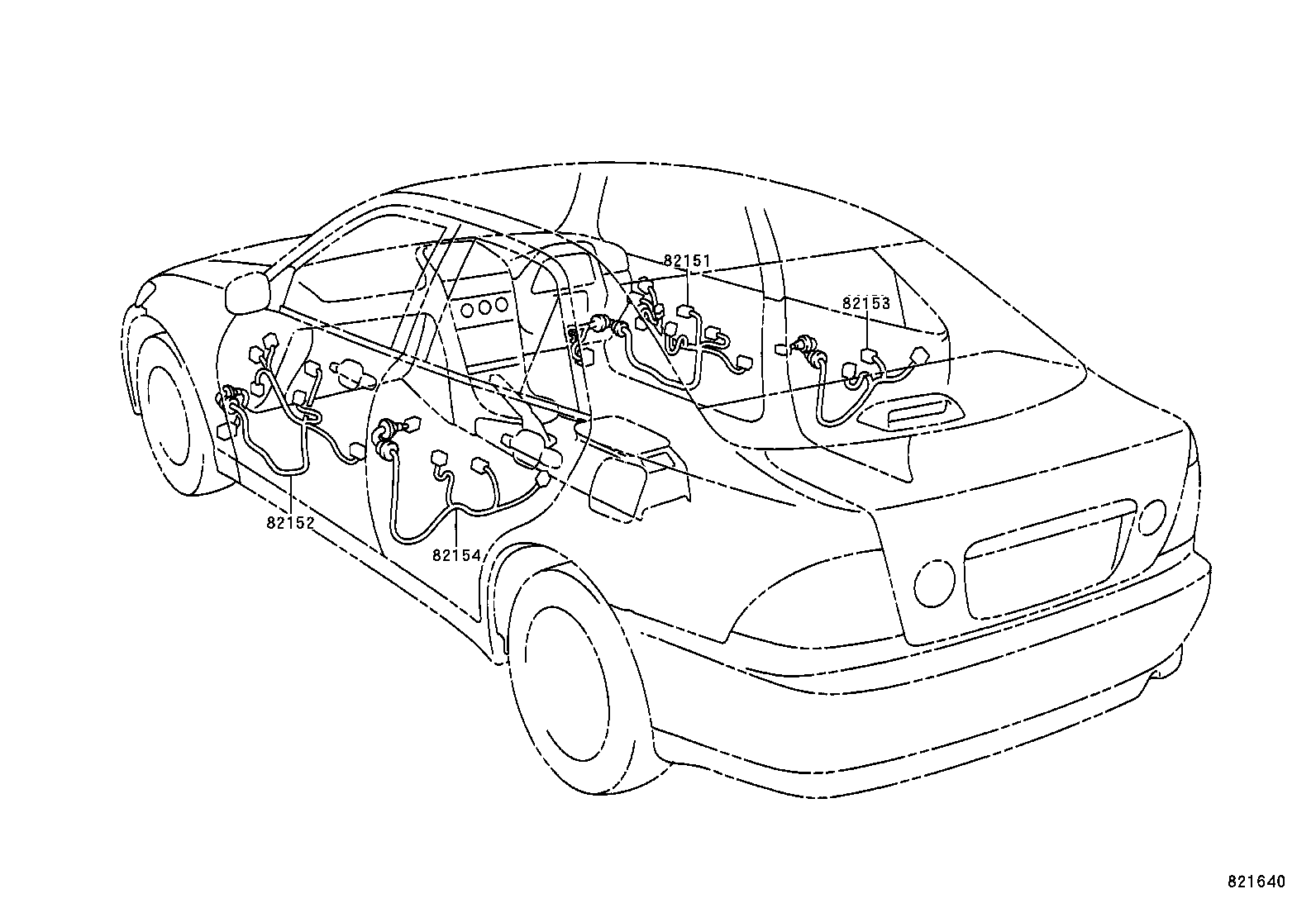

DOOR

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-53060	GXE10..RHD	01/1999 - 05/2000	1
82151-53061	GXE10..RHD	05/2000 - 07/2001	1
82151-53063	GXE10,JCE10..ARL	08/2002 - 12/2999	1
82151-53062	GXE10,JCE10..ARL	07/2001 - 08/2002	1
82152 - WIRE, FRONT DOOR, LH
82152-53062	GXE10,JCE10..ARL	07/2001 - 08/2002	1
82152-53061	GXE10..RHD	05/2000 - 07/2001	1
82152-53060	GXE10..RHD	01/1999 - 05/2000	1
82152-53063	GXE10,JCE10..ARL	08/2002 - 12/2999	1
82153 - WIRE, REAR DOOR, NO.1
82153-53020	GXE10	01/1999 - 05/2000	1
82153-53020	GXE10,JCE10..ARL;GXE10,JCE10..LHD	07/2001 - 12/2999	1
82153-53020	GXE10..ARL;GXE10..LHD	05/2000 - 07/2001	1
82154 - WIRE, REAR DOOR, NO.2
82154-53020	GXE10..ARL;GXE10..LHD	05/2000 - 07/2001	1
82154-53020	GXE10,JCE10..ARL;GXE10,JCE10..LHD	07/2001 - 12/2999	1
82154-53020	GXE10	01/1999 - 05/2000	1

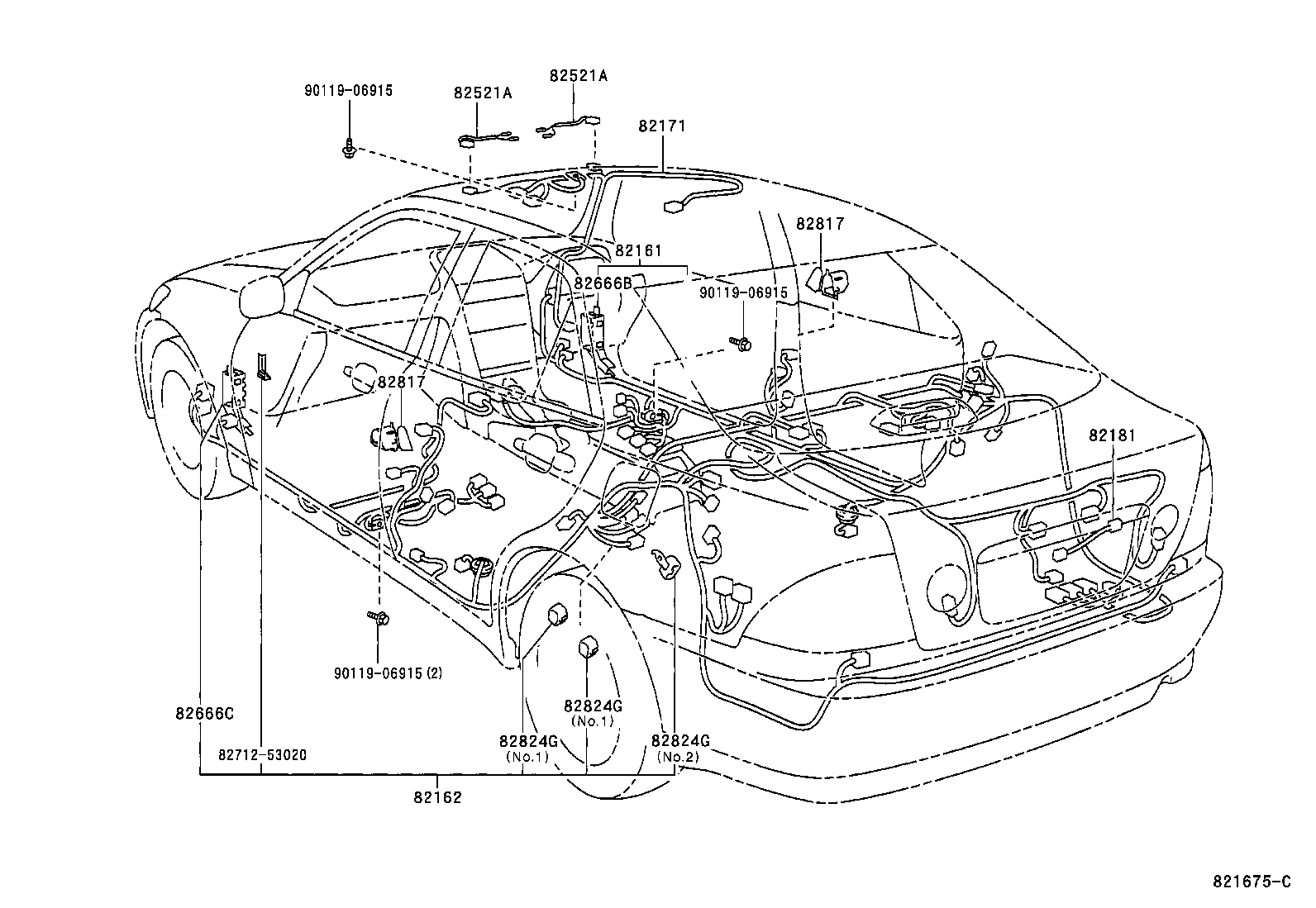

ILLUST NO. 5 OF 9(9901- )RHD..SED

Click highlighted areas on diagram

FLOOR & ROOF

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-53120	GXE10..RHD	01/1999 - 05/2000	1
82161-53130	GXE10..RHD W(LEATHER SEAT)	01/1999 - 05/2000	1
82161-53131	GXE10..RHD W(LEATHER SEAT)	05/2000 - 07/2001	1
82161-53132	GXE10,JCE10..RHD..SED W(LEATHER-SEAT)	07/2001 - 08/2002	1
82161-53122	GXE10,JCE10..RHD..SED	07/2001 - 08/2002	1
82161-53162	GXE10,JCE10..RHD..SED W(GPS NAVIGATION SYSTEM & LEATHER SEAT)	07/2001 - 08/2002	1
82161-53121	GXE10..RHD	05/2000 - 07/2001	1
82161-53152	GXE10,JCE10..RHD..SED W(GPS NAVIGATION SYSTEM)	07/2001 - 08/2002	1
82161-53163	GXE10,JCE10..RHD..SED W(GPS NAVIGATION SYSTEM & LEATHER SEAT)	08/2002 - 12/2999	1
82161-53133	GXE10,JCE10..RHD..SED W(LEATHER-SEAT)	08/2002 - 12/2999	1
82161-53123	GXE10,JCE10..RHD..SED	08/2002 - 12/2999	1
82161-53153	GXE10,JCE10..RHD..SED W(GPS NAVIGATION SYSTEM)	08/2002 - 12/2999	1
82162 - WIRE, FLOOR, NO.2
82162-53230	GXE10..ARL	01/1999 - 05/2000	1
82162-53231	GXE10..RHD W(AM/FM CASSETTE & CD AUTO CHANGER & 8SPAKER)	05/2000 - 07/2001	1
82162-53330	GXE10..RHD W(AM/FM CASSETTE & CD AUTO CHANGER & 8SPAKER & SEAT HEATER)	05/2000 - 07/2001	1
82162-53331	GXE10,JCE10..RHD..SED W(LEATHER-SEAT)	07/2001 - 08/2002	1
82162-53232	GXE10,JCE10..RHD..SED	07/2001 - 08/2002	1
82162-53233	GXE10,JCE10..RHD..SED	08/2002 - 12/2999	1
82162-53332	GXE10,JCE10..RHD..SED W(LEATHER-SEAT)	08/2002 - 12/2999	1
82171 - WIRE, ROOF, NO.1
82171-53060	GXE10..RHD W(MOON ROOF W/JAM PROTECTION SYSTEM)	01/1999 - 07/2001	1
82171-53050	GXE10..RHD	01/1999 - 07/2001	1
82171-53240	JCE10..RHD;GXE10..RHD..SED W(INSIDE REAR VIEW MIRROR)	07/2001 - 12/2999	1
82171-53070	GXE10..ARL W(MOON ROOF)	01/1999 - 07/2001	1
82171-53260	GXE10,JCE10..ARL W(SUN ROOF & MOON ROOF---AUTO SLIDE TYPE)	07/2001 - 12/2999	1
82171-53250	GXE10,JCE10..RHD W(SUN ROOF & MOON ROOF)	07/2001 - 12/2999	1
82171-53290	GXE10,JCE10..ARL W(INSIDE REAR VIEW MIRROR) & W(SUN ROOF & MOON ROOF---AUTO SLIDE TYPE)	07/2001 - 12/2999	1
82171-53270	GXE10,JCE10..RHD W(EC MIRROR)	07/2001 - 12/2999	1
82171-53280	JCE10..RHD;GXE10..RHD..SED W(INSIDE REAR VIEW MIRROR) & W(SUN ROOF & MOON ROOF)	07/2001 - 12/2999	1
82181 - WIRE, LUGGAGE ROOM, NO.1
82181-53010	GXE10	01/1999 - 07/2001	2
82181-53010	GXE10,JCE10..SED	07/2001 - 12/2999	2
82521A - WIRE, VANITY LAMP
82521-53020	GXE10,JCE10	07/2001 - 07/2005	2
82521A - WIRE, VANITY LAMP
82521-53020	GXE10,JCE10	07/2001 - 07/2005	2
82666B - HOLDER, CONNECTOR NO.3
82666-53010	GXE10,JCE10..SED;GXE10,JCE10..LHD..WG	07/2001 - 12/2999	1
82666-53020	GXE10	01/1999 - 07/2001	1
82666C - HOLDER, CONNECTOR NO.4
82666-53040	GXE10,JCE10	07/2001 - 12/2999	1
82666-53040	GXE10	01/1999 - 07/2001	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-3K410	GXE10	01/1999 - 07/2001	1
82817-3K410	GXE10,JCE10	07/2001 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-3K410	GXE10	01/1999 - 07/2001	1
82817-3K410	GXE10,JCE10	07/2001 - 12/2999	1
82824G - CONNECTOR, WIRING HARNESS
82824-20130	GXE10,JCE10 NO.2	07/2001 - 12/2999	1
82824-20110	GXE10,JCE10..SED NO.1	07/2001 - 12/2999	2
82824G - CONNECTOR, WIRING HARNESS
82824-20130	GXE10,JCE10 NO.2	07/2001 - 12/2999	1
82824-20110	GXE10,JCE10..SED NO.1	07/2001 - 12/2999	2
82824G - CONNECTOR, WIRING HARNESS
82824-20130	GXE10,JCE10 NO.2	07/2001 - 12/2999	1
82824-20110	GXE10,JCE10..SED NO.1	07/2001 - 12/2999	2
Common parts
82712-53020
90119-06915

ILLUST NO. 6 OF 9(9901- )

Click highlighted areas on diagram

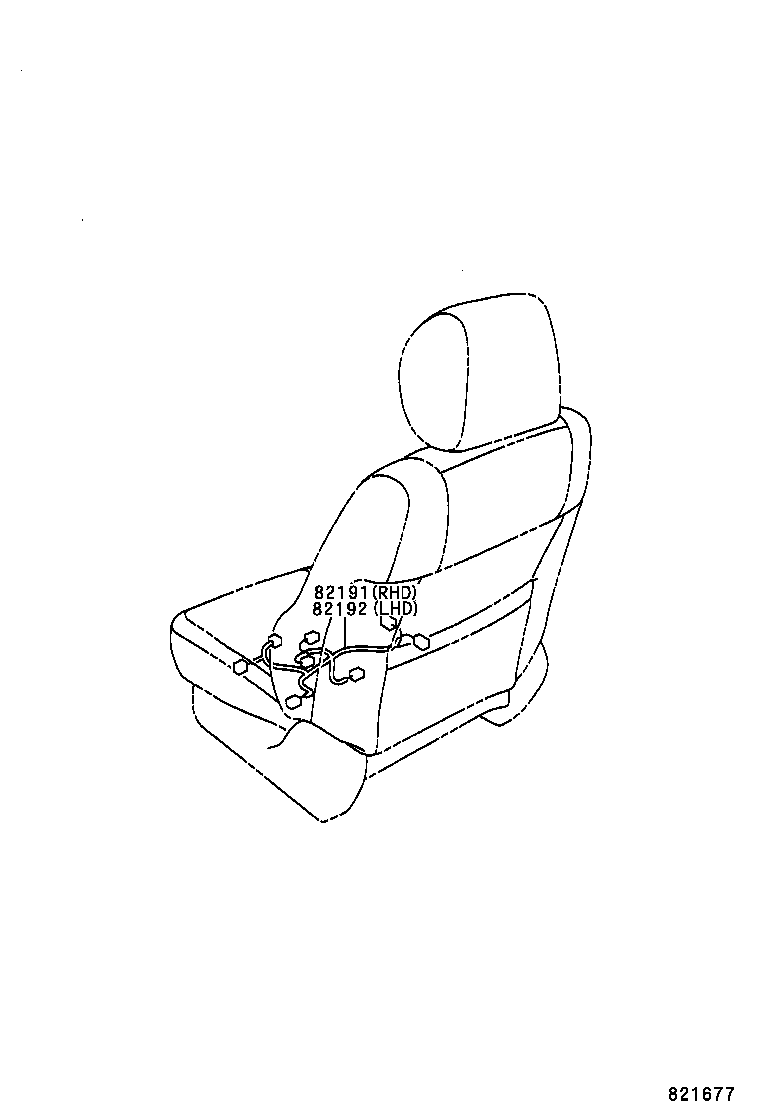

SEAT

Part #	Description	Period	Qty
82191 - WIRE, FRONT SEAT, RH
82191-53010	GXE10..RHD	01/1999 - 05/2000	1
82191-53010	GXE10,JCE10..RHD	07/2001 - 12/2999	1
82191-53010	GXE10	05/2000 - 07/2001	1
82192 - WIRE, FRONT SEAT, LH
82192-53010	GXE10,JCE10	07/2001 - 12/2999	1
82192-53010	GXE10	05/2000 - 07/2001	1

ILLUST NO. 7 OF 9(9901- )

Click highlighted areas on diagram

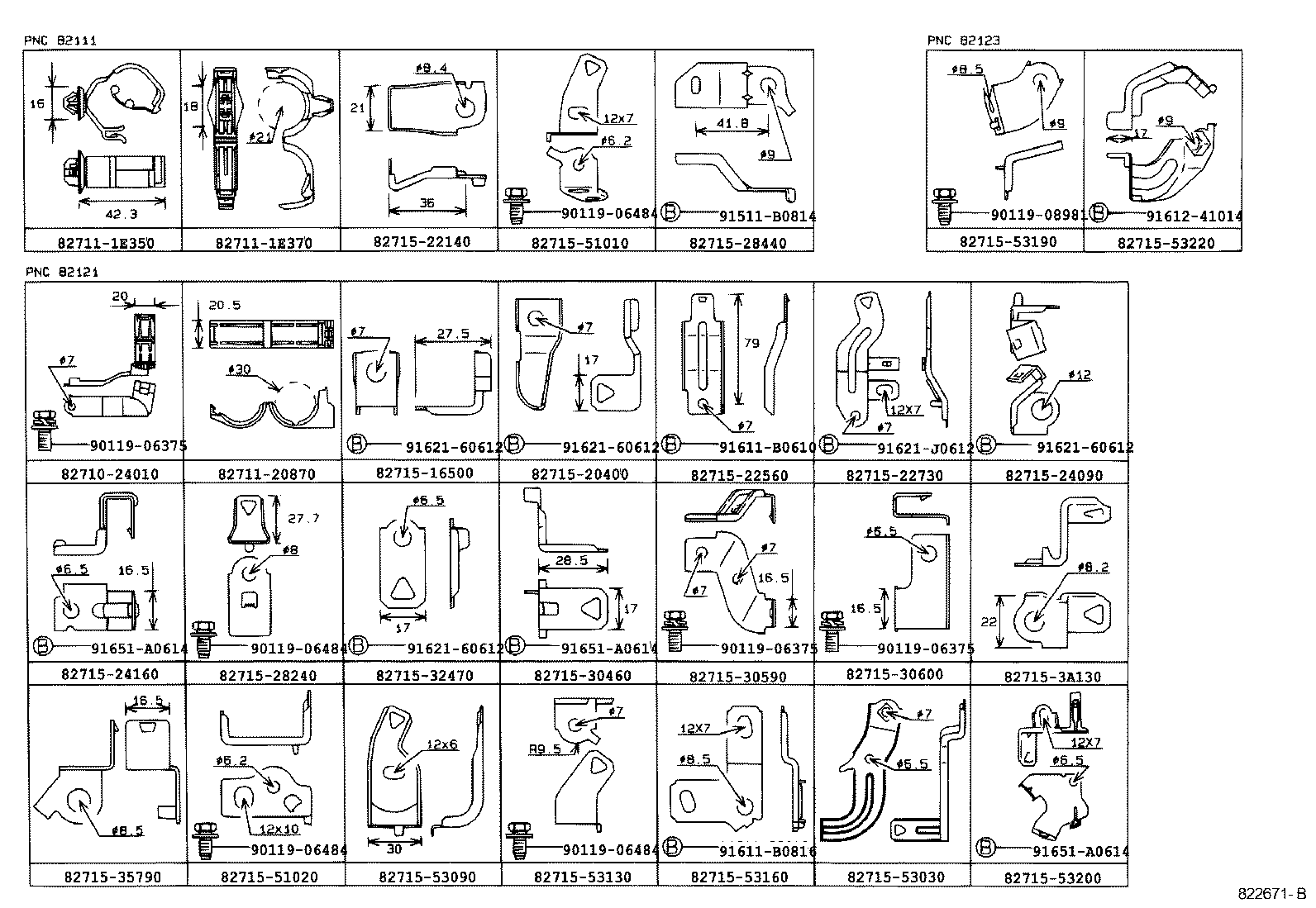

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82710-24010
82711-1E350
82711-1E370
82711-20870
82715-16500
82715-20400
82715-22140
82715-22560
82715-22730
82715-24090
82715-24160
82715-28240
82715-28440
82715-30460
82715-30590
82715-30600
82715-32470
82715-35790
82715-3A130
82715-51010
82715-51020
82715-53030
82715-53090
82715-53130
82715-53160
82715-53190
82715-53200
82715-53220
90119-06375
90119-06484
90119-08981
91511-B0814
91611-B0610
91611-B0816
91612-41014
91621-60612
91621-J0612
91651-A0614

ILLUST NO. 7 OF 9(9901- )

Click highlighted areas on diagram

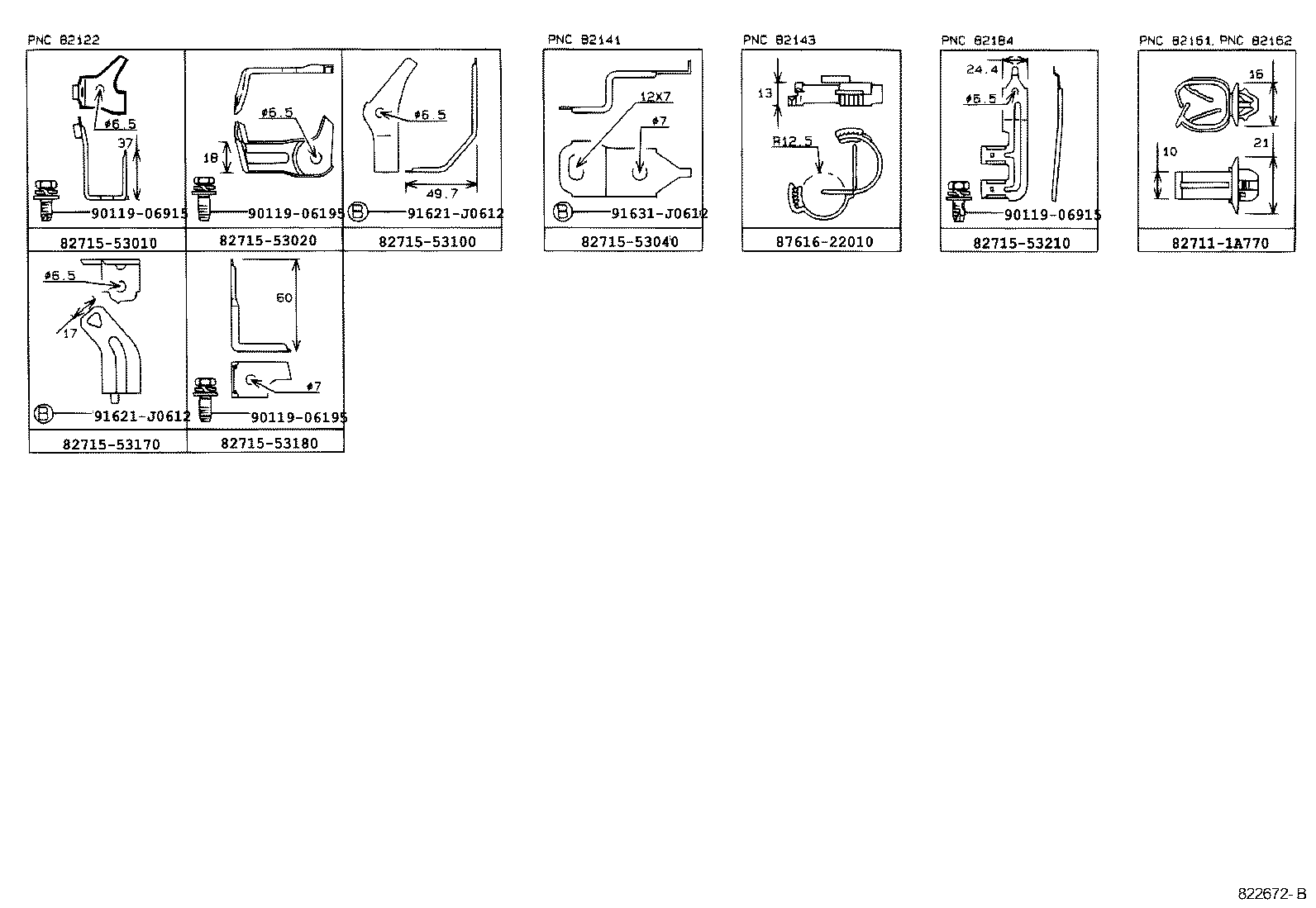

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-1A770
82715-53010
82715-53020
82715-53040
82715-53100
82715-53170
82715-53180
82715-53210
87616-22010
90119-06195
90119-06915
91621-J0612
91631-J0612

ILLUST NO. 1 OF 9(9901- )GXE10..RHD

Click highlighted areas on diagram

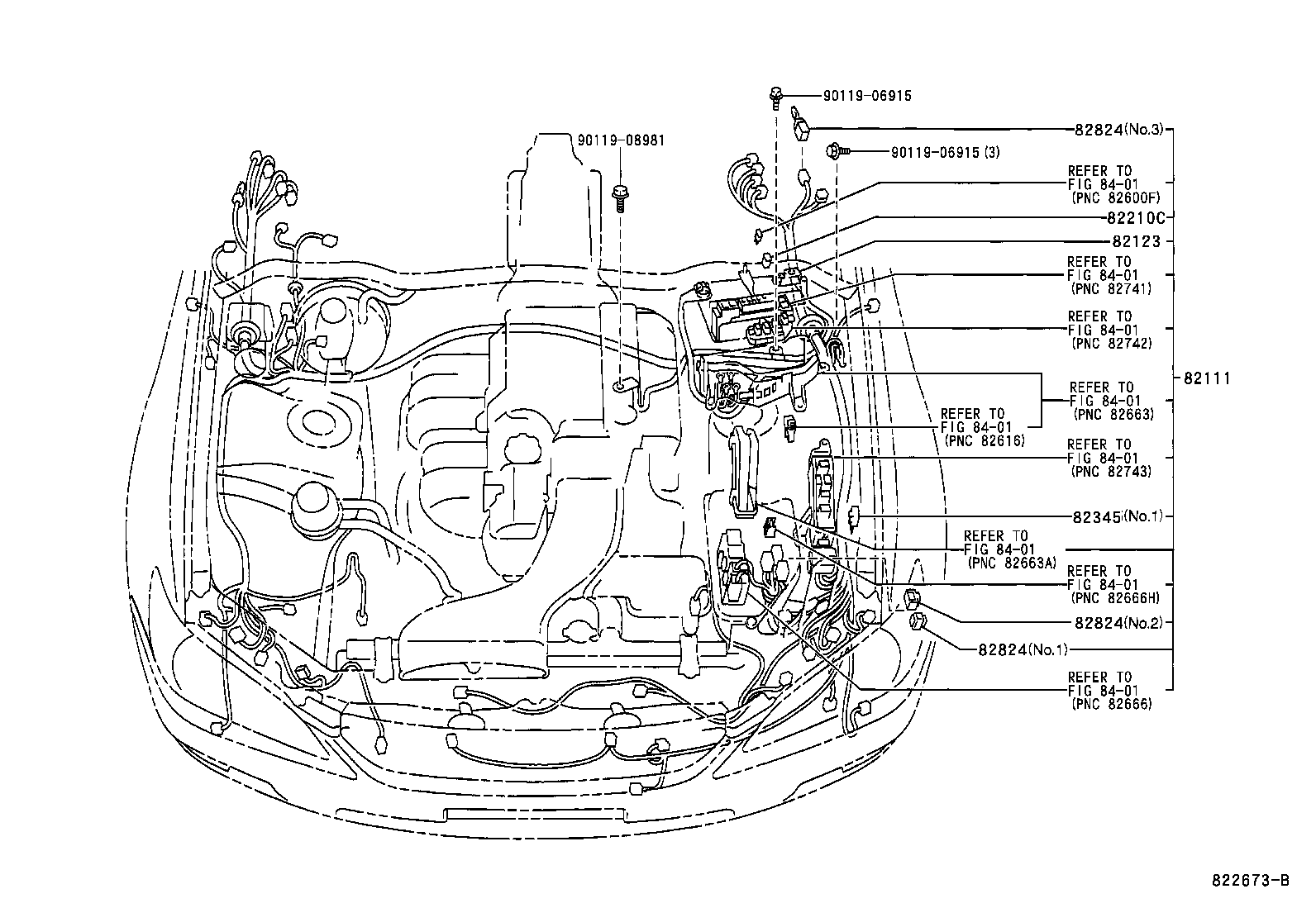

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-53171	GXE10..ARL	05/2000 - 07/2001	1
82111-53500	GXE10..RHD	07/2001 - 08/2002	1
82111-53510	GXE10..RHD W(HEADLAMP LEVELING & HEADLAMP CLEANER)	07/2001 - 08/2002	1
82111-53170	GXE10..ARL	01/1999 - 05/2000	1
82111-53511	GXE10..RHD W(HEADLAMP CLEANER & HEADLAMP LEVELING SWITCH)	08/2002 - 12/2999	1
82111-53501	GXE10..RHD	08/2002 - 12/2999	1
82123 - WIRE, ENGINE, NO.3
82123-53010	GXE10..RHD	01/1999 - 07/2001	1
82123-53050	GXE10,JCE10..RHD	07/2001 - 12/2999	1
82210C - FUSIBLE LINK
90982-08202	GXE10,JCE10 60A,TERM.:MALE,YEL	07/2001 - 12/2999	1
90982-08274	GXE10 120A,TERM.:MALE,WHT	01/1999 - 07/2001	1
90982-08274	GXE10,JCE10 120A,TERM.:MALE,WHT	07/2001 - 12/2999	1
90982-08284	GXE10 40A,TERM.:FEMALE,GRN	01/1999 - 07/2001	1
90982-08202	GXE10 60A,TERM.:MALE,YEL	01/1999 - 07/2001	1
90982-08284	GXE10..LHD..WG;GXE10,JCE10..RHD 40A,TERM.:FEMALE,GRN	07/2001 - 12/2999	1
90982-08283	GXE10 30A,TERM.:FEMALE,PNK	01/1999 - 07/2001	1
90982-08283	GXE10,JCE10 30A,TERM.:FEMALE,PNK	07/2001 - 12/2999	1
82345 - DIODE
82345-12050	GXE10,JCE10 NO.1	07/2001 - 12/2999	1
82345-22051	GXE10,JCE10 NO.2	07/2001 - 12/2999	1
82345-22051	GXE10	01/1999 - 07/2001	1
82824 - CONNECTOR, WIRING HARNESS
82824-20110	GXE10,JCE10 NO.2	07/2001 - 12/2999	1
82824-20130	GXE10,JCE10 NO.3	07/2001 - 12/2999	1
82824-12210	GXE10,JCE10 NO.1	07/2001 - 12/2999	1
82824 - CONNECTOR, WIRING HARNESS
82824-20110	GXE10,JCE10 NO.2	07/2001 - 12/2999	1
82824-20130	GXE10,JCE10 NO.3	07/2001 - 12/2999	1
82824-12210	GXE10,JCE10 NO.1	07/2001 - 12/2999	1
82824 - CONNECTOR, WIRING HARNESS
82824-20110	GXE10,JCE10 NO.2	07/2001 - 12/2999	1
82824-20130	GXE10,JCE10 NO.3	07/2001 - 12/2999	1
82824-12210	GXE10,JCE10 NO.1	07/2001 - 12/2999	1
Common parts
90119-06915
90119-08981
Linked diagrams
8401

ILLUST NO. 2 OF 9(9901- )GXE10..RHD

Click highlighted areas on diagram

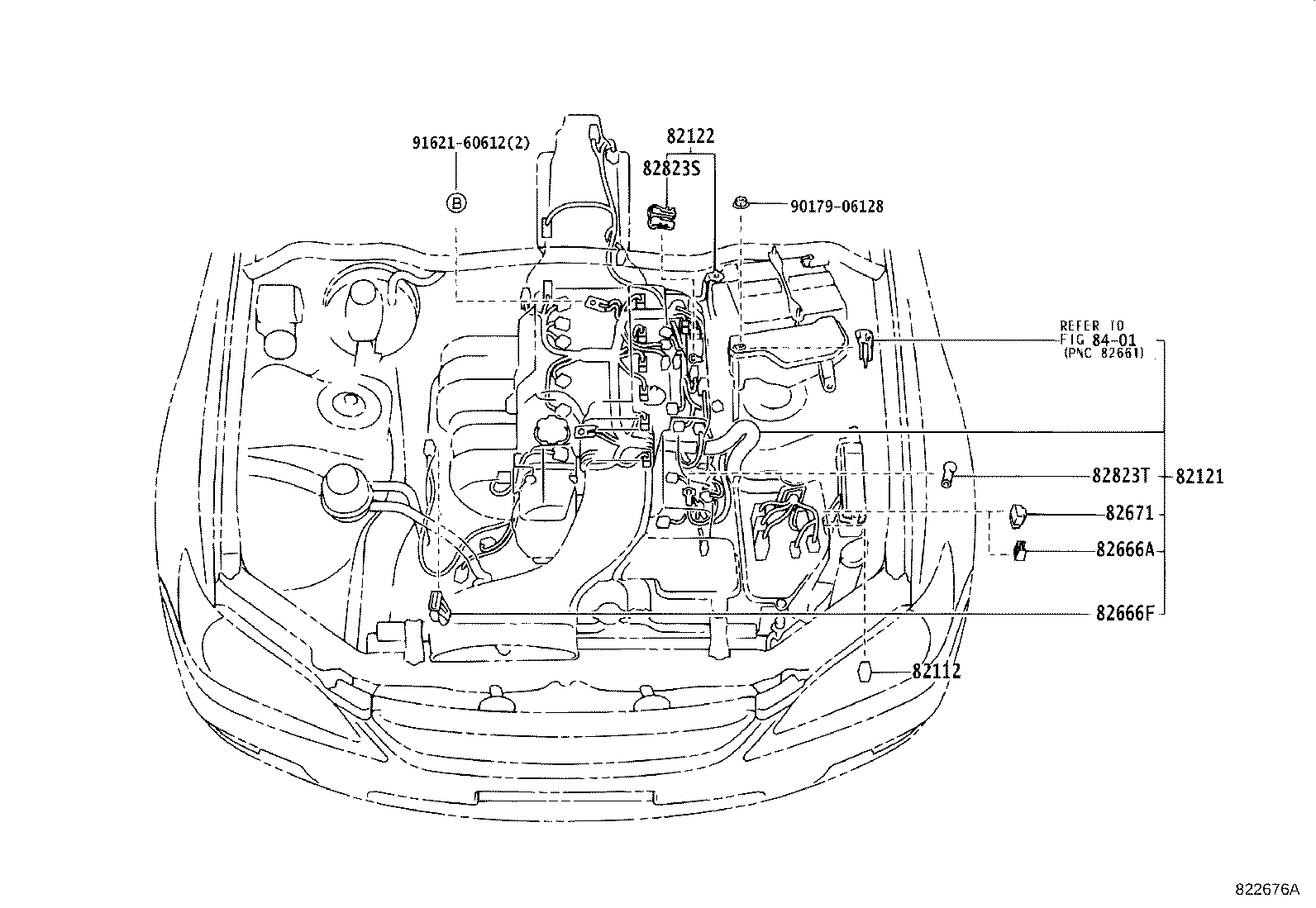

ENGINE

Part #	Description	Period	Qty
82112 - WIRE, ENGINE ROOM, NO.2
82112-53010	GXE10..RHD;JCE10..ARL	07/2001 - 12/2999	1
82121 - WIRE, ENGINE
82121-53060	GXE10..RHD..MTM	01/1999 - 07/2001	1
82121-53060	GXE10..RHD..MTM	07/2001 - 12/2999	1
82122 - WIRE, ENGINE, NO.2
82122-53010	GXE10..RHD	01/1999 - 07/2001	1
82122-53010	GXE10..RHD	07/2001 - 12/2999	1
82666A - HOLDER, CONNECTOR NO.2
82666-30670	GXE10,JCE10	07/2001 - 12/2999	1
82666F - HOLDER, CONNECTOR NO.7
82666-53060	GXE10	07/2001 - 12/2999	1
82671 - BLOCK, JUNCTION
82671-30340	GXE10,JCE10	07/2001 - 12/2999	1
82823S - CAP, STARTER TERMINAL
82823-20080	GXE10	07/2001 - 07/2005	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22080	GXE10	01/1999 - 07/2001	1
82823-22080	GXE10	07/2001 - 07/2005	1
Common parts
90179-06128
91621-60612
Linked diagrams
8401

ILLUST NO. 8 OF 9(9901- )

Click highlighted areas on diagram

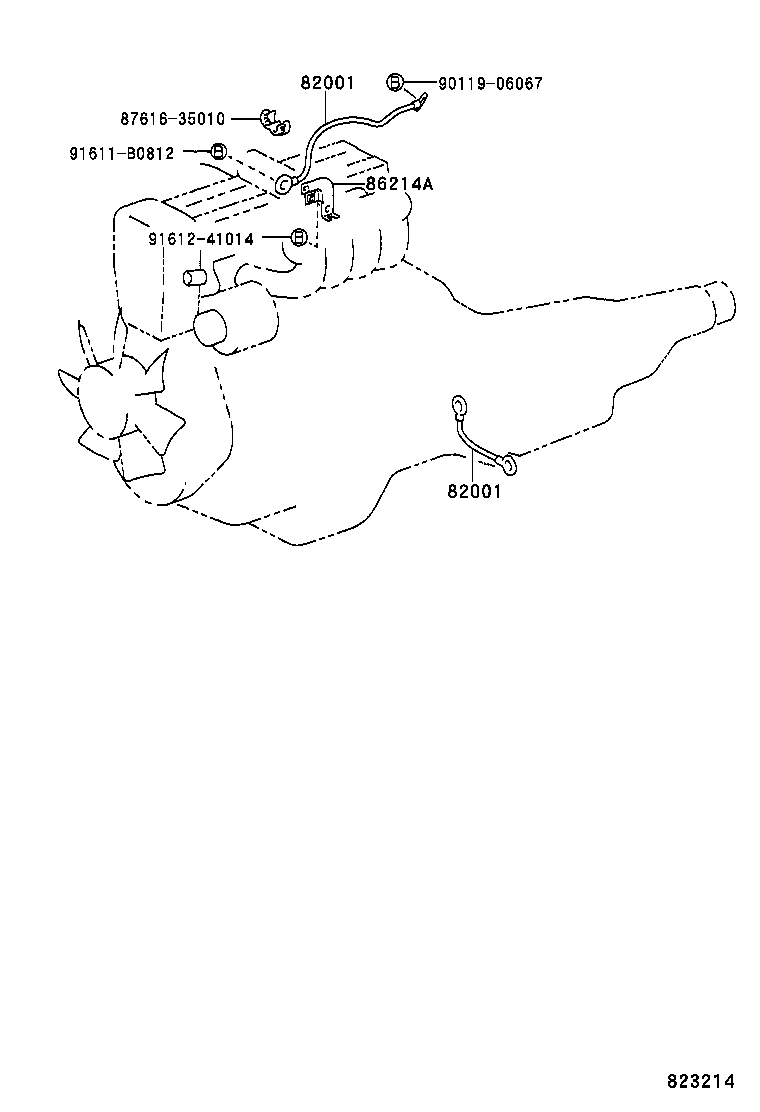

CABLE BOND

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07356	GXE10,JCE10 E/G T/M---FLOOR	07/2001 - 12/2003	1
90980-07356	GXE10 E/G T/M---FLOOR	12/2003 - 12/2999	1
90980-07327	GXE10 ENGINE---DASH PANEL	07/2001 - 12/2999	1
90980-07356	GXE10 E/G T/M---FLOOR	01/1999 - 07/2001	1
90980-07327	GXE10 ENGINE---DASH PANEL	01/1999 - 07/2001	1
82001 - CABLE, BOND, NO.1
90980-07356	GXE10,JCE10 E/G T/M---FLOOR	07/2001 - 12/2003	1
90980-07356	GXE10 E/G T/M---FLOOR	12/2003 - 12/2999	1
90980-07327	GXE10 ENGINE---DASH PANEL	07/2001 - 12/2999	1
90980-07356	GXE10 E/G T/M---FLOOR	01/1999 - 07/2001	1
90980-07327	GXE10 ENGINE---DASH PANEL	01/1999 - 07/2001	1
86214A - BRACKET, RADIO EARTH
82046-53040	GXE10	01/1999 - 07/2001	1
82046-53040	GXE10	07/2001 - 12/2999	1
Common parts
87616-35010
90119-06067
91611-B0812
91612-41014

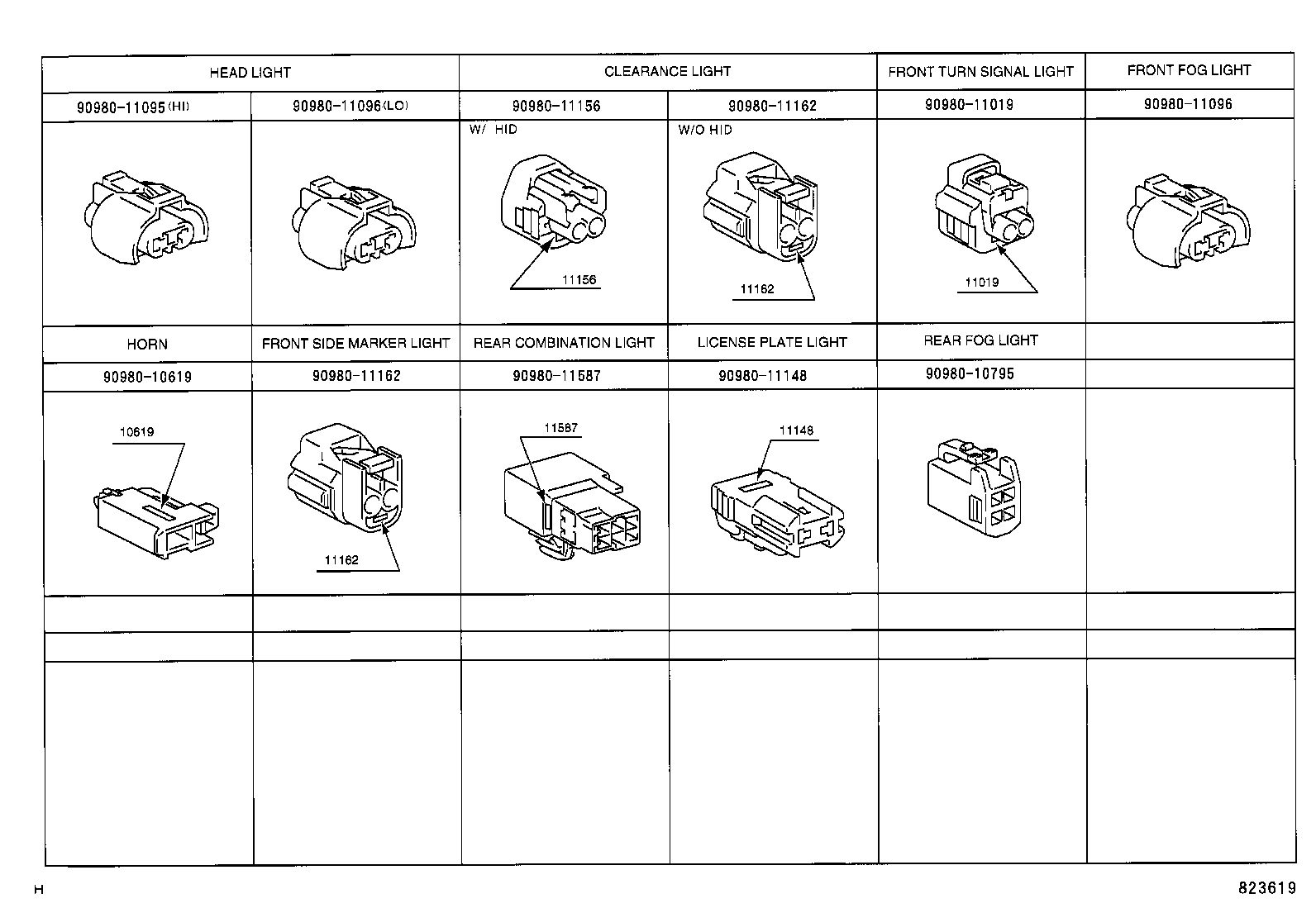

ILLUST NO. 9 OF 9(9901- )

Click highlighted areas on diagram

CONNECTOR

Part #	Description	Period	Qty	Price
Common parts
90980-10619
90980-10795
90980-11019
90980-11095
90980-11096
90980-11148
90980-11156
90980-11162
90980-11587

GXE10R-AEFVKQ (1999)

ILLUST NO. 3 OF 9(9901- )RHD

ILLUST NO. 4 OF 9(9901- )

ILLUST NO. 5 OF 9(9901- )RHD..SED

ILLUST NO. 6 OF 9(9901- )

ILLUST NO. 7 OF 9(9901- )

ILLUST NO. 7 OF 9(9901- )

ILLUST NO. 1 OF 9(9901- )GXE10..RHD

ILLUST NO. 2 OF 9(9901- )GXE10..RHD

ILLUST NO. 8 OF 9(9901- )

ILLUST NO. 9 OF 9(9901- )

Part Price Details
