Toyota Lexus is200/300 GXE10 REAR COMBINATION LAMP

GXE10R-AEFVKQ (1999)

Toyota Lexus Is200/300

Production Jan 1999 - Jul 2005

Engine 1GFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9901-0107)

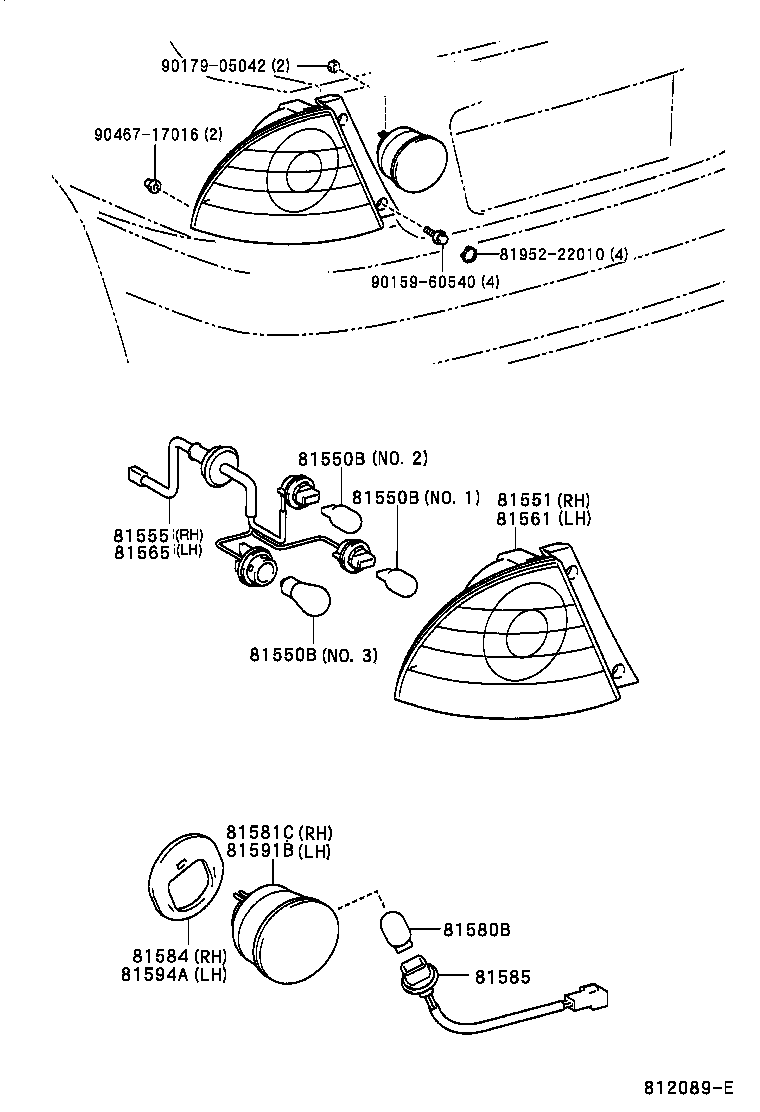

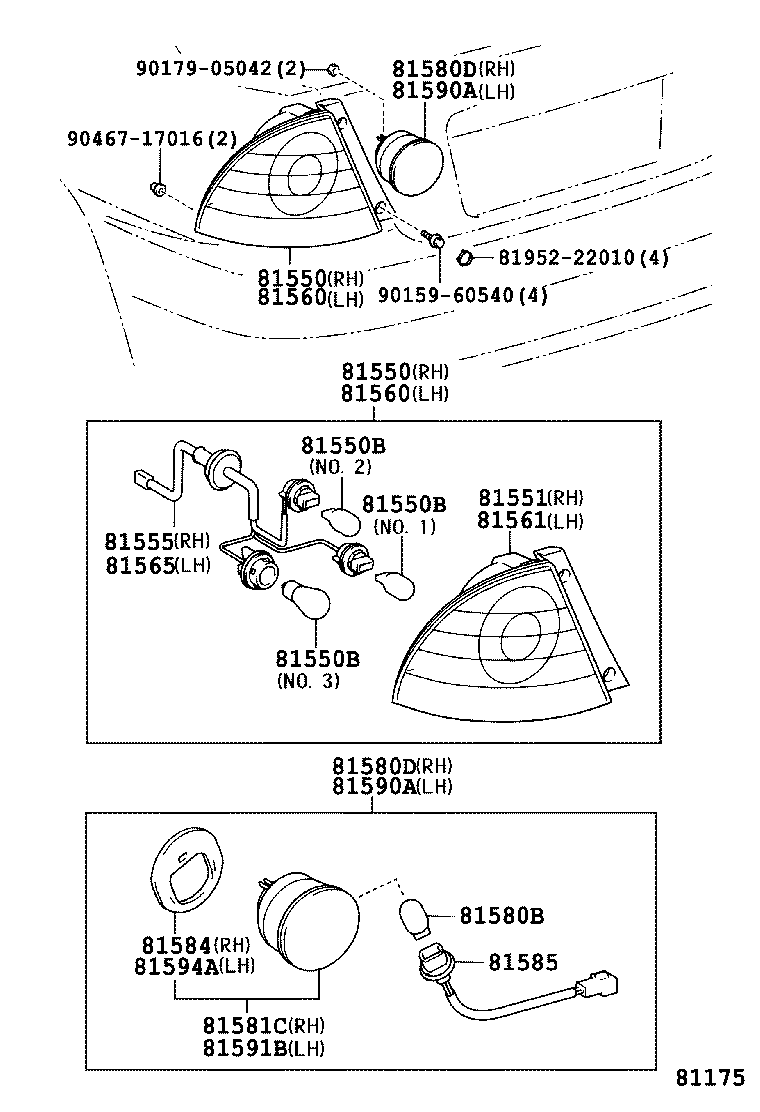

Click highlighted areas on diagram

Part #	Description	Period	Qty
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-53010	GXE10	01/1999 - 04/2000	1
81550-53011B1	GXE10 DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8	05/2001 - 07/2001	1
81550-53011	GXE10	04/2000 - 05/2001	1
81550-53011B0	GXE10 METALLIC,040 ,062 ,1C0 ,576 ,585	05/2001 - 07/2001	1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-53010	GXE10	01/1999 - 04/2000	1
81550-53011B1	GXE10 DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8	05/2001 - 07/2001	1
81550-53011	GXE10	04/2000 - 05/2001	1
81550-53011B0	GXE10 METALLIC,040 ,062 ,1C0 ,576 ,585	05/2001 - 07/2001	1
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13043	GXE10 12V 21W	01/1999 - 07/2001	2
90981-13043	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,NO.1	07/2001 - 08/2003	2
90981-11048	GXE10,JCE10 12V 21/5W,NO.2	07/2001 - 08/2003	2
90981-13043	GXE10,JCE10..SED 12V 21W,NO.1	08/2003 - 09/2003	2
90981-13044	GXE10 12V 21/5W	01/1999 - 07/2001	2
90981-13044	GXE10,JCE10..SED 12V 21/5W,NO.2	08/2003 - 09/2003	2
90981-15009	GXE10,JCE10..SED 12V 21W,AMBER,NO.3	08/2003 - 09/2003	2
90981-13044	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21/5W,NO.2	09/2003 - 07/2005	2
90981-13043	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,NO.1	09/2003 - 07/2005	2
90981-15009	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,AMBER,NO.3	07/2001 - 08/2003	2
90981-15009	GXE10 12V 21W,AMBER	01/1999 - 07/2001	2
90981-15009	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,AMBER,NO.3	09/2003 - 07/2005	2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13043	GXE10 12V 21W	01/1999 - 07/2001	2
90981-13043	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,NO.1	07/2001 - 08/2003	2
90981-11048	GXE10,JCE10 12V 21/5W,NO.2	07/2001 - 08/2003	2
90981-13043	GXE10,JCE10..SED 12V 21W,NO.1	08/2003 - 09/2003	2
90981-13044	GXE10 12V 21/5W	01/1999 - 07/2001	2
90981-13044	GXE10,JCE10..SED 12V 21/5W,NO.2	08/2003 - 09/2003	2
90981-15009	GXE10,JCE10..SED 12V 21W,AMBER,NO.3	08/2003 - 09/2003	2
90981-13044	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21/5W,NO.2	09/2003 - 07/2005	2
90981-13043	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,NO.1	09/2003 - 07/2005	2
90981-15009	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,AMBER,NO.3	07/2001 - 08/2003	2
90981-15009	GXE10 12V 21W,AMBER	01/1999 - 07/2001	2
90981-15009	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,AMBER,NO.3	09/2003 - 07/2005	2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13043	GXE10 12V 21W	01/1999 - 07/2001	2
90981-13043	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,NO.1	07/2001 - 08/2003	2
90981-11048	GXE10,JCE10 12V 21/5W,NO.2	07/2001 - 08/2003	2
90981-13043	GXE10,JCE10..SED 12V 21W,NO.1	08/2003 - 09/2003	2
90981-13044	GXE10 12V 21/5W	01/1999 - 07/2001	2
90981-13044	GXE10,JCE10..SED 12V 21/5W,NO.2	08/2003 - 09/2003	2
90981-15009	GXE10,JCE10..SED 12V 21W,AMBER,NO.3	08/2003 - 09/2003	2
90981-13044	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21/5W,NO.2	09/2003 - 07/2005	2
90981-13043	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,NO.1	09/2003 - 07/2005	2
90981-15009	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,AMBER,NO.3	07/2001 - 08/2003	2
90981-15009	GXE10 12V 21W,AMBER	01/1999 - 07/2001	2
90981-15009	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,AMBER,NO.3	09/2003 - 07/2005	2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-53011B0	GXE10 METALLIC,040 ,062 ,1C0 ,576 ,585	05/2001 - 06/2001	1
81551-53010	GXE10	01/1999 - 04/2000	1
81551-53012B1	GXE10,JCE10..SED DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8	07/2001 - 08/2003	1
81551-53012B0	GXE10,JCE10..SED METALLIC,040 ,062 ,1C0 ,576 ,585	07/2001 - 08/2003	1
81551-53012B0	GXE10 METALLIC,040 ,062 ,1C0 ,576 ,585	06/2001 - 07/2001	1
81551-53080	GXE10,JCE10..SED	08/2003 - 07/2005	1
81551-53011B1	GXE10 DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8	05/2001 - 06/2001	1
81551-53011	GXE10	04/2000 - 05/2001	1
81551-53012B1	GXE10 DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8	06/2001 - 07/2001	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-53010	GXE10,JCE10..SED	07/2001 - 08/2003	1
81555-53010	GXE10	01/1999 - 07/2001	1
81555-53010	GXE10,JCE10..SED	08/2003 - 09/2003	1
81555-53010	GXE10,JCE10..SED	09/2003 - 07/2005	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-53010	GXE10	01/1999 - 04/2000	1
81560-53011B1	GXE10 DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8	05/2001 - 07/2001	1
81560-53011	GXE10	04/2000 - 05/2001	1
81560-53011B0	GXE10 METALLIC,040 ,062 ,1C0 ,576 ,585	05/2001 - 07/2001	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-53010	GXE10	01/1999 - 04/2000	1
81560-53011B1	GXE10 DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8	05/2001 - 07/2001	1
81560-53011	GXE10	04/2000 - 05/2001	1
81560-53011B0	GXE10 METALLIC,040 ,062 ,1C0 ,576 ,585	05/2001 - 07/2001	1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-53010	GXE10	01/1999 - 04/2000	1
81561-53011B0	GXE10 METALLIC,040 ,062 ,1C0 ,576 ,585	05/2001 - 06/2001	1
81561-53012B0	GXE10,JCE10..SED METALLIC,040 ,062 ,1C0 ,576 ,585	07/2001 - 08/2003	1
81561-53011B1	GXE10 DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8	05/2001 - 06/2001	1
81561-53012B1	GXE10 DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8	06/2001 - 07/2001	1
81561-53012B0	GXE10 METALLIC,040 ,062 ,1C0 ,576 ,585	06/2001 - 07/2001	1
81561-53080	GXE10,JCE10..SED	08/2003 - 07/2005	1
81561-53012B1	GXE10,JCE10..SED DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8	07/2001 - 08/2003	1
81561-53011	GXE10	04/2000 - 05/2001	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-53010	GXE10	01/1999 - 07/2001	1
81555-53010	GXE10,JCE10..SED	07/2001 - 07/2005	1
81580B - BULB (FOR REAR LAMP)
90981-13043	GXE10 12V 21W	01/1999 - 07/2001	2
90981-13043	GXE10,JCE10 12V 21W	07/2001 - 07/2005	2
81580D - LAMP ASSY, REAR, RH
81580-53020	GXE10	01/1999 - 07/2001	1
81580D - LAMP ASSY, REAR, RH
81580-53020	GXE10	01/1999 - 07/2001	1
81581C - LENS AND BODY, REAR LAMP, RH
81581-53021	GXE10,JCE10..SED	07/2001 - 12/2999	1
81581-53020	GXE10	01/1999 - 07/2001	1
81584 - PACKING, REAR LAMP RH
81584-53010	GXE10,JCE10..SED	07/2001 - 12/2999	1
81584-53010	GXE10	01/1999 - 07/2001	1
81585 - SOCKET & WIRE, REAR LAMP
81585-53020	GXE10,JCE10..SED	07/2001 - 12/2999	2
81585-53020	GXE10	01/1999 - 07/2001	2
81590A - LAMP ASSY, REAR, LH
81590-53020	GXE10	01/1999 - 07/2001	1
81590A - LAMP ASSY, REAR, LH
81590-53020	GXE10	01/1999 - 07/2001	1
81591B - LENS AND BODY, REAR LAMP, LH
81591-53020	GXE10	01/1999 - 07/2001	1
81591-53021	GXE10,JCE10..SED	07/2001 - 12/2999	1
81594A - GASKET, REAR LAMP LH
81584-53010	GXE10,JCE10..SED	07/2001 - 12/2999	1
81584-53010	GXE10	01/1999 - 07/2001	1
Common parts
81952-22010
90159-60540
90179-05042
90467-17016

(0107- )MTM..ARL ; (0107- )GXE10..WG ; (0107- )JCE10..LHD..WG ; (0107-

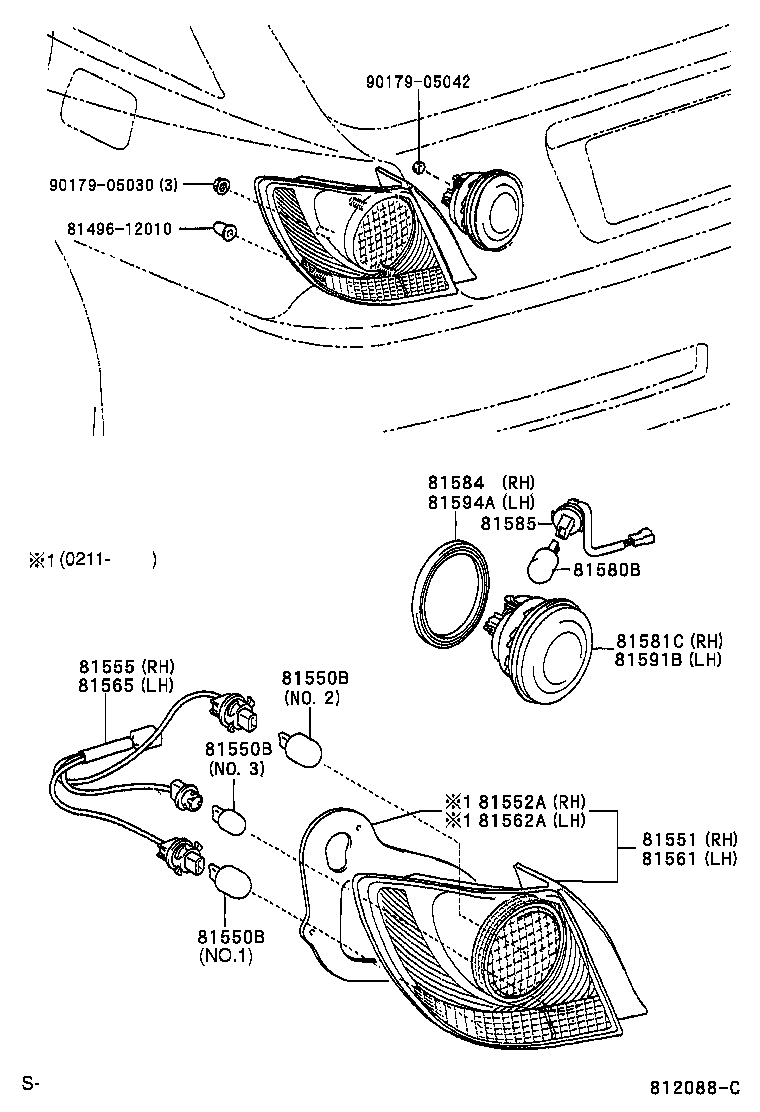

Click highlighted areas on diagram

Part #	Description	Period	Qty
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13043	GXE10 12V 21W	01/1999 - 07/2001	2
90981-13043	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,NO.1	07/2001 - 08/2003	2
90981-11048	GXE10,JCE10 12V 21/5W,NO.2	07/2001 - 08/2003	2
90981-13043	GXE10,JCE10..SED 12V 21W,NO.1	08/2003 - 09/2003	2
90981-13044	GXE10 12V 21/5W	01/1999 - 07/2001	2
90981-13044	GXE10,JCE10..SED 12V 21/5W,NO.2	08/2003 - 09/2003	2
90981-15009	GXE10,JCE10..SED 12V 21W,AMBER,NO.3	08/2003 - 09/2003	2
90981-13044	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21/5W,NO.2	09/2003 - 07/2005	2
90981-13043	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,NO.1	09/2003 - 07/2005	2
90981-15009	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,AMBER,NO.3	07/2001 - 08/2003	2
90981-15009	GXE10 12V 21W,AMBER	01/1999 - 07/2001	2
90981-15009	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,AMBER,NO.3	09/2003 - 07/2005	2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13043	GXE10 12V 21W	01/1999 - 07/2001	2
90981-13043	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,NO.1	07/2001 - 08/2003	2
90981-11048	GXE10,JCE10 12V 21/5W,NO.2	07/2001 - 08/2003	2
90981-13043	GXE10,JCE10..SED 12V 21W,NO.1	08/2003 - 09/2003	2
90981-13044	GXE10 12V 21/5W	01/1999 - 07/2001	2
90981-13044	GXE10,JCE10..SED 12V 21/5W,NO.2	08/2003 - 09/2003	2
90981-15009	GXE10,JCE10..SED 12V 21W,AMBER,NO.3	08/2003 - 09/2003	2
90981-13044	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21/5W,NO.2	09/2003 - 07/2005	2
90981-13043	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,NO.1	09/2003 - 07/2005	2
90981-15009	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,AMBER,NO.3	07/2001 - 08/2003	2
90981-15009	GXE10 12V 21W,AMBER	01/1999 - 07/2001	2
90981-15009	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,AMBER,NO.3	09/2003 - 07/2005	2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13043	GXE10 12V 21W	01/1999 - 07/2001	2
90981-13043	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,NO.1	07/2001 - 08/2003	2
90981-11048	GXE10,JCE10 12V 21/5W,NO.2	07/2001 - 08/2003	2
90981-13043	GXE10,JCE10..SED 12V 21W,NO.1	08/2003 - 09/2003	2
90981-13044	GXE10 12V 21/5W	01/1999 - 07/2001	2
90981-13044	GXE10,JCE10..SED 12V 21/5W,NO.2	08/2003 - 09/2003	2
90981-15009	GXE10,JCE10..SED 12V 21W,AMBER,NO.3	08/2003 - 09/2003	2
90981-13044	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21/5W,NO.2	09/2003 - 07/2005	2
90981-13043	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,NO.1	09/2003 - 07/2005	2
90981-15009	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,AMBER,NO.3	07/2001 - 08/2003	2
90981-15009	GXE10 12V 21W,AMBER	01/1999 - 07/2001	2
90981-15009	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,AMBER,NO.3	09/2003 - 07/2005	2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-53011B0	GXE10 METALLIC,040 ,062 ,1C0 ,576 ,585	05/2001 - 06/2001	1
81551-53010	GXE10	01/1999 - 04/2000	1
81551-53012B1	GXE10,JCE10..SED DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8	07/2001 - 08/2003	1
81551-53012B0	GXE10,JCE10..SED METALLIC,040 ,062 ,1C0 ,576 ,585	07/2001 - 08/2003	1
81551-53012B0	GXE10 METALLIC,040 ,062 ,1C0 ,576 ,585	06/2001 - 07/2001	1
81551-53080	GXE10,JCE10..SED	08/2003 - 07/2005	1
81551-53011B1	GXE10 DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8	05/2001 - 06/2001	1
81551-53011	GXE10	04/2000 - 05/2001	1
81551-53012B1	GXE10 DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8	06/2001 - 07/2001	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-53010	GXE10,JCE10..SED	07/2001 - 08/2003	1
81555-53010	GXE10	01/1999 - 07/2001	1
81555-53010	GXE10,JCE10..SED	08/2003 - 09/2003	1
81555-53010	GXE10,JCE10..SED	09/2003 - 07/2005	1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-53010	GXE10	01/1999 - 04/2000	1
81561-53011B0	GXE10 METALLIC,040 ,062 ,1C0 ,576 ,585	05/2001 - 06/2001	1
81561-53012B0	GXE10,JCE10..SED METALLIC,040 ,062 ,1C0 ,576 ,585	07/2001 - 08/2003	1
81561-53011B1	GXE10 DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8	05/2001 - 06/2001	1
81561-53012B1	GXE10 DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8	06/2001 - 07/2001	1
81561-53012B0	GXE10 METALLIC,040 ,062 ,1C0 ,576 ,585	06/2001 - 07/2001	1
81561-53080	GXE10,JCE10..SED	08/2003 - 07/2005	1
81561-53012B1	GXE10,JCE10..SED DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8	07/2001 - 08/2003	1
81561-53011	GXE10	04/2000 - 05/2001	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-53010	GXE10	01/1999 - 07/2001	1
81555-53010	GXE10,JCE10..SED	07/2001 - 07/2005	1
81580B - BULB (FOR REAR LAMP)
90981-13043	GXE10 12V 21W	01/1999 - 07/2001	2
90981-13043	GXE10,JCE10 12V 21W	07/2001 - 07/2005	2
81581C - LENS AND BODY, REAR LAMP, RH
81581-53021	GXE10,JCE10..SED	07/2001 - 12/2999	1
81581-53020	GXE10	01/1999 - 07/2001	1
81584 - PACKING, REAR LAMP RH
81584-53010	GXE10,JCE10..SED	07/2001 - 12/2999	1
81584-53010	GXE10	01/1999 - 07/2001	1
81585 - SOCKET & WIRE, REAR LAMP
81585-53020	GXE10,JCE10..SED	07/2001 - 12/2999	2
81585-53020	GXE10	01/1999 - 07/2001	2
81591B - LENS AND BODY, REAR LAMP, LH
81591-53020	GXE10	01/1999 - 07/2001	1
81591-53021	GXE10,JCE10..SED	07/2001 - 12/2999	1
81594A - GASKET, REAR LAMP LH
81584-53010	GXE10,JCE10..SED	07/2001 - 12/2999	1
81584-53010	GXE10	01/1999 - 07/2001	1
Common parts
81496-12010
90179-05030
90179-05042

(0107- )SED

Click highlighted areas on diagram

Part #	Description	Period	Qty
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13043	GXE10 12V 21W	01/1999 - 07/2001	2
90981-13043	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,NO.1	07/2001 - 08/2003	2
90981-11048	GXE10,JCE10 12V 21/5W,NO.2	07/2001 - 08/2003	2
90981-13043	GXE10,JCE10..SED 12V 21W,NO.1	08/2003 - 09/2003	2
90981-13044	GXE10 12V 21/5W	01/1999 - 07/2001	2
90981-13044	GXE10,JCE10..SED 12V 21/5W,NO.2	08/2003 - 09/2003	2
90981-15009	GXE10,JCE10..SED 12V 21W,AMBER,NO.3	08/2003 - 09/2003	2
90981-13044	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21/5W,NO.2	09/2003 - 07/2005	2
90981-13043	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,NO.1	09/2003 - 07/2005	2
90981-15009	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,AMBER,NO.3	07/2001 - 08/2003	2
90981-15009	GXE10 12V 21W,AMBER	01/1999 - 07/2001	2
90981-15009	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,AMBER,NO.3	09/2003 - 07/2005	2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13043	GXE10 12V 21W	01/1999 - 07/2001	2
90981-13043	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,NO.1	07/2001 - 08/2003	2
90981-11048	GXE10,JCE10 12V 21/5W,NO.2	07/2001 - 08/2003	2
90981-13043	GXE10,JCE10..SED 12V 21W,NO.1	08/2003 - 09/2003	2
90981-13044	GXE10 12V 21/5W	01/1999 - 07/2001	2
90981-13044	GXE10,JCE10..SED 12V 21/5W,NO.2	08/2003 - 09/2003	2
90981-15009	GXE10,JCE10..SED 12V 21W,AMBER,NO.3	08/2003 - 09/2003	2
90981-13044	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21/5W,NO.2	09/2003 - 07/2005	2
90981-13043	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,NO.1	09/2003 - 07/2005	2
90981-15009	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,AMBER,NO.3	07/2001 - 08/2003	2
90981-15009	GXE10 12V 21W,AMBER	01/1999 - 07/2001	2
90981-15009	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,AMBER,NO.3	09/2003 - 07/2005	2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13043	GXE10 12V 21W	01/1999 - 07/2001	2
90981-13043	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,NO.1	07/2001 - 08/2003	2
90981-11048	GXE10,JCE10 12V 21/5W,NO.2	07/2001 - 08/2003	2
90981-13043	GXE10,JCE10..SED 12V 21W,NO.1	08/2003 - 09/2003	2
90981-13044	GXE10 12V 21/5W	01/1999 - 07/2001	2
90981-13044	GXE10,JCE10..SED 12V 21/5W,NO.2	08/2003 - 09/2003	2
90981-15009	GXE10,JCE10..SED 12V 21W,AMBER,NO.3	08/2003 - 09/2003	2
90981-13044	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21/5W,NO.2	09/2003 - 07/2005	2
90981-13043	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,NO.1	09/2003 - 07/2005	2
90981-15009	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,AMBER,NO.3	07/2001 - 08/2003	2
90981-15009	GXE10 12V 21W,AMBER	01/1999 - 07/2001	2
90981-15009	JCE10..SED;GXE10..RHD..SED;GXE10..LHD..SED..MTM 12V 21W,AMBER,NO.3	09/2003 - 07/2005	2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-53011B0	GXE10 METALLIC,040 ,062 ,1C0 ,576 ,585	05/2001 - 06/2001	1
81551-53010	GXE10	01/1999 - 04/2000	1
81551-53012B1	GXE10,JCE10..SED DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8	07/2001 - 08/2003	1
81551-53012B0	GXE10,JCE10..SED METALLIC,040 ,062 ,1C0 ,576 ,585	07/2001 - 08/2003	1
81551-53012B0	GXE10 METALLIC,040 ,062 ,1C0 ,576 ,585	06/2001 - 07/2001	1
81551-53080	GXE10,JCE10..SED	08/2003 - 07/2005	1
81551-53011B1	GXE10 DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8	05/2001 - 06/2001	1
81551-53011	GXE10	04/2000 - 05/2001	1
81551-53012B1	GXE10 DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8	06/2001 - 07/2001	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-53010	GXE10,JCE10..SED	07/2001 - 08/2003	1
81555-53010	GXE10	01/1999 - 07/2001	1
81555-53010	GXE10,JCE10..SED	08/2003 - 09/2003	1
81555-53010	GXE10,JCE10..SED	09/2003 - 07/2005	1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-53010	GXE10	01/1999 - 04/2000	1
81561-53011B0	GXE10 METALLIC,040 ,062 ,1C0 ,576 ,585	05/2001 - 06/2001	1
81561-53012B0	GXE10,JCE10..SED METALLIC,040 ,062 ,1C0 ,576 ,585	07/2001 - 08/2003	1
81561-53011B1	GXE10 DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8	05/2001 - 06/2001	1
81561-53012B1	GXE10 DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8	06/2001 - 07/2001	1
81561-53012B0	GXE10 METALLIC,040 ,062 ,1C0 ,576 ,585	06/2001 - 07/2001	1
81561-53080	GXE10,JCE10..SED	08/2003 - 07/2005	1
81561-53012B1	GXE10,JCE10..SED DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8	07/2001 - 08/2003	1
81561-53011	GXE10	04/2000 - 05/2001	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-53010	GXE10	01/1999 - 07/2001	1
81555-53010	GXE10,JCE10..SED	07/2001 - 07/2005	1
81580B - BULB (FOR REAR LAMP)
90981-13043	GXE10 12V 21W	01/1999 - 07/2001	2
90981-13043	GXE10,JCE10 12V 21W	07/2001 - 07/2005	2
81581C - LENS AND BODY, REAR LAMP, RH
81581-53021	GXE10,JCE10..SED	07/2001 - 12/2999	1
81581-53020	GXE10	01/1999 - 07/2001	1
81584 - PACKING, REAR LAMP RH
81584-53010	GXE10,JCE10..SED	07/2001 - 12/2999	1
81584-53010	GXE10	01/1999 - 07/2001	1
81585 - SOCKET & WIRE, REAR LAMP
81585-53020	GXE10,JCE10..SED	07/2001 - 12/2999	2
81585-53020	GXE10	01/1999 - 07/2001	2
81591B - LENS AND BODY, REAR LAMP, LH
81591-53020	GXE10	01/1999 - 07/2001	1
81591-53021	GXE10,JCE10..SED	07/2001 - 12/2999	1
81594A - GASKET, REAR LAMP LH
81584-53010	GXE10,JCE10..SED	07/2001 - 12/2999	1
81584-53010	GXE10	01/1999 - 07/2001	1
Common parts
81952-22010
90159-60540
90179-05042
90467-17016

GXE10R-AEFVKQ (1999)

(9901-0107)

(0107- )MTM..ARL ; (0107- )GXE10..WG ; (0107- )JCE10..LHD..WG ; (0107-

(0107- )SED

Part Price Details
