GXE10R-AEFVKQ (1999)
Toyota Lexus Is200/300
(9901-0107)

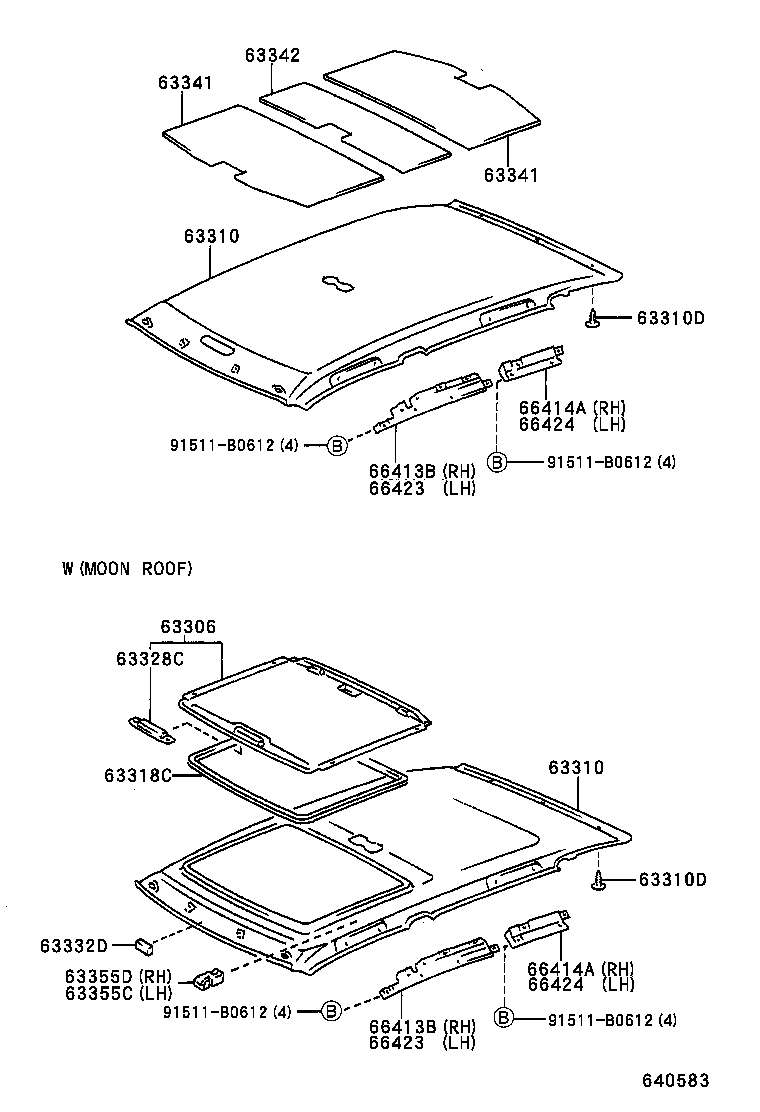

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-53010B1 |
GXE10 MEDIUM CHARCOAL,TRIM2# |
1 | ||
| 63306-33060A0 |
GXE10,JCE10 IVORY,TRIM0# |
1 | ||
| 63306-53010A1 |
GXE10 IVORY,TRIM0# |
1 | ||
| 63306-53021A0 |
GXE10,JCE10 IVORY,TRIM0# |
1 | ||
| 63306-53021B0 |
GXE10,JCE10 MEDIUM CHACOAL,TRIM2# |
1 | ||
| 63306-33060B1 |
GXE10,JCE10 MEDIUM CHACOAL,TRIM2# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-53050A1 |
GXE10..RHD IVORY,TRIM0# |
1 | ||
| 63310-53060B1 |
GXE10..RHD W(MOON ROOF),MEDIUM CHARCOAL,TRIM2# |
1 | ||
| 63310-53060A1 |
GXE10..RHD W(MOON ROOF),IVORY,TRIM0# |
1 | ||
| 63313-53120B0 |
GXE10,JCE10..RHD..SED W(EC GLARE PROOF MIRROR),MEDIUM CHACOAL,TRIM2# |
1 | ||
| 63310-53050B1 |
GXE10..RHD MEDIUM CHARCOAL,TRIM2# |
1 | ||
| 63313-53120A0 |
GXE10,JCE10..RHD..SED W(EC GLARE PROOF MIRROR),IVORY,TRIM0# |
1 | ||
| 63313-53110A0 |
GXE10,JCE10..RHD..SED IVORY,TRIM0# |
1 | ||
| 63313-53110B0 |
GXE10,JCE10..RHD..SED MEDIUM CHACOAL,TRIM2# |
1 | ||
| 63314-53110B0 |
GXE10,JCE10..RHD..SED W(MOON ROOF),MEDIUM CHACOAL,TRIM2# |
1 | ||
| 63314-53120A0 |
GXE10,JCE10..RHD..SED W(EC GLARE PROOF MIRROR & MOON ROOF),IVORY,TRIM0# |
1 | ||
| 63314-53110A0 |
GXE10,JCE10..RHD..SED W(MOON ROOF),IVORY,TRIM0# |
1 | ||
| 63314-53120B0 |
GXE10,JCE10..RHD..SED W(EC GLARE PROOF MIRROR & MOON ROOF),MEDIUM CHACOAL,TRIM2# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-53050A1 |
GXE10..RHD IVORY,TRIM0# |
1 | ||
| 63310-53060B1 |
GXE10..RHD W(MOON ROOF),MEDIUM CHARCOAL,TRIM2# |
1 | ||
| 63310-53060A1 |
GXE10..RHD W(MOON ROOF),IVORY,TRIM0# |
1 | ||
| 63313-53120B0 |
GXE10,JCE10..RHD..SED W(EC GLARE PROOF MIRROR),MEDIUM CHACOAL,TRIM2# |
1 | ||
| 63310-53050B1 |
GXE10..RHD MEDIUM CHARCOAL,TRIM2# |
1 | ||
| 63313-53120A0 |
GXE10,JCE10..RHD..SED W(EC GLARE PROOF MIRROR),IVORY,TRIM0# |
1 | ||
| 63313-53110A0 |
GXE10,JCE10..RHD..SED IVORY,TRIM0# |
1 | ||
| 63313-53110B0 |
GXE10,JCE10..RHD..SED MEDIUM CHACOAL,TRIM2# |
1 | ||
| 63314-53110B0 |
GXE10,JCE10..RHD..SED W(MOON ROOF),MEDIUM CHACOAL,TRIM2# |
1 | ||
| 63314-53120A0 |
GXE10,JCE10..RHD..SED W(EC GLARE PROOF MIRROR & MOON ROOF),IVORY,TRIM0# |
1 | ||
| 63314-53110A0 |
GXE10,JCE10..RHD..SED W(MOON ROOF),IVORY,TRIM0# |
1 | ||
| 63314-53120B0 |
GXE10,JCE10..RHD..SED W(EC GLARE PROOF MIRROR & MOON ROOF),MEDIUM CHACOAL,TRIM2# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05021B6 |
GXE10 MD.CHARCOAL,TRIM2# |
2 | ||
| 90467-05021B6 |
GXE10,JCE10..SED MD.CHARCOAL,TRIM2# |
2 | ||
| 90467-05164B4 |
GXE10,JCE10..SED MD.CHARCOAL,TRIM2# |
2 | ||
| 90467-05164A0 |
GXE10,JCE10..SED IVORY,TRIM0# |
2 | ||
| 90467-05021A1 |
GXE10,JCE10..SED IVORY,TRIM0# |
2 | ||
| 90467-05021A1 |
GXE10 IVORY,TRIM0# |
2 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05021B6 |
GXE10 MD.CHARCOAL,TRIM2# |
2 | ||
| 90467-05021B6 |
GXE10,JCE10..SED MD.CHARCOAL,TRIM2# |
2 | ||
| 90467-05164B4 |
GXE10,JCE10..SED MD.CHARCOAL,TRIM2# |
2 | ||
| 90467-05164A0 |
GXE10,JCE10..SED IVORY,TRIM0# |
2 | ||
| 90467-05021A1 |
GXE10,JCE10..SED IVORY,TRIM0# |
2 | ||
| 90467-05021A1 |
GXE10 IVORY,TRIM0# |
2 | ||
| 63318C - MOULDING, SUN ROOF OPENING TRIM | ||||
| 63318-53021B1 |
GXE10,JCE10 L=2377,MEDIUM CHACOAL,TRIM2# |
1 | ||
| 63318-53020A1 |
GXE10 L=2377,IVORY,TRIM0# |
1 | ||
| 63318-53021A1 |
GXE10,JCE10 L=2377,IVORY,TRIM0# |
1 | ||
| 63318-53020B1 |
GXE10 L=2377,MD.CHARCOAL,TRIM2# |
1 | ||
| 63318-53020B1 |
GXE10,JCE10 L=2377,MD.CHARCOAL,TRIM2# |
1 | ||
| 63318-53020A1 |
GXE10,JCE10 L=2377,IVORY,TRIM0# |
1 | ||
| 63328C - KNOB, SUNSHADE TRIM | ||||
| 63328-12030A1 |
GXE10,JCE10 IVORY,TRIM0# |
1 | ||
| 63328-12030B4 |
GXE10 MD.CHARCOAL,TRIM2# |
1 | ||
| 63328-12030A1 |
GXE10 IVORY,TRIM0# |
1 | ||
| 63328-12030B4 |
GXE10,JCE10 MD.CHARCOAL,TRIM2# |
1 | ||
| 63332D - PAD, SUN ROOF HEADLINING | ||||
| 63332-53010 |
GXE10 |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-53010 |
GXE10,JCE10..SED |
2 | ||
| 63341-53020 |
GXE10 |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-53010 |
GXE10,JCE10..SED |
2 | ||
| 63341-53020 |
GXE10 |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-53020 |
GXE10,JCE10 |
1 | ||
| 63342-53010 |
GXE10 |
1 | ||
| 63355C - PAD, ROOF HEADLINING, RH | ||||
| 63355-53010 |
GXE10,JCE10 |
1 | ||
| 63355D - PAD, ROOF HEADLINING, LH | ||||
| 63356-53010 |
GXE10..RHD |
1 | ||
| 63356-53010 |
GXE10,JCE10 |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-53010 |
GXE10 |
1 | ||
| 66413-53020 |
GXE10 W(MOON ROOF) |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-53010 |
GXE10 |
1 | ||
| 66413-53020 |
GXE10 W(MOON ROOF) |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-53010 |
GXE10 |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-53010 |
GXE10 |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-53010 |
GXE10 |
1 | ||
| 66423-53020 |
GXE10 W(MOON ROOF) |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-53010 |
GXE10 |
1 | ||
| 66423-53020 |
GXE10 W(MOON ROOF) |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-53010 |
GXE10 |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-53010 |
GXE10 |
1 | ||
| Common parts | ||||
| 91511-B0612 | ||||
(0107- )SED

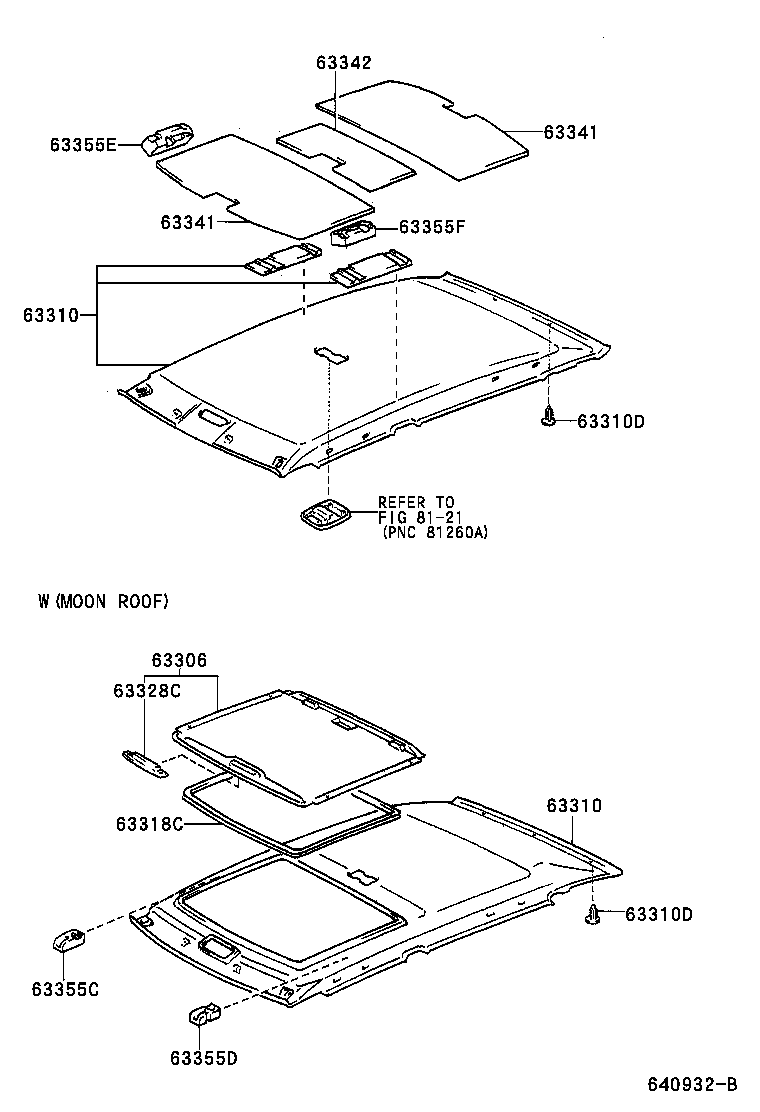

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-53010B1 |
GXE10 MEDIUM CHARCOAL,TRIM2# |
1 | ||
| 63306-33060A0 |
GXE10,JCE10 IVORY,TRIM0# |
1 | ||
| 63306-53010A1 |
GXE10 IVORY,TRIM0# |
1 | ||
| 63306-53021A0 |
GXE10,JCE10 IVORY,TRIM0# |
1 | ||
| 63306-53021B0 |
GXE10,JCE10 MEDIUM CHACOAL,TRIM2# |
1 | ||
| 63306-33060B1 |
GXE10,JCE10 MEDIUM CHACOAL,TRIM2# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-53050A1 |
GXE10..RHD IVORY,TRIM0# |
1 | ||
| 63310-53060B1 |
GXE10..RHD W(MOON ROOF),MEDIUM CHARCOAL,TRIM2# |
1 | ||
| 63310-53060A1 |
GXE10..RHD W(MOON ROOF),IVORY,TRIM0# |
1 | ||
| 63313-53120B0 |
GXE10,JCE10..RHD..SED W(EC GLARE PROOF MIRROR),MEDIUM CHACOAL,TRIM2# |
1 | ||
| 63310-53050B1 |
GXE10..RHD MEDIUM CHARCOAL,TRIM2# |
1 | ||
| 63313-53120A0 |
GXE10,JCE10..RHD..SED W(EC GLARE PROOF MIRROR),IVORY,TRIM0# |
1 | ||
| 63313-53110A0 |
GXE10,JCE10..RHD..SED IVORY,TRIM0# |
1 | ||
| 63313-53110B0 |
GXE10,JCE10..RHD..SED MEDIUM CHACOAL,TRIM2# |
1 | ||
| 63314-53110B0 |
GXE10,JCE10..RHD..SED W(MOON ROOF),MEDIUM CHACOAL,TRIM2# |
1 | ||
| 63314-53120A0 |
GXE10,JCE10..RHD..SED W(EC GLARE PROOF MIRROR & MOON ROOF),IVORY,TRIM0# |
1 | ||
| 63314-53110A0 |
GXE10,JCE10..RHD..SED W(MOON ROOF),IVORY,TRIM0# |
1 | ||
| 63314-53120B0 |
GXE10,JCE10..RHD..SED W(EC GLARE PROOF MIRROR & MOON ROOF),MEDIUM CHACOAL,TRIM2# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-53050A1 |
GXE10..RHD IVORY,TRIM0# |
1 | ||
| 63310-53060B1 |
GXE10..RHD W(MOON ROOF),MEDIUM CHARCOAL,TRIM2# |
1 | ||
| 63310-53060A1 |
GXE10..RHD W(MOON ROOF),IVORY,TRIM0# |
1 | ||
| 63313-53120B0 |
GXE10,JCE10..RHD..SED W(EC GLARE PROOF MIRROR),MEDIUM CHACOAL,TRIM2# |
1 | ||
| 63310-53050B1 |
GXE10..RHD MEDIUM CHARCOAL,TRIM2# |
1 | ||
| 63313-53120A0 |
GXE10,JCE10..RHD..SED W(EC GLARE PROOF MIRROR),IVORY,TRIM0# |
1 | ||
| 63313-53110A0 |
GXE10,JCE10..RHD..SED IVORY,TRIM0# |
1 | ||
| 63313-53110B0 |
GXE10,JCE10..RHD..SED MEDIUM CHACOAL,TRIM2# |
1 | ||
| 63314-53110B0 |
GXE10,JCE10..RHD..SED W(MOON ROOF),MEDIUM CHACOAL,TRIM2# |
1 | ||
| 63314-53120A0 |
GXE10,JCE10..RHD..SED W(EC GLARE PROOF MIRROR & MOON ROOF),IVORY,TRIM0# |
1 | ||
| 63314-53110A0 |
GXE10,JCE10..RHD..SED W(MOON ROOF),IVORY,TRIM0# |
1 | ||
| 63314-53120B0 |
GXE10,JCE10..RHD..SED W(EC GLARE PROOF MIRROR & MOON ROOF),MEDIUM CHACOAL,TRIM2# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05021B6 |
GXE10 MD.CHARCOAL,TRIM2# |
2 | ||
| 90467-05021B6 |
GXE10,JCE10..SED MD.CHARCOAL,TRIM2# |
2 | ||
| 90467-05164B4 |
GXE10,JCE10..SED MD.CHARCOAL,TRIM2# |
2 | ||
| 90467-05164A0 |
GXE10,JCE10..SED IVORY,TRIM0# |
2 | ||
| 90467-05021A1 |
GXE10,JCE10..SED IVORY,TRIM0# |
2 | ||
| 90467-05021A1 |
GXE10 IVORY,TRIM0# |
2 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05021B6 |
GXE10 MD.CHARCOAL,TRIM2# |
2 | ||
| 90467-05021B6 |
GXE10,JCE10..SED MD.CHARCOAL,TRIM2# |
2 | ||
| 90467-05164B4 |
GXE10,JCE10..SED MD.CHARCOAL,TRIM2# |
2 | ||
| 90467-05164A0 |
GXE10,JCE10..SED IVORY,TRIM0# |
2 | ||
| 90467-05021A1 |
GXE10,JCE10..SED IVORY,TRIM0# |
2 | ||
| 90467-05021A1 |
GXE10 IVORY,TRIM0# |
2 | ||
| 63318C - MOULDING, SUN ROOF OPENING TRIM | ||||
| 63318-53021B1 |
GXE10,JCE10 L=2377,MEDIUM CHACOAL,TRIM2# |
1 | ||
| 63318-53020A1 |
GXE10 L=2377,IVORY,TRIM0# |
1 | ||
| 63318-53021A1 |
GXE10,JCE10 L=2377,IVORY,TRIM0# |
1 | ||
| 63318-53020B1 |
GXE10 L=2377,MD.CHARCOAL,TRIM2# |
1 | ||
| 63318-53020B1 |
GXE10,JCE10 L=2377,MD.CHARCOAL,TRIM2# |
1 | ||
| 63318-53020A1 |
GXE10,JCE10 L=2377,IVORY,TRIM0# |
1 | ||
| 63328C - KNOB, SUNSHADE TRIM | ||||
| 63328-12030A1 |
GXE10,JCE10 IVORY,TRIM0# |
1 | ||
| 63328-12030B4 |
GXE10 MD.CHARCOAL,TRIM2# |
1 | ||
| 63328-12030A1 |
GXE10 IVORY,TRIM0# |
1 | ||
| 63328-12030B4 |
GXE10,JCE10 MD.CHARCOAL,TRIM2# |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-53010 |
GXE10,JCE10..SED |
2 | ||
| 63341-53020 |
GXE10 |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-53010 |
GXE10,JCE10..SED |
2 | ||
| 63341-53020 |
GXE10 |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-53020 |
GXE10,JCE10 |
1 | ||
| 63342-53010 |
GXE10 |
1 | ||
| 63355C - PAD, ROOF HEADLINING, RH | ||||
| 63355-53010 |
GXE10,JCE10 |
1 | ||
| 63355D - PAD, ROOF HEADLINING, LH | ||||
| 63356-53010 |
GXE10..RHD |
1 | ||
| 63356-53010 |
GXE10,JCE10 |
1 | ||
| 63355E - PAD, ROOF HEADLINING, NO.2 RH | ||||
| 63355-53030 |
GXE10,JCE10 |
1 | ||
| 63355F - PAD, ROOF HEADLINING, NO.2 LH | ||||
| 63356-53030 |
GXE10,JCE10 |
1 | ||
| Linked diagrams | ||||
| 8121 | ||||
