GXE10R-AEFVKQ (1999)
Toyota Lexus Is200/300

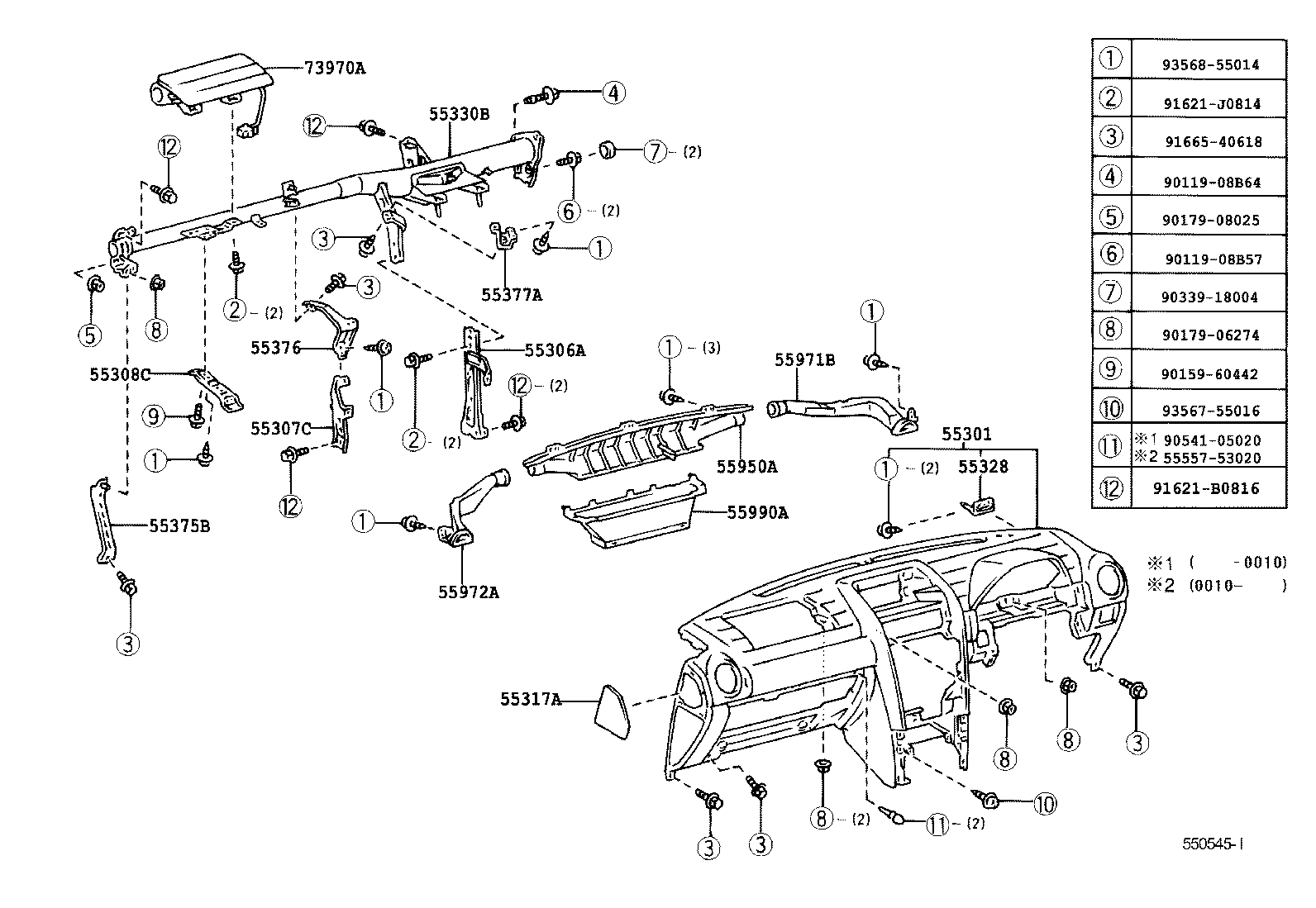

ILLUST NO. 1 OF 3(9901- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-53011C1 |

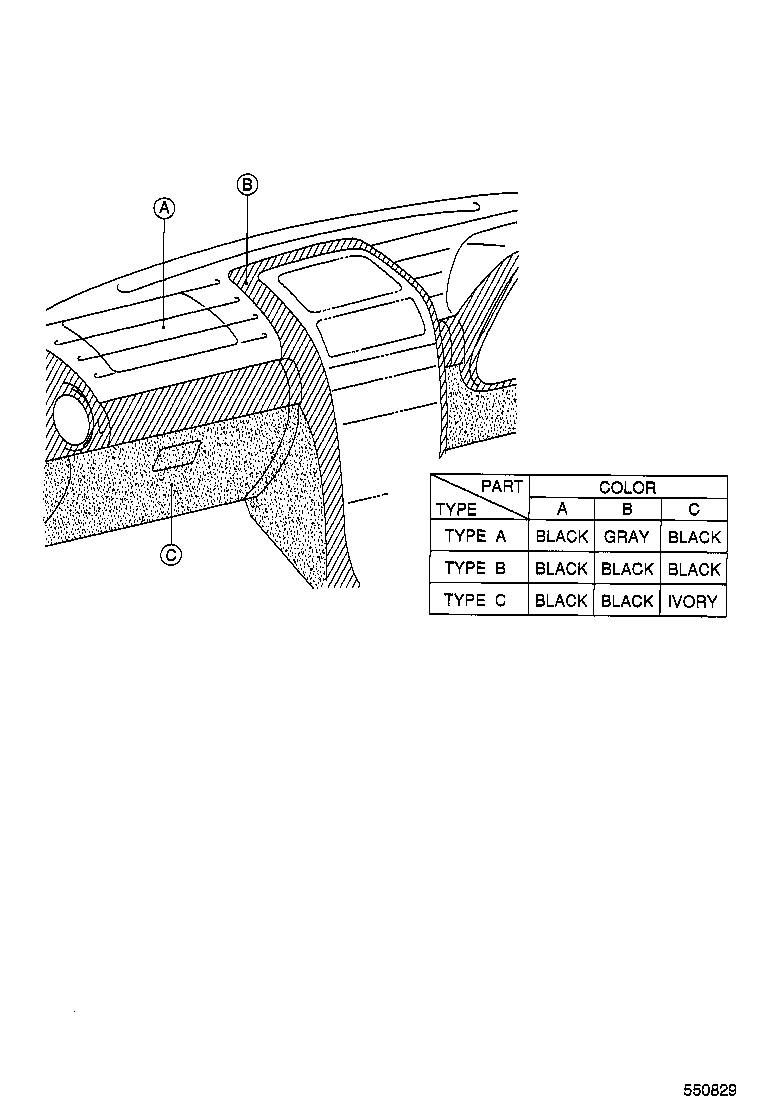

GXE10..ARL TYPE C:REFER TO ILLUSTRATION,BLACK/IVORY,TRIM0# |
1 | ||
| 55301-53010C2 |
GXE10..ARL TYPE A:REFER TO ILLUSTRATION,BLACK/GRAY,TRIM0#,2# |
1 | ||
| 55301-53011C3 |
GXE10..ARL TYPE B:REFER TO ILLUSTRATION,BLACK/BLACK,TRIM0# |
1 | ||
| 55301-53010C0 |
GXE10..ARL BLACK,TRIM0#,2# |
1 | ||
| 55301-53060C1 |
JCE10..RHD;GXE10..RHD..SED TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM2# |
1 | ||
| 55301-53011C2 |
GXE10..ARL TYPE A:REFER TO ILLUSTRATION,BLACK/GRAY,TRIM0#,2# |
1 | ||
| 55301-53010C1 |
GXE10..ARL TYPE C:REFER TO ILLUSTRATION,BLACK/IVORY,TRIM0# |
1 | ||
| 55301-53060C0 |
JCE10..RHD;GXE10..RHD..SED TYPE C:REFER TO ILLUSTRATION,BLACK,TRIM0# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-53010 |
GXE10..RHD |
1 | ||
| 55306-53010 |
GXE10,JCE10..RHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55352-53010 |
GXE10,JCE10..RHD |
1 | ||
| 55352-53010 |
GXE10..RHD |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-53010 |
GXE10,JCE10 |
1 | ||
| 55308-53010 |
GXE10 |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-53010A0 |
GXE10..RHD IVORY,TRIM0# |
1 | ||
| 55317-53010C0 |
GXE10,JCE10..RHD BLACK,TRIM2# |
1 | ||
| 55317-53010A0 |
GXE10,JCE10..RHD IVORY,TRIM0# |
1 | ||
| 55317-53010C0 |
GXE10..RHD BLACK,TRIM0#,2# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-22040 |
GXE10 |
2 | ||
| 55328-22040 |
GXE10,JCE10 |
2 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-53010 |
GXE10..RHD |
1 | ||
| 55330-53010 |
GXE10,JCE10..RHD |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-53010 |
GXE10,JCE10..RHD |
1 | ||
| 55376-53010 |
GXE10..RHD |
1 | ||
| 55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 | ||||
| 55377-53010 |
GXE10,JCE10..RHD |
1 | ||
| 55377-53010 |
GXE10..RHD |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-53010 |
GXE10 |
1 | ||
| 55950-53010 |
GXE10,JCE10 |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55970-53010 |
GXE10..RHD |
1 | ||
| 55970-53010 |
GXE10,JCE10..RHD |
1 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-53010 |
GXE10..RHD |
1 | ||
| 55972-53010 |
GXE10,JCE10..RHD |
1 | ||
| 55990A - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-53010 |
GXE10,JCE10..RHD |
1 | ||
| 55990-53010 |
GXE10..RHD |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-53010C0 |
GXE10..RHD BLACK,TRIM0#,2# |
1 | ||
| 73970-53050C0 |
GXE10,JCE10..RHD BLACK,TRIM0#,2# |
1 | ||
| 73970-53030C0 |
GXE10..RHD BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 55557-53020 | ||||
| 90119-08B57 | ||||
| 90119-08B64 | ||||
| 90159-60442 | ||||
| 90179-06274 | ||||
| 90179-08025 | ||||
| 90339-18004 | ||||
| 90541-05020 | ||||
| 91621-B0816 | ||||
| 91621-J0814 | ||||
| 91665-40618 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||

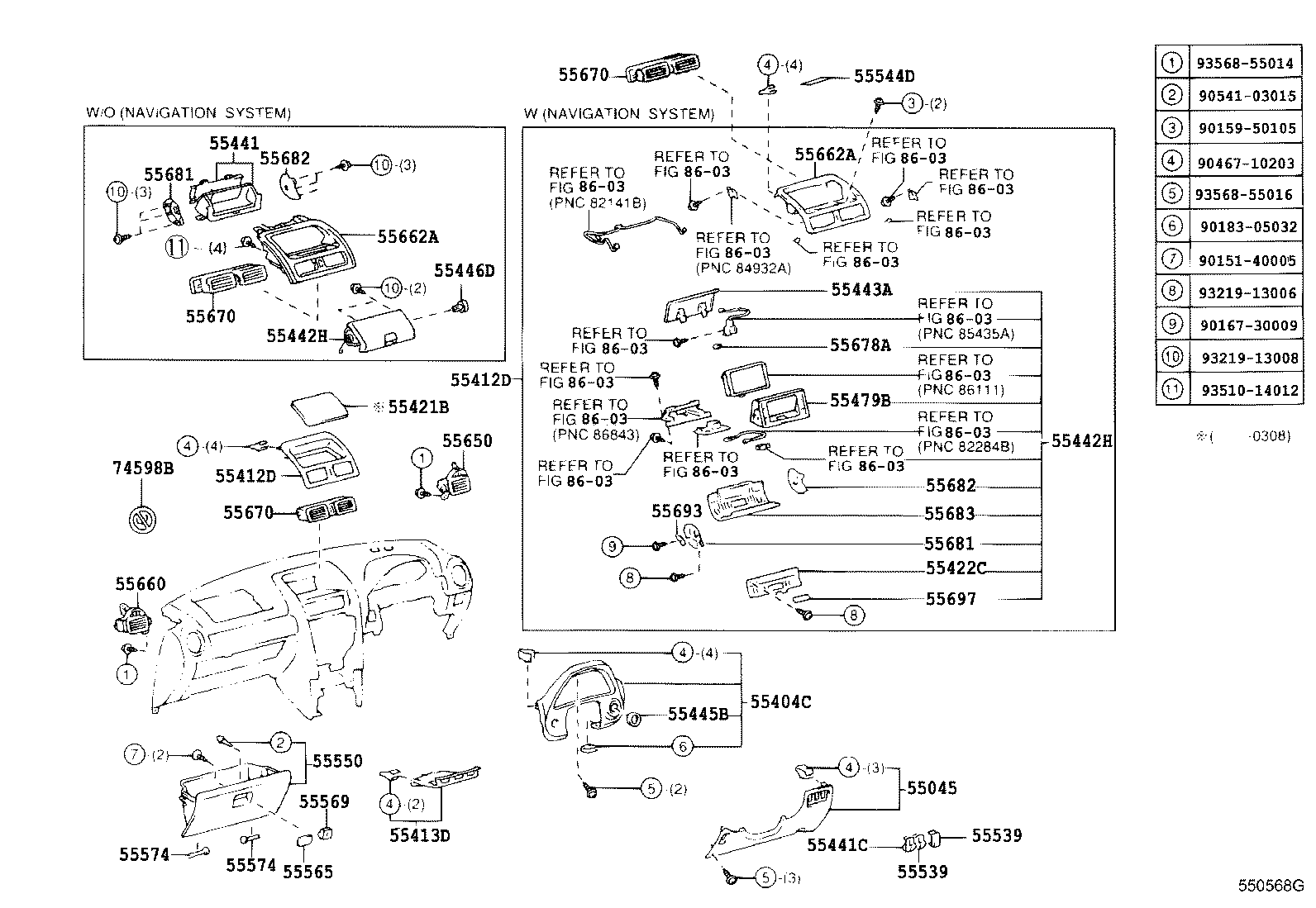

ILLUST NO. 2 OF 3(9901- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-53010A0 |
GXE10,JCE10..RHD IVORY,TRIM0# |
1 | ||
| 55045-53010C0 |
GXE10..RHD BLACK,TRIM0#,2# |
1 | ||
| 55045-53010C0 |
GXE10,JCE10..RHD BLACK,TRIM2# |
1 | ||
| 55045-53010A0 |
GXE10..RHD IVORY,TRIM0# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-53010C0 |
GXE10,JCE10 BLACK,TRIM0#,2# |
1 | ||
| 55404-53010B0 |
GXE10 GRAY,TRIM0#,2# |
1 | ||
| 55404-53010C0 |
GXE10 BLACK,TRIM0# |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-53070 |
GXE10,JCE10 |
1 | ||
| 55412-53020 |
GXE10,JCE10 |
1 | ||
| 55412-53040 |
GXE10,JCE10 W(NAVIGATION SYSTEM) |
1 | ||
| 55412-53020 |
GXE10 |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-53070 |
GXE10,JCE10 |
1 | ||
| 55412-53020 |
GXE10,JCE10 |
1 | ||
| 55412-53040 |
GXE10,JCE10 W(NAVIGATION SYSTEM) |
1 | ||
| 55412-53020 |
GXE10 |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-53030 |
GXE10,JCE10 |
1 | ||
| 55413-53030 |
GXE10 |
1 | ||
| 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-53020 |
GXE10 |
1 | ||
| 55421-53020C0 |
GXE10 BLACK,TRIM0#,2# |
1 | ||
| 55421-53020C0 |
GXE10,JCE10 BLACK,TRIM0#,2# |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-53020 |
GXE10,JCE10 |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-53020 |
GXE10,JCE10 |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-12130A0 |
GXE10,JCE10 IVORY,TRIM0# |
1 | ||
| 55441-12130C0 |
GXE10 BLACK,TRIM0#,2# |
1 | ||
| 55441-12130C0 |
GXE10,JCE10 BLACK,TRIM2# |
1 | ||
| 55441-12130A0 |
GXE10 IVORY,TRIM0# |
1 | ||
| 55442H - DOOR, INSTRUMENT PANEL | ||||
| 55442-53030 |
GXE10,JCE10 W(NAVIGATION SYSTEM) |
1 | ||
| 55442-53040 |
GXE10,JCE10 |
1 | ||
| 55442H - DOOR, INSTRUMENT PANEL | ||||
| 55442-53030 |
GXE10,JCE10 W(NAVIGATION SYSTEM) |
1 | ||
| 55442-53040 |
GXE10,JCE10 |
1 | ||
| 55443A - COVER, INSTRUMENT PANEL BOX DOOR | ||||
| 55443-53020 |
GXE10,JCE10 |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-33040C0 |
GXE10 BLACK,TRIM0#,2# |
1 | ||
| 55445-33040C0 |
GXE10,JCE10 BLACK,TRIM0#,2# |
1 | ||
| 55446D - SHAFT, INSTRUMENT PANEL BOX | ||||
| 55446-53010 |
GXE10,JCE10 |
1 | ||
| 55479B - COVER, INSTRUMENT, LOWER CENTER | ||||
| 55479-53020 |
GXE10,JCE10 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55524-53010A0 |
GXE10 IVORY,TRIM0# |
2 | ||
| 55524-53010A0 |
GXE10,JCE10 IVORY,TRIM00 |
2 | ||
| 55524-53010C0 |
GXE10,JCE10 BLACK,TRIM00,2# |
2 | ||
| 55524-53010C0 |
GXE10 BLACK,TRIM0#,2# |
2 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55524-53010A0 |
GXE10 IVORY,TRIM0# |
2 | ||
| 55524-53010A0 |
GXE10,JCE10 IVORY,TRIM00 |
2 | ||
| 55524-53010C0 |
GXE10,JCE10 BLACK,TRIM00,2# |
2 | ||
| 55524-53010C0 |
GXE10 BLACK,TRIM0#,2# |
2 | ||
| 55544D - COVER, CENTER REGISTER OPENING | ||||
| 55544-53010 |
GXE10,JCE10 |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-53020A0 |
GXE10 IVORY,TRIM0# |
1 | ||
| 55550-53020C0 |
GXE10,JCE10 BLACK,TRIM2# |
1 | ||
| 55550-53020A0 |
GXE10,JCE10 IVORY,TRIM0# |
1 | ||
| 55550-53020C0 |
GXE10 BLACK,TRIM0#,2# |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-89101A0 |
GXE10 IVORY,TRIM0# |
1 | ||
| 55565-89101A0 |
GXE10,JCE10 IVORY,TRIM0# |
1 | ||
| 55565-89101C0 |
GXE10 BLACK,TRIM0#,2# |
1 | ||
| 55565-89101C0 |
GXE10,JCE10 BLACK,TRIM2# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-89101C0 |
GXE10,JCE10 BLACK,TRIM2# |
1 | ||
| 55569-89101A0 |
GXE10,JCE10 IVORY,TRIM0# |
1 | ||
| 55569-89101C0 |
GXE10 BLACK,TRIM0#,2# |
1 | ||
| 55569-89101A0 |
GXE10 IVORY,TRIM0# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
GXE10 |
2 | ||
| 55574-10010 |
GXE10,JCE10 |
2 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
GXE10 |
2 | ||
| 55574-10010 |
GXE10,JCE10 |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-53020C0 |
GXE10,JCE10 BLACK,TRIM0#,2# |
1 | ||
| 55650-53020C0 |
GXE10 BLACK,TRIM0#,2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-53020C0 |
GXE10,JCE10 BLACK,TRIM0#,2# |
1 | ||
| 55660-53020C0 |
GXE10 BLACK,TRIM0#,2# |
1 | ||
| 55662A - BEZEL, INSTRUMENT PANEL RESISTER, NO.2 | ||||
| 55662-53010 |
GXE10,JCE10 W(NAVIGATION SYSTEM) |
1 | ||
| 55662-53020 |
GXE10,JCE10 |
1 | ||
| 55662A - BEZEL, INSTRUMENT PANEL RESISTER, NO.2 | ||||
| 55662-53010 |
GXE10,JCE10 W(NAVIGATION SYSTEM) |
1 | ||
| 55662-53020 |
GXE10,JCE10 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55063-53011 |
GXE10 |
1 | ||
| 55063-53011 |
GXE10,JCE10 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55063-53011 |
GXE10 |
1 | ||
| 55063-53011 |
GXE10,JCE10 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55063-53011 |
GXE10 |
1 | ||
| 55063-53011 |
GXE10,JCE10 |
1 | ||
| 55678A - GEAR, INSTRUMENT PANEL REGISTER CONTROL | ||||
| 55678-51010 |
GXE10,JCE10 |
1 | ||
| 55681 - SUPPORT, INSTRUMENT PANEL REGISTER, NO.1 | ||||
| 55681-53010 |
GXE10,JCE10 |
1 | ||
| 55681 - SUPPORT, INSTRUMENT PANEL REGISTER, NO.1 | ||||
| 55681-53010 |
GXE10,JCE10 |
1 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 55682-53010 |
GXE10,JCE10 |
1 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 55682-53010 |
GXE10,JCE10 |
1 | ||
| 55683 - SUPPORT, INSTRUMENT REGISTER, NO.3 | ||||
| 55683-53020 |
GXE10,JCE10 |
1 | ||
| 55693 - PROTECTOR, CONTROL KNOB, NO.1 | ||||
| 55693-53010 |
GXE10,JCE10 |
1 | ||
| 55697 - SEAL, INSTRUMENT PANEL REGISTER, NO.1 | ||||
| 55697-53020 |
GXE10,JCE10 |
1 | ||
| 74598B - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-20010 |
GXE10 |
1 | ||
| 74598-20010 |
GXE10,JCE10 |
1 | ||
| 74598-30040 |
GXE10,JCE10 |
1 | ||
| Common parts | ||||
| 90151-40005 | ||||
| 90159-50105 | ||||
| 90167-30009 | ||||
| 90183-05032 | ||||
| 90467-10203 | ||||
| 90541-03015 | ||||
| 93219-13006 | ||||
| 93219-13008 | ||||
| 93510-14012 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8603 | ||||
ILLUST NO. 3 OF 3(0005- )
| Part # | Description | Qty | Price |
|---|
