GXE10R-AEFVKQ (1999)
Toyota Lexus Is200/300
Production
Jan 1999
-
Jul 2005
Engine
1GFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9901- )SED

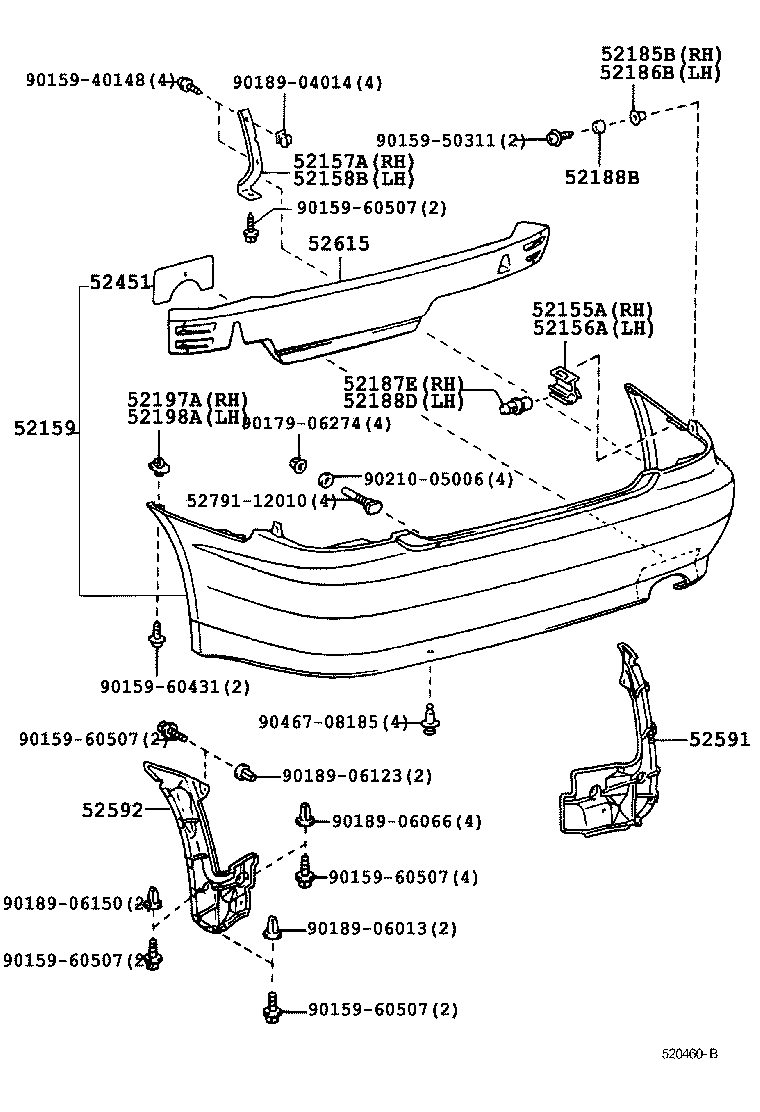

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-53010 |
GXE10,JCE10..SED |
1 | ||
| 52155-53010 |
GXE10 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52155-53010 |
GXE10,JCE10..SED |
1 | ||
| 52155-53010 |
GXE10 |
1 | ||
| 52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH | ||||
| 52157-53010 |
GXE10,JCE10..SED |
1 | ||
| 52157-53010 |
GXE10 |
1 | ||
| 52158B - STAY, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-53010 |
GXE10,JCE10..SED |
1 | ||
| 52158-53010 |
GXE10 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-53901 |
GXE10,JCE10..SED |
1 | ||
| 52159-53901 |
GXE10 |
1 | ||
| 52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH | ||||
| 52185-53010 |
GXE10,JCE10..SED |
1 | ||
| 52185-53010 |
GXE10 |
1 | ||
| 52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH | ||||
| 52185-53010 |
GXE10 |
1 | ||
| 52185-53010 |
GXE10,JCE10..SED |
1 | ||
| 52187E - GUIDE, REAR BUMPER LOCATION, RH | ||||
| 52187-16070 |
GXE10 |
1 | ||
| 52187-16070 |
GXE10,JCE10..SED |
1 | ||
| 52188B - SPACER, REAR BUMPER MOUNTING | ||||
| 52188-53010 |
GXE10,JCE10..SED |
2 | ||
| 52188-53010 |
GXE10 |
2 | ||
| 52188D - GUIDE, REAR BUMPER LOCATION, LH | ||||
| 52187-16070 |
GXE10 |
1 | ||
| 52187-16070 |
GXE10,JCE10..SED |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-53010 |
GXE10 |
1 | ||
| 52197-53010 |
GXE10,JCE10 |
1 | ||
| 52198A - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52197-53010 |
GXE10 |
1 | ||
| 52197-53010 |
GXE10,JCE10 |
1 | ||
| 52451 - GUARD, REAR BUMPER | ||||
| 52451-53010 |
GXE10 |
1 | ||
| 52451-53010 |
GXE10,JCE10..SED |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-53010 |
GXE10 |
1 | ||
| 52591-53010 |
GXE10,JCE10 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-53010 |
GXE10 |
1 | ||
| 52592-53010 |
GXE10,JCE10 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-53010 |
GXE10 |
1 | ||
| 52615-53010 |
GXE10,JCE10..SED |
1 | ||
| Common parts | ||||
| 52791-12010 | ||||
| 90159-40148 | ||||
| 90159-50311 | ||||
| 90159-60431 | ||||
| 90159-60507 | ||||
| 90179-06274 | ||||
| 90189-04014 | ||||
| 90189-06013 | ||||
| 90189-06066 | ||||
| 90189-06123 | ||||
| 90189-06150 | ||||
| 90210-05006 | ||||
| 90467-08185 | ||||
