GXE10R-AEFVKQ (1999)

Toyota Lexus Is200/300

Production Jan 1999 - Jul 2005
Engine 1GFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901- )SED

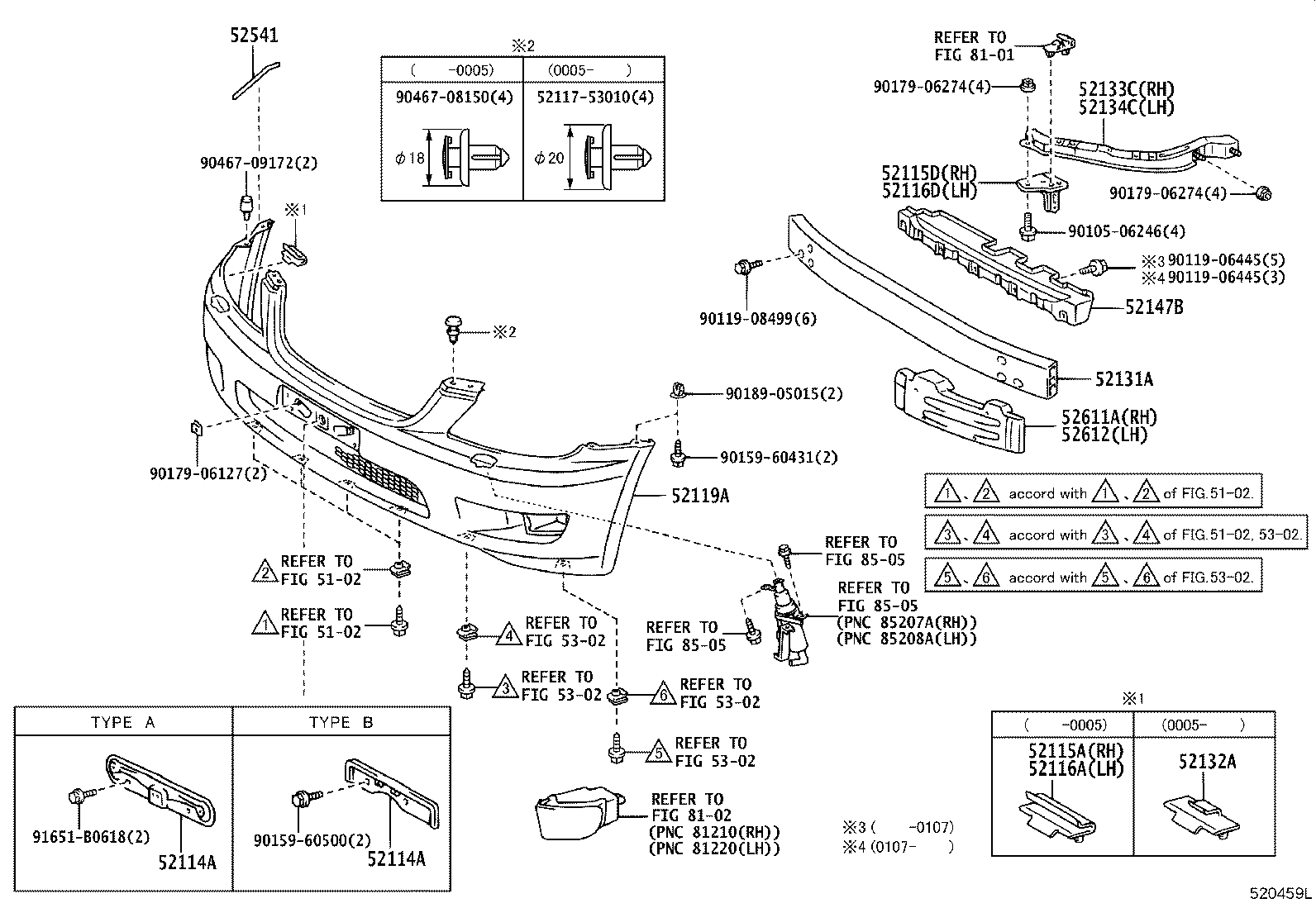

Click highlighted areas on diagram

diagram 5102 5102 52114A 52114A 52115A 52115D 52116A 52116D 5211753010 52119A 52131A 52132A 52133C 52134C 52147B 52541 52611A 52612 5302 5302 5302 5302 8101 8102 8505 8505 8505 9010506246 9011906445 9011906445 9011908499 9015960431 9015960500 9017906127 9017906274 9017906274 9018905015 9046708150 9046709172 91651B0618
Part # Description Qty Price
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-53010

GXE10,JCE10..SED

TYPE B:REFER TO ILLUSTRATION

 1
52114-50010

GXE10..ARL;GXE10..LHD..ATM

TYPE A:REFER TO ILLUSTRATION

 1
52114-50010

GXE10,JCE10..ARL;GXE10,JCE10..LHD..SED..ATM

TYPE A:REFER TO ILLUSTRATION

 1
52114-53010

GXE10

TYPE B:REFER TO ILLUSTRATION

 1
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-53010

GXE10,JCE10..SED

TYPE B:REFER TO ILLUSTRATION

 1
52114-50010

GXE10..ARL;GXE10..LHD..ATM

TYPE A:REFER TO ILLUSTRATION

 1
52114-50010

GXE10,JCE10..ARL;GXE10,JCE10..LHD..SED..ATM

TYPE A:REFER TO ILLUSTRATION

 1
52114-53010

GXE10

TYPE B:REFER TO ILLUSTRATION

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-14130

GXE10

 2
52115D - SUPPORT, FRONT BUMPER SIDE, NO.2 RH
52115-53010

GXE10,JCE10

 1
52115-53010

GXE10

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-14130

GXE10

 2
52116D - SUPPORT, FRONT BUMPER SIDE, NO.2 LH
52116-53010

GXE10

 1
52116-53010

GXE10,JCE10

 1
52119A - COVER, FRONT BUMPER
52119-53902

GXE10..ARL

 1
52119-53900

GXE10..ARL

NEW ZEALAND OR HONG KONG OR SINGAPORE OR BRUNEI SPEC

 1
52119-53902

GXE10..ARL

 1
52119-53901

GXE10..ARL

NEW ZEALAND OR HONG KONG SPEC & W(HEADLAMP CLEANER)

 1
52119-53905

GXE10..ARL

W(HEADLAMP CLEANER)

 1
52119-53900

GXE10..ARL

NEW ZEALAND OR HONG KONG OR SINGAPORE OR BRUNEI SPEC

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-53010

GXE10

 1
52131-53010

GXE10,JCE10

 1
52132A - REINFORCEMENT, FRONT BUMPER, NO.2
52132-53010

GXE10

 4
52132-53010

GXE10,JCE10

 4
52133C - REINFORCEMENT, FRONT BUMPER BAR, RH
52133-53010

GXE10,JCE10

 1
52133-53010

GXE10

 1
52134C - REINFORCEMENT, FRONT BUMPER BAR, LH
52134-53010

GXE10

 1
52134-53010

GXE10,JCE10

 1
52541 - PROTECTOR, FRONT BUMPER
52541-51010

GXE10

 2
52541-51010

GXE10,JCE10

 2
52611A - ABSORBER, FRONT BUMPER ENERGY, RH
52611-53010

GXE10,JCE10..SED

 1
52611-53010

GXE10

 1
52612 - ABSORBER, FRONT BUMPER ENERGY, LH
52612-53010

GXE10

 1
52612-53010

GXE10,JCE10..SED

 1
Common parts
52117-53010
90105-06246
90119-06445
90119-08499
90159-60431
90159-60500
90179-06127
90179-06274
90189-05015
90467-08150
90467-09172
91651-B0618
Linked diagrams
5102
5302
8101
8102
8505
