GXE10R-AEFVKQ (1999)
Toyota Lexus Is200/300
Production
Jan 1999
-
Jul 2005
Engine
1GFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9901- )

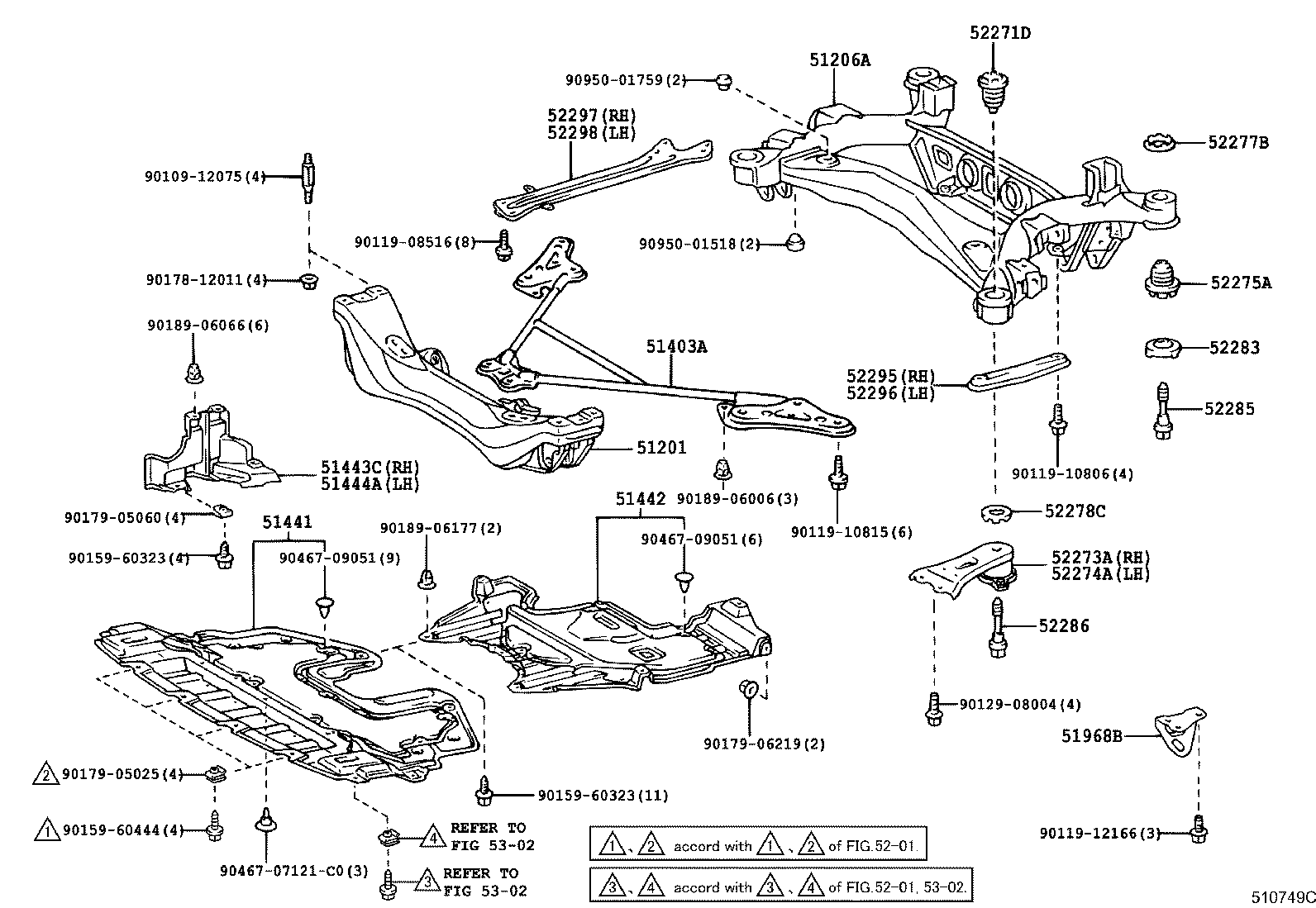

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-53020 |
GXE10..RHD |
1 | ||
| 51201-53020 |
GXE10,JCE10..RHD |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-51010 |
GXE10 |
1 | ||
| 51206-53020 |
GXE10 |
1 | ||
| 51206-53020 |
GXE10,JCE10 |
1 | ||
| 51206-53010 |
GXE10 |
1 | ||
| 51206-53011 |
GXE10 |
1 | ||
| 51206-51020 |
GXE10 |
1 | ||
| 51403A - BRACE SUB-ASSY, FRONT SUSPENSION MEMBER, RH | ||||
| 51403-53010 |
GXE10,JCE10 |
1 | ||
| 51403-53010 |
GXE10 |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51410-53012 |
GXE10 |
1 | ||
| 51410-53011 |
GXE10 |
1 | ||
| 51410-53010 |
GXE10 |
1 | ||
| 51410-53012 |
GXE10 |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51420-53010 |
GXE10 |
1 | ||
| 51420-53012 |
GXE10 |
1 | ||
| 51420-53012 |
GXE10,JCE10 |
1 | ||
| 51420-53011 |
GXE10 |
1 | ||
| 51443C - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-51010 |
GXE10 |
1 | ||
| 51443-51010 |
GXE10,JCE10 |
1 | ||
| 51444A - COVER, ENGINE UNDER, REAR LH | ||||
| 51444-51010 |
GXE10,JCE10 |
1 | ||
| 51444-51010 |
GXE10 |
1 | ||
| 51968B - HOOK, TRANSPORT, REAR LH | ||||
| 51968-30040 |
GXE10,JCE10 |
1 | ||
| 51968-30040 |
GXE10 |
1 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-53010 |
GXE10,JCE10 |
2 | ||
| 52271-53010 |
GXE10 |
2 | ||
| 52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH | ||||
| 52203-53010 |
GXE10 |
1 | ||
| 52203-53010 |
GXE10,JCE10 |
1 | ||
| 52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52204-53010 |
GXE10 |
1 | ||
| 52204-53010 |
GXE10,JCE10 |
1 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52275-53011 |
GXE10 |
2 | ||
| 52275-53011 |
GXE10,JCE10 |
2 | ||
| 52275-53010 |
GXE10 |
2 | ||
| 52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER | ||||
| 52277-53010 |
GXE10,JCE10 |
2 | ||
| 52277-53010 |
GXE10 |
2 | ||
| 52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER | ||||
| 52278-53010 |
GXE10 |
2 | ||
| 52278-53010 |
GXE10,JCE10 |
2 | ||
| 52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER | ||||
| 52283-30050 |
GXE10 |
2 | ||
| 52283-30050 |
GXE10,JCE10 |
2 | ||
| 52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1 | ||||
| 52285-30021 |
GXE10,JCE10 |
2 | ||
| 52285-30021 |
GXE10 |
2 | ||
| 52286 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2 | ||||
| 52286-53010 |
GXE10 |
2 | ||
| 52286-53010 |
GXE10,JCE10 |
2 | ||
| 52295 - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-50010 |
GXE10,JCE10 |
1 | ||
| 52295-50010 |
GXE10 |
1 | ||
| 52296 - BRACE, REAR SUSPENSION MEMBER, LH | ||||
| 52295-50010 |
GXE10 |
1 | ||
| 52295-50010 |
GXE10,JCE10 |
1 | ||
| 52297 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH | ||||
| 52297-53010 |
GXE10 |
1 | ||
| 52297-53010 |
GXE10,JCE10 |
1 | ||
| 52298 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH | ||||
| 52298-53010 |
GXE10,JCE10 |
1 | ||
| 52298-53010 |
GXE10 |
1 | ||
| Common parts | ||||
| 90109-12075 | ||||
| 90119-08516 | ||||
| 90119-10806 | ||||
| 90119-10815 | ||||
| 90119-12166 | ||||
| 90129-08004 | ||||
| 90159-60323 | ||||
| 90159-60444 | ||||
| 90178-12011 | ||||
| 90179-05025 | ||||
| 90179-05060 | ||||
| 90179-06219 | ||||
| 90189-06006 | ||||
| 90189-06066 | ||||
| 90189-06177 | ||||
| 90467-07121C0 | ||||
| 90467-09051 | ||||
| 90950-01518 | ||||
| 90950-01759 | ||||
| Linked diagrams | ||||
| 5302 | ||||
