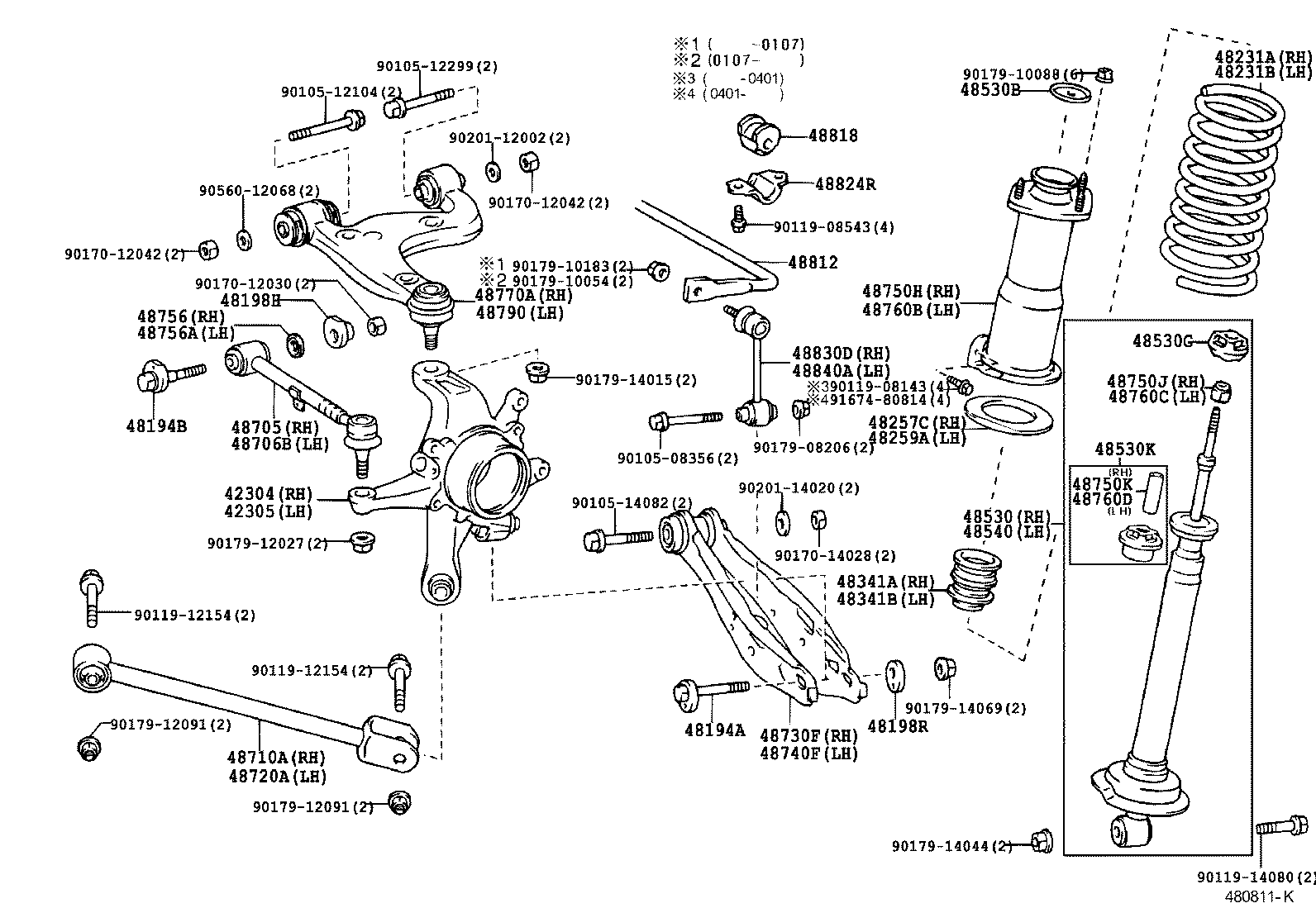

GXE10R-AEFVKQ (1999)
Toyota Lexus Is200/300
(9901- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42304 - CARRIER SUB-ASSY, REAR AXLE, RH | ||||
| 42304-51010 |
GXE10 |
1 | ||
| 42304-51010 |
GXE10,JCE10 |
1 | ||
| 42305 - CARRIER SUB-ASSY, REAR AXLE, LH | ||||
| 42305-51010 |
GXE10 |
1 | ||
| 42305-51010 |
GXE10,JCE10 |
1 | ||
| 48194A - CAM, REAR SUSPENSION CAMBER ADJUST, NO.1 | ||||
| 48190-30040 |
GXE10,JCE10 |
2 | ||
| 48190-30040 |
GXE10 |
2 | ||
| 48194B - CAM, REAR SUSPENSION CAMBER ADJUST, NO.3 | ||||
| 48190-30060 |
GXE10,JCE10 |
2 | ||
| 48190-30060 |
GXE10 |
2 | ||
| 48198H - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-30080 |
GXE10,JCE10 |
2 | ||
| 48198-30080 |
GXE10 |
2 | ||
| 48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 | ||||
| 48198-30060 |
GXE10,JCE10 |
2 | ||
| 48198-30060 |
GXE10 |
2 | ||
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-53070 |
GXE10 YELLOW MARK |
1 | ||
| 48231-53020 |
GXE10 |
1 | ||
| 48231-53071 |
GXE10..SED YELLOW&WHITE MARK |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-53070 |
GXE10 YELLOW MARK |
1 | ||
| 48231-53020 |
GXE10 |
1 | ||
| 48231-53071 |
GXE10..SED YELLOW&WHITE MARK |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-30060 |
GXE10 |
1 | ||
| 48257-30060 |
GXE10,JCE10 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-30060 |
GXE10,JCE10 |
1 | ||
| 48257-30060 |
GXE10 |
1 | ||
| 48341A - BUMPER, REAR SPRING, NO.1 RH | ||||
| 48341-51010 |
GXE10 |
1 | ||
| 48341-51010 |
GXE10,JCE10..SED |
1 | ||
| 48341B - BUMPER, REAR SPRING, NO.1 LH | ||||
| 48341-51010 |
GXE10,JCE10..SED |
1 | ||
| 48341-51010 |
GXE10 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-59375 |
GXE10 MARK 48530-53030 |
1 | ||
| 48530-80020 |
GXE10 MARK 48530-53010 |
1 | ||
| 48530-59375 |
GXE10..SED MARK 48530-53030 |
1 | ||
| 48530-80156 |
GXE10..SED MARK 48530-53031 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03021 |
GXE10 |
2 | ||
| 90948-03021 |
GXE10,JCE10 |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01062 |
GXE10 |
2 | ||
| 90948-01062 |
GXE10,JCE10 |
2 | ||
| 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 | ||||
| 90948-01063 |
GXE10 |
2 | ||
| 90948-01063 |
GXE10,JCE10 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-59375 |
GXE10..SED MARK 48530-53030 |
1 | ||
| 48530-80020 |
GXE10 MARK 48530-53010 |
1 | ||
| 48530-80156 |
GXE10..SED MARK 48530-53031 |
1 | ||
| 48530-59375 |
GXE10 MARK 48530-53030 |
1 | ||
| 48705 - LINK SUB-ASSY, TOE CONTROL, RH | ||||
| 48705-53010 |
GXE10,JCE10 |
1 | ||
| 48705-53010 |
GXE10 |
1 | ||
| 48706B - LINK SUB-ASSY, TOE CONTROL, LH | ||||
| 48706-53010 |
GXE10,JCE10 |
1 | ||
| 48706-53010 |
GXE10 |
1 | ||
| 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH | ||||
| 48710-53010 |
GXE10 |
1 | ||
| 48710-53010 |
GXE10,JCE10 |
1 | ||
| 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH | ||||
| 48710-53010 |
GXE10 |
1 | ||
| 48710-53010 |
GXE10,JCE10 |
1 | ||
| 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH | ||||
| 48730-51010 |
GXE10 |
1 | ||
| 48730-51010 |
GXE10,JCE10 |
1 | ||
| 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH | ||||
| 48740-51010 |
GXE10 |
1 | ||
| 48740-51010 |
GXE10,JCE10 |
1 | ||
| 48750H - SUPPORT ASSY, REAR SUSPENSION, RH | ||||
| 48750-51010 |
GXE10,JCE10 |
1 | ||
| 48750-51010 |
GXE10 |
1 | ||
| 48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90179-12127 |
GXE10,JCE10 |
1 | ||
| 90177-12002 |
GXE10 |
1 | ||
| 90177-12002 |
GXE10,JCE10 |
1 | ||
| 94187-11200 |
GXE10 |
1 | ||
| 48750K - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH) | ||||
| 90387-12050 |
GXE10 |
1 | ||
| 48756 - PIECE, REAR SUSPENSION ARM, RH | ||||
| 48756-53010 |
GXE10,JCE10 |
1 | ||
| 48756-53010 |
GXE10 |
1 | ||
| 48756A - PIECE, REAR SUSPENSION ARM, LH | ||||
| 48756-53010 |
GXE10 |
1 | ||
| 48756-53010 |
GXE10,JCE10 |
1 | ||
| 48760B - SUPPORT ASSY REAR SUSPENSION, LH | ||||
| 48750-51010 |
GXE10,JCE10 |
1 | ||
| 48750-51010 |
GXE10 |
1 | ||
| 48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90177-12002 |
GXE10,JCE10 |
1 | ||
| 94187-11200 |
GXE10 |
1 | ||
| 90179-12127 |
GXE10,JCE10 |
1 | ||
| 90177-12002 |
GXE10 |
1 | ||
| 48760D - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH) | ||||
| 90387-12050 |
GXE10 |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-53010 |
GXE10,JCE10 |
1 | ||
| 48770-53010 |
GXE10 |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48790-53010 |
GXE10 |
1 | ||
| 48790-53010 |
GXE10,JCE10 |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-53020 |
GXE10 |
1 | ||
| 48812-53010 |
GXE10..EUR;GXE10..MTM..ARL W(STAINLESS SCUFF PLATE) |
1 | ||
| 48812-53020 |
GXE10;JCE10..WG |
1 | ||
| 48812-51010 |
GXE10 |
1 | ||
| 48812-53010 |
GXE10..SED..EUR;GXE10..MTM..ARL W(STAINLESS SCUFF PLATE) |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-53030 |
GXE10 |
2 | ||
| 48818-30110 |
GXE10..SED..EUR;GXE10..MTM..ARL W(STAINLESS SCUFF PLATE) |
2 | ||
| 48818-30100 |
GXE10 |
2 | ||
| 48818-30110 |
GXE10..EUR;GXE10..MTM..ARL W(STAINLESS SCUFF PLATE) |
2 | ||
| 48818-53030 |
GXE10;JCE10..WG |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48832-30050 |
GXE10 |
2 | ||
| 48832-30050 |
GXE10,JCE10 |
2 | ||
| 48830D - LINK ASSY, REAR STABILIZER, RH | ||||
| 48830-51010 |
GXE10 |
1 | ||
| 48830-51010 |
GXE10,JCE10 |
1 | ||
| 48840A - LINK ASSY, REAR STABILIZER, LH | ||||
| 48830-51010 |
GXE10,JCE10 |
1 | ||
| 48830-51010 |
GXE10 |
1 | ||
| Common parts | ||||
| 90105-08356 | ||||
| 90105-12104 | ||||
| 90105-12299 | ||||
| 90105-14082 | ||||
| 90119-08143 | ||||
| 90119-08543 | ||||
| 90119-12154 | ||||
| 90119-14080 | ||||
| 90170-12030 | ||||
| 90170-12042 | ||||
| 90170-14028 | ||||
| 90179-08206 | ||||
| 90179-10054 | ||||
| 90179-10088 | ||||
| 90179-10183 | ||||
| 90179-12027 | ||||
| 90179-12091 | ||||
| 90179-14015 | ||||
| 90179-14044 | ||||
| 90179-14069 | ||||
| 90201-12002 | ||||
| 90201-14020 | ||||
| 90560-12068 | ||||
| 91674-80814 | ||||
