Toyota Lexus is200/300 GXE10 FRONT SPRING & SHOCK ABSORBER

Part #	Description	Period	Qty
48131 - SPRING, FRONT COIL, RH
48131-53020	GXE10 L=323	01/1999 - 07/2001	1
48131-53020	GXE10..SED L=323	07/2001 - 12/2999	1
48132 - SPRING, FRONT COIL, LH
48131-53020	GXE10 L=323	01/1999 - 07/2001	1
48131-53020	GXE10..SED L=323	07/2001 - 12/2999	1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48157-22040	GXE10,JCE10	07/2001 - 12/2999	1
48157-22040	GXE10	01/1999 - 07/2001	1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48157-22040	GXE10,JCE10	07/2001 - 12/2999	1
48157-22040	GXE10	01/1999 - 07/2001	1
48331B - BUMPER, FRONT SPRING, RH
48331-51010	GXE10	01/1999 - 07/2001	1
48331-51010	GXE10,JCE10..SED	07/2001 - 08/2002	1
48331-30130	GXE10,JCE10..SED	08/2002 - 12/2999	1
48331C - BUMPER, FRONT SPRING, LH
48331-30130	GXE10,JCE10..SED	08/2002 - 12/2999	1
48331-51010	GXE10,JCE10..SED	07/2001 - 08/2002	1
48331-51010	GXE10	01/1999 - 07/2001	1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-80005	GXE10 MARK 48510-53020	01/1999 - 04/2000	1
48510-80004	GXE10 MARK 48510-53010	05/2000 - 07/2001	1
48510-80004	GXE10..SED MARK 48510-53010	07/2001 - 07/2003	1
48510-59325	GXE10..EUR;GXE10..MTM..ARL MARK 48510-53040	05/2000 - 07/2001	1
48510-59325	GXE10 MARK 48510-53040	04/2000 - 05/2000	1
48510-59325	GXE10..SED..EUR;GXE10..MTM..ARL MARK 48510-53040	07/2001 - 07/2003	1
48510-80143	GXE10..SED..EUR;GXE10..MTM..ARL MARK 48510-53041	07/2003 - 07/2005	1
48510-80144	GXE10..SED MARK 48510-53011	07/2003 - 07/2005	1
48510N - BUSH(FOR FRONT SHOCK ABSORBER RH)
90389-12016	GXE10,JCE10	07/2001 - 12/2999	1
90389-12016	GXE10..EUR;GXE10..MTM..ARL	05/2000 - 07/2001	1
90389-12016	GXE10	01/1999 - 05/2000	1
48514 - BRACKET, FRONT SHOCK ABSORBER, LOWER RH
48514-22010	GXE10,JCE10	07/2001 - 12/2999	1
48514-22010	GXE10	01/1999 - 07/2001	1
48515 - BRACKET, FRONT SHOCK ABSORBER, LOWER LH
48515-22010	GXE10	07/2001 - 12/2999	1
48515-22010	GXE10	01/1999 - 07/2001	1
48504-53010	GXE10 W(DISCHARGE HEADLAMP)	07/2001 - 12/2999	1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48510-59325	GXE10 MARK 48510-53040	04/2000 - 05/2000	1
48510-59325	GXE10..EUR;GXE10..MTM..ARL MARK 48510-53040	05/2000 - 07/2001	1
48510-80004	GXE10 MARK 48510-53010	05/2000 - 07/2001	1
48510-80005	GXE10 MARK 48510-53020	01/1999 - 04/2000	1
48510-80143	GXE10..SED..EUR;GXE10..MTM..ARL MARK 48510-53041	07/2003 - 07/2005	1
48510-80004	GXE10..SED MARK 48510-53010	07/2001 - 07/2003	1
48510-59325	GXE10..SED..EUR;GXE10..MTM..ARL MARK 48510-53040	07/2001 - 07/2003	1
48510-80144	GXE10..SED MARK 48510-53011	07/2003 - 07/2005	1
48520C - BUSH(FOR FRONT SHOCK ABSORBER LH)
90389-12016	GXE10..EUR;GXE10..MTM..ARL	05/2000 - 07/2001	1
90389-12016	GXE10,JCE10	07/2001 - 12/2999	1
90389-12016	GXE10	01/1999 - 05/2000	1
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48680-22030	GXE10	01/1999 - 05/2000	1
48680-53010	GXE10,JCE10..SED	07/2001 - 12/2999	1
48680-53010	GXE10	05/2000 - 07/2001	1
48603E - PLUG, HOLE(FOR FRONT SUSPENSION SUPPORT RH)
90950-01659	GXE10,JCE10	07/2001 - 12/2999	1
90950-01659	GXE10	01/1999 - 07/2001	1
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48680-53010	GXE10	05/2000 - 07/2001	1
48680-53010	GXE10,JCE10..SED	07/2001 - 12/2999	1
48680-22030	GXE10	01/1999 - 05/2000	1
48609F - PLUG, HOLE(FOR FRONT SUSPENSION SUPPORT LH)
90950-01659	GXE10	01/1999 - 07/2001	1
90950-01659	GXE10,JCE10	07/2001 - 12/2999	1
48810 - LINK ASSY, FRONT STABILIZER, LH
48820-22041	GXE10,JCE10	07/2001 - 12/2999	1
48820-22041	GXE10	01/1999 - 07/2001	1
48811 - BAR, STABILIZER, FRONT
48811-53020	GXE10..MTM..ARL OD=26.0	05/1999 - 05/2000	1
48811-51010	GXE10 OD=26.5	05/2000 - 07/2001	1
48811-53010	GXE10 OD=27.2	01/1999 - 05/2000	1
48811-51010	GXE10;JCE10..WG OD=26.5	07/2001 - 12/2999	1
48811-53010	GXE10..EUR;GXE10..MTM..ARL OD=27.2	05/2000 - 07/2001	1
48811-53010	JCE10..SED;GXE10..SED..EUR;GXE10..MTM..ARL OD=27.2	07/2001 - 12/2999	1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-51010	GXE10 ID=26.5	05/2000 - 07/2001	2
48815-53010	JCE10..SED;GXE10..SED..EUR;GXE10..MTM..ARL ID=27.2	07/2001 - 12/2999	2
48815-53010	GXE10..EUR;GXE10..MTM..ARL ID=27.2	05/2000 - 07/2001	2
48815-30470	GXE10..MTM..ARL ID=26	05/1999 - 05/2000	2
48815-51010	GXE10;JCE10..WG ID=26.5	07/2001 - 12/2999	2
48815-53010	GXE10 ID=27.2	01/1999 - 05/2000	2
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-22041	GXE10	01/1999 - 07/2001	1
48820-22041	GXE10,JCE10	07/2001 - 12/2999	1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48809-30020	GXE10	01/1999 - 07/2001	1
48809-30020	GXE10,JCE10	07/2001 - 11/2001	1
48809-30021	GXE10,JCE10	11/2001 - 12/2999	1
48827 - BRACKET, FRONT STABILIZER, NO.2 RH
48824-22090	GXE10	01/1999 - 07/2001	1
48824-22090	GXE10,JCE10	07/2001 - 12/2999	1
48828 - BRACKET, FRONT STABILIZER, NO.2 LH
48824-22090	GXE10,JCE10	07/2001 - 12/2999	1
48824-22090	GXE10	01/1999 - 07/2001	1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48809-30030	GXE10	01/1999 - 07/2001	1
48809-30031	GXE10,JCE10	11/2001 - 12/2999	1
48809-30030	GXE10,JCE10	07/2001 - 11/2001	1
Common parts
90105-12251
90119-08A08
90119-08A86
90119-08C04
90177-12002
90178-08005
90179-10054
90179-10183
90179-12047
90179-12144
91641-80816
91641-K0816
91673-E0816

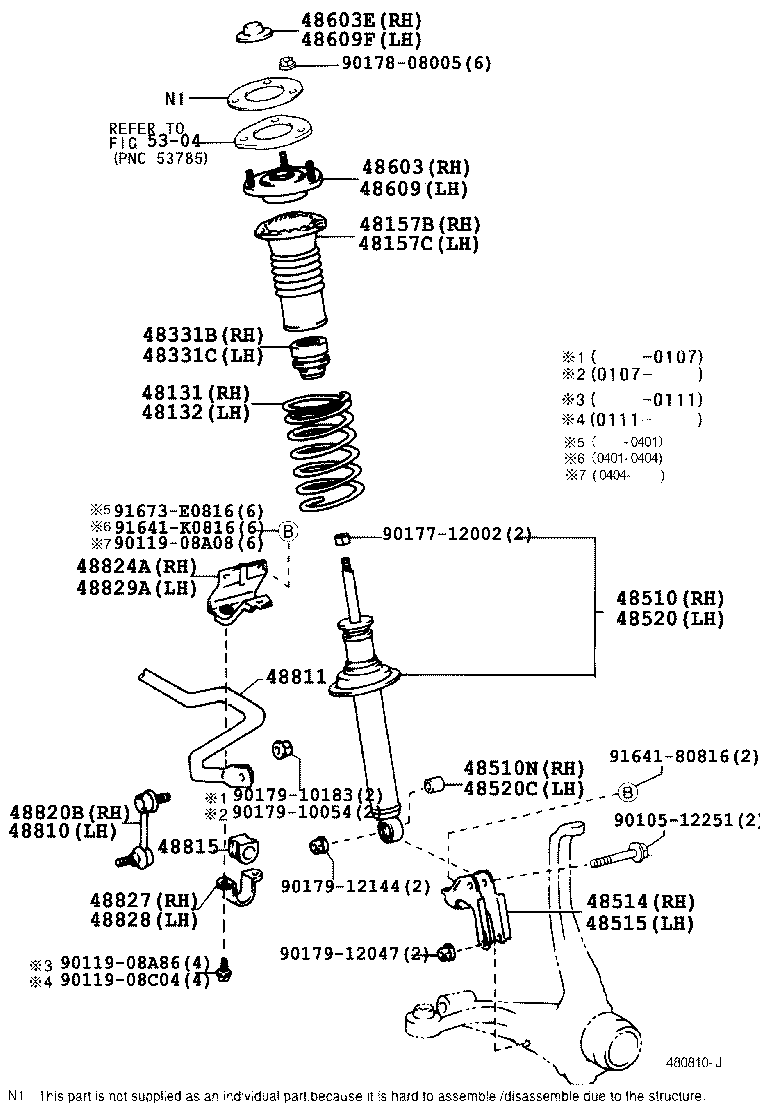

Linked diagrams
5304

GXE10R-AEFVKQ (1999)

(9901- )
