GXE10R-AEFVKQ (1999)

Toyota Lexus Is200/300

Production Jan 1999 - Jul 2005
Engine 1GFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901- )MTM

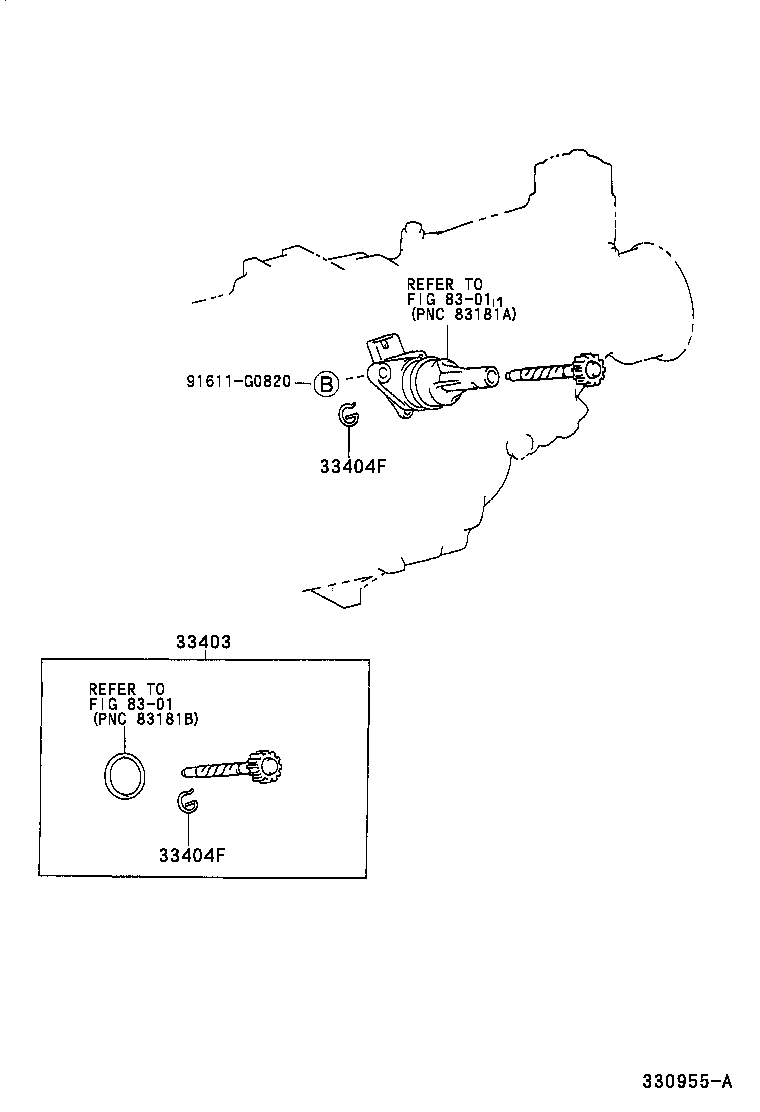

Click highlighted areas on diagram

J160

diagram 33403 33404F 33404F 8301 8301 91611G0820
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-29315

GXE10..MTM

N=32,MARK 32:10

 1
33403-29325

GXE10..MTM..ARL

N=33,MARK 33:10

 1
33403-29325

GXE10..MTM..ARL

N=33,MARK 33:10

 1
33403-29315

GXE10..MTM

N=32,MARK 32:10

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

GXE10..MTM

 1
90468-12005

GXE10..MTM

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

GXE10..MTM

 1
90468-12005

GXE10..MTM

 1
Common parts
91611-G0820
Linked diagrams
8301
