GXE10R-AEFVKQ (1999)

Toyota Lexus Is200/300

Production Jan 1999 - Jul 2005
Engine 1GFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901- )MTM

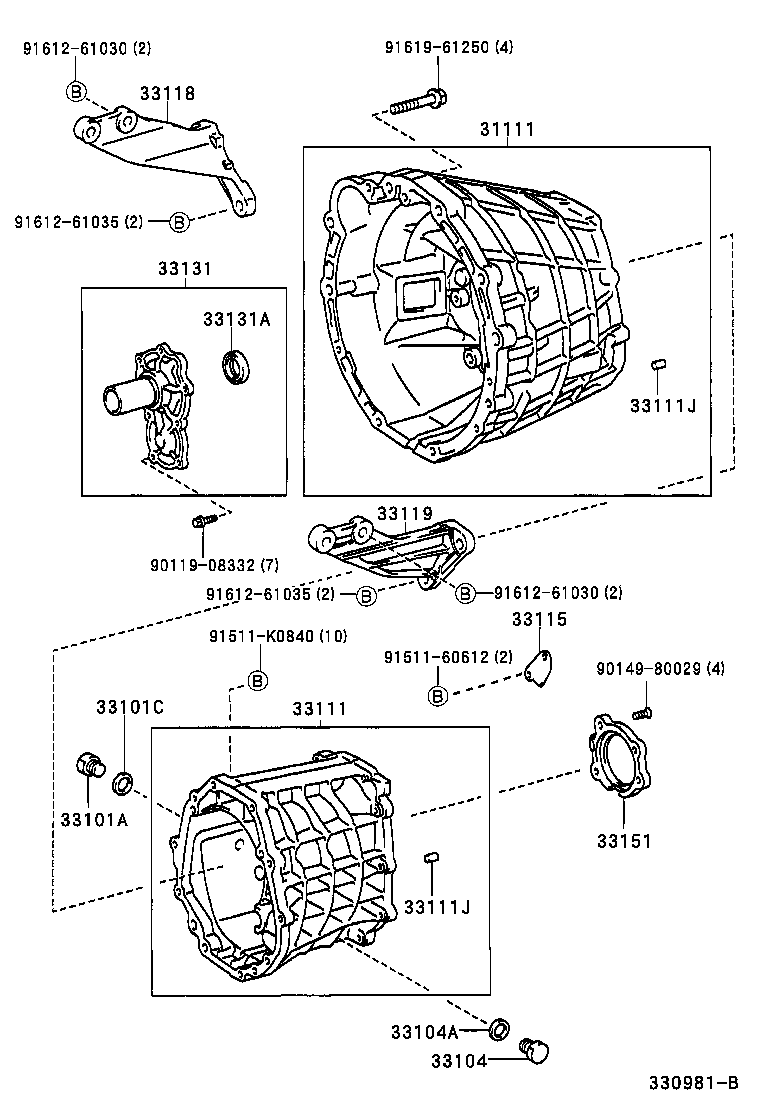

Click highlighted areas on diagram

J160

diagram 31111 33101A 33101C 33104 33104A 33111 33111J 33111J 33115 33118 33119 33131 33131A 33151 9011908332 9014980029 9151160612 91511K0840 9161261030 9161261030 9161261035 9161261035 9161961250
Part # Description Qty Price
31111 - HOUSING, CLUTCH
33101-53020

GXE10..MTM

 1
33101-53020

GXE10..MTM

 1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006

GXE10..MTM

 1
90341-18006

GXE10..MTM

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

GXE10..MTM

 1
90430-18008

GXE10..MTM

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18057

GXE10..MTM

 1
90341-18057

GXE10..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

GXE10..MTM

 1
90430-18008

GXE10..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33106-53011

GXE10..MTM

 1
33106-53011

GXE10..MTM

 1
33106-53010

GXE10..MTM

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-10232

GXE10..MTM

L=15,OD=8

 4
90250-10232

GXE10..MTM

L=15,OD=8

 4
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-10232

GXE10..MTM

L=15,OD=8

 4
90250-10232

GXE10..MTM

L=15,OD=8

 4
33115 - PLATE, TRANSMISSION OIL FILTER
33115-53010

GXE10..MTM

 1
33115-53010

GXE10..MTM

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-22051

GXE10..MTM

 1
33118-22051

GXE10..MTM

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-22042

GXE10..MTM

 1
33119-22042

GXE10..MTM

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33018-53010

GXE10..MTM

 1
33018-53010

GXE10..MTM

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-29001

GXE10..MTM

 1
90311-29001

GXE10..MTM

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-53010

GXE10..MTM

 1
33151-53010

GXE10..MTM

 1
Common parts
90119-08332
90149-80029
91511-60612
91511-K0840
91612-61030
91612-61035
91619-61250
