GXE10R-AEFVKQ (1999)
Toyota Lexus Is200/300

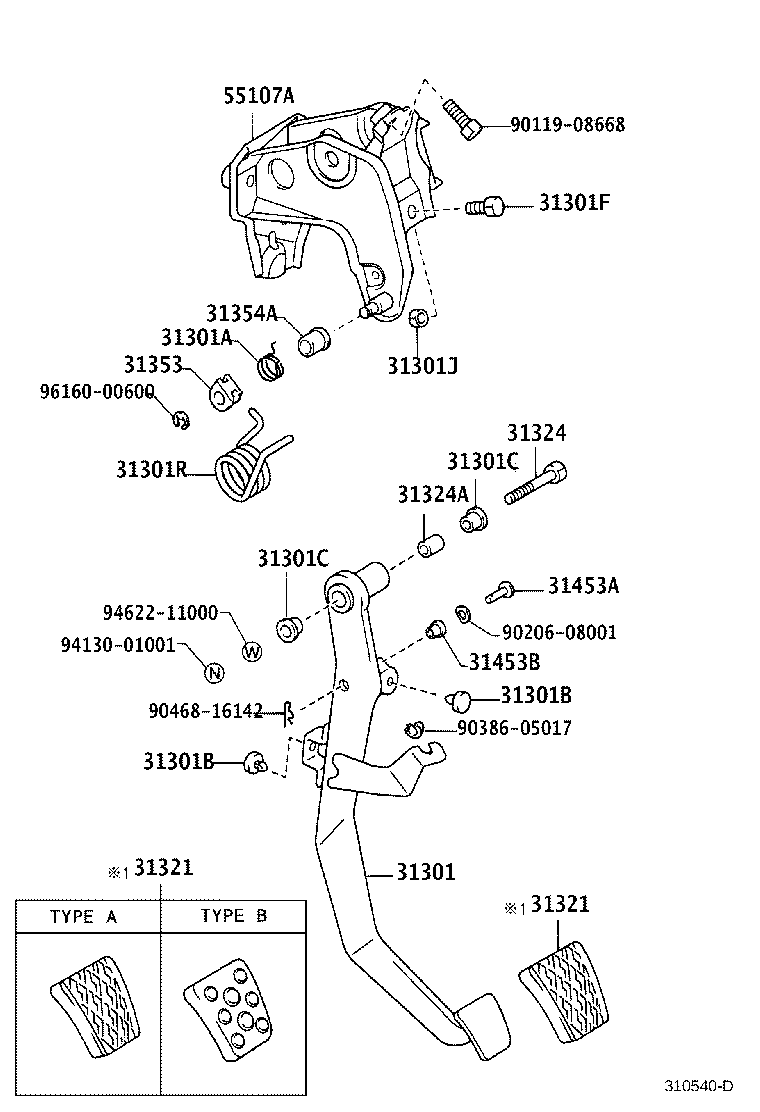

ILLUST NO. 1 OF 2(9901- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-53010 |
GXE10..RHD..MTM |
1 | ||
| 31301-53030 |
GXE10..RHD..MTM |
1 | ||
| 31301-53030 |
GXE10..RHD..MTM |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90949-03081 |
GXE10..MTM |
1 | ||
| 90949-03081 |
GXE10..MTM |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GXE10..MTM |
2 | ||
| 90541-06036 |
GXE10..MTM |
2 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GXE10..MTM |
2 | ||
| 90541-06036 |
GXE10..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
GXE10..MTM |
2 | ||
| 90386-13015 |
GXE10..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
GXE10..MTM |
2 | ||
| 90386-13015 |
GXE10..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
GXE10..MTM |
1 | ||
| 90101-10369 |
GXE10..MTM |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94130-01001 |
GXE10..MTM |
1 | ||
| 94130-01001 |
GXE10..MTM |
1 | ||
| 31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT) | ||||
| 90949-03104 |
GXE10..RHD..MTM |
1 | ||
| 90949-03104 |
GXE10..RHD..MTM |
1 | ||
| 90949-03082 |
GXE10..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-12040 |
GXE10..MTM TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 31321-53010 |
GXE10..MTM TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 31321-12040 |
GXE10..MTM TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 31321-53010 |
GXE10..MTM TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-12040 |
GXE10..MTM TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 31321-53010 |
GXE10..MTM TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 31321-12040 |
GXE10..MTM TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 31321-53010 |
GXE10..MTM TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10015 |
GXE10..MTM |
1 | ||
| 90101-10015 |
GXE10..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10003 |
GXE10..MTM |
1 | ||
| 90387-10003 |
GXE10..MTM |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-14010 |
GXE10..MTM |
1 | ||
| 31353-14010 |
GXE10..MTM |
1 | ||
| 31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER) | ||||
| 90386-13015 |
GXE10..MTM |
1 | ||
| 90386-13015 |
GXE10..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
GXE10..MTM L=23.5 |
1 | ||
| 90240-08006 |
GXE10..MTM L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08036 |
GXE10..MTM |
1 | ||
| 90386-08033 |
GXE10..MTM |
1 | ||
| 90386-08036 |
GXE10..MTM |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-53010 |
GXE10..RHD..MTM |
1 | ||
| 55107-53010 |
GXE10..RHD..MTM |
1 | ||
| Common parts | ||||
| 90119-08668 | ||||
| 90206-08001 | ||||
| 90386-05017 | ||||
| 90468-16142 | ||||
| 94130-01001 | ||||
| 94622-11000 | ||||
| 96160-00600 | ||||

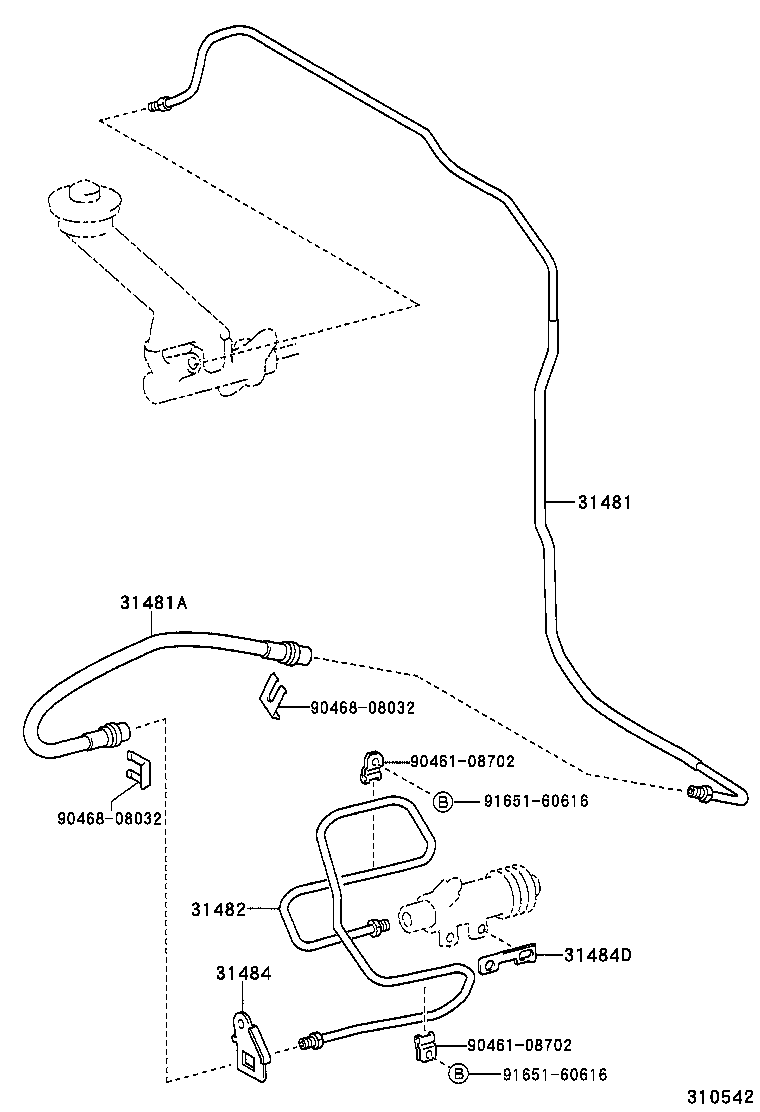

ILLUST NO. 2 OF 2(9901- )RHD..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-53040 |
GXE10..RHD..MTM |
1 | ||
| 31481-53020 |
GXE10..RHD..MTM |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90947-02A44 |
GXE10..MTM |
1 | ||
| 90947-02A44 |
GXE10..MTM |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-53020 |
GXE10..MTM |
1 | ||
| 31482-53020 |
GXE10..MTM |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-53021 |
GXE10..MTM |
1 | ||
| 31484-53021 |
GXE10..MTM |
1 | ||
| 31484D - BRACKET, CLUTCH TUBE, NO.2 | ||||
| 31484-20460 |
GXE10..MTM |
1 | ||
| 31484-20460 |
GXE10..MTM |
1 | ||
| Common parts | ||||
| 90461-08702 | ||||
| 90468-08032 | ||||
| 91651-60616 | ||||
