GXE10R-AEFVKQ (1999)
Toyota Lexus Is200/300
Production
Jan 1999
-
Jul 2005
Engine
1GFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9901- )1GFE

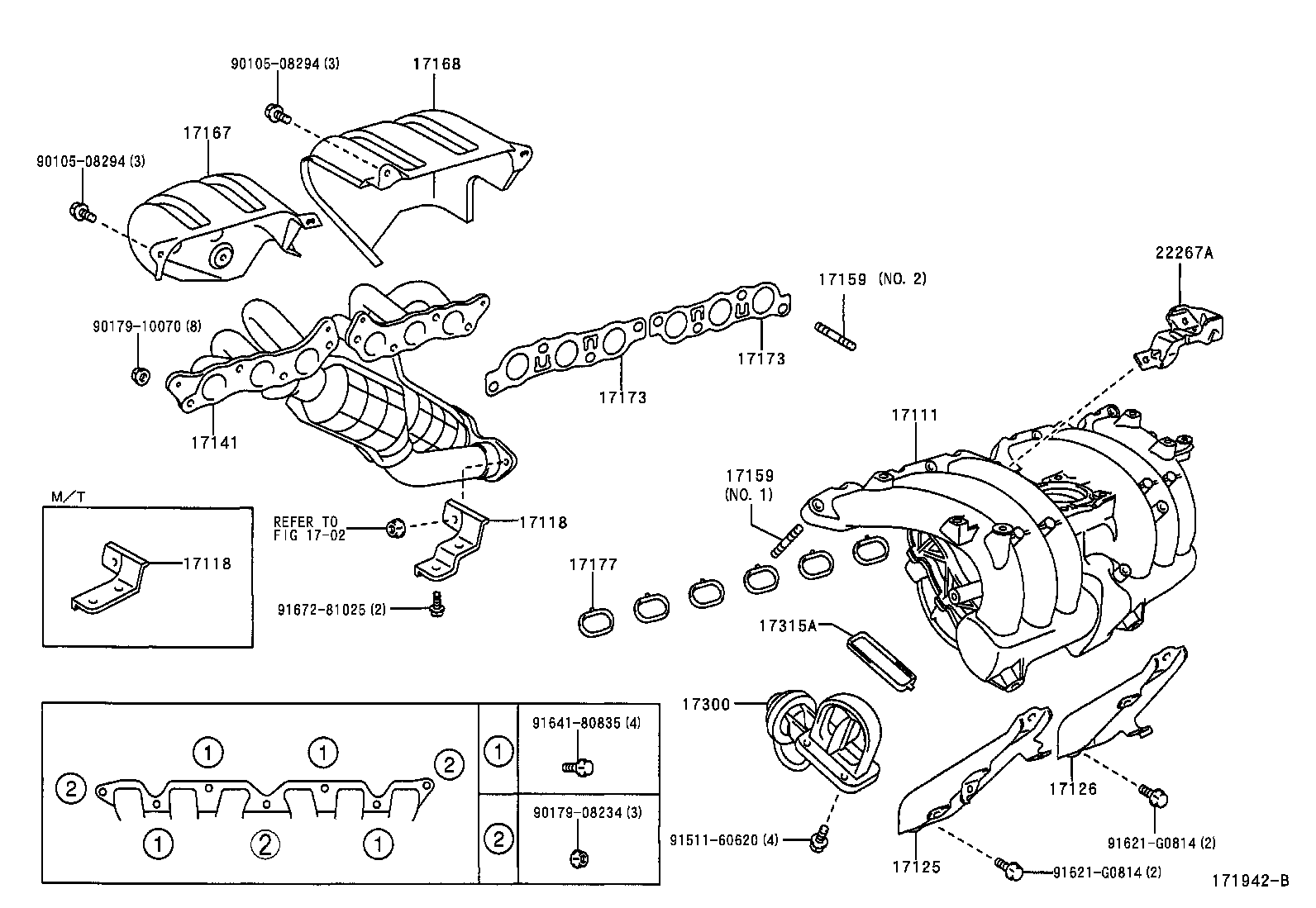

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-70100 |
1GFE..GXE10 |
1 | ||
| 17101-70100 |
1GFE..GXE10 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-70130 |
1GFE..GXE10..MTM |
1 | ||
| 17118-70130 |
1GFE..GXE10..MTM |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-70130 |
1GFE..GXE10..MTM |
1 | ||
| 17118-70130 |
1GFE..GXE10..MTM |
1 | ||
| 17125 - STAY, SURGE TANK, NO.1 | ||||
| 17125-70020 |
1GFE..GXE10 |
1 | ||
| 17125-70020 |
1GFE..GXE10 |
1 | ||
| 17126 - STAY, SURGE TANK, NO.2 | ||||
| 17126-70030 |
1GFE..GXE10 |
1 | ||
| 17126-70030 |
1GFE..GXE10 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17140-70020 |
1GFE..GXE10 *115=TOYOTA/99-/Y |
1 | ||
| 17140-70020 |
1GFE..GXE10 *115=TOYOTA/99-/Y |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10205 |
1GFE..GXE10 NO.2 |
8 | ||
| 92132-C0832 |
1GFE..GXE10 NO.1 |
2 | ||
| 90116-10205 |
1GFE..GXE10 NO.2 |
8 | ||
| 92132-C0832 |
1GFE..GXE10 NO.1 |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10205 |
1GFE..GXE10 NO.2 |
8 | ||
| 92132-C0832 |
1GFE..GXE10 NO.1 |
2 | ||
| 90116-10205 |
1GFE..GXE10 NO.2 |
8 | ||
| 92132-C0832 |
1GFE..GXE10 NO.1 |
2 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-70060 |
1GFE..GXE10 |
1 | ||
| 17167-70060 |
1GFE..GXE10 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-70030 |
1GFE..GXE10 |
1 | ||
| 17168-70030 |
1GFE..GXE10 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-70050 |
1GFE..GXE10 |
2 | ||
| 17173-70050 |
1GFE..GXE10 |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-70050 |
1GFE..GXE10 |
2 | ||
| 17173-70050 |
1GFE..GXE10 |
2 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-70050 |
1GFE..GXE10 |
6 | ||
| 17177-70050 |
1GFE..GXE10 |
6 | ||
| 17300 - VALVE ASSY, INTAKE AIR CONTROL | ||||
| 17300-70010 |
1GFE..GXE10 |
1 | ||
| 17300-70010 |
1GFE..GXE10 |
1 | ||
| 17315A - GASKET, INTAKE AIR CONTROL VALVE | ||||
| 17315-70010 |
1GFE..GXE10 |
1 | ||
| 17315-70010 |
1GFE..GXE10 |
1 | ||
| 22267A - BRACKET, THROTTLE BODY | ||||
| 22267-70020 |
1GFE..GXE10 |
1 | ||
| 22267-70020 |
1GFE..GXE10 |
1 | ||
| Common parts | ||||
| 90105-08294 | ||||
| 90179-08234 | ||||
| 90179-10070 | ||||
| 91511-60620 | ||||
| 91621-G0814 | ||||
| 91641-80835 | ||||
| 91672-81025 | ||||
| Linked diagrams | ||||
| 1702 | ||||
