GXE10R-AEFVKQ (1999)

Toyota Lexus Is200/300

Production Jan 1999 - Jul 2005
Engine 1GFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9901- )1GFE

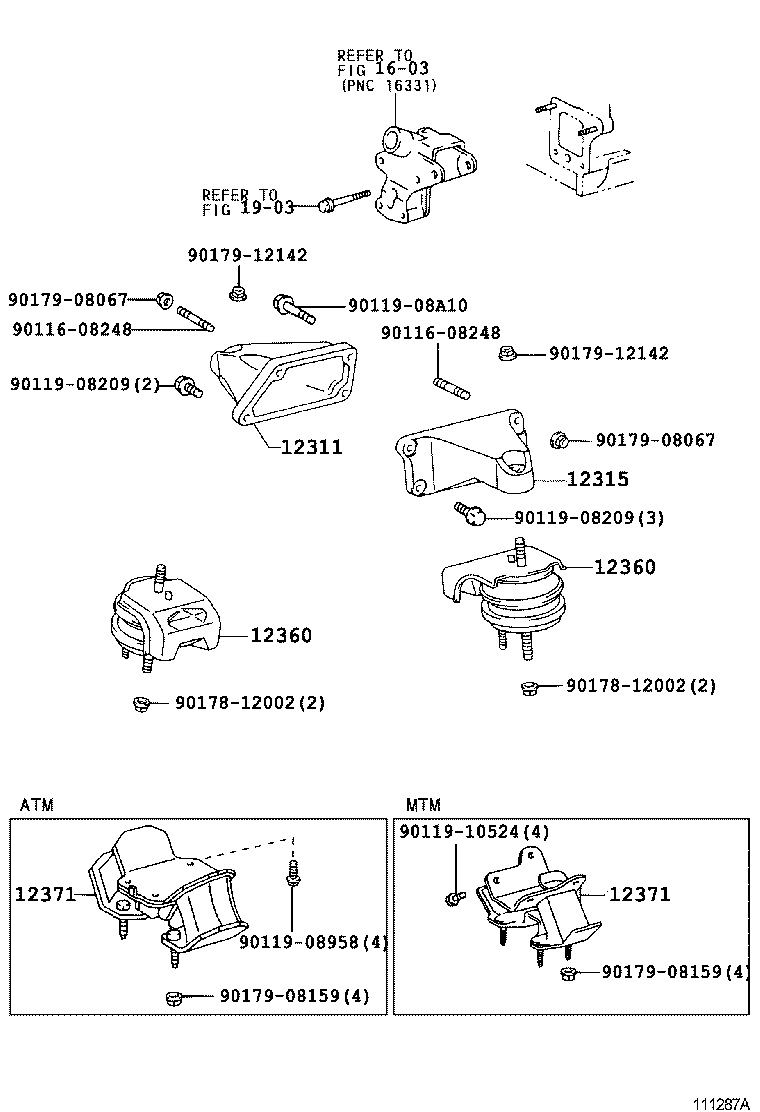

Click highlighted areas on diagram

diagram 12311 12315 12360 12360 12371 12371 1603 1903 9011608248 9011608248 9011908209 9011908209 9011908958 9011908A10 9011910524 9017812002 9017812002 9017908067 9017908067 9017908159 9017908159 9017912142 9017912142
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-70150

1GFE..GXE10

 1
12311-70150

1GFE..GXE10

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-70130

1GFE..GXE10

 1
12315-70130

1GFE..GXE10

 1
12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT
12360-70040

1GFE..GXE10

 2
12360-70040

1GFE..GXE10

 2
12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT
12360-70040

1GFE..GXE10

 2
12360-70040

1GFE..GXE10

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-70090

1GFE..GXE10..MTM

 1
12371-70090

1GFE..GXE10..MTM

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-70090

1GFE..GXE10..MTM

 1
12371-70090

1GFE..GXE10..MTM

 1
Common parts
90116-08248
90119-08209
90119-08958
90119-08A10
90119-10524
90178-12002
90179-08067
90179-08159
90179-12142
Linked diagrams
1603
1903
