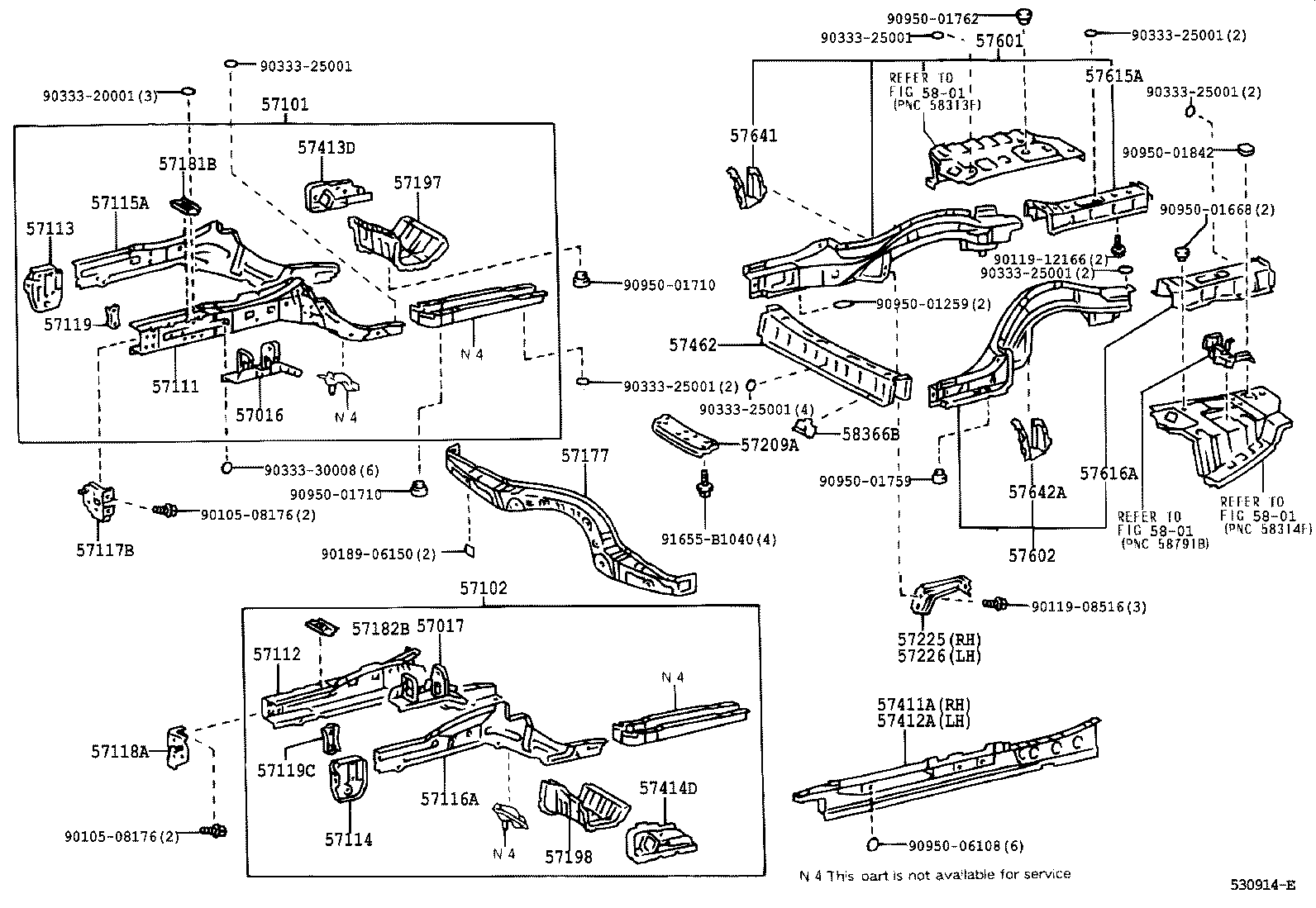

GXE10L-AEPVKW (1999)
Toyota Lexus Is200/300
(9901- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-51010 |
GXE10,JCE10 |
1 | ||
| 57016-51010 |
GXE10 |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-51010 |
GXE10,JCE10 |
1 | ||
| 57017-51010 |
GXE10 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-53031 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57101-53031 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57101-53011 |
GXE10 |
1 | ||
| 57101-53010 |
GXE10 |
1 | ||
| 57101-53030 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-53021 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57102-53020 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57102-53010 |
GXE10 |
1 | ||
| 57102-53012 |
GXE10,JCE10 |
1 | ||
| 57102-53021 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-53030 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57111-53011 |
GXE10 |
1 | ||
| 57111-53012 |
GXE10 |
1 | ||
| 57111-53031 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57111-53011 |
GXE10 |
1 | ||
| 57111-53010 |
GXE10 |
1 | ||
| 57111-53030 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-53010 |
GXE10 |
1 | ||
| 57112-53020 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57112-53020 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57112-53011 |
GXE10,JCE10 |
1 | ||
| 57112-53021 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57112-53010 |
GXE10,JCE10 |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-53010 |
GXE10,JCE10 |
1 | ||
| 57113-53020 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57113-53020 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57113-53010 |
GXE10 |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-53020 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57114-53020 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57114-53010 |
GXE10 |
1 | ||
| 57114-53010 |
GXE10,JCE10 |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-53010 |
GXE10,JCE10 |
1 | ||
| 57115-53010 |
GXE10 |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-53020 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57116-53010 |
GXE10 |
1 | ||
| 57116-53020 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57117B - REINFORCEMENT, FRONT BUMPER MOUNTING, RH | ||||
| 52011-53010 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 52011-53010 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57117-53010 |
GXE10,JCE10 |
1 | ||
| 57117-53010 |
GXE10 |
1 | ||
| 57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH | ||||
| 52012-53010 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57118-53010 |
GXE10 |
1 | ||
| 57118-53010 |
GXE10,JCE10 |
1 | ||
| 52012-53010 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57119 - PLATE, FRONT SIDE MEMBER, FRONT | ||||
| 57119-22060 |
GXE10 |
1 | ||
| 57119-22060 |
GXE10,JCE10 |
1 | ||
| 57119C - PLATE, FRONT SIDE MEMBER, FRONT | ||||
| 57119-22060 |
GXE10 |
1 | ||
| 57119-22060 |
GXE10,JCE10 |
1 | ||
| 57177 - CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL | ||||
| 57103-53020 |
GXE10..LHD |
1 | ||
| 57103-53020 |
GXE10,JCE10..LHD |
1 | ||
| 57181B - PLATE, FRONT SIDE MEMBER, NO.3 RH | ||||
| 57181-53011 |
GXE10,JCE10 |
1 | ||
| 57181-53010 |
GXE10,JCE10 |
1 | ||
| 57181-53010 |
GXE10 |
1 | ||
| 57182B - PLATE, FRONT SIDE MEMBER, NO.3 LH | ||||
| 57181-53010 |
GXE10 |
1 | ||
| 57181-53011 |
GXE10,JCE10 |
1 | ||
| 57181-53010 |
GXE10,JCE10 |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-51010 |
GXE10,JCE10 |
1 | ||
| 57197-51010 |
GXE10 |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-51010 |
GXE10 |
1 | ||
| 57198-51010 |
GXE10,JCE10 |
1 | ||
| 57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 57255-30110 |
GXE10 |
1 | ||
| 57255-30110 |
GXE10,JCE10 |
1 | ||
| 57225 - BRACE, FRONT MOUNTING BRACKET, RH | ||||
| 57225-30020 |
GXE10,JCE10 |
1 | ||
| 57225-30020 |
GXE10 |
1 | ||
| 57226 - BRACE, FRONT MOUNTING BRACKET, LH | ||||
| 57226-30021 |
GXE10,JCE10 |
1 | ||
| 57226-30021 |
GXE10 |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-53010 |
GXE10 |
1 | ||
| 57401-53010 |
GXE10,JCE10 |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-53010 |
GXE10,JCE10 |
1 | ||
| 57402-53010 |
GXE10 |
1 | ||
| 57413D - EXTENSION, FLOOR SIDE, INNER RH | ||||
| 57413-51010 |
GXE10 |
1 | ||
| 57413-51010 |
GXE10,JCE10 |
1 | ||
| 57414D - EXTENSION, FLOOR SIDE, INNER LH | ||||
| 57414-51010 |
GXE10 |
1 | ||
| 57414-51010 |
GXE10,JCE10 |
1 | ||
| 57462 - MEMBER, CENTER FLOOR CROSS, NO.2 | ||||
| 57462-53010 |
GXE10 |
1 | ||
| 57462-53030 |
GXE10,JCE10..SED |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-53906 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57601-53902 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57601-53904 |
GXE10,JCE10..SED |
1 | ||
| 57601-53901 |
GXE10 |
1 | ||
| 57601-53904 |
GXE10 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-53906 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57601-53902 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57601-53904 |
GXE10,JCE10..SED |
1 | ||
| 57601-53901 |
GXE10 |
1 | ||
| 57601-53904 |
GXE10 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-53901 |
GXE10 |
1 | ||
| 57602-53904 |
GXE10 |
1 | ||
| 57602-53904 |
GXE10 |
1 | ||
| 57602-53905 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57602-53909 |
GXE10..LHD..ATM KOREA SPEC & W(DISCHARGE HEADLAMP) |
1 | ||
| 57602-53907 |
GXE10..SED W(DISCHARGE HEADLAMP) |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-53901 |
GXE10 |
1 | ||
| 57602-53904 |
GXE10 |
1 | ||
| 57602-53904 |
GXE10 |
1 | ||
| 57602-53905 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57602-53909 |
GXE10..LHD..ATM KOREA SPEC & W(DISCHARGE HEADLAMP) |
1 | ||
| 57602-53907 |
GXE10..SED W(DISCHARGE HEADLAMP) |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-53902 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57615-53900 |
GXE10 |
1 | ||
| 57615-53904 |
GXE10,JCE10..SED |
1 | ||
| 57615-53904 |
GXE10 |
1 | ||
| 57615-53906 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-53901 |
GXE10,JCE10..SED |
1 | ||
| 57616-53903 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57616-53900 |
GXE10 |
1 | ||
| 57616-53902 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57642A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, INNER LH | ||||
| 57642-53010 |
GXE10 |
1 | ||
| 57642-53011 |
GXE10,JCE10 |
1 | ||
| 57642-53011 |
GXE10 |
1 | ||
| 58271C - REINFORCEMENT, BELT ANCHOR TO FROOR PAN, NO.3 | ||||
| 58271-53020 |
GXE10,JCE10 |
2 | ||
| 58366B - BRACKET, FUEL TANK SUPPORT, LH | ||||
| 58366-30050 |
GXE10 |
2 | ||
| 58366-30050 |
GXE10,JCE10 |
2 | ||
| Common parts | ||||
| 58707-14010 | ||||
| 90119-08516 | ||||
| 90119-12166 | ||||
| 90189-06150 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90333-25003 | ||||
| 90333-30008 | ||||
| 90333-35001 | ||||
| 90950-01259 | ||||
| 90950-01630 | ||||
| 90950-01668 | ||||
| 90950-01710 | ||||
| 90950-01759 | ||||
| 90950-01762 | ||||
| 90950-01842 | ||||
| 90950-06108 | ||||
| 91511-80816 | ||||
| 91655-B1040 | ||||
| Linked diagrams | ||||
| 5801 | ||||
(0011- )GXE10..LHD..ATM
KOREA SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-51010 |
GXE10,JCE10 |
1 | ||
| 57016-51010 |
GXE10 |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-51010 |
GXE10,JCE10 |
1 | ||
| 57017-51010 |
GXE10 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-53031 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57101-53031 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57101-53011 |
GXE10 |
1 | ||
| 57101-53010 |
GXE10 |
1 | ||
| 57101-53030 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-53021 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57102-53020 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57102-53010 |
GXE10 |
1 | ||
| 57102-53012 |
GXE10,JCE10 |
1 | ||
| 57102-53021 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-53030 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57111-53011 |
GXE10 |
1 | ||
| 57111-53012 |
GXE10 |
1 | ||
| 57111-53031 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57111-53011 |
GXE10 |
1 | ||
| 57111-53010 |
GXE10 |
1 | ||
| 57111-53030 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-53010 |
GXE10 |
1 | ||
| 57112-53020 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57112-53020 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57112-53011 |
GXE10,JCE10 |
1 | ||
| 57112-53021 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57112-53010 |
GXE10,JCE10 |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-53010 |
GXE10,JCE10 |
1 | ||
| 57113-53020 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57113-53020 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57113-53010 |
GXE10 |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-53020 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57114-53020 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57114-53010 |
GXE10 |
1 | ||
| 57114-53010 |
GXE10,JCE10 |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-53010 |
GXE10,JCE10 |
1 | ||
| 57115-53010 |
GXE10 |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-53020 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57116-53010 |
GXE10 |
1 | ||
| 57116-53020 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57117B - REINFORCEMENT, FRONT BUMPER MOUNTING, RH | ||||
| 52011-53010 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 52011-53010 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57117-53010 |
GXE10,JCE10 |
1 | ||
| 57117-53010 |
GXE10 |
1 | ||
| 57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH | ||||
| 52012-53010 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57118-53010 |
GXE10 |
1 | ||
| 57118-53010 |
GXE10,JCE10 |
1 | ||
| 52012-53010 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57119 - PLATE, FRONT SIDE MEMBER, FRONT | ||||
| 57119-22060 |
GXE10 |
1 | ||
| 57119-22060 |
GXE10,JCE10 |
1 | ||
| 57119C - PLATE, FRONT SIDE MEMBER, FRONT | ||||
| 57119-22060 |
GXE10 |
1 | ||
| 57119-22060 |
GXE10,JCE10 |
1 | ||
| 57177 - CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL | ||||
| 57103-53020 |
GXE10..LHD |
1 | ||
| 57103-53020 |
GXE10,JCE10..LHD |
1 | ||
| 57181B - PLATE, FRONT SIDE MEMBER, NO.3 RH | ||||
| 57181-53011 |
GXE10,JCE10 |
1 | ||
| 57181-53010 |
GXE10,JCE10 |
1 | ||
| 57181-53010 |
GXE10 |
1 | ||
| 57182B - PLATE, FRONT SIDE MEMBER, NO.3 LH | ||||
| 57181-53010 |
GXE10 |
1 | ||
| 57181-53011 |
GXE10,JCE10 |
1 | ||
| 57181-53010 |
GXE10,JCE10 |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-51010 |
GXE10,JCE10 |
1 | ||
| 57197-51010 |
GXE10 |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-51010 |
GXE10 |
1 | ||
| 57198-51010 |
GXE10,JCE10 |
1 | ||
| 57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 57255-30110 |
GXE10 |
1 | ||
| 57255-30110 |
GXE10,JCE10 |
1 | ||
| 57225 - BRACE, FRONT MOUNTING BRACKET, RH | ||||
| 57225-30020 |
GXE10,JCE10 |
1 | ||
| 57225-30020 |
GXE10 |
1 | ||
| 57226 - BRACE, FRONT MOUNTING BRACKET, LH | ||||
| 57226-30021 |
GXE10,JCE10 |
1 | ||
| 57226-30021 |
GXE10 |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-53010 |
GXE10 |
1 | ||
| 57401-53010 |
GXE10,JCE10 |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-53010 |
GXE10,JCE10 |
1 | ||
| 57402-53010 |
GXE10 |
1 | ||
| 57413D - EXTENSION, FLOOR SIDE, INNER RH | ||||
| 57413-51010 |
GXE10 |
1 | ||
| 57413-51010 |
GXE10,JCE10 |
1 | ||
| 57414D - EXTENSION, FLOOR SIDE, INNER LH | ||||
| 57414-51010 |
GXE10 |
1 | ||
| 57414-51010 |
GXE10,JCE10 |
1 | ||
| 57462 - MEMBER, CENTER FLOOR CROSS, NO.2 | ||||
| 57462-53010 |
GXE10 |
1 | ||
| 57462-53030 |
GXE10,JCE10..SED |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-53906 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57601-53902 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57601-53904 |
GXE10,JCE10..SED |
1 | ||
| 57601-53901 |
GXE10 |
1 | ||
| 57601-53904 |
GXE10 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-53901 |
GXE10 |
1 | ||
| 57602-53904 |
GXE10 |
1 | ||
| 57602-53904 |
GXE10 |
1 | ||
| 57602-53905 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57602-53909 |
GXE10..LHD..ATM KOREA SPEC & W(DISCHARGE HEADLAMP) |
1 | ||
| 57602-53907 |
GXE10..SED W(DISCHARGE HEADLAMP) |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-53902 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57615-53900 |
GXE10 |
1 | ||
| 57615-53904 |
GXE10,JCE10..SED |
1 | ||
| 57615-53904 |
GXE10 |
1 | ||
| 57615-53906 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-53901 |
GXE10,JCE10..SED |
1 | ||
| 57616-53903 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57616-53900 |
GXE10 |
1 | ||
| 57616-53902 |
GXE10..LHD..ATM KOREA SPEC |
1 | ||
| 57641 - REINFORCEMENT, REAR FLOOR SIDE MEMBER, INNER RH | ||||
| 57641-53010 |
GXE10 |
1 | ||
| 57641-53011 |
GXE10,JCE10 |
1 | ||
| 57641-53011 |
GXE10 |
1 | ||
| 57642A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, INNER LH | ||||
| 57642-53010 |
GXE10 |
1 | ||
| 57642-53011 |
GXE10,JCE10 |
1 | ||
| 57642-53011 |
GXE10 |
1 | ||
| 58366B - BRACKET, FUEL TANK SUPPORT, LH | ||||
| 58366-30050 |
GXE10 |
2 | ||
| 58366-30050 |
GXE10,JCE10 |
2 | ||
| Common parts | ||||
| 90105-08176 | ||||
| 90119-08516 | ||||
| 90119-12166 | ||||
| 90189-06150 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90333-30008 | ||||
| 90950-01259 | ||||
| 90950-01668 | ||||
| 90950-01710 | ||||
| 90950-01759 | ||||
| 90950-01762 | ||||
| 90950-01842 | ||||
| 90950-06108 | ||||
| 91655-B1040 | ||||
| Linked diagrams | ||||
| 5801 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
