URJ150L-GKTZKW (2009)

Toyota Lexus Gx460

Production Nov 2009 - Aug 2013
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

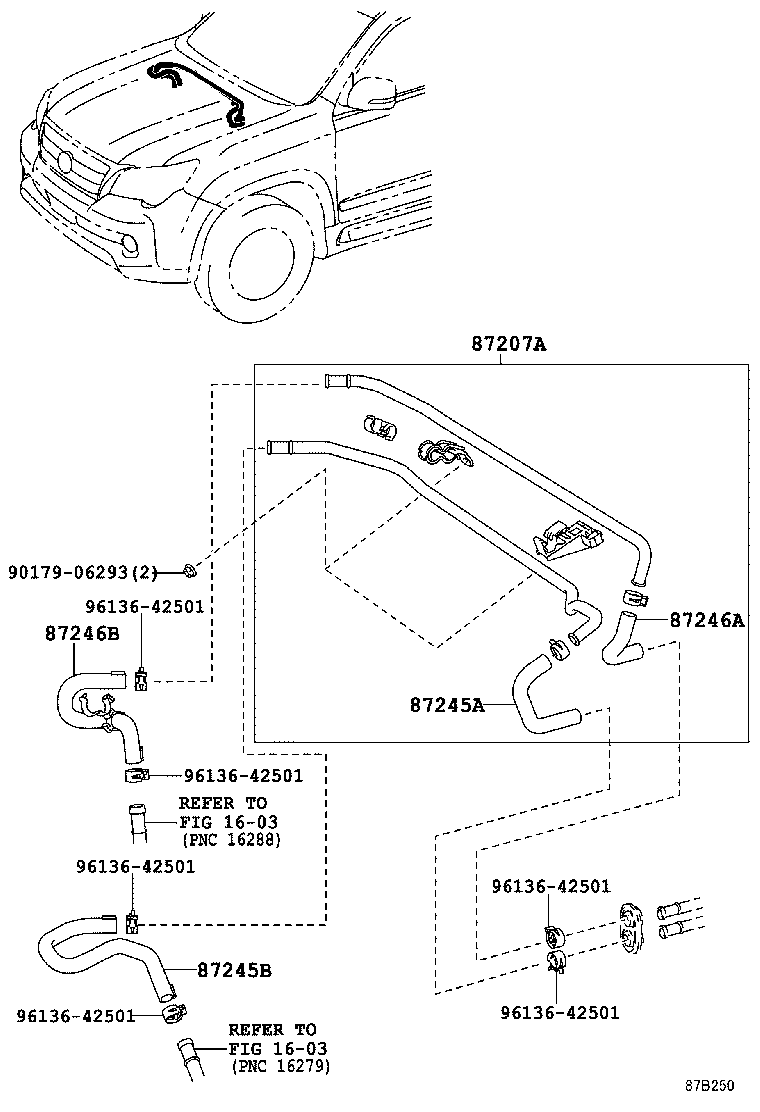

ILLUST NO. 1 OF 2(1108- )

Click highlighted areas on diagram

FRONT

diagram 1603 1603 87207A 87245A 87245B 87246A 87246B 9017906293 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87207A - PIPE & HOSE SUB-ASSY, WATER A
87207-60240

URJ150

 1
87207-60241

URJ150

 1
87245A - HOSE, HEATER WATER, INLET A
87245-60J50

URJ150

 1
87245-60J50

URJ150

2 SEAT PACKAGE

 1
87245B - HOSE, HEATER WATER, INLET B
87245-35A40

URJ150

2 SEAT PACKAGE

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-60J60

URJ150

 1
87245-60J60

URJ150

2 SEAT PACKAGE

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-35A30

URJ150

2 SEAT PACKAGE

 1
Common parts
90179-06293
96136-42501
Linked diagrams
1603

ILLUST NO. 1 OF 2(0911- )

Click highlighted areas on diagram

FRONT,W(REAR HEATER)

diagram 1603 1603 87207A 87209 87209B 87245A 87246A 9017906293 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87207A - PIPE & HOSE SUB-ASSY, WATER A
87207-60240

URJ150

 1
87207-60241

URJ150

 1
87209 - HOSE SUB-ASSY, WATER
87209-60D91

URJ150

 1
87209-60D90

URJ150

 1
87209B - HOSE SUB-ASSY, WATER, B
87209-60D81

URJ150

 1
87209-60D80

URJ150

 1
87245A - HOSE, HEATER WATER, INLET A
87245-60J50

URJ150

 1
87245-60J50

URJ150

2 SEAT PACKAGE

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-60J60

URJ150

 1
87245-60J60

URJ150

2 SEAT PACKAGE

 1
Common parts
90179-06293
96136-42501
Linked diagrams
1603

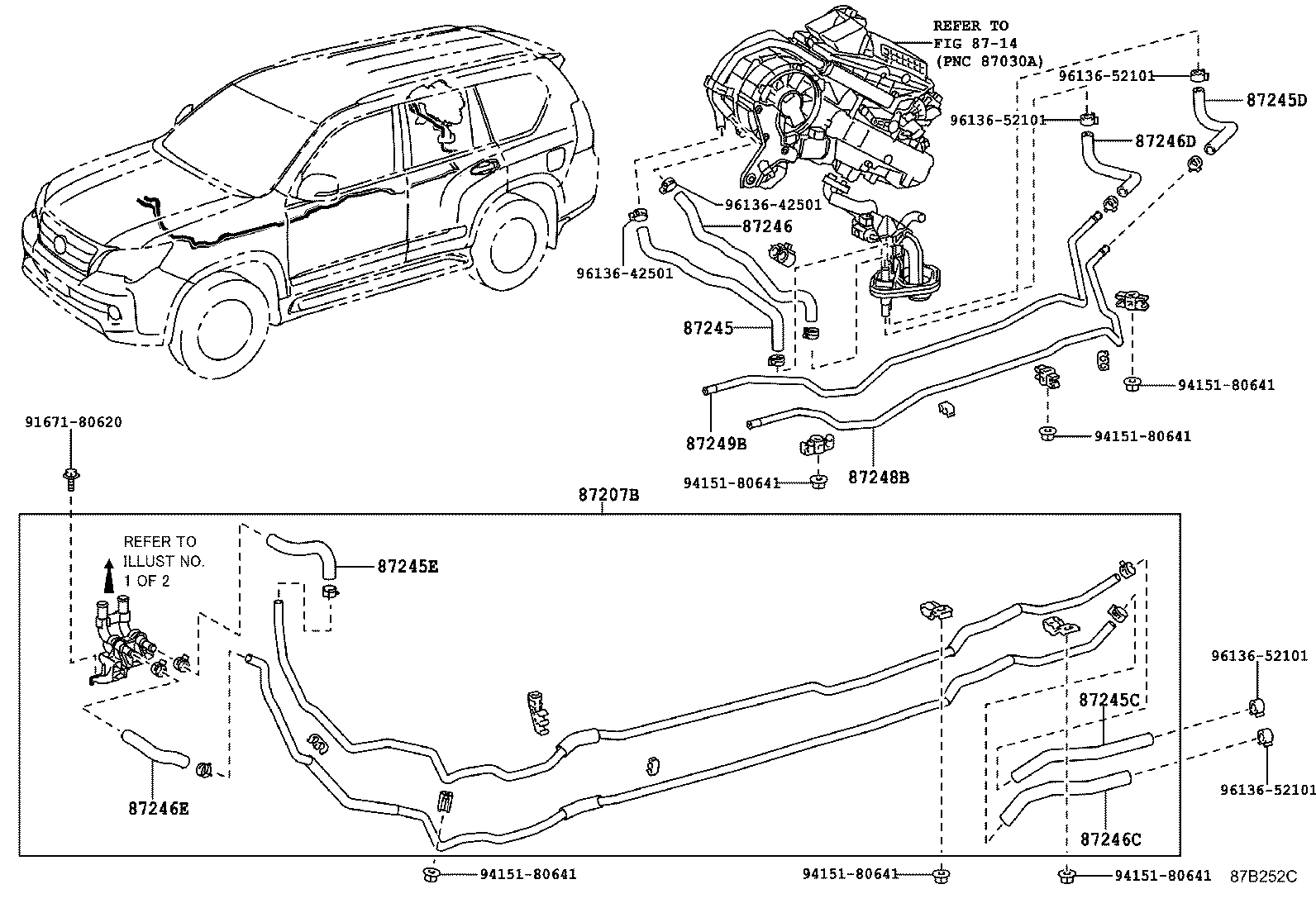

ILLUST NO. 2 OF 2(0911-1908)

Click highlighted areas on diagram

REAR

diagram 8714 87207B 87245 87245C 87245D 87245E 87246 87246C 87246D 87246E 87248B 87249B 9167180620 9415180641 9415180641 9415180641 9415180641 9415180641 9415180641 9613642501 9613642501 9613652101 9613652101 9613652101 9613652101
Part # Description Qty Price
87207B - PIPE & HOSE SUB-ASSY, WATER B
87207-60250

URJ150

 1
87207-60250

URJ150

2 SEAT PACKAGE

 1
87245 - HOSE, HEATER WATER, INLET
87245-60E60

URJ150

 1
87245-60E60

URJ150

2 SEAT PACKAGE

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-60F30

URJ150

 1
87245-60F30

URJ150

2 SEAT PACKAGE

 1
87245D - HOSE, HEATER WATER, INLET D
87245-60F00

URJ150

 1
87245-60F00

URJ150

2 SEAT PACKAGE

 1
87245E - HOSE, HEATER WATER, INLET E
87245-60J40

URJ150

2 SEAT PACKAGE

 1
87245-60J40

URJ150

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-60E50

URJ150

 1
87245-60E50

URJ150

2 SEAT PACKAGE

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-60F20

URJ150

2 SEAT PACKAGE

 1
87245-60F20

URJ150

 1
87246D - HOSE, HEATER WATER, OUTLET D
87245-60F10

URJ150

2 SEAT PACKAGE

 1
87245-60F10

URJ150

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-60J30

URJ150

 1
87245-60J30

URJ150

2 SEAT PACKAGE

 1
87248B - PIPE, HEATER WATER INLET, B
87248-60840

URJ150

2 SEAT PACKAGE

 1
87248-60840

URJ150

 1
87248-60B00

URJ150

2 SEAT PACKAGE

 1
87248-60B00

URJ150

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-60A90

URJ150

 1
87248-60830

URJ150

 1
87248-60A90

URJ150

2 SEAT PACKAGE

 1
87248-60830

URJ150

2 SEAT PACKAGE

 1
Common parts
91671-80620
94151-80641
96136-42501
96136-52101
Linked diagrams
8714
