URJ150L-GKTZKW (2009)

Toyota Lexus Gx460

Production Nov 2009 - Aug 2013
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 5 OF 5(0911- )

Click highlighted areas on diagram

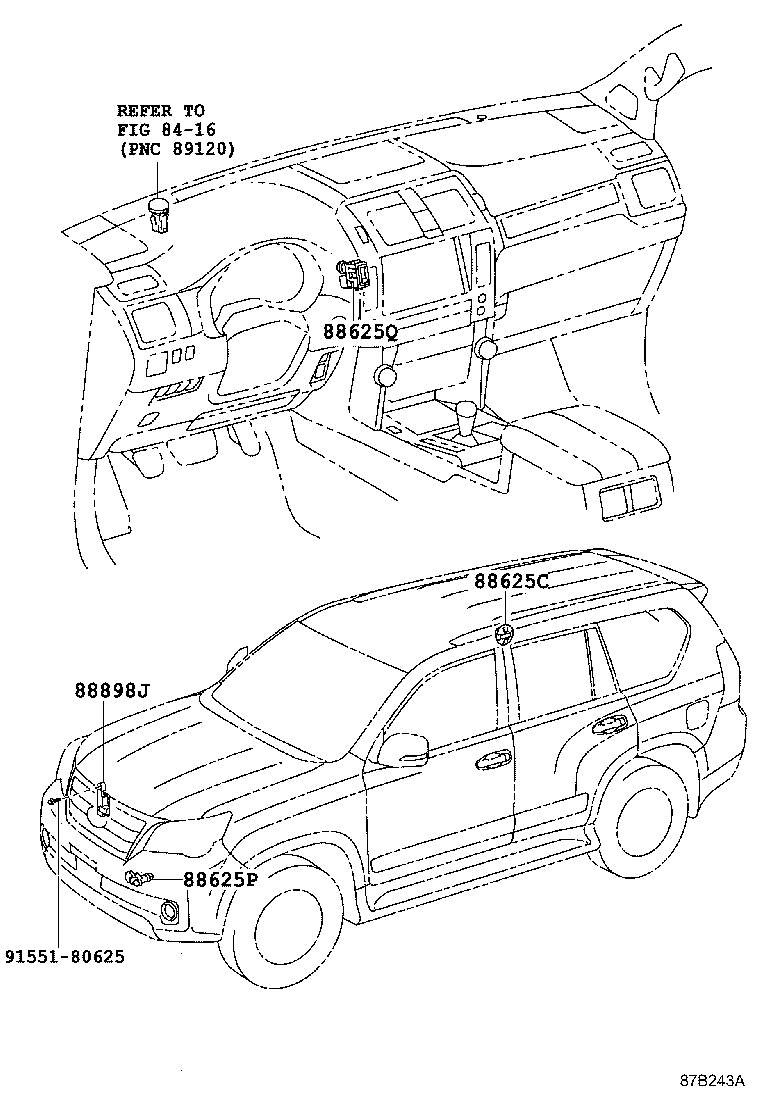

SENSOR

diagram 8416 88625C 88625P 88625Q 88898J 9155180625
Part # Description Qty Price
88625C - THERMISTOR, COOLER
88625-45020E4

URJ150

SEPIA,TRIM0#,4#

 1
88625-45020C0

URJ150

BLACK,TRIM2#

 1
88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)
88790-22150

URJ150

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

URJ150

 1
88898J - SENSOR, SMOG VENTILATION
88898-50030

URJ150

 1
88898-50031

URJ150

 1
Common parts
91551-80625
Linked diagrams
8416

ILLUST NO. 1 OF 5(0911- )

Click highlighted areas on diagram

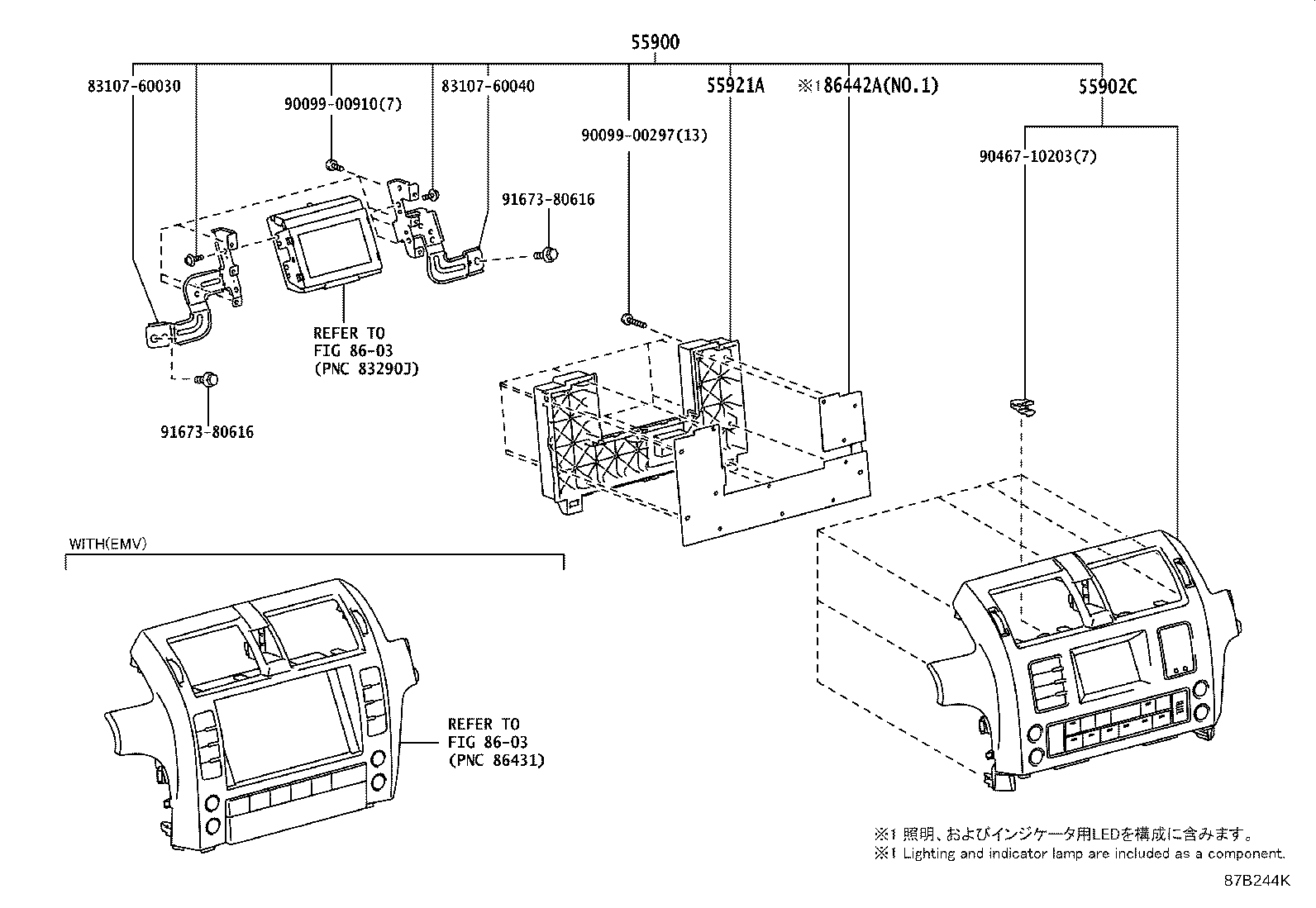

FRONT CONTROL PANEL

diagram 55900 55902C 55921A 8310760030 8310760040 8603 8603 86442A 9009900297 9009900910 9046710203 9167380616 9167380616
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-60M60

URJ150

2 SEAT PACKAGE&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR)

 1
55900-60E31

URJ150

 1
55900-60M60

URJ150

2 SEAT PACKAGE

 1
55900-60M61

URJ150

2 SEAT PACKAGE&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR)

 1
55900-60E30

URJ150

 1
55900-60M61

URJ150

2 SEAT PACKAGE

 1
55902C - PANEL SUB-ASSY, AIR CONDITIONER
55902-60281

URJ150

2 SEAT PACKAGE&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR)

 1
55902-60261

URJ150

 1
55902-60260

URJ150

 1
55902-60280

URJ150

2 SEAT PACKAGE

 1
55902-60281

URJ150

2 SEAT PACKAGE

 1
55902-60280

URJ150

2 SEAT PACKAGE&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR)

 1
55921A - RETAINER, HEATER CONTROL
55921-60050

URJ150

 1
55921-60050

URJ150

2 SEAT PACKAGE&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR)

 1
55921-60050

URJ150

2 SEAT PACKAGE

 1
55921-60050

URJ150

 1
55921-60050

URJ150

 2
86442A - BOARD, HEATER CONTROL SWITCH
86442-60160

URJ150

NO.1

 1
86442-60141

URJ150

2 SEAT PACKAGE&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),NO.1

 1
86442-60140

URJ150

2 SEAT PACKAGE,NO.1

 1
86442-60161

URJ150

NO.1

 1
86442-60140

URJ150

2 SEAT PACKAGE&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),NO.1

 1
86442-60180

URJ150

SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,NO.2

 1
86442-60171

URJ150

NO.2

 1
86442-60170

URJ150

NO.2

 1
86442-60141

URJ150

2 SEAT PACKAGE,NO.1

 1
86442-60181

URJ150

SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,NO.2

 1
Common parts
83107-60030
83107-60040
90099-00297
90099-00910
90467-10203
91673-80616
Linked diagrams
8603

ILLUST NO. 2 OF 5(0911- )

Click highlighted areas on diagram

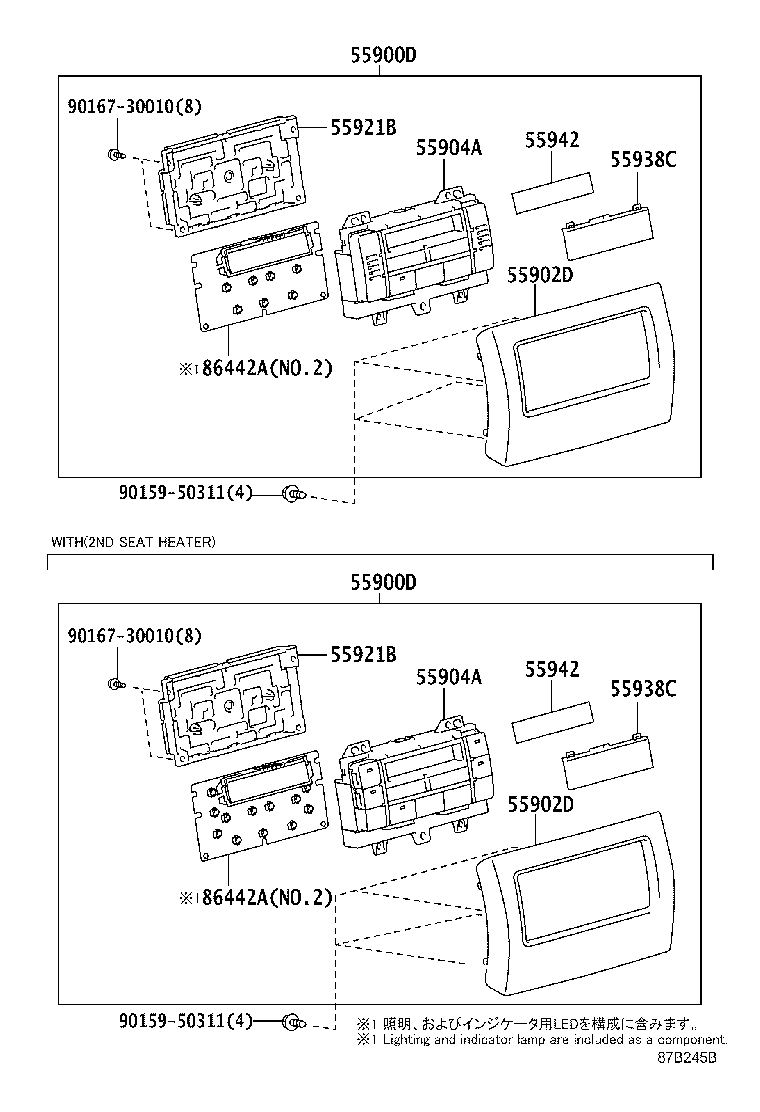

REAR CONTROL PANEL

diagram 55900D 55900D 55902D 55902D 55904A 55904A 55921B 55921B 55938C 55938C 55942 55942 86442A 86442A 9015950311 9015950311 9016730010 9016730010
Part # Description Qty Price
55900D - CONTROL ASSY, AIR CONDITIONER, NO.2
55900-60G90

URJ150

 1
55900-60J01

URJ150

SEAT COVER MATERIAL-SEMI-ANILINE LEATHER

 1
55900-60G91

URJ150

 1
55900-60J00

URJ150

SEAT COVER MATERIAL-SEMI-ANILINE LEATHER

 1
55900D - CONTROL ASSY, AIR CONDITIONER, NO.2
55900-60G90

URJ150

 1
55900-60J01

URJ150

SEAT COVER MATERIAL-SEMI-ANILINE LEATHER

 1
55900-60G91

URJ150

 1
55900-60J00

URJ150

SEAT COVER MATERIAL-SEMI-ANILINE LEATHER

 1
55902D - PANEL SUB-ASSY, AIR CONDITIONER
55902-60270

URJ150

 1
55902-60270

URJ150

 1
55902-60270

URJ150

 2
55902D - PANEL SUB-ASSY, AIR CONDITIONER
55902-60270

URJ150

 1
55902-60270

URJ150

 1
55902-60270

URJ150

 2
55904A - HOUSING SUB-ASSY, HEATER CONTROL
55904-60120

URJ150

SEAT COVER MATERIAL-SEMI-ANILINE LEATHER

 1
55904-60121

URJ150

SEAT COVER MATERIAL-SEMI-ANILINE LEATHER

 1
55904-60110

URJ150

 1
55904-60111

URJ150

 1
55904A - HOUSING SUB-ASSY, HEATER CONTROL
55904-60120

URJ150

SEAT COVER MATERIAL-SEMI-ANILINE LEATHER

 1
55904-60121

URJ150

SEAT COVER MATERIAL-SEMI-ANILINE LEATHER

 1
55904-60110

URJ150

 1
55904-60111

URJ150

 1
55921B - RETAINER, HEATER CONTROL
55921-60070

URJ150

SEAT COVER MATERIAL-SEMI-ANILINE LEATHER

 1
55921-60071

URJ150

SEAT COVER MATERIAL-SEMI-ANILINE LEATHER

 1
55921-60061

URJ150

 1
55921B - RETAINER, HEATER CONTROL
55921-60070

URJ150

SEAT COVER MATERIAL-SEMI-ANILINE LEATHER

 1
55921-60071

URJ150

SEAT COVER MATERIAL-SEMI-ANILINE LEATHER

 1
55921-60061

URJ150

 1
55938C - LENS, CENTER CLUSTER MODULE
55938-60060

URJ150

 1
55938-60060

URJ150

 1
55938-60060

URJ150

 2
55938C - LENS, CENTER CLUSTER MODULE
55938-60060

URJ150

 1
55938-60060

URJ150

 1
55938-60060

URJ150

 2
55942 - GUARD, HEATER CONTROL
55942-60050

URJ150

 2
55942-60050

URJ150

 1
55942-60050

URJ150

 1
55942 - GUARD, HEATER CONTROL
55942-60050

URJ150

 2
55942-60050

URJ150

 1
55942-60050

URJ150

 1
86442A - BOARD, HEATER CONTROL SWITCH
86442-60160

URJ150

NO.1

 1
86442-60141

URJ150

2 SEAT PACKAGE&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),NO.1

 1
86442-60140

URJ150

2 SEAT PACKAGE,NO.1

 1
86442-60161

URJ150

NO.1

 1
86442-60140

URJ150

2 SEAT PACKAGE&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),NO.1

 1
86442-60180

URJ150

SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,NO.2

 1
86442-60171

URJ150

NO.2

 1
86442-60170

URJ150

NO.2

 1
86442-60141

URJ150

2 SEAT PACKAGE,NO.1

 1
86442-60181

URJ150

SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,NO.2

 1
86442A - BOARD, HEATER CONTROL SWITCH
86442-60160

URJ150

NO.1

 1
86442-60141

URJ150

2 SEAT PACKAGE&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),NO.1

 1
86442-60140

URJ150

2 SEAT PACKAGE,NO.1

 1
86442-60161

URJ150

NO.1

 1
86442-60140

URJ150

2 SEAT PACKAGE&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR),NO.1

 1
86442-60180

URJ150

SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,NO.2

 1
86442-60171

URJ150

NO.2

 1
86442-60170

URJ150

NO.2

 1
86442-60141

URJ150

2 SEAT PACKAGE,NO.1

 1
86442-60181

URJ150

SEAT COVER MATERIAL-SEMI-ANILINE LEATHER,NO.2

 1
Common parts
90159-50311
90167-30010

ILLUST NO. 4 OF 5(0911-1908)

Click highlighted areas on diagram

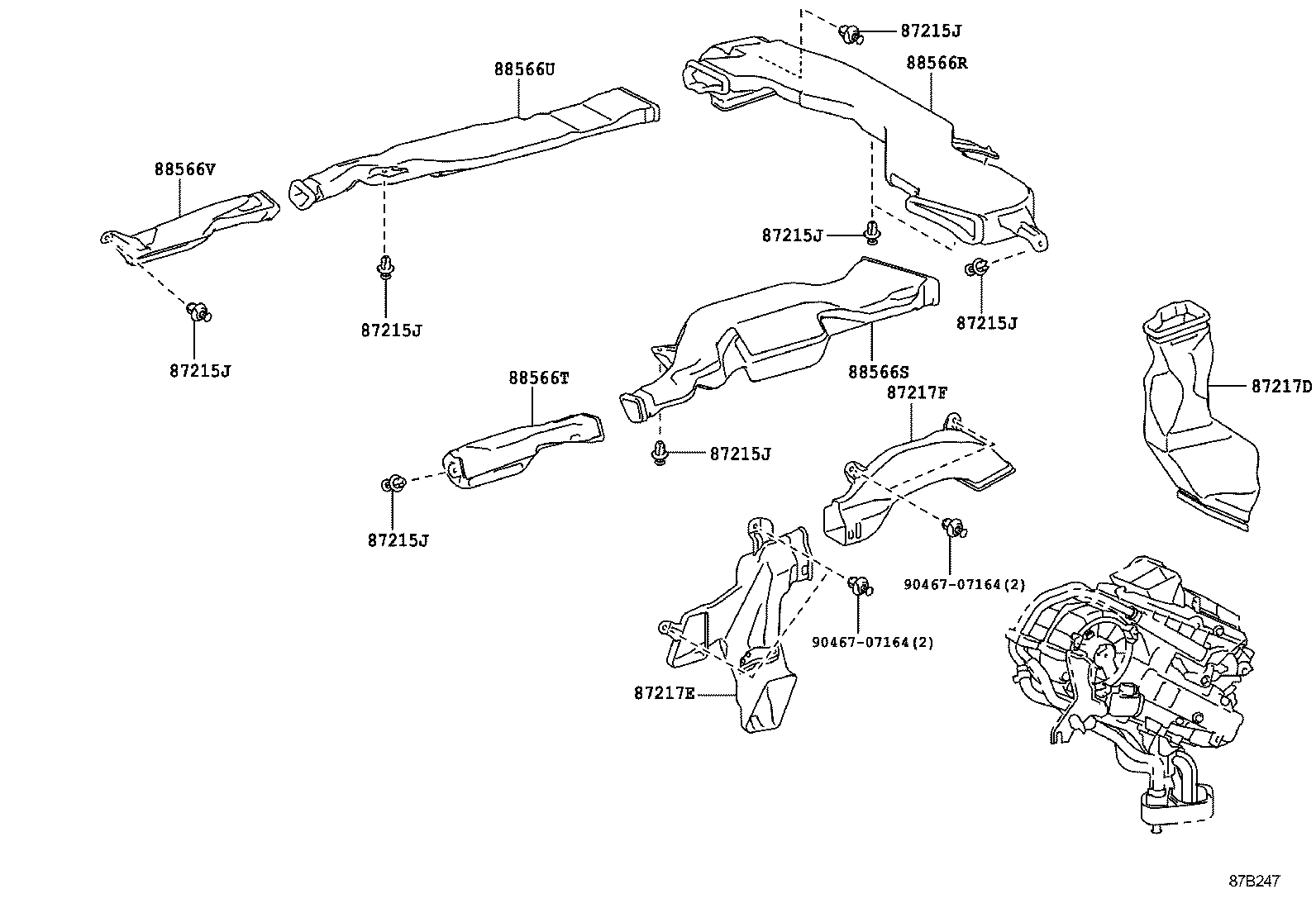

REAR AIR DUCT

diagram 87215J 87215J 87215J 87215J 87215J 87215J 87215J 87217D 87217E 87217F 88566R 88566S 88566T 88566U 88566V 9046707164 9046707164
Part # Description Qty Price
87215J - CLIP (FOR AIR REAR DUCT)
90467-07164

URJ150

 8
87215J - CLIP (FOR AIR REAR DUCT)
90467-07164

URJ150

 8
87215J - CLIP (FOR AIR REAR DUCT)
90467-07164

URJ150

 8
87215J - CLIP (FOR AIR REAR DUCT)
90467-07164

URJ150

 8
87215J - CLIP (FOR AIR REAR DUCT)
90467-07164

URJ150

 8
87215J - CLIP (FOR AIR REAR DUCT)
90467-07164

URJ150

 8
87215J - CLIP (FOR AIR REAR DUCT)
90467-07164

URJ150

 8
87217D - DUCT, AIR, REAR SIDE NO.1
62974-60010

URJ150

 1
87217E - DUCT, AIR, REAR SIDE NO.2
87218-60050

URJ150

 1
87218-60050

URJ150

2 SEAT PACKAGE

 1
87217F - DUCT, AIR, REAR SIDE NO.3
87217-60050

URJ150

2 SEAT PACKAGE

 1
87217-60050

URJ150

 1
88566R - DUCT, AIR, REAR ROOF NO.1
62973-60010

URJ150

 1
88566S - DUCT, AIR, REAR ROOF NO.2
63926-60010

URJ150

 1
88566T - DUCT, AIR, REAR ROOF NO.3
63925-60010

URJ150

 1
88566U - DUCT, AIR, REAR ROOF NO.4
63916-60010

URJ150

 1
88566V - DUCT, AIR, REAR ROOF NO.5
63915-60010

URJ150

 1
Common parts
90467-07164

ILLUST NO. 3 OF 5(0911-2108)

Click highlighted areas on diagram

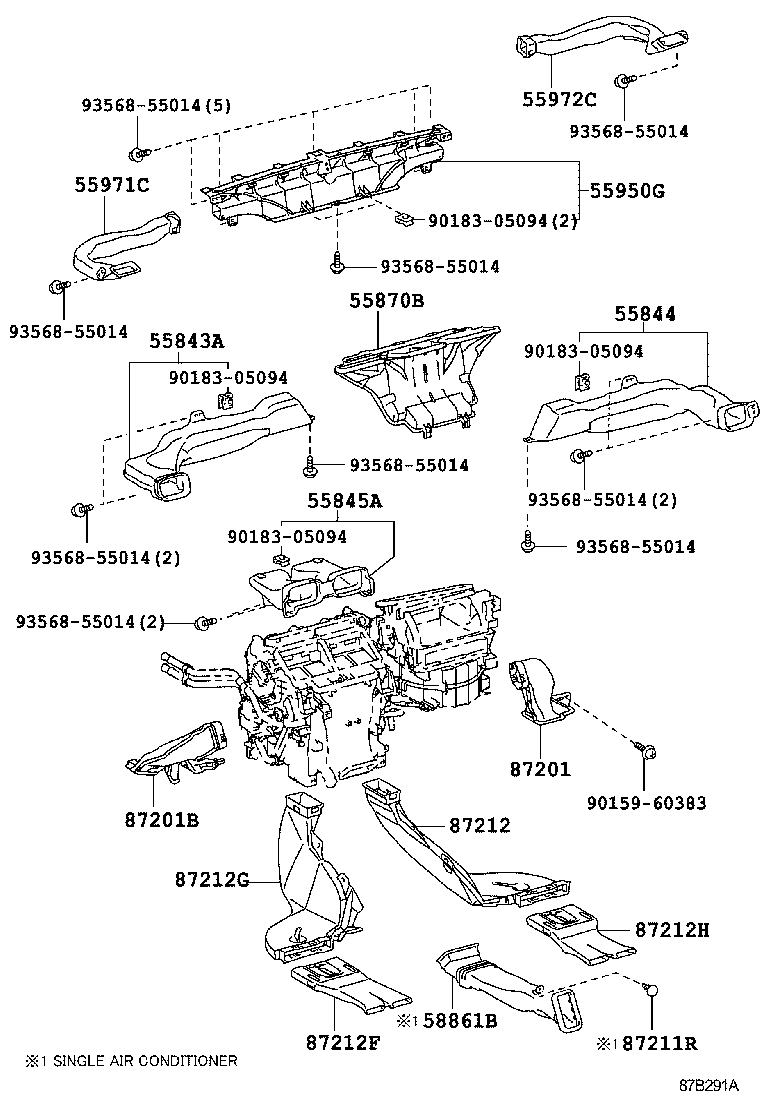

FRONT AIR DUCT

diagram 55843A 55844 55845A 55870B 55950G 55971C 55972C 58861B 87201 87201B 87211R 87212 87212F 87212G 87212H 9015960383 9018305094 9018305094 9018305094 9018305094 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-60200

URJ150

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-60240

URJ150

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-60130

URJ150

 1
55870B - DUCT ASSY, HEATER TO REGISTER
55870-60060

URJ150

2 SEAT PACKAGE

 1
55870-60070

URJ150

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-60160

URJ150

 1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-60170

URJ150

 1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-60120

URJ150

 1
58861B - DUCT, CONSOLE BOX, NO.1
58861-60110

URJ150

2 SEAT PACKAGE

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87211-60350

URJ150

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
87211-60320

URJ150

 1
87211R - CLIP, AIR DUCT
90467-05162C0

URJ150

2 SEAT PACKAGE,BLACK

 1
87212 - DUCT, AIR, REAR NO.1
87212-35020

URJ150

 1
87212F - DUCT, AIR, REAR NO.2
87216-60030

URJ150

 1
87212G - DUCT, AIR, REAR NO.3
87213-35020

URJ150

 1
87212H - DUCT, AIR, REAR NO.4
87215-60020

URJ150

 1
Common parts
90159-60383
90183-05094
93568-55014
