URJ150L-GKTZKW (2009)
Toyota Lexus Gx460
ILLUST NO. 4 OF 4(0911- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||

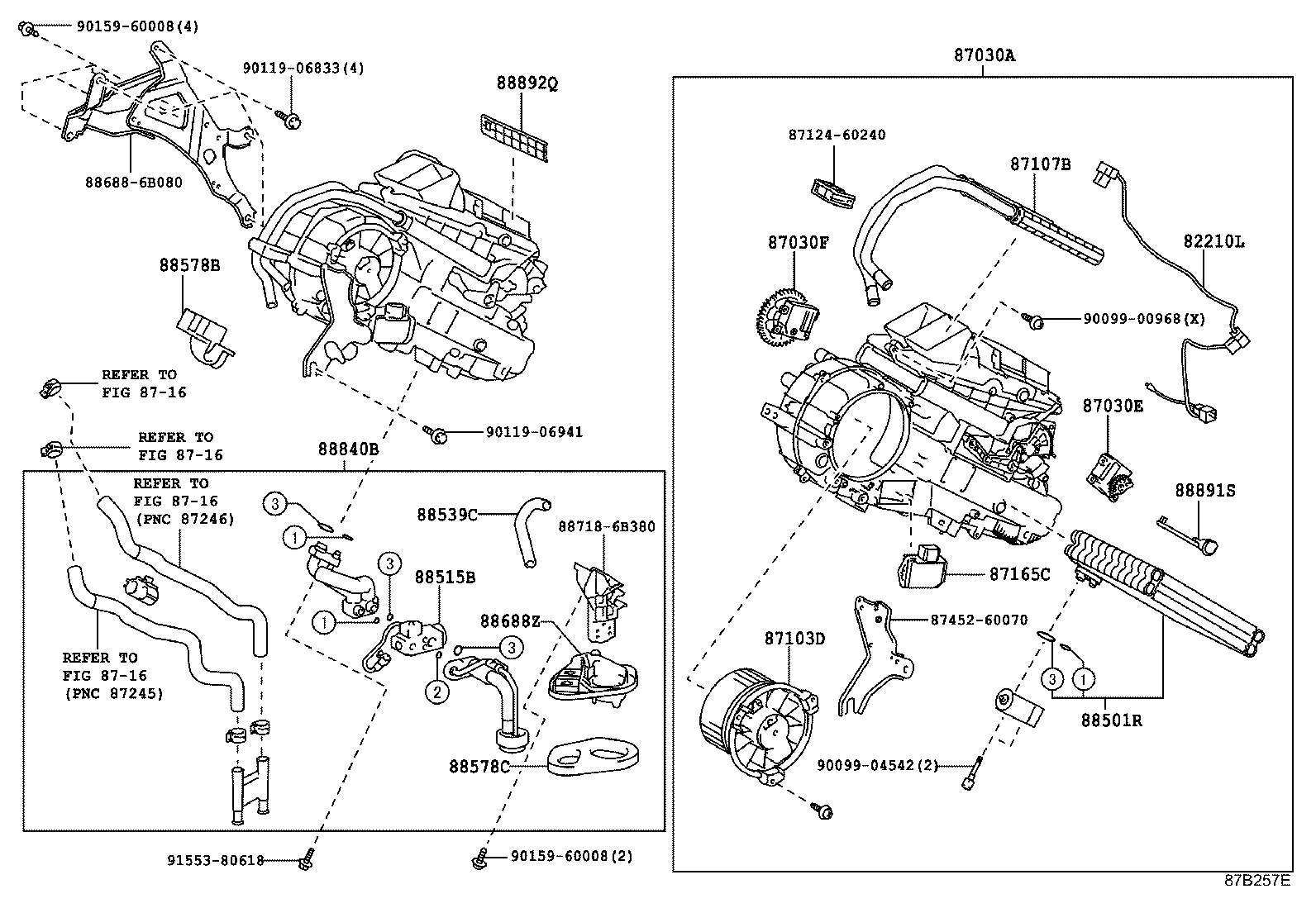

ILLUST NO. 2 OF 4(0911-2008)
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210L - HARNESS ASSY, AIR CONDITIONER, NO.2 | ||||
| 82212-48020 |
URJ150 |
1 | ||
| 87030A - UNIT ASSY, COOLING, REAR | ||||
| 87030-60060 |
URJ150 |
1 | ||
| 87030-60060 |
URJ150 2 SEAT PACKAGE |
1 | ||
| 87030E - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.1 | ||||
| 87106-28170 |
URJ150 2 SEAT PACKAGE |
1 | ||
| 87106-28170 |
URJ150 |
1 | ||
| 87030F - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.2 | ||||
| 87106-28180 |
URJ150 2 SEAT PACKAGE |
1 | ||
| 87106-28180 |
URJ150 |
1 | ||
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-28110 |
URJ150 |
1 | ||
| 87103-28110 |
URJ150 2 SEAT PACKAGE |
1 | ||
| 87103-28111 |
URJ150 2 SEAT PACKAGE |
1 | ||
| 87103-28111 |
URJ150 |
1 | ||
| 87107B - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-60420 |
URJ150 2 SEAT PACKAGE |
1 | ||
| 87107-60420 |
URJ150 |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-28020 |
URJ150 |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-28360 |
URJ150 |
1 | ||
| 88501-28360 |
URJ150 2 SEAT PACKAGE |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-60220 |
URJ150 |
1 | ||
| 88515-60220 |
URJ150 2 SEAT PACKAGE |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-60290 |
URJ150 |
1 | ||
| 88539-60290 |
URJ150 2 SEAT PACKAGE |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-60450 |
URJ150 2 SEAT PACKAGE |
1 | ||
| 88578-60450 |
URJ150 |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-60510 |
URJ150 2 SEAT PACKAGE |
1 | ||
| 88578-60510 |
URJ150 |
1 | ||
| 88688Z - BRACKET | ||||
| 88688-6B230 |
URJ150 2 SEAT PACKAGE |
1 | ||
| 88688-6B230 |
URJ150 |
1 | ||
| 88840B - ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88840-60161 |
URJ150 |
1 | ||
| 88840-60161 |
URJ150 2 SEAT PACKAGE |
1 | ||
| 88840-60160 |
URJ150 2 SEAT PACKAGE |
1 | ||
| 88840-60160 |
URJ150 |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-20240 |
URJ150 2 SEAT PACKAGE |
1 | ||
| 88891-20240 |
URJ150 |
1 | ||
| 88892Q - PLATE, COOLER | ||||
| 88892-28020 |
URJ150 |
1 | ||
| 88892-28020 |
URJ150 2 SEAT PACKAGE |
1 | ||
| Common parts | ||||
| 87124-60240 | ||||
| 87452-60070 | ||||
| 88688-6B080 | ||||
| 88718-6B380 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90119-06833 | ||||
| 90119-06941 | ||||
| 90159-60008 | ||||
| 91553-80618 | ||||
| Linked diagrams | ||||
| 8716 | ||||

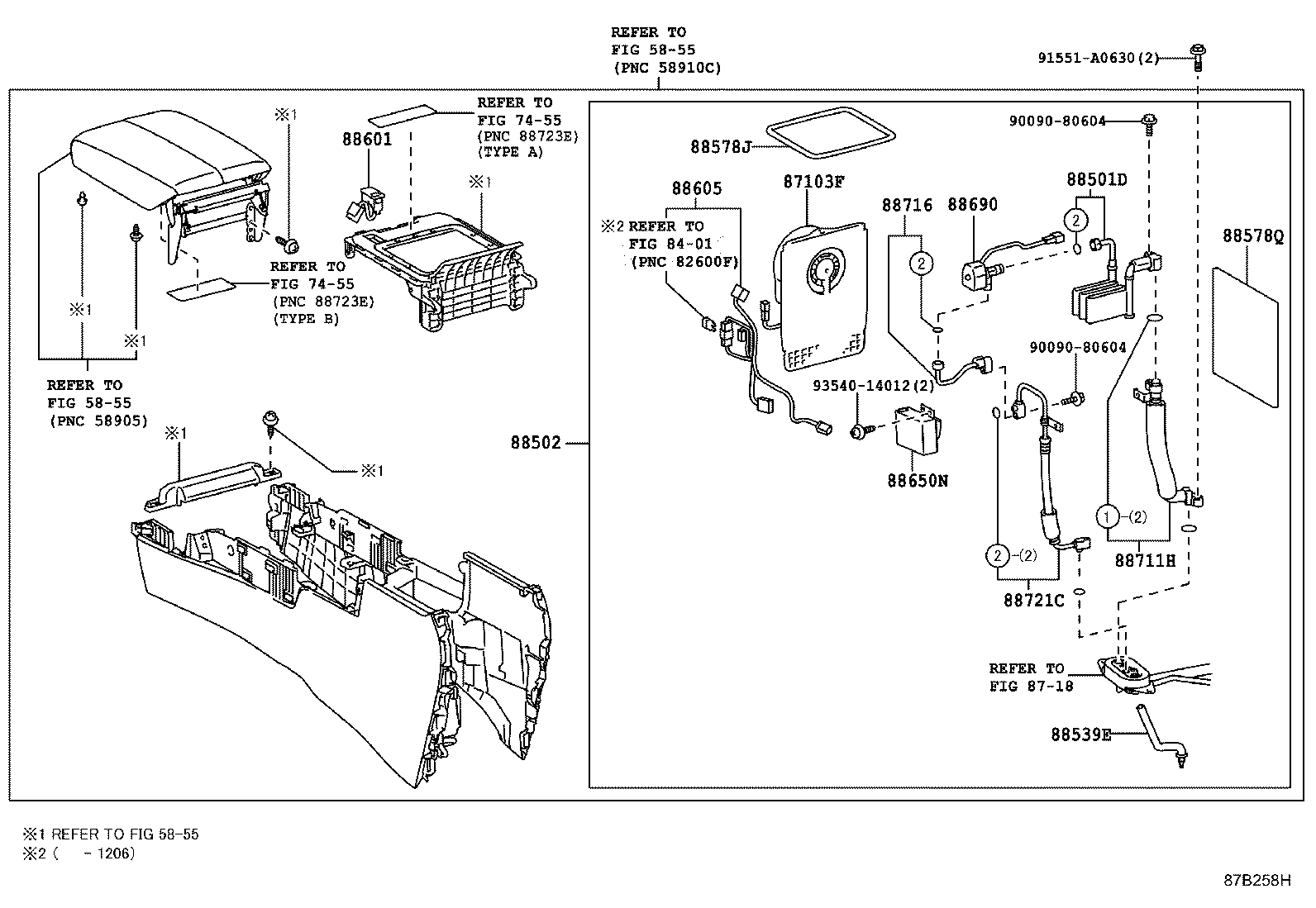

ILLUST NO. 3 OF 4(0911- )
COOL BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103F - MOTOR SUB-ASSY, BLOWER W/FAN(FOR COOL BOX) | ||||
| 87103-60460 |
URJ150 COOL BOX-WITH |
1 | ||
| 87103-60490 |
URJ150 COOL BOX-WITH |
1 | ||
| 88501D - EVAPORATOR SUB-ASSY, COOLER, NO.2 | ||||
| 88501-60440 |
URJ150 COOL BOX-WITH |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88530-60030 |
URJ150 COOL BOX-WITH |
1 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-60360 |
URJ150 COOL BOX-WITH |
1 | ||
| 88578J - PACKING, COOL BOX, NO.1 | ||||
| 88578-60230 |
URJ150 COOL BOX-WITH |
1 | ||
| 88578-60520 |
URJ150 COOL BOX-WITH |
1 | ||
| 88578Q - PACKING, COOL BOX, NO.3 | ||||
| 88578-60250 |
URJ150 COOL BOX-WITH |
1 | ||
| 88601 - SWITCH SUB-ASSY, COOLER CONTROL | ||||
| 88601-60060 |
URJ150 COOL BOX-WITH |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-6A210 |
URJ150 COOL BOX-WITH |
1 | ||
| 88608-60010 |
URJ150 COOL BOX-WITH |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88950-60020 |
URJ150 COOL BOX-WITH |
1 | ||
| 88650-60G80 |
URJ150 COOL BOX-WITH |
1 | ||
| 88690 - VALVE ASSY, COOLER MAGNET | ||||
| 88690-60300 |
URJ150 COOL BOX-WITH |
1 | ||
| 88711H - HOSE, DISCHARGE | ||||
| 88720-60220 |
URJ150 COOL BOX-WITH |
1 | ||
| 88716 - TUBE, LIQUID | ||||
| 88716-6C460 |
URJ150 COOL BOX-WITH |
1 | ||
| 88721C - HOSE, LIQUID | ||||
| 88720-60230 |
URJ150 COOL BOX-WITH |
1 | ||
| Common parts | ||||
| 90090-80604 | ||||
| 91551-A0630 | ||||
| 93540-14012 | ||||
| Linked diagrams | ||||
| 5855 | ||||
| 7455 | ||||
| 8401 | ||||
| 8718 | ||||

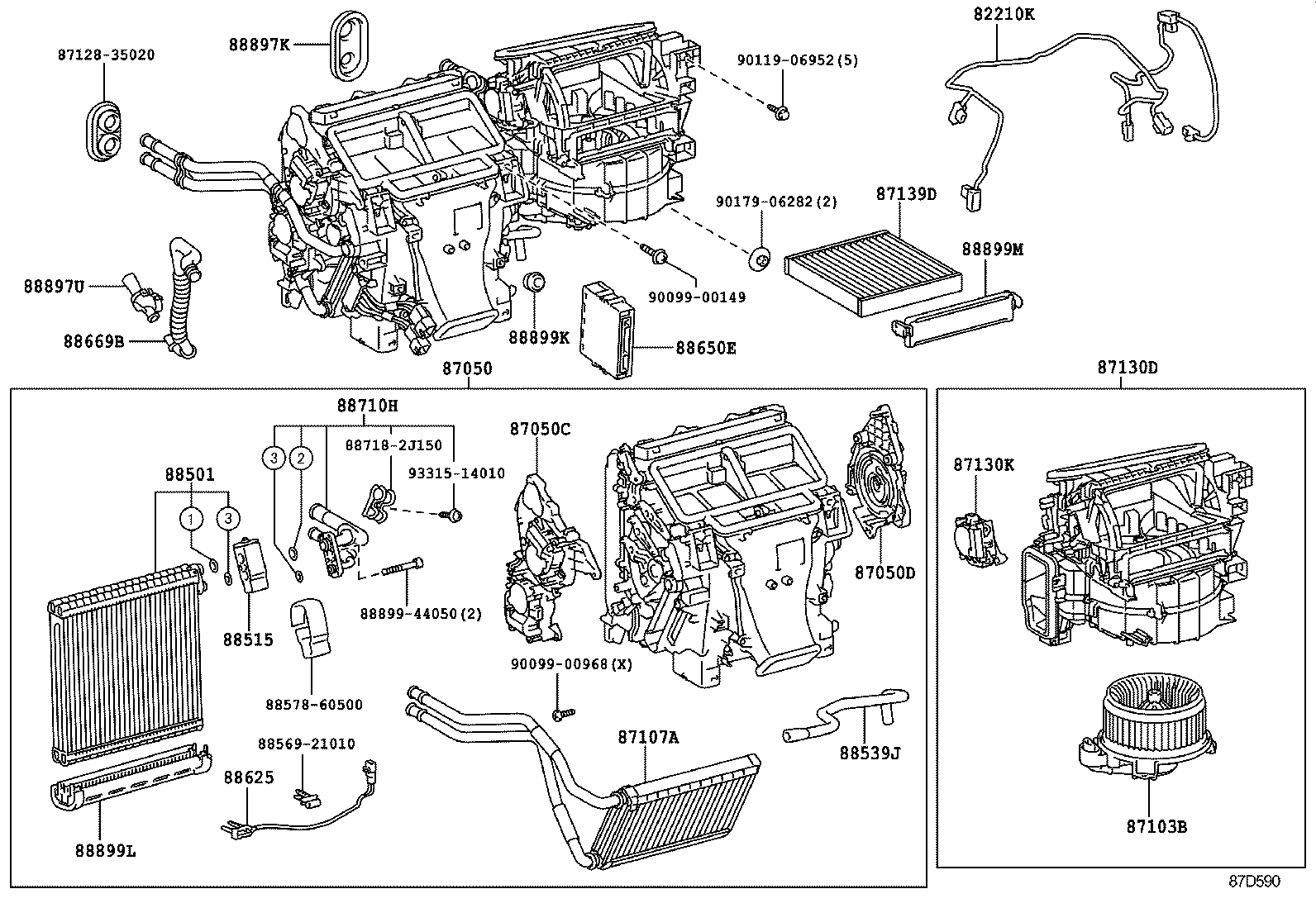

ILLUST NO. 1 OF 4(0911-2008)
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-60140 |
URJ150 |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-60550 |
URJ150 |
1 | ||
| 87050-60570 |
URJ150 2 SEAT PACKAGE |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-60220 |
URJ150 |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-60230 |
URJ150 |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-60400 |
URJ150 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-60430 |
URJ150 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-60610 |
URJ150 |
1 | ||
| 87130-60611 |
URJ150 |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-33270 |
URJ150 |
1 | ||
| 87139D - ELEMENT, AIR REFINER | ||||
| 87139-30040 |
URJ150 |
1 | ||
| 87139-50060 |
URJ150 DEODORANT FILTER |
1 | ||
| 87139-52040 |
URJ150 POLLEN FILTER |
1 | ||
| 87139-30040 |
URJ150 POLLEN FILTER |
1 | ||
| 87139-50100 |
URJ150 *DPF |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-60411 |
URJ150 |
1 | ||
| 88501-60410 |
URJ150 |
1 | ||
| 88501-60412 |
URJ150 |
1 | ||
| 88501-60420 |
URJ150 2 SEAT PACKAGE |
1 | ||
| 88501-60421 |
URJ150 2 SEAT PACKAGE |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-50190 |
URJ150 |
1 | ||
| 88515-60230 |
URJ150 2 SEAT PACKAGE |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-60340 |
URJ150 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-50020 |
URJ150 |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-60G72 |
URJ150 |
1 | ||
| 88650-60G70 |
URJ150 |
1 | ||
| 88650-60M90 |
URJ150 2 SEAT PACKAGE |
1 | ||
| 88650-60N00 |
URJ150 |
1 | ||
| 88650-60G71 |
URJ150 |
1 | ||
| 88650-60G62 |
URJ150 2 SEAT PACKAGE |
1 | ||
| 88669B - HOSE, COOLER AIR | ||||
| 88669-60070 |
URJ150 |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-60B70 |
URJ150 |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-35020 |
URJ150 |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-32090 |
URJ150 |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-3A010 |
URJ150 |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-60460 |
URJ150 |
1 | ||
| 88899-60440 |
URJ150 2 SEAT PACKAGE |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-33040 |
URJ150 |
1 | ||
| Common parts | ||||
| 87128-35020 | ||||
| 88569-21010 | ||||
| 88578-60500 | ||||
| 88718-2J150 | ||||
| 88899-44050 | ||||
| 90099-00149 | ||||
| 90099-00968 | ||||
| 90119-06952 | ||||
| 90179-06282 | ||||
| 93315-14010 | ||||
