URJ150L-GKTZKW (2009)
Toyota Lexus Gx460
Production
Nov 2009
-
Aug 2013
Engine
1URFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0911-1308)

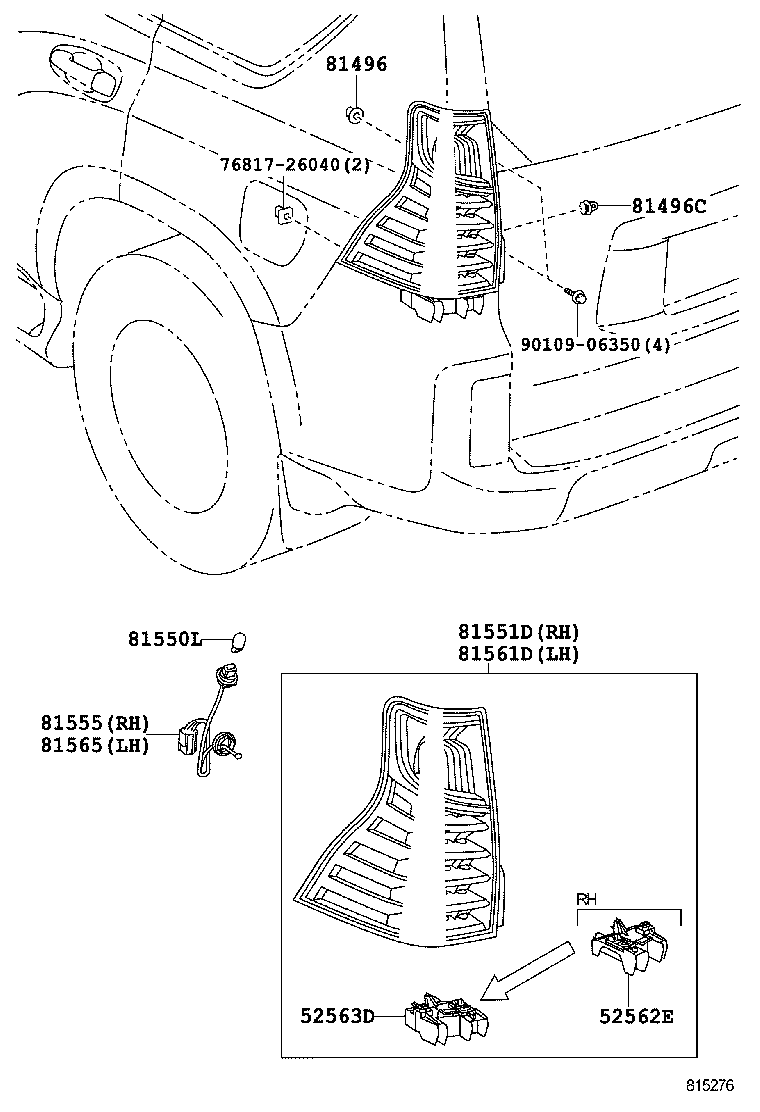

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52562E - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-60070 |
URJ150 |
1 | ||
| 52563D - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-60070 |
URJ150 |
1 | ||
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-52020 |
URJ150 |
2 | ||
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 81496-60010 |
URJ150 |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15011 |
URJ150 |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-60A11 |
URJ150 |
1 | ||
| 81551-60A10 |
URJ150 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-60A10 |
URJ150 |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-60851 |
URJ150 |
1 | ||
| 81561-60850 |
URJ150 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-60A10 |
URJ150 |
1 | ||
| Common parts | ||||
| 76817-26040 | ||||
| 90109-06350 | ||||
