URJ150L-GKTZKW (2009)
Toyota Lexus Gx460
Production
Nov 2009
-
Aug 2013
Engine
1URFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

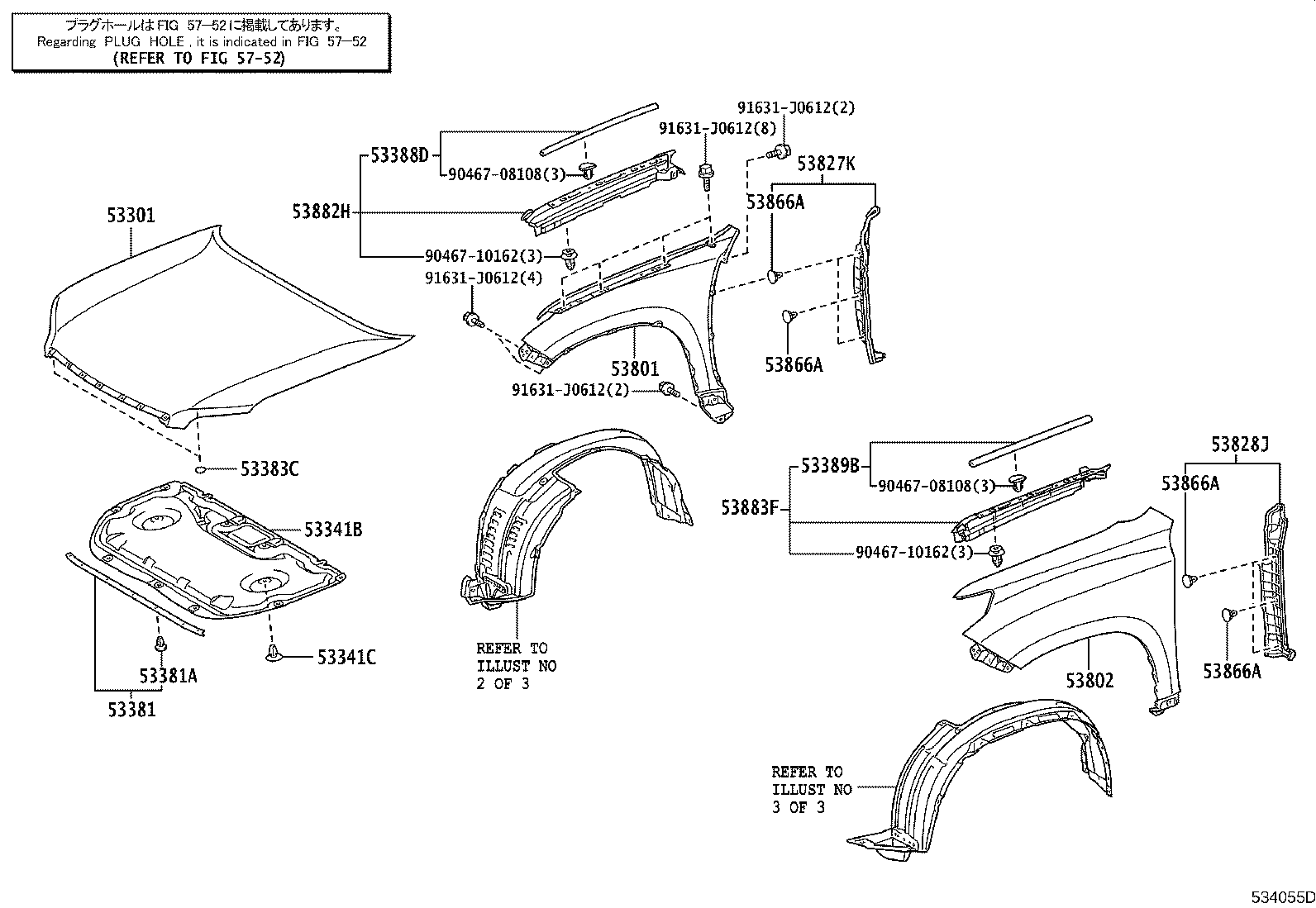

ILLUST NO. 1 OF 3(0911-1308)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-60640 |
URJ150 |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-60360 |
URJ150 |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
URJ150 |
11 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-60140 |
URJ150 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
URJ150 |
7 | ||
| 53383C - SEAL, HOOD TO COWL TOP | ||||
| 90950-06124 |
URJ150 |
2 | ||
| 53388D - SEAL, HOOD TO FRONT FENDER, RH | ||||
| 53388-60050 |
URJ150 |
1 | ||
| 53389B - SEAL, HOOD TO FRONT FENDER, LH | ||||
| 53388-60050 |
URJ150 |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-60C80 |
URJ150 |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-60C30 |
URJ150 |
1 | ||
| 53827K - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-60040 |
URJ150 |
1 | ||
| 53828J - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-60060 |
URJ150 |
1 | ||
| 53866A - CLIP(FOR FRONT FENDER TO COWL SIDE SEAL) | ||||
| 90467-06205C0 |
URJ150 BLACK |
6 | ||
| 53857-47011 |
URJ150 |
6 | ||
| 53866A - CLIP(FOR FRONT FENDER TO COWL SIDE SEAL) | ||||
| 90467-06205C0 |
URJ150 BLACK |
6 | ||
| 53857-47011 |
URJ150 |
6 | ||
| 53866A - CLIP(FOR FRONT FENDER TO COWL SIDE SEAL) | ||||
| 90467-06205C0 |
URJ150 BLACK |
6 | ||
| 53857-47011 |
URJ150 |
6 | ||
| 53866A - CLIP(FOR FRONT FENDER TO COWL SIDE SEAL) | ||||
| 90467-06205C0 |
URJ150 BLACK |
6 | ||
| 53857-47011 |
URJ150 |
6 | ||
| 53882H - SEAL, FRONT FENDER MAIN, RH | ||||
| 53807-60150 |
URJ150 |
1 | ||
| 53883F - SEAL, FRONT FENDER MAIN, LH | ||||
| 53808-60100 |
URJ150 |
1 | ||
| Common parts | ||||
| 90467-08108 | ||||
| 90467-10162 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 5752 | ||||

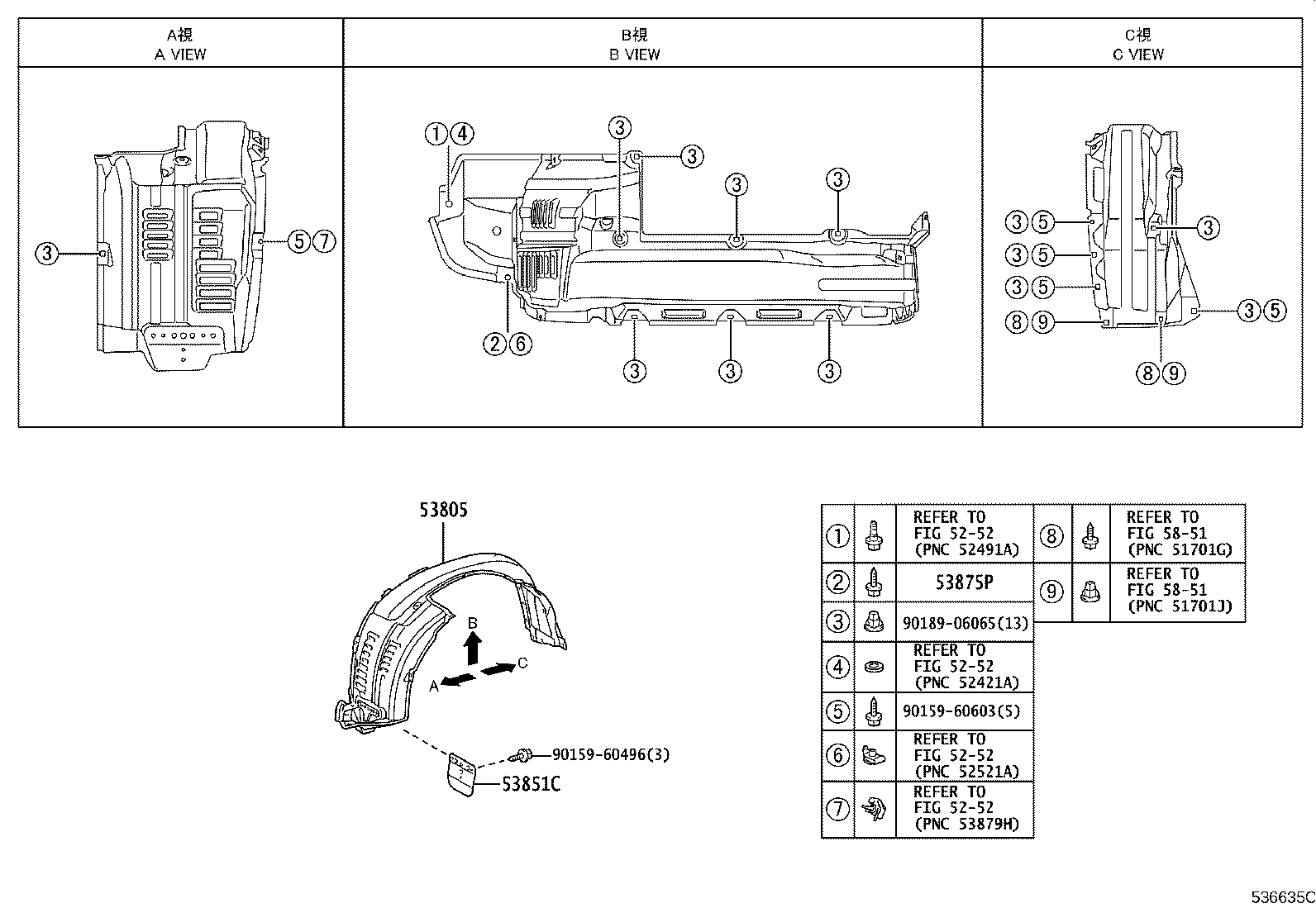

ILLUST NO. 2 OF 3(0911-1308)
Click highlighted areas on diagram
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53805 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH | ||||
| 53805-60050 |
URJ150 |
1 | ||
| 53851C - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53851-60200 |
URJ150 |
2 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60215 |
URJ150 |
2 | ||
| Common parts | ||||
| 90159-60496 | ||||
| 90159-60603 | ||||
| 90189-06065 | ||||
| Linked diagrams | ||||
| 5252 | ||||
| 5851 | ||||

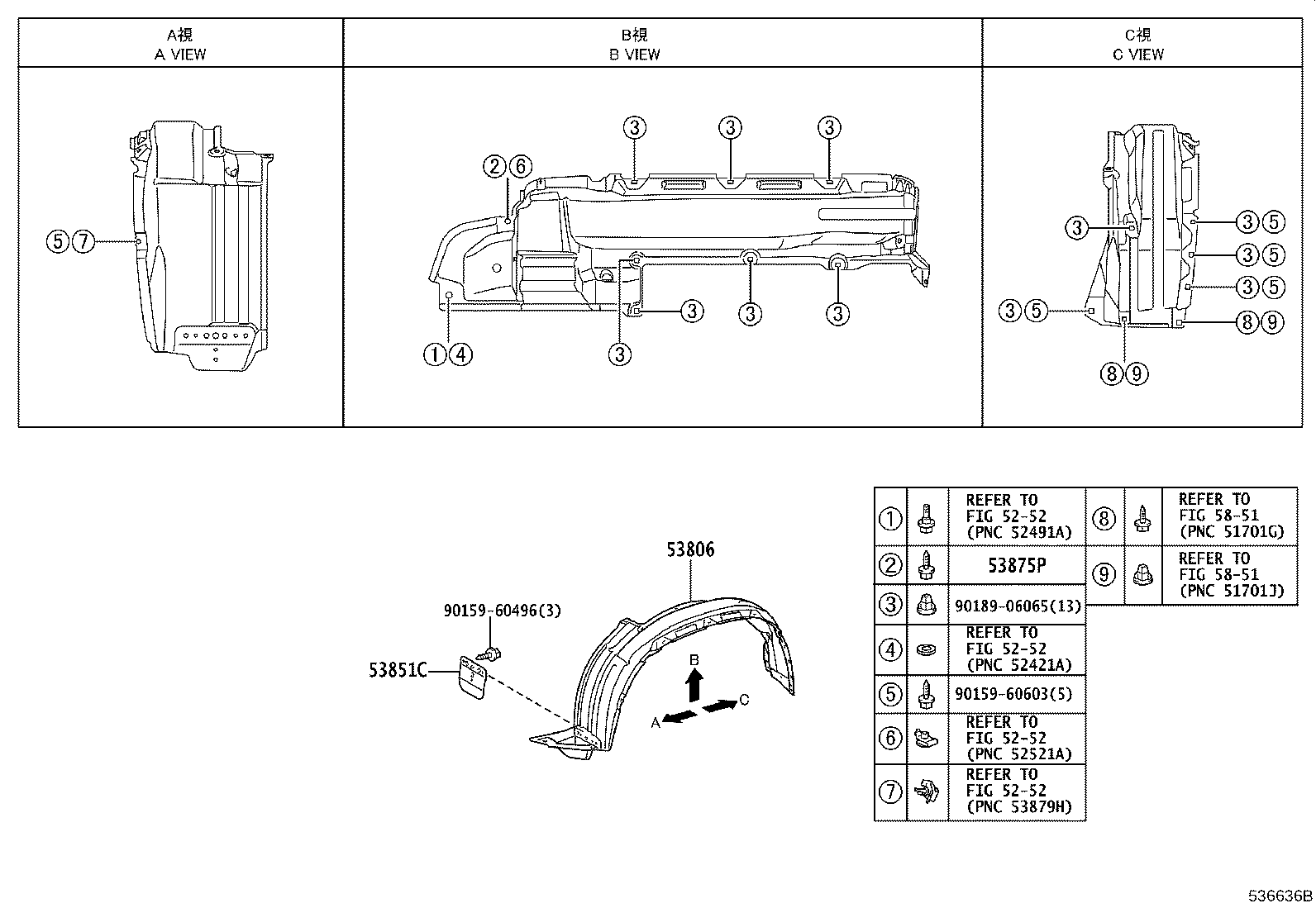

ILLUST NO. 3 OF 3(0911-1308)
Click highlighted areas on diagram
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53806 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH | ||||
| 53806-60050 |
URJ150 |
1 | ||
| 53851C - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53851-60200 |
URJ150 |
2 | ||
| 53875P - SCREW, NO.1 | ||||
| 90159-60215 |
URJ150 |
2 | ||
| Common parts | ||||
| 90159-60496 | ||||
| 90159-60603 | ||||
| 90189-06065 | ||||
| Linked diagrams | ||||
| 5252 | ||||
| 5851 | ||||
