URJ150L-GKTZKW (2009)

Toyota Lexus Gx460

Production Nov 2009 - Aug 2013
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0911- )

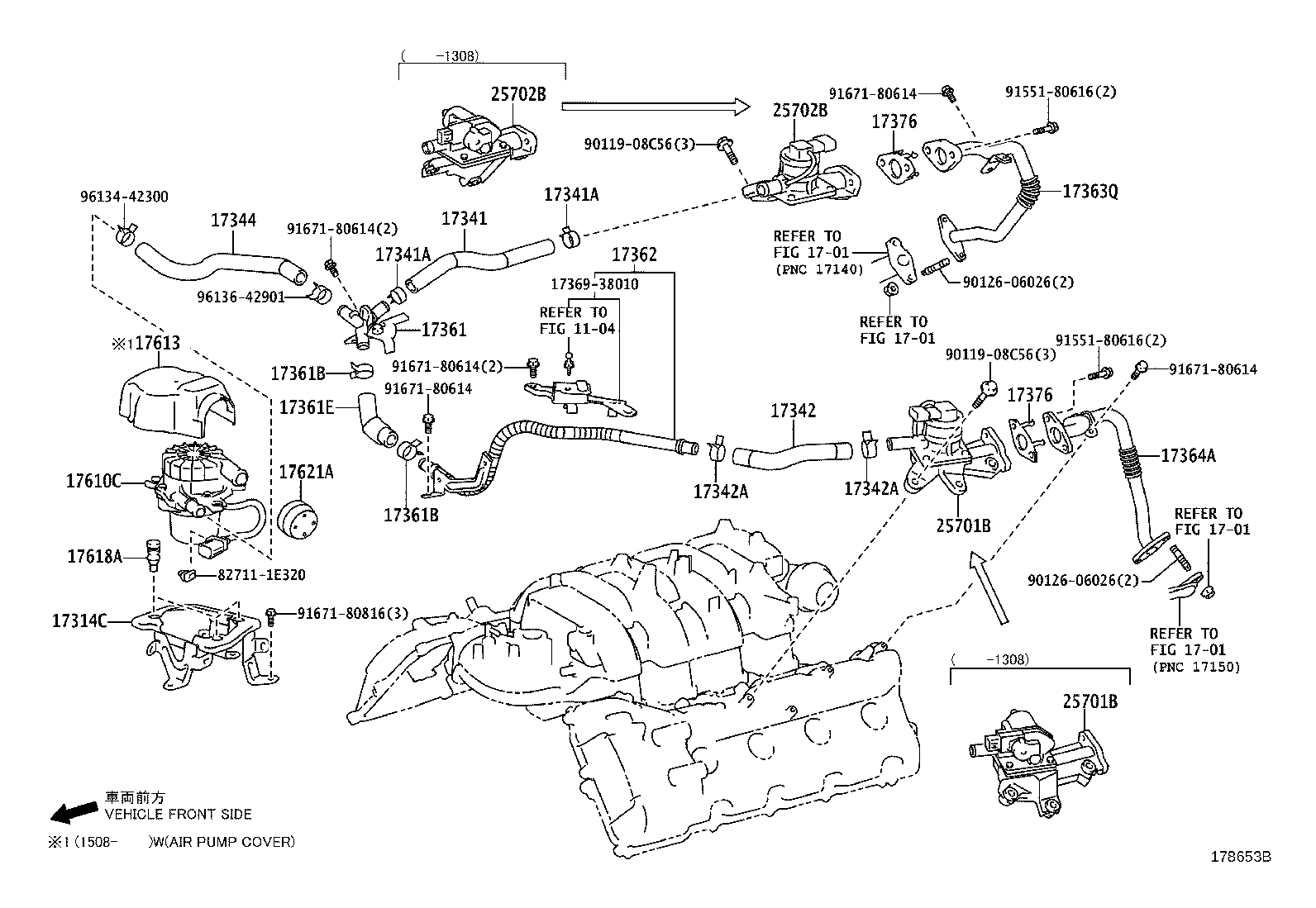

Click highlighted areas on diagram

diagram 1104 1701 1701 1701 1701 17314C 17341 17341A 17341A 17342 17342A 17342A 17344 17361 17361B 17361B 17361E 17362 17363Q 17364A 1736938010 17376 17376 17610C 17613 17618A 17621A 25701B 25701B 25702B 25702B 827111E320 9011908C56 9011908C56 9012606026 9012606026 9155180616 9155180616 9167180614 9167180614 9167180614 9167180614 9167180614 9167180816 9613442300 9613642901
Part # Description Qty Price
17314C - BRACKET, AIR PUMP
17314-0W031

1URFE..URJ150

 1
17314-0W030

1URFE..URJ150

 1
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-38110

1URFE..URJ150

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90466-26002

1URFE..URJ150

 2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90466-26002

1URFE..URJ150

 2
17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM)
17342-38070

1URFE..URJ150

 1
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90466-26002

1URFE..URJ150

 2
17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2
90466-26002

1URFE..URJ150

 2
17344 - HOSE, NO.4(FOR AIR INJECTION SYSTEM)
17341-38120

1URFE..URJ150

 1
17361 - TUBE, AIR
17361-38020

1URFE..URJ150

 1
17361B - CLAMP OR CLIP(FOR AIR TUBE HOSE)
90466-26002

1URFE..URJ150

 2
17361B - CLAMP OR CLIP(FOR AIR TUBE HOSE)
90466-26002

1URFE..URJ150

 2
17361E - HOSE, NO.3(FOR AIR TUBE)
17343-38060

1URFE..URJ150

 1
17362 - TUBE, AIR, NO.2
17362-38030

1URFE..URJ150

 1
17363Q - TUBE, AIR, NO.3
17363-38020

1URFE..URJ150

 1
17364A - TUBE, AIR NO.4
17364-38010

1URFE..URJ150

 1
17376 - GASKET, AIR TUBE, NO.1
17376-38030

1URFE..URJ150

 2
17376 - GASKET, AIR TUBE, NO.1
17376-38030

1URFE..URJ150

 2
17610C - PUMP ASSY, AIR
17610-0C040

1URFE..URJ150

 1
17618A - INSULATOR, AIR PUMP
17618-0C010

1URFE..URJ150

 3
17621A - INLET, AIR PUMP
17621-0C010

1URFE..URJ150

 1
25701B - VALVE SET, EMISSION CONTROL, NO.1
25702-38050

1URFE..URJ150

 1
25701B - VALVE SET, EMISSION CONTROL, NO.1
25702-38050

1URFE..URJ150

 1
25702B - VALVE SET, EMISSION CONTROL, NO.2
25701-38100

1URFE..URJ150

 1
25702B - VALVE SET, EMISSION CONTROL, NO.2
25701-38100

1URFE..URJ150

 1
Common parts
17369-38010
82711-1E320
90119-08C56
90126-06026
91551-80616
91671-80614
91671-80816
96134-42300
96136-42901
Linked diagrams
1104
1701
