URJ150L-GKTZKW (2013)
Toyota Lexus Gx460
Production
Aug 2013
-
Aug 2019
Engine
1URFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1308-1701)

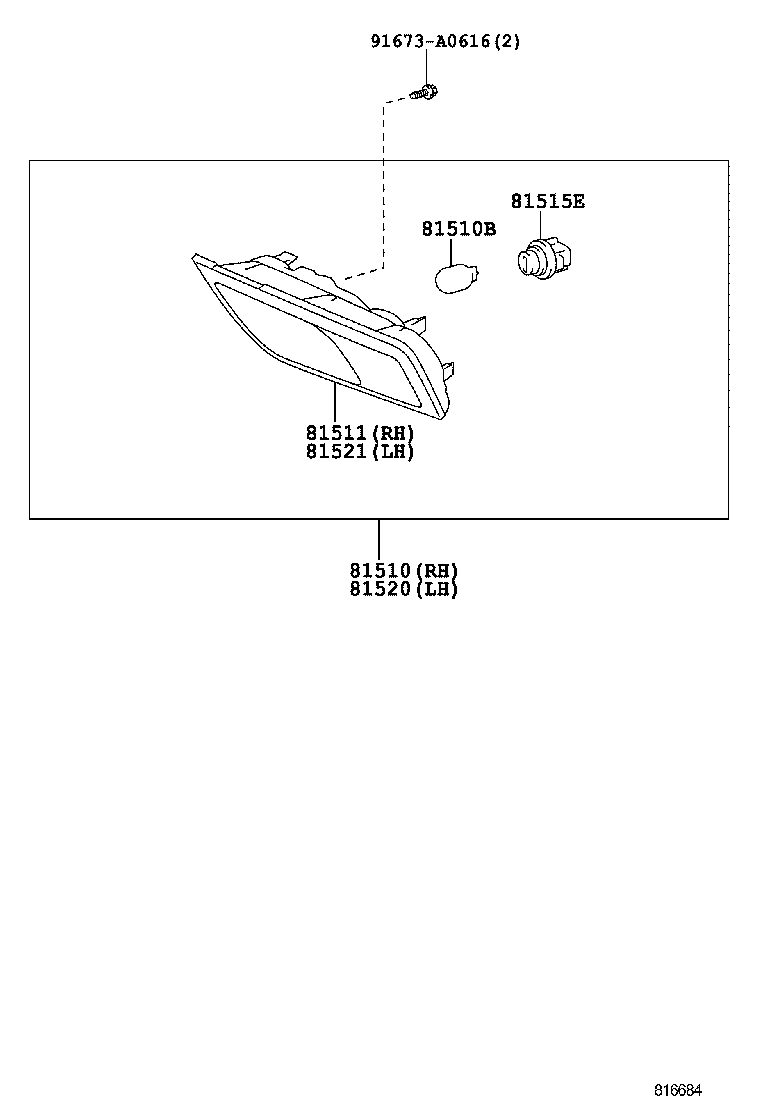

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-60590 |
URJ150 |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
URJ150 12V 21W,AMBER |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-60591 |
URJ150 |
1 | ||
| 81511-60590 |
URJ150 |
1 | ||
| 81515E - SOCKET PLUG ASSY | ||||
| 90075-60028 |
URJ150 |
2 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-60460 |
URJ150 |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-60460 |
URJ150 |
1 | ||
| 81521-60461 |
URJ150 |
1 | ||
| Common parts | ||||
| 91673-A0616 | ||||
(1701- )

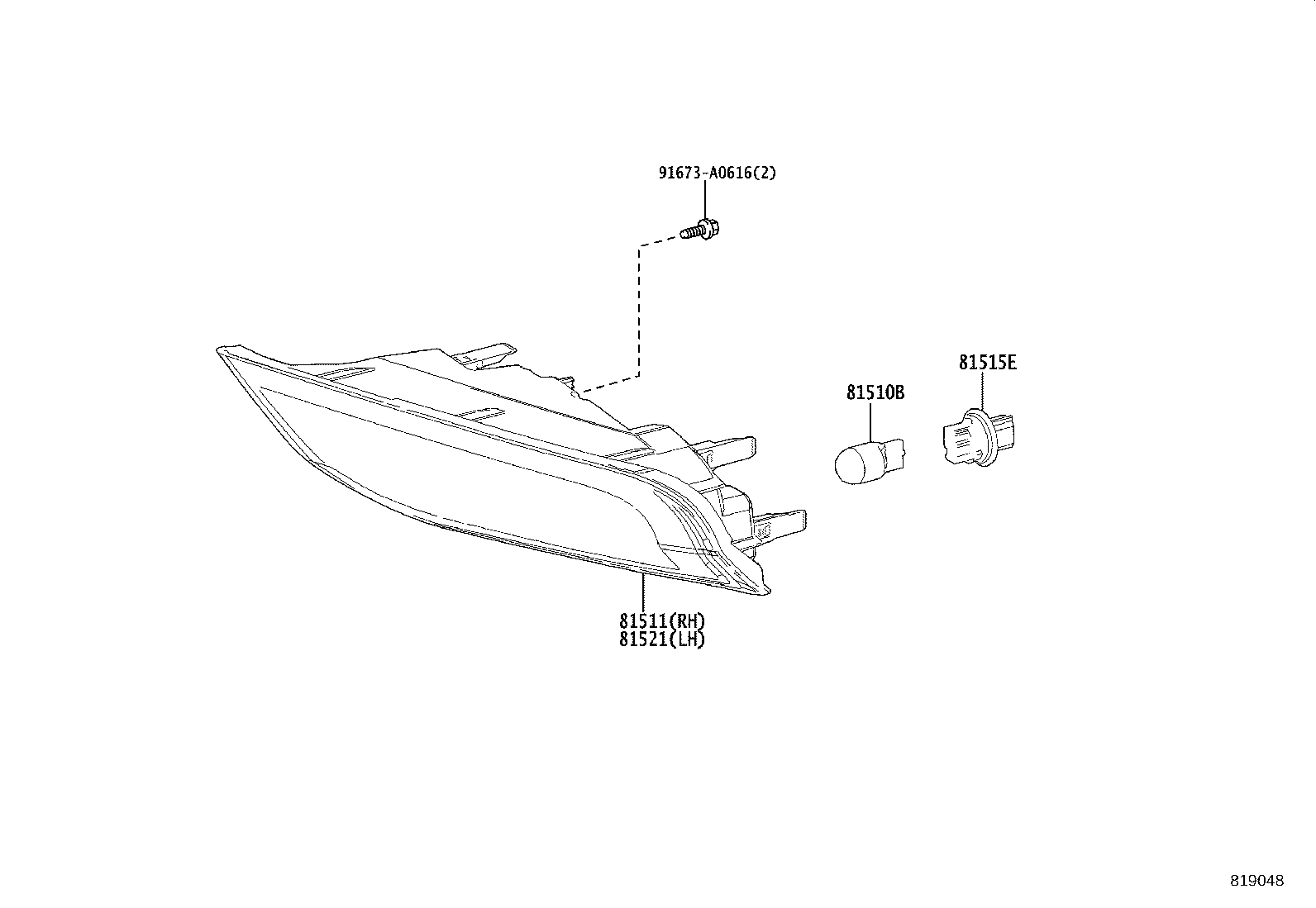

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
URJ150 12V 21W,AMBER |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-60591 |
URJ150 |
1 | ||
| 81511-60590 |
URJ150 |
1 | ||
| 81515E - SOCKET PLUG ASSY | ||||
| 90075-60028 |
URJ150 |
2 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-60460 |
URJ150 |
1 | ||
| 81521-60461 |
URJ150 |
1 | ||
| Common parts | ||||
| 91673-A0616 | ||||
