URJ150L-GKTZKW (2013)
Toyota Lexus Gx460
(1308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58371F - COVER, REAR FLOOR STEP, NO.1 | ||||
| 58371-60241C0 |
URJ150 BLACK,TRIM2# |
4 | ||
| 58371-60241E0 |
URJ150 SEPIA,TRIM0#,4# |
4 | ||
| 58371F - COVER, REAR FLOOR STEP, NO.1 | ||||
| 58371-60241C0 |
URJ150 BLACK,TRIM2# |
4 | ||
| 58371-60241E0 |
URJ150 SEPIA,TRIM0#,4# |
4 | ||
| 58410R - BOARD ASSY, DECK | ||||
| 58410-60010C1 |
URJ150 BLACK,TRIM2# |
1 | ||
| 58410-60010E0 |
URJ150 SEPIA,TRIM0#,4# |
1 | ||
| 58410-60011C1 |
URJ150 BLACK,TRIM2# |
1 | ||
| 58410-60011E0 |
URJ150 SEPIA,TRIM0#,4# |
1 | ||
| 58410S - CLIP, DECK BOARD | ||||
| 90467-10167 |
URJ150 |
2 | ||
| 58410S - CLIP, DECK BOARD | ||||
| 90467-10167 |
URJ150 |
2 | ||
| 58416G - BRACKET, DECK BOARD, NO.1 RH | ||||
| 58458-60010 |
URJ150 |
1 | ||
| 58417 - BOARD, REAR FLOOR, NO.3 | ||||
| 58417-60041E1 |
URJ150 PACKAGE TRAY TRIM & TONEAU COVER-WITH(TONEAU COVER SLIDE TYPE),SEPIA,TRIM0#,4# |
1 | ||
| 58417-60021C0 |
URJ150 BLACK,TRIM2# |
1 | ||
| 58417-60041C1 |
URJ150 PACKAGE TRAY TRIM & TONEAU COVER-WITH(TONEAU COVER SLIDE TYPE),BLACK,TRIM2# |
1 | ||
| 58417-60021E0 |
URJ150 SEPIA,TRIM0#,4# |
1 | ||
| 58417D - BRACKET, DECK BOARD, NO.1 LH | ||||
| 58459-60010 |
URJ150 |
1 | ||
| 58418A - BOARD, REAR FLOOR, NO.4 | ||||
| 58418-60011C0 |
URJ150 BLACK,TRIM2# |
1 | ||
| 58418-60021C1 |
URJ150 PACKAGE TRAY TRIM & TONEAU COVER-WITH(TONEAU COVER SLIDE TYPE),BLACK,TRIM2# |
1 | ||
| 58418-60021E1 |
URJ150 PACKAGE TRAY TRIM & TONEAU COVER-WITH(TONEAU COVER SLIDE TYPE),SEPIA,TRIM0#,4# |
1 | ||
| 58418-60011E0 |
URJ150 SEPIA,TRIM0#,4# |
1 | ||
| 58435E - SILENCER, FRONT FLOOR, CENTER | ||||
| 58435-60040 |
URJ150 |
1 | ||
| 58439D - REINFORCEMENT, DECK BOARD BRACKET | ||||
| 58439-60010 |
URJ150 |
1 | ||
| 58449 - CLIP, DECK BOARD | ||||
| 90467-10188 |
URJ150 |
2 | ||
| 58510D - CARPET ASSY, FLOOR, FRONT | ||||
| 58510-60V00C0 |
URJ150 2 SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 58510-60V20E0 |
URJ150 COOL & HOT BOX-WITH,SEPIA,TRIM0#,4# |
1 | ||
| 58510-60V00E0 |
URJ150 2 SEAT PACKAGE,SEPIA,TRIM0#,4# |
1 | ||
| 58510-60V10C0 |
URJ150 BLACK,TRIM2# |
1 | ||
| 58510-60V20C0 |
URJ150 COOL & HOT BOX-WITH,BLACK,TRIM2# |
1 | ||
| 58510-60V10E0 |
URJ150 SEPIA,TRIM0#,4# |
1 | ||
| 58533A - COVER, FLOOR CARPET, CENTER RH | ||||
| 58533-60062E0 |
URJ150 COOL & HOT BOX-WITH,SEPIA,TRIM0#,4# |
1 | ||
| 58533-60062C0 |
URJ150 COOL & HOT BOX-WITH,BLACK,TRIM2# |
1 | ||
| 58564H - CLIP(FOR REAR FLOOR CARPET) | ||||
| 90467-09206 |
URJ150 |
5 | ||
| 58574A - PLATE, REAR FLOOR MAT SUPPORT, REAR | ||||
| 58574-60120E0 |
URJ150 2 SEAT PACKAGE,SEPIA,TRIM0#,4# |
1 | ||
| 58574-60130C0 |
URJ150 BLACK,TRIM2# |
1 | ||
| 58574-60120C0 |
URJ150 2 SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 58574-60130E0 |
URJ150 SEPIA,TRIM0#,4# |
1 | ||
| 58624C - PAD, CENTER FLOOR SILENCER, RH | ||||
| 58624-60150 |
URJ150 |
1 | ||
| 58624-60160 |
URJ150 |
1 | ||
| 58625C - PAD, CENTER FLOOR SILENCER, LH | ||||
| 58625-60060 |
URJ150 |
1 | ||
| 58625-60070 |
URJ150 |
1 | ||
| 58694A - PLATE, MAT SET, UPPER | ||||
| 58694-76010 |
URJ150 |
4 | ||
| 58698B - PLATE, MAT SET, LOWER | ||||
| 58698-76010 |
URJ150 |
4 | ||
| 66310D - HOOK ASSY, ROPE | ||||
| 66310-30011C1 |
URJ150 BLACK,TRIM2# |
2 | ||
| 66310-30011E2 |
URJ150 SEPIA,TRIM0#,4# |
2 | ||
| 66310-30011C0 |
URJ150 BLACK,TRIM2# |
2 | ||
| 67933 - PLATE, QUARTER SCUFF, INNER RH | ||||
| 67933-60023E0 |
URJ150 SEPIA,TRIM0#,4# |
1 | ||
| 67933-60023C0 |
URJ150 BLACK,TRIM2# |
1 | ||
| 67934 - PLATE, QUARTER SCUFF, INSIDE LH | ||||
| 67934-60023E0 |
URJ150 SEPIA,TRIM0#,4# |
1 | ||
| 67934-60023C0 |
URJ150 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-06897 | ||||
| 90119-06951 | ||||
| 90168-40093 | ||||
| 90467-07117 | ||||
| 90467-10161 | ||||
| 91621-40616 | ||||
| Linked diagrams | ||||
| 6451 | ||||
(1308- )

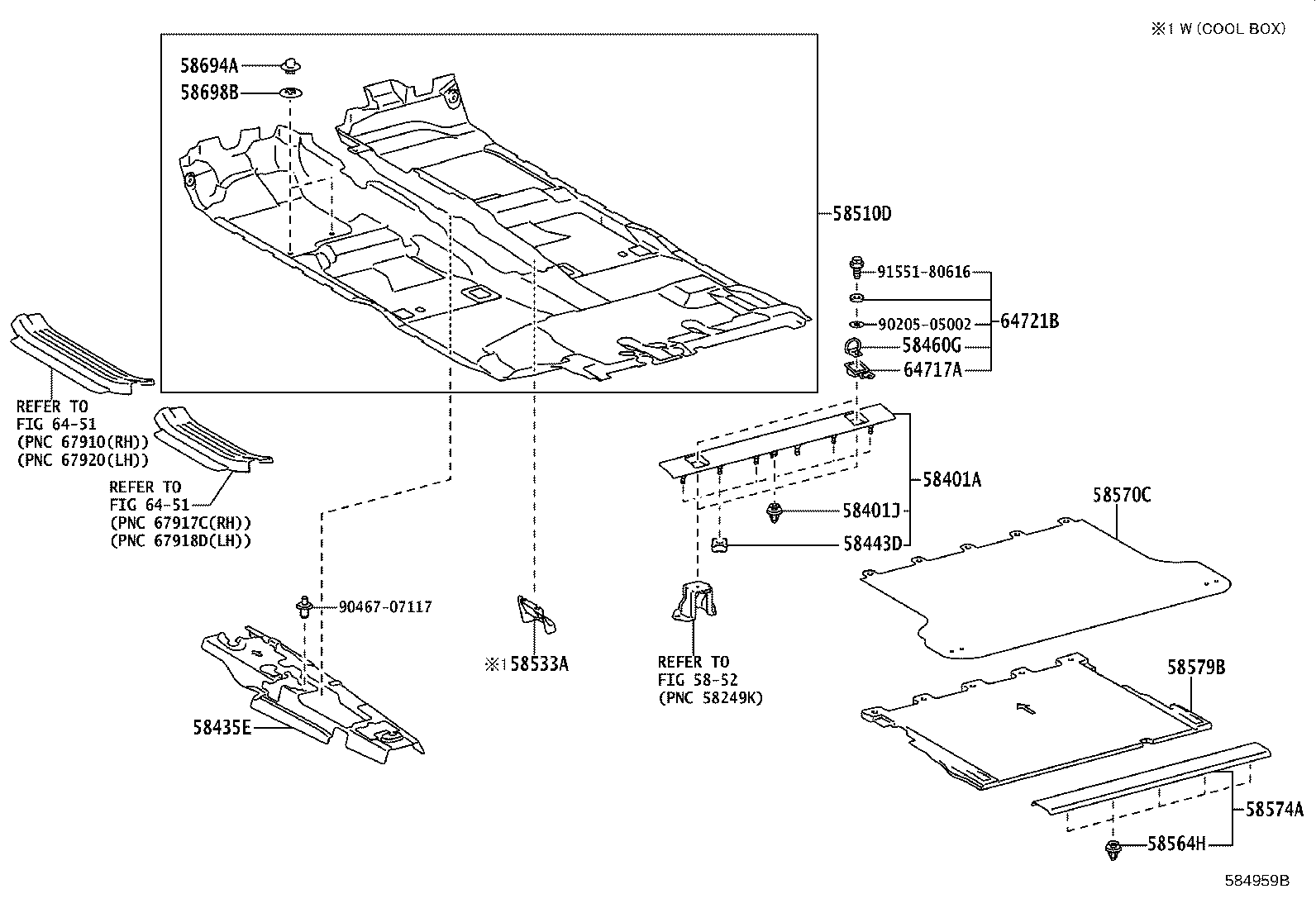

2 SEAT PACKAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58401A - BOARD SUB-ASSY, DECK, NO.1 | ||||
| 58401-60021E1 |
URJ150 2 SEAT PACKAGE,SEPIA,TRIM0#,4# |
1 | ||
| 58401-60020E1 |
URJ150 2 SEAT PACKAGE,SEPIA,TRIM0#,4# |
1 | ||
| 58401-60021C1 |
URJ150 2 SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 58401-60020C1 |
URJ150 2 SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 58401J - CLIP(FOR DECK BOAD) | ||||
| 90467-07210C0 |
URJ150 2 SEAT PACKAGE,BLACK |
1 | ||
| 58435E - SILENCER, FRONT FLOOR, CENTER | ||||
| 58435-60040 |
URJ150 |
1 | ||
| 58443D - CUSHION, DECK BOARD, NO.1 | ||||
| 58443-35020 |
URJ150 2 SEAT PACKAGE |
5 | ||
| 58460G - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33010 |
URJ150 2 SEAT PACKAGE |
2 | ||
| 58510D - CARPET ASSY, FLOOR, FRONT | ||||
| 58510-60V00C0 |
URJ150 2 SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 58510-60V20E0 |
URJ150 COOL & HOT BOX-WITH,SEPIA,TRIM0#,4# |
1 | ||
| 58510-60V00E0 |
URJ150 2 SEAT PACKAGE,SEPIA,TRIM0#,4# |
1 | ||
| 58510-60V10C0 |
URJ150 BLACK,TRIM2# |
1 | ||
| 58510-60V20C0 |
URJ150 COOL & HOT BOX-WITH,BLACK,TRIM2# |
1 | ||
| 58510-60V10E0 |
URJ150 SEPIA,TRIM0#,4# |
1 | ||
| 58533A - COVER, FLOOR CARPET, CENTER RH | ||||
| 58533-60062E0 |
URJ150 COOL & HOT BOX-WITH,SEPIA,TRIM0#,4# |
1 | ||
| 58533-60062C0 |
URJ150 COOL & HOT BOX-WITH,BLACK,TRIM2# |
1 | ||
| 58564H - CLIP(FOR REAR FLOOR CARPET) | ||||
| 90467-09206 |
URJ150 |
5 | ||
| 58570C - CARPET ASSY, REAR FLOOR | ||||
| 58570-60C30C0 |
URJ150 2 SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 58570-60C30E0 |
URJ150 2 SEAT PACKAGE,SEPIA,TRIM0#,4# |
1 | ||
| 58574A - PLATE, REAR FLOOR MAT SUPPORT, REAR | ||||
| 58574-60120E0 |
URJ150 2 SEAT PACKAGE,SEPIA,TRIM0#,4# |
1 | ||
| 58574-60130C0 |
URJ150 BLACK,TRIM2# |
1 | ||
| 58574-60120C0 |
URJ150 2 SEAT PACKAGE,BLACK,TRIM2# |
1 | ||
| 58574-60130E0 |
URJ150 SEPIA,TRIM0#,4# |
1 | ||
| 58579B - PAD, REAR FLOOR | ||||
| 58579-60020 |
URJ150 2 SEAT PACKAGE |
1 | ||
| 58579-60010 |
URJ150 2 SEAT PACKAGE |
1 | ||
| 58694A - PLATE, MAT SET, UPPER | ||||
| 58694-76010 |
URJ150 |
4 | ||
| 58698B - PLATE, MAT SET, LOWER | ||||
| 58698-76010 |
URJ150 |
4 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64717-60030C0 |
URJ150 2 SEAT PACKAGE,BLACK,TRIM2# |
2 | ||
| 64717-60030E0 |
URJ150 2 SEAT PACKAGE,SEPIA,TRIM0#,4# |
2 | ||
| 64721B - COVER, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64721-60010C0 |
URJ150 2 SEAT PACKAGE,BLACK,TRIM2# |
2 | ||
| 64721-60010E0 |
URJ150 2 SEAT PACKAGE,SEPIA,TRIM0#,4# |
2 | ||
| Common parts | ||||
| 90205-05002 | ||||
| 90467-07117 | ||||
| 91551-80616 | ||||
| Linked diagrams | ||||
| 5852 | ||||
| 6451 | ||||
